Why you need safety push button coupling for air tools?

Views: 156     Author: Site Editor     Publish Time: 2020-04-01      Origin: Site

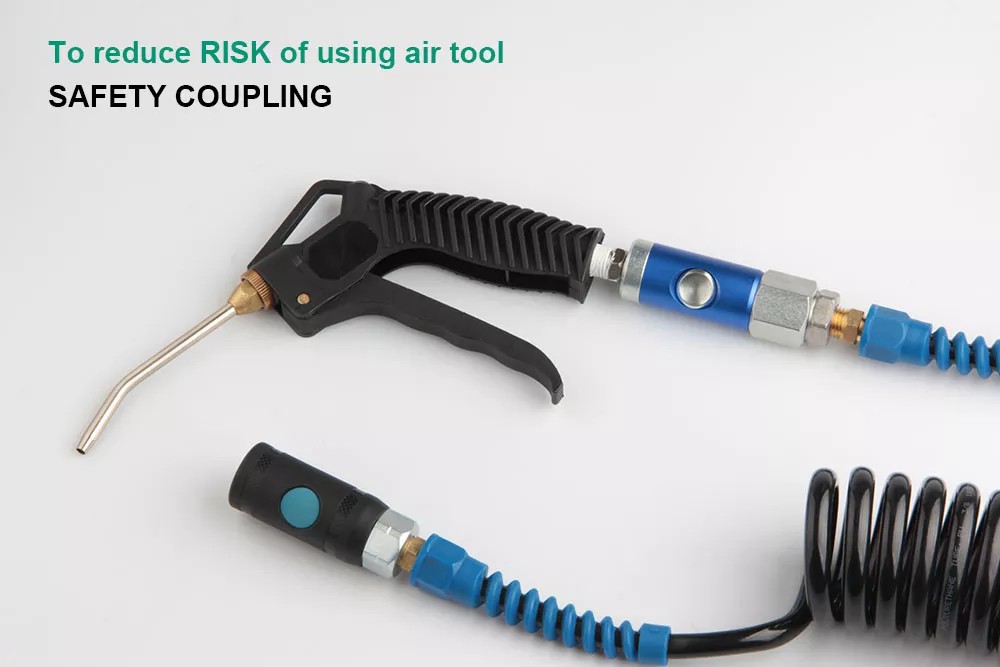

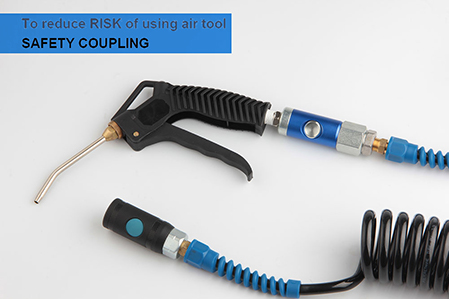

SAFETY COUPLING 22

Safety

Due to the dangers associated with hose whips, coupling connections are subject to Health and Safety regulations (OHSA).

The Health & Safety Guide HS(G)39 recommends that the connector should have a self-exhaust coupling for all hoses above 10 mm bore, more than 10 m long, or subject to a pressure exceeding 7 bar.


If an air hose is more than ½-inch (12.7 millimeters) in diameter, a safety excess flow valve must be installed at the air supply source to reduce pressure in case of hose failure.

Alternatively, workers should use an adaptor with an exhaust function.

Using a self-vent safety coupling ensures that pressure in the circuit is reduced to a safe level before people can disconnect the coupling and adaptor;

this prevents accidental tool operation and uncontrolled whipping of the hose.

Not only does this enhance workplace safety by protecting users from the severe injuries caused by hose whips, but companies can benefit from increased uptime and fewer repair or replacement expenses.


Convinience

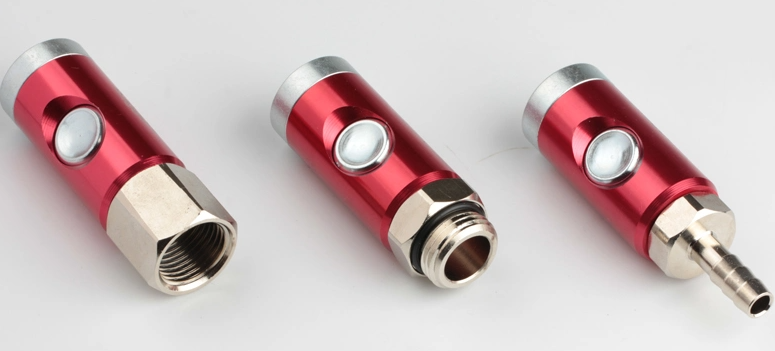

People can use the push button in narrow places and wear thick gloves to operate it with one hand.

Features
Be used for connecting and disconnecting, and its max inlet pressure can reach 225 Psi. It complies with standards ISO 4414 and eliminates all leaks when coupled or uncoupled.

How to use
1 – Press the button once:
Instantaneous pressure relief

2 – Press the button twice:
instant disconnection



Our feature products:


Type-profile ISO 6150 B12

>See the selection

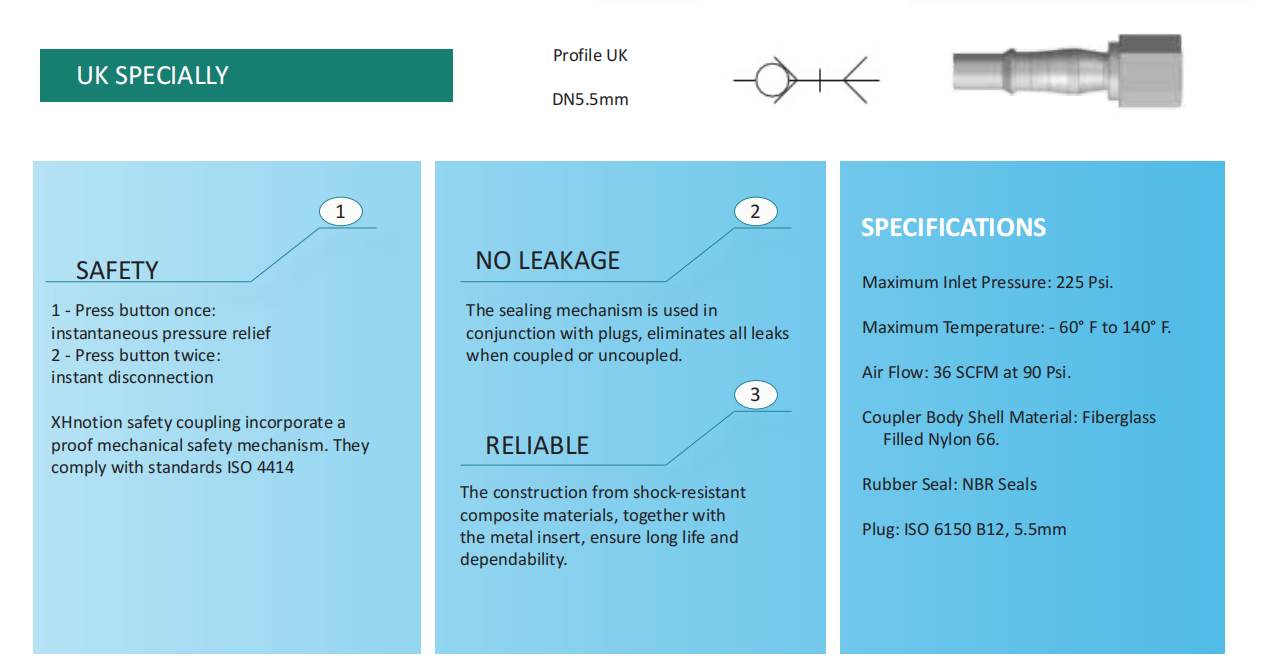

Type-profile UK DN 5.5mm

>See the selection






Type-profile EU DN 7.5mm

>See the selection






Type-profile ARO

1. We make Euro Universal coupler, Germany coupler, Italy coupler, UK coupler, Israel coupler etc.
2. Target market: Europe, South America, Middle East.
3. Material: Steel, Brass, Stainless Steel.
4. Various surface coating: Chrome plated, Nickel plated, Copper color etc.
5. Proven and positive connection using ball-locking mechanism.
6. Used for air tools and air compressors.
