Availability: | |
---|---|
Quantity: | |

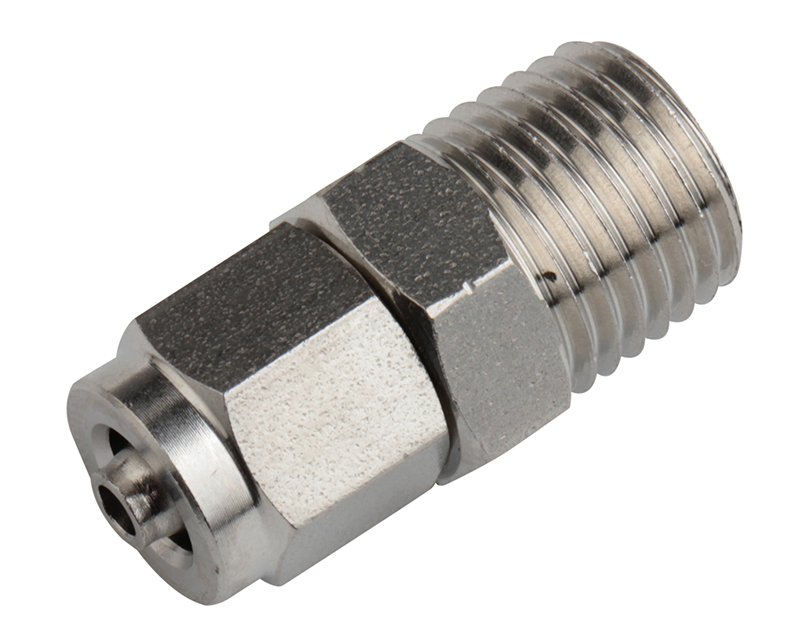

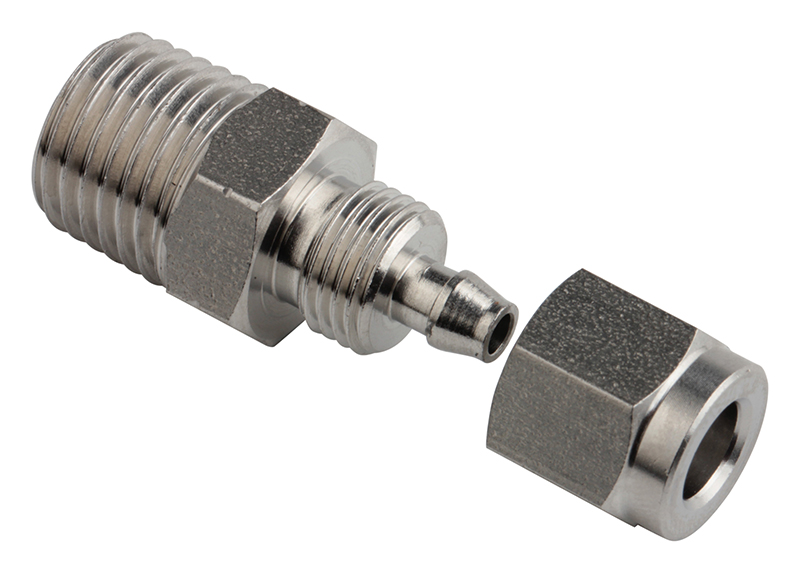

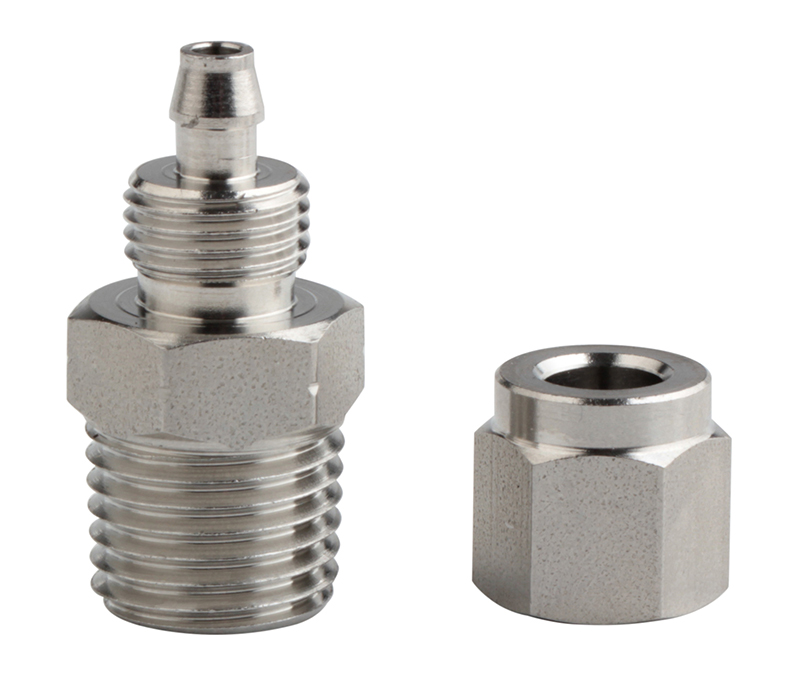

SSRPC 8-02SS
XHNOTION
L/C, T/T, D/P, Western Union, Paypal, Money Gram
Ningbo, China
10000 PCS Per Day
PLASTIC BAG AND CARTON
RPC 8-02SS
1/8, 1/4, 3/8, 1/2
XHnotion
Plastic Bag
ROHS, REACH, CE
China
74031110
DIN, GB
Stainless Steel
Male
Without Treatment
Hexagon
4-16mm
FEATURES
1. Fluid Type: compressed air (For other fluid, please contact us).
2. Working Pressure: -0.8~15 bar.
3. Application Tube: PU, PE, PA tubes.
4. Working Temperature: -10~60ºC.
MATERIAL CONSTRUCTION
Metal Stainless Steel
Release Button Stainless Steel
Thread Sealant Teflon
O-Ring NBR or Viton
SPECIFICATIONS
Operating Pressure -0.8~15 bar.
Operating Temperature -10~60ºC.
Application Air, water
Recommended Tubing Material
Polyurethane, Nylon, Polyethylene, and Polypropylene
Types Straight, Elbow, Tee, X, Y, etc.
Capacity Over 1000000pcs/month
Marketing Area All over the world
FITTINGS ADVANTAGE
1) Raw Material is HPB 59-1, conforms to country standard.
2) High precision automatic lathe to make the claws not hurt tube surface.
3) 5% tested by water at 10 bar, 100% tested by air and appearance test.
4) Easy to push in and put out on the basis of working pressure assured
5) 1 year quality assurance after shipment.
6) Custom fitting as your drawing or we make drawing as your sample.
