SS316L Stainless Steel (SSRPL) Male Elbow Push on Fittings AISI316 Quick Rapid Screw Connector Bite Type Fittings

Port: Ningbo, ChinaProduction Capacity: 10000 PCS Per DayPayment Terms: L/C, T/T, D/P, Western Union, Paypal, Money GramModel NO.: SSRPL Thread Size: 1/8, 1/4, 3/8, 1/2Trademark: XHnotionTransport Package: Plastic BagSpecification: ROHS, REACH, CEOrigin: ChinaHS Code: 74031110Standard: DIN, GBMaterial: Stainless SteelConnection: MaleSurface Treatment: Without TreatmentHead Type: HexagonTube Size: 4-16mm
Availability:
Quantity:
  • SSRPL

  • XHNOTION

  • L/C, T/T, D/P, Western Union, Paypal, Money Gram

  • Ningbo, China

  • 10000 PCS Per Day

  • PLASTIC BAG AND CARTON

  • SSRPC

  • 1/8, 1/4, 3/8, 1/2

  • XHnotion

  • Plastic Bag

  • ROHS, REACH, CE

  • China

  • 74031110

  • DIN, GB

  • Stainless Steel

  • Male

  • Without Treatment

  • Hexagon

  • 4-16mm

Product Description

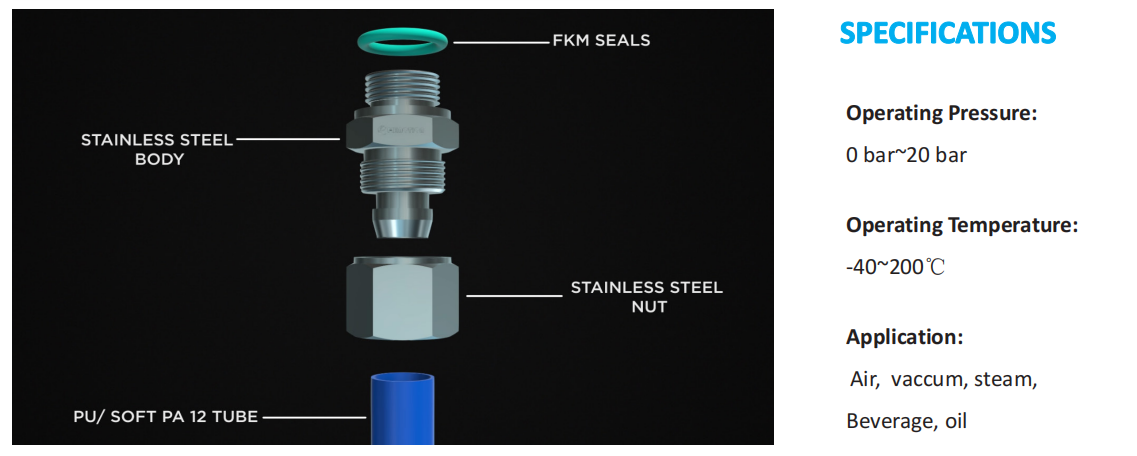

ssr 上半

FEATURES

1. Fluid Type: compressed air (For other fluid, please contact us).
2. Working Pressure: -0.8~15 bar.
3. Application Tube: PU, PE, PA tubes.
4. Working Temperature: -10~60ºC.


MATERIAL CONSTRUCTION

Metal   Stainless Steel
Release Button  Stainless Steel
Thread  Sealant Teflon
O-Ring      NBR or Viton

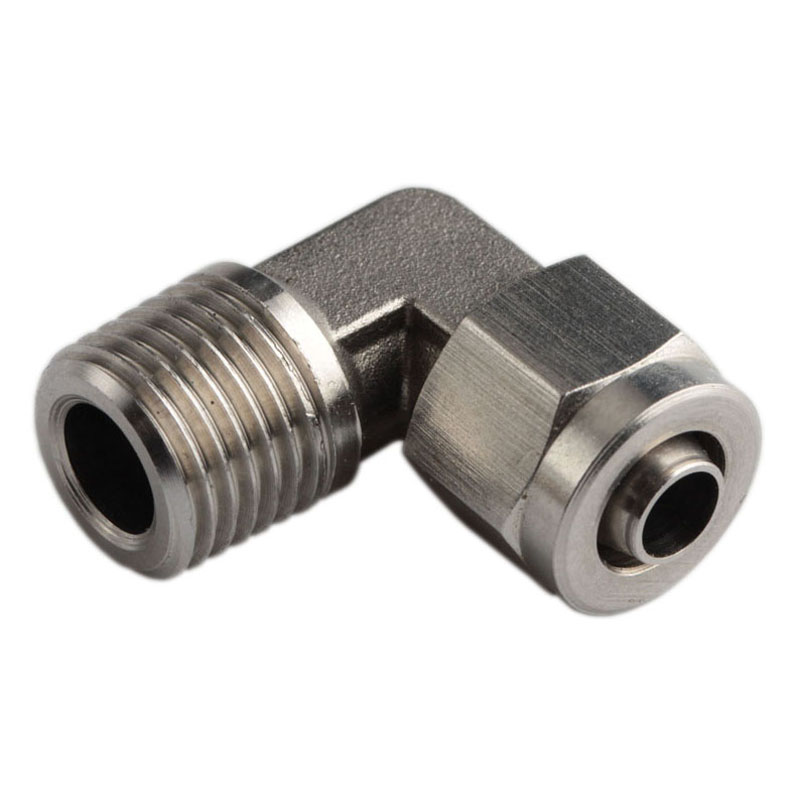

elbow 2 (6)

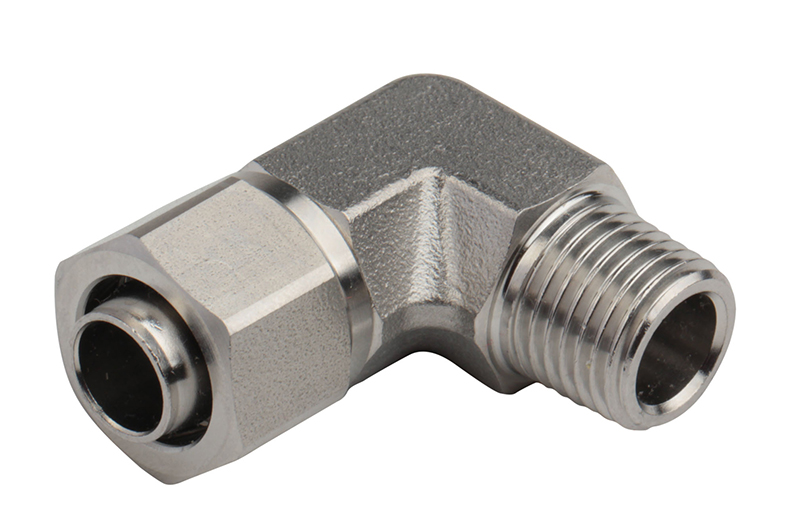

elbow 1 (2)

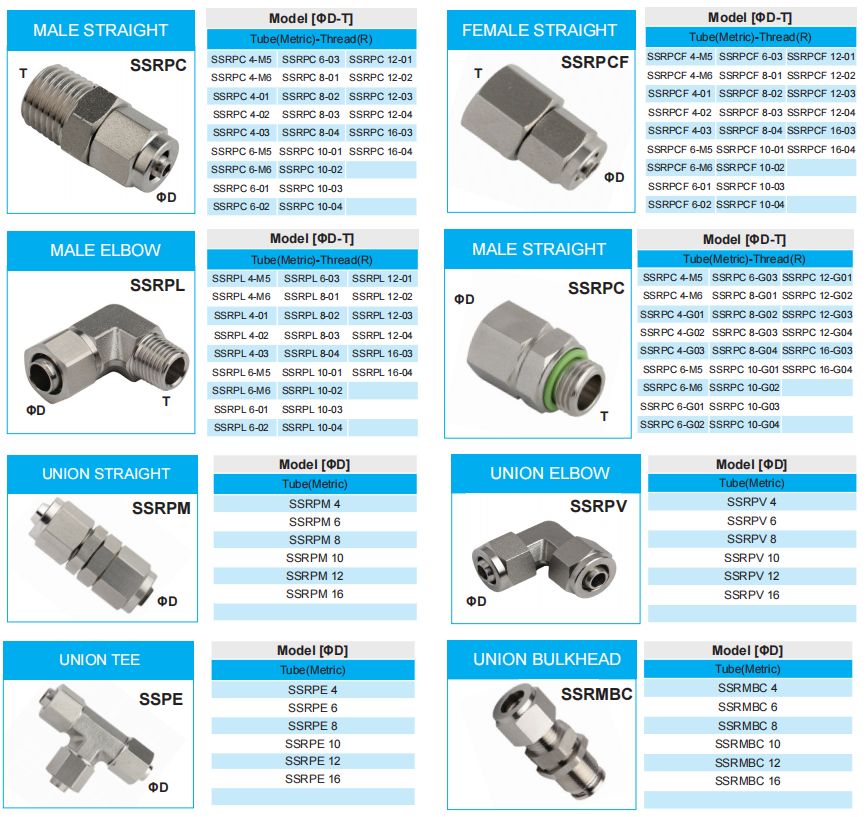

ssr下半

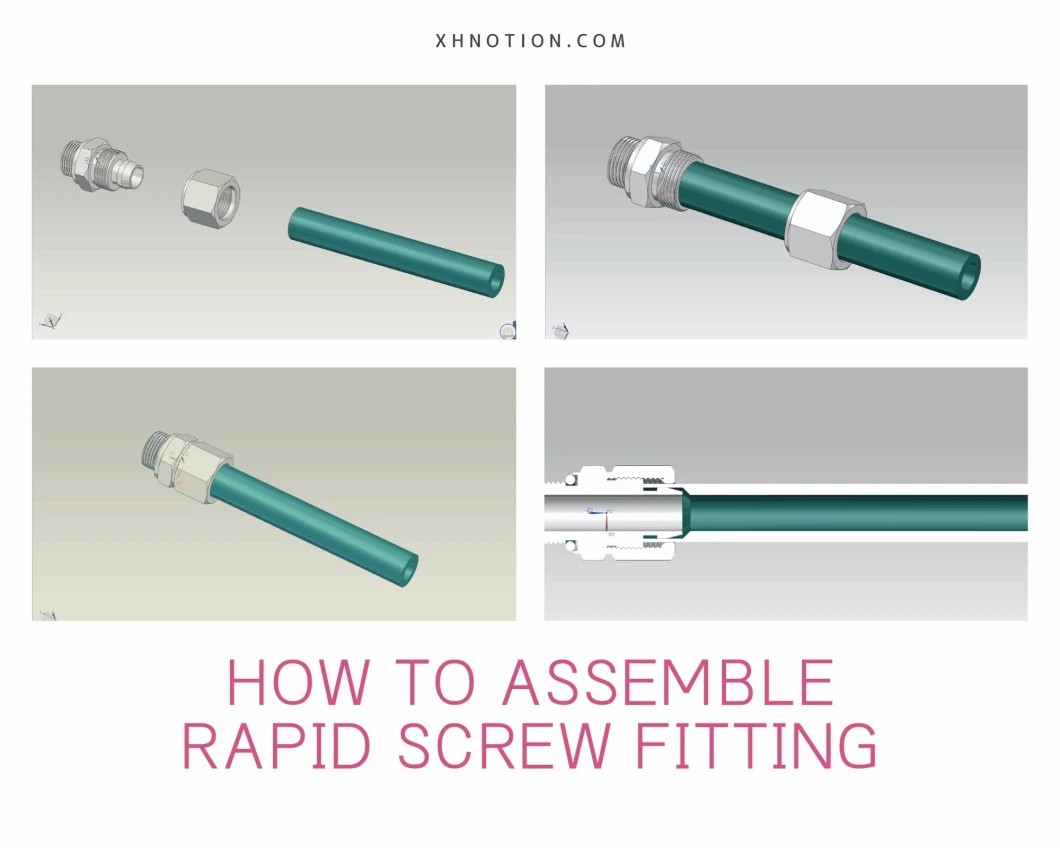

6.3

SPECIFICATIONS

Operating Pressure  -0.8~15 bar.
Operating Temperature -10~60ºC.
Application Air, water
Recommended Tubing Material
Polyurethane, Nylon, Polyethylene, and Polypropylene
Types Straight, Elbow, Tee, X, Y, etc.
Capacity Over 1000000pcs/month
Marketing Area All over the world



FITTINGS ADVANTAGE

1)  Raw Material is HPB 59-1, conforms to country standard.

2) High precision automatic lathe to make the claws not hurt tube surface.

3)  5% tested by water at 10 bar, 100% tested by air and appearance test.

4) Easy to push in and put out on the basis of working pressure assured

5) 1 year quality assurance after shipment.

6) Custom fitting as your drawing or we make drawing as your sample.
