Xlg Series 200 Bar High Pressure Solenoid Valve

Port: Ningbo, ChinaProduction Capacity: 50000 PCS Per MonthPayment Terms: L/C, T/T, Western Union, Paypal, Money GramModel NO.: XLG150-15Usage: Flow ControlStandard: DINApplication: Industrial UsageProduct Name: Xlg Series 200 Bar High Pressure Solenoid ValveVoltage: 220VAC, 110VAC, 24VDC, 12VDCSeal: NBR, Viton, EPDM, SiliconePort Size: 1/8" 1/4" 3/8" 1/2" 3/4" 1" BSPPOrifice: 1-25mmWorking Pressure: 0-200 BarProtection Grade: IP65Certification: Ce1674Trademark: XHnotionTransport Package: White Box or Color BoxOrigin: ChinaHS Code: 8481804090Actuator: ElectricConnection Form: ThreadType: Direct ActingMaterial: Brass, Stainless SteelPressure: High Pressure
Availability:
Quantity:
  • LG150-15

  • XHNOTION

  • L/C, T/T, Western Union, Paypal, Money Gram

  • Ningbo, China

  • 50000 PCS Per Month

  • White Box or Color Box

  • XLG150-15

  • Flow Control

  • DIN

  • Industrial Usage

  • Xlg Series 200 Bar High Pressure Solenoid Valve

  • 220VAC, 110VAC, 24VDC, 12VDC

  • NBR, Viton, EPDM, Silicone

  • 1/8" 1/4" 3/8" 1/2" 3/4" 1" BSPP

  • 1-25mm

  • 0-200 Bar

  • IP65

  • Ce1674

  • XHnotion

  • White Box or Color Box

  • China

  • 8481804090

  • Electric

  • Thread

  • Direct Acting

  • Brass, Stainless Steel

  • High Pressure

  • DC Solenoid Valve

Product Description

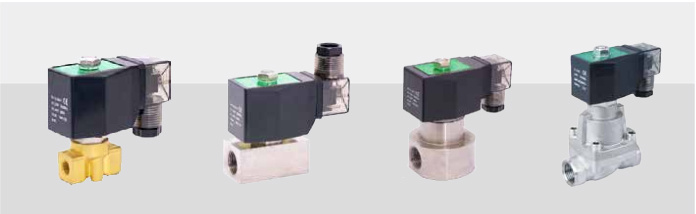

XLG Series 200 Bar High Pressure Solenoid Valve


Xlg Series 200 Bar High Pressure Solenoid Valve








Features

1. High pressure solenoid valve.
2. Max pressure: 200 bar;
3. Body material: brass, stainless steel
4. VITON, PTFE seals are available
5. Normally closed


Warning:
Make sure the system is clean before installing please fix a filter in the front of solenoid valve for long life.

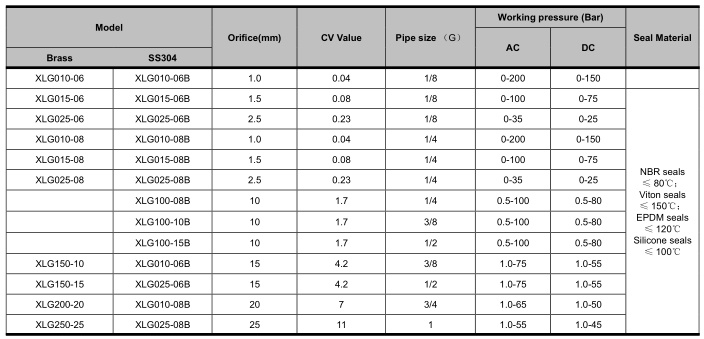

Specification

Product Name XLG Series Solenoid Valve
Model XLG150-15
Type 2/2 Direct Acting
Port Size 1/8" 1/4" 3/8" 1/2" 3/4" 1" BSPP
Orifice 1-25mm
Seal NBR seals ≤ 80ºC; Viton seals ≤ 150ºC;
EPDM seals ≤ 120ºC; Silicone seals ≤ 100ºC
Working Pressure 0-200 Bar
Working Temperature ≤150ºC
Valve Body Material Brass, Stainless Steel
Voltage 220VAC, 110VAC, 24VDC, 12VDC
Protection Grade IP65







Xlg Series 200 Bar High Pressure Solenoid Valve













Advantage

1. Raw Material conforms to China industry standard, bought from famous factory.
2. Insulation grade: H class, good resistance to high temperature.
3. Machined by CNC to make sure the tolerance as the drawing
4.100% leakage testing under low pressure and high pressure.
5. All kinds of valve and seals material to meet custom requirement.
6.1 year quality assurance after shipment.
7. After-sales technique support.










CE Certificate

XHnotion Solenoid Valves have conformed to CE Certificate.

Xlg Series 200 Bar High Pressure Solenoid Valve











What is Solenoid Valve?

Solenoid Valve is s device electromechanically operated with the use of a solenoid to change the state of a valve from open to close to control the flow liquid or gas.

It is used in fluid power pneumatic and hydraulic systems, to control cylinders, fluid power motors, and larger industrial valves.

Solenoid valves are used in factories/plants where compressed air is not available.
In domestic washing machines and dishwashers, the solenoid valves are used to control water entry into the machine.

A solenoid is also very important in the medical field especially when equipment have to be very precise and accurate; Solenoid manufacturing for medical purposes has been of too strict standards since life is at stake.

Solenoid valves can be used for a wide array of industrial applications, including general on-off control, calibration, pilot plant control loops, process control systems, and various original equipment manufacturer applications.

Other solenoid operated valves used at a more advanced method varies in pressure, flow depending on the input signal.






Basic Components

A solenoid valve consists of two main parts: The Solenoid and the Valve.

Solenoid is a cylindrical coil of wire, which acts as an electromagnet when an electric current passes through while the Valve acts as a control device, which controls or directs the flow of fluid by closing, opening or partially obstructing various pathways.

Valve Body: This main part of the solenoid valve, includes ports, seats, and orifice that permit movement of fluids when the solenoid is energized or de-energized.

Solenoid Tube Assembly: Cylinder, in stainless steel, sealed and closed at one end. This is a guide channel of the movable plunger which is moved magnetically. The valve has the solenoid coil fitted on the external side of the enclosing tube.

Moveable Plunger: An electromagnetically inductive coil, made of a movable stainless steel, it is attracted by the solenoid magnetic field and slides inside the tube.

Plunger Spring: This is a return spring that holds the movable plunger in position when energized and to return it to its position when de-energized.

Seat Seal: It is used to close a valve main orifice and it is located on the movable plunger.

Electromagnet (Solenoid coil): The electromagnet consisting of copper windings (solenoid) along with, a magnetic yoke (armature), when energized, generates a magnetic flux which attracts the movable plunger.














Packing & Shipping

Packing:
Plastic Box / Color Box + Carton Box
Custom packaging are available, XHnotion brand packaging are available


Shipping:
Method: Air, Sea, Courier
Export port: Ningbo or Shanghai, China
Delivery time: 3 days to 30 days depends on actual orders.
Express: TNT, UPS, DHL, FedEx, SF Express.

Xlg Series 200 Bar High Pressure Solenoid Valve







Our Company

XHnotion originate from notion between pneumatic power and human.
(X stands for winds, H stands for human)

In Chinese, XHnotion stands for 'we do, we promise' we read it 'X-notion'.
The company XHnotion Pneumatic was founded in 2007 and has developed with a steadily growing success to a reliable partner for international established clients.

This success of the company XHnotion Pneumatic is based on:

High class quality standard

Customer satisfaction

Fair price policy

Flexibility

The high-class quality standard of the products of company XHnotion is reflected in our quality management system, certificated ISO 9001: 2008. And we got CE, RoHS, REACH certificate for international market.

XHnotion Pneumatic manufactures below products:

Pneumatic Components: Air cylinder, solenoid valve, FRL

Solenoid Calve: Standard solenoid valve, multipurpose solenoid valve, pneumatic angle valve

Pneumatic Fittings: Plastic pneumatic fittings, metal pneumatic fittings, pneumatic muffler, water push in fittings

Air Gun & Couplers: Pneumatic couplers, air guns, air tool kits

Air Hoses: Air tubing, PTFE tubes, tube cutter, pipes


Xlg Series 200 Bar High Pressure Solenoid Valve










Trademark Registration Certificate

Xlg Series 200 Bar High Pressure Solenoid Valve






Why Choose US?


1. We offer one stop solution. Over 5000 items for you to save efforts and costs.
2. We have molds workshop, die-casting workshop, CNC workshop, plastic injection workshop to
Make sure each part exactly as the drawing and good function.
3. We will reply you within 24 hours.
4. Whatever quantity you are requesting, we always offer you the best quality.
5.3D drawing, CAD drawing service for custom fittings, hose, valve, cylinder.










FAQ

Payment Terms:
We accept T/T, L/C, PayPal, Western Union, Money Gram, etc.

Samples Policy:
For regular valves, samples against your courier account or you pick up from us.
For custom items, we will discuss by email.


Return Policy:
We assure you 1 year policy after shipment.
If there is any problem during this period, please contact us for support.
