Home » Products » Plastic Pneumatic Fittings » Function pneumatic valve » Xhnotion 4 mm Plastic Throttle Valves with Barb for Flow Control

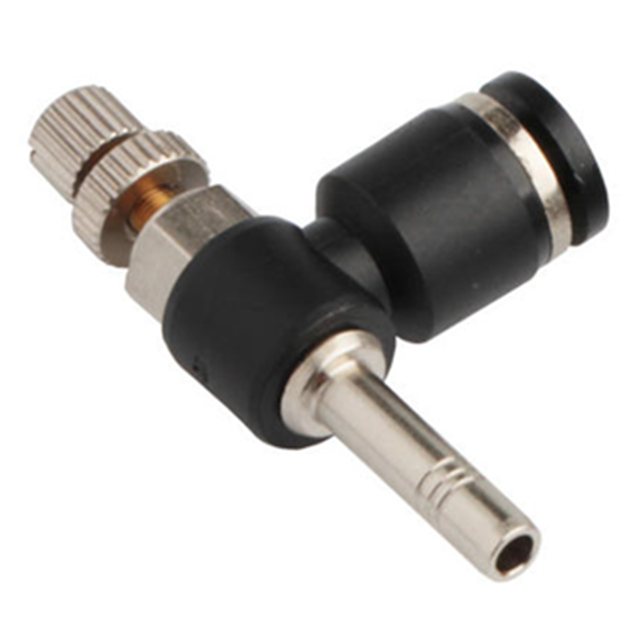

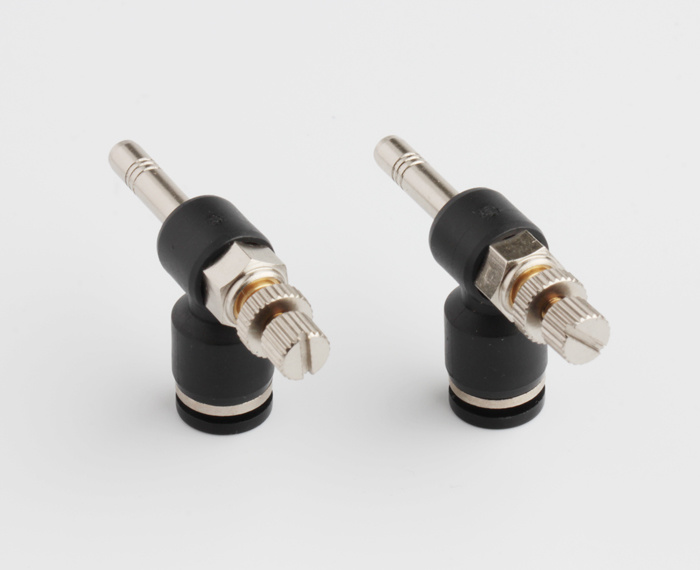

Xhnotion 4 mm Plastic Throttle Valves with Barb for Flow Control

Quantity:
  • Ningbo, China
  • 10000 PCS Per Day
  • L/C, T/T, Western Union, Paypal, Money Gram
  • JSC 4
  • 4mm
  • Round
  • Barb
  • ISO9001:2008
  • Plastic Bag
  • China
  • 39174000
  • Throttle
  • Air Line
  • Xhnotion
  • Normal Temperature
  • Plastic
  • DIN, GB
Product Description
XHnotion 4mm Plastic Throttle Valves with Barb
for Flow Control


Xhnotion 4 mm Plastic Throttle Valves with Barb for Flow Control




Features

1. Designed for Polyurethane or Nylon tubing.
2. Quick and reliable connections.
3. Reusable: multiple connections / disconnections.
4. Convenient elliptical / round sleeve configuration.
5. Metallic body made of non-corrosive Nickel-plated Brass.
6. Pre-coated threads are ready to use without additional sealing.
7. Outside (and Inside where applicable) hexagonal wrench tightening.
8. Available over 60 different models in imperial, metric sizes and hybrid.
9. Conform ISO7.1, BS21, DIN2999 standard.

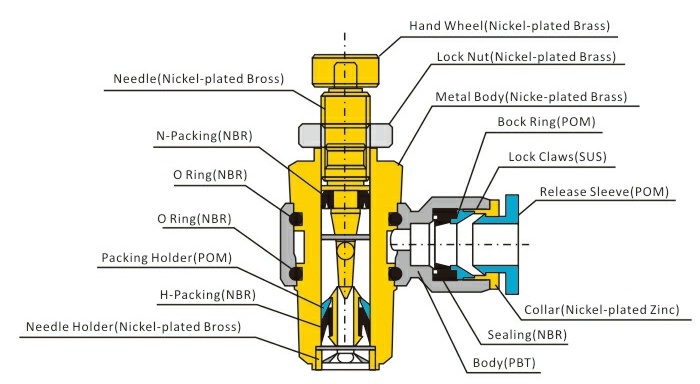

Structure Xhnotion 4 mm Plastic Throttle Valves with Barb for Flow Control



Material Construction
Plastic Body PBT
Metal Body Nickel Plated Brass or Brass
Release Button POM
Grip Ring Stainless Steel
Thread Sealant Teflon
O-Ring NBR



Specifications
Types Throttle
Operating Pressure 0 - 150 PSI 0 - 990 KPA
Operating Temperature 0 - 60°C 32 - 140°F
Application Air
Recommended Tubing Material Polyurethane, Nylon, Polyethylene and Polypropylene
Capacity Over 1000000pcs/month
Marketing Area All over the world





Fittings Advantage

1. Raw Material conforms to ROHS standards.
2. Imported Teflon adhesive for pre-coated sealant.
3. Multiple color and shape for button and body Blue and oval button with black body as regular,
black or gray round button is available, too.

4. 5% tested by water at 10 bar, 100% tested by air and appearance test.
5. 1 year quality assurance after shipment.
6. Custom fitting as your drawing or we make drawing as your sample.











Packing & Shipping

Packing:
Transparent plastic bag + white small box + neutral carton + pallet
Custom packaging are available, XHnotion brand packagwe are available

Shipping:
Export port: Ningbo or Shanghai, China
Shipping way: by sea, by air, by courier
Express: TNT, DHL, UPS, FedEX, SF Express
Delivery time: 3 days to 30 days depends on actual orders.



Xhnotion 4 mm Plastic Throttle Valves with Barb for Flow Control












Our Company


XHnotion originate from notion between pneumatic power and human.
(X stands for winds, H stands for human)

In Chinese, XHnotion stands for 'we do, we promise' we read it 'X-notion'.
The company XHnotion Pneumatic was founded in 2007 and has developed with a steadily growing success to a reliable partner for international established clients.

This success of the company XHnotion Pneumatic is based on:

High class quality standard

Customer satisfaction

Fair price policy

Flexibility

The high-class quality standard of the products of company XHnotion is reflected in our quality management system, certificated ISO 9001:2008. And we got CE, RoHS, REACH certificate for international market. XHnotion Pneumatic manufactures below products:

Pneumatic Components: air cylinder, solenoid valve, FRL

Solenoid Calve: standard solenoid valve, multipurpose solenoid valve, pneumatic angle valve

Pneumatic Fittings: plastic pneumatic fittings, metal pneumatic fittings, pneumatic muffler, water push in fittings

Air Hoses: air tubing, PTFE tubes, tube cutter, pipes


Xhnotion 4 mm Plastic Throttle Valves with Barb for Flow Control

Xhnotion 4 mm Plastic Throttle Valves with Barb for Flow Control





Why Choose US ?

1. We offer one stop solution. Over 5000 items for you to save efforts and costs.

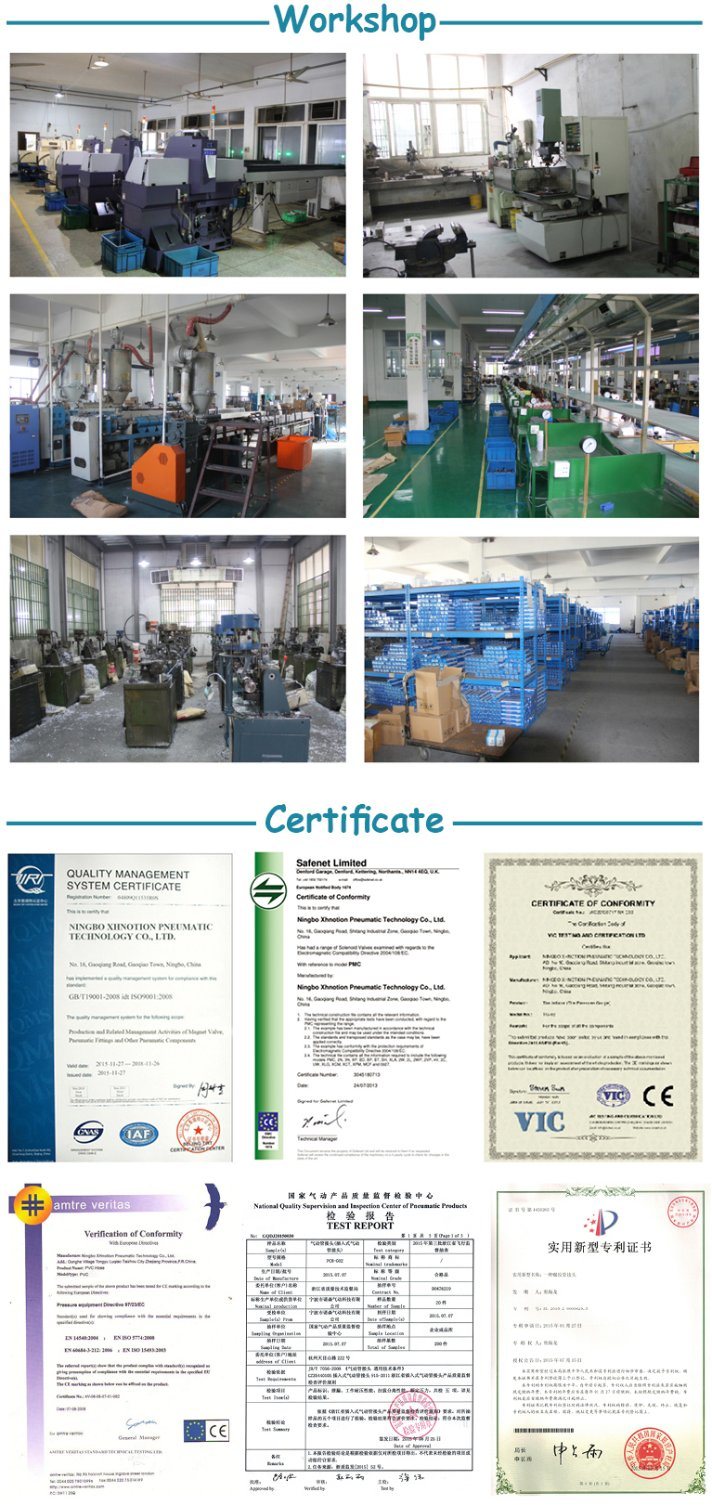

2. We have molds workshop, die-casting workshop, CNC workshop, plastic injection workshop to
make sure each part exactly as the drawing and good function.

3
. We will reply you within 24 hours.
4. Whatever quantity you are requesting, we always offer you the best quality.
5. 3D drawing, CAD drawing service for custom fittings, hose, valve, cylinder.







FAQ

Packing:
Transparent plastic bag + white small box + neutral carton + pallet
Custom packaging are available, XHnotion brand packaging are available

Shipping :
Export port: Ningbo or Shanghai, China
Shipping way: by sea, by air, by courier
Delivery time: 3 days to 30 days depends on actual orders.

Payment Terms :
We accept T/T, L/C, Paypal, Western Union,etc.

Samples Policy :
For regular items, free samples against your courier account or you pick up from us.
For custom items, we will discuss by email.

Return Policy:
We assure you 1 year policy after shipment.
If there is any problem during this period, please contact us for support.
