XP Series Pilot Stainless Steel Solenoid Valve

Model NO.: XP250-25BPower Supply: DC Solenoid ValveUsage: Flow ControlStandard: DINApplication: Industrial Usage, Water Industrial UsageRegular Voltage: 12VDC, 24VDC, 110VAC, 220VACFluid: Air, Water, Oil, Diesel, Ozone, SteamTrademark: XHnotionSpecification: ROHS, REACH, CEOrigin: NingboHS Code: 8481804090Actuator: ElectricConnection Form: ThreadType: Pilot OperatedMaterial: Stainless SteelPressure: Ordinary PressureValve Structure: Direct-Acting Piston Structure
Availability:
Quantity:
  • XP250-25B
  • XHNOTION
  • L/C, T/T, Paypal, Money Gram, Western Union
  • Ningbo, China
  • 10000 PCS Per Month
  • Paper Box
  • XP250-25B
  • DC Solenoid Valve
  • Flow Control
  • DIN
  • Industrial Usage, Water Industrial Usage
  • 12VDC, 24VDC, 110VAC, 220VAC
  • Air, Water, Oil, Diesel, Ozone, Steam
  • XHnotion
  • ROHS, REACH, CE
  • Ningbo
  • 8481804090
  • Electric
  • Thread
  • Pilot Operated
  • Stainless Steel
  • Ordinary Pressure
  • Direct-Acting Piston Structure
Product Description

FEATURES

1. Compact volume, large flow, widely use

2. Pilot operated structure

3. Lower power consumption, bigger working pressure

4. Body material: brass, stainless steel

5. NBR, VITON, EPDM, SILICONE seals are available

6. Normally closed and normally open.



SPECIFICATIONS

Specification for XP Series Normally Closed Solenoid Valve

Model Thread Size (G) Orifice (mm) CV Value Working Pressure (Bar) Seals Voltage
AC DC
          Brass body Stainless steel air, gas water 20cst oil air, gas water 20cst oil
XP130-10 XP130-10B 3/8" 13 4.5 0.5-16 0.5-16 0.5-13 0.5-16 0.5-16 0.5-13 NBR seals       80ºC;     Viton seals      150ºC;     EPDM seals      120ºC     Silicone seals    100ºC 220VAC    110VAC     24VDC      12VDC                 make Other voltage  as requested
XP130-15 XP130-15B 1/2" 13 4.5 0.5-16 0.5-16 0.5-13 0.5-16 0.5-16 0.5-13
XP200-20 XP200-20B 3/4" 20 7.6 0.5-16 0.5-16 0.5-13 0.5-16 0.5-16 0.5-13
XP250-25 XP250-25B 1" 25 12 0.5-16 0.5-16 0.5-13 0.5-16 0.5-16 0.5-13
XP320-35 XP320-35B 1 1/4" 32 22 0.5-16 0.5-16 0.5-13 0.5-16 0.5-16 0.5-13
XP400-40 XP400-40B 1 1/2" 40 30 0.5-16 0.5-16 0.5-13 0.5-16 0.5-16 0.5-13
XP500-50 XP500-50B 2" 50 48 0.5-16 0.5-16 0.5-13 0.5-16 0.5-16 0.5-13
Flange connection XP250-25FB 4 holes flange 25 12 0.5-16 0.5-16 0.5-13 0.5-16 0.5-16 0.5-13
XP320-35FB 32 22 0.5-16 0.5-16 0.5-13 0.5-16 0.5-16 0.5-13
XP400-40FB 40 30 0.5-16 0.5-16 0.5-13 0.5-16 0.5-16 0.5-13
XP500-50FB 50 48 0.5-16 0.5-16 0.5-13 0.5-16 0.5-16 0.5-13


Specification for XP Series Normally Open Solenoid Valve

Model Thread Size (G) Orifice (mm) CV Value Working Pressure (Bar) Seals Voltage
AC DC
Brass body Stainless steel air, gas water ≤20cst oil air, gas water ≤20cst oil
XP130-10H XP130-10BH 3/8" 13 4.5 0.5-8 0.5-8 0.5-7 0.5-8 0.5-8 0.5-7 NBR seals       ≤80ºC     Viton seals      ≤150ºC   EPDM seals      ≤120ºC     Silicone seals    ≤100ºC 220VAC    110VAC     24VDC      12VDC        make
Other voltage  as requested
XP130-15H XP130-15BH 1/2" 13 4.5 0.5-8 0.5-8 0.5-7 0.5-8 0.5-8 0.5-7
XP200-20H XP200-20BH 3/4" 20 7.6 0.5-8 0.5-8 0.5-7 0.5-8 0.5-8 0.5-7
XP250-25H XP250-25BH 1" 25 12 0.5-8 0.5-8 0.5-7 0.5-8 0.5-8 0.5-7
XP320-35H XP320-35BH 1 1/4" 32 22 0.5-8 0.5-8 0.5-7 0.5-8 0.5-8 0.5-7
XP400-40H XP400-40BH 1 1/2" 40 30 0.5-8 0.5-8 0.5-7 0.5-8 0.5-8 0.5-7
XP500-50H XP500-50BH 2" 50 48 0.5-8 0.5-8 0.5-7 0.5-8 0.5-8 0.5-7
Flange connection XP250-25FBH 4 holes flange 25 12 0.5-8 0.5-8 0.5-7 0.5-8 0.5-8 0.5-7
XP320-35FBH 32 22 0.5-8 0.5-8 0.5-7 0.5-8 0.5-8 0.5-7
XP400-40FBH 40 30 0.5-8 0.5-8 0.5-7 0.5-8 0.5-8 0.5-7
XP500-50FBH 50 48 0.5-8 0.5-8 0.5-7 0.5-8 0.5-8 0.5-7





ADVANTAGE

1) Raw Material conforms to China industry standard, bought from famous factory.

2) Insulation grade: H class, good resistance to high temperature;

3) Machined by CNC to make sure the tolerance as the drawing

4) 100% leakage testing under low pressure and high pressure.

5) All kinds of valve and seals material to meet custom requirement.

6) 1 year quality assurance after shipment.

7) After sales technique support

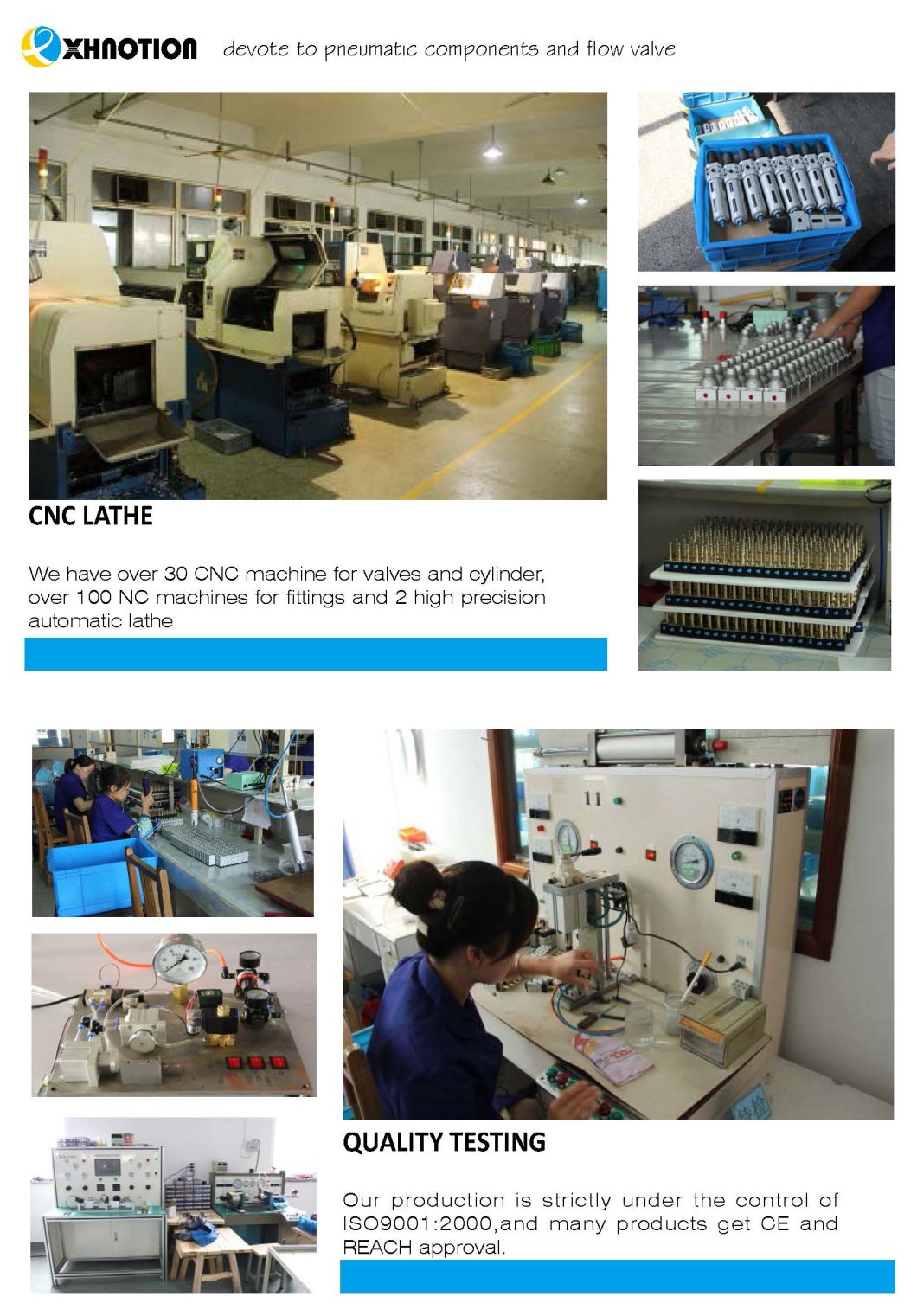

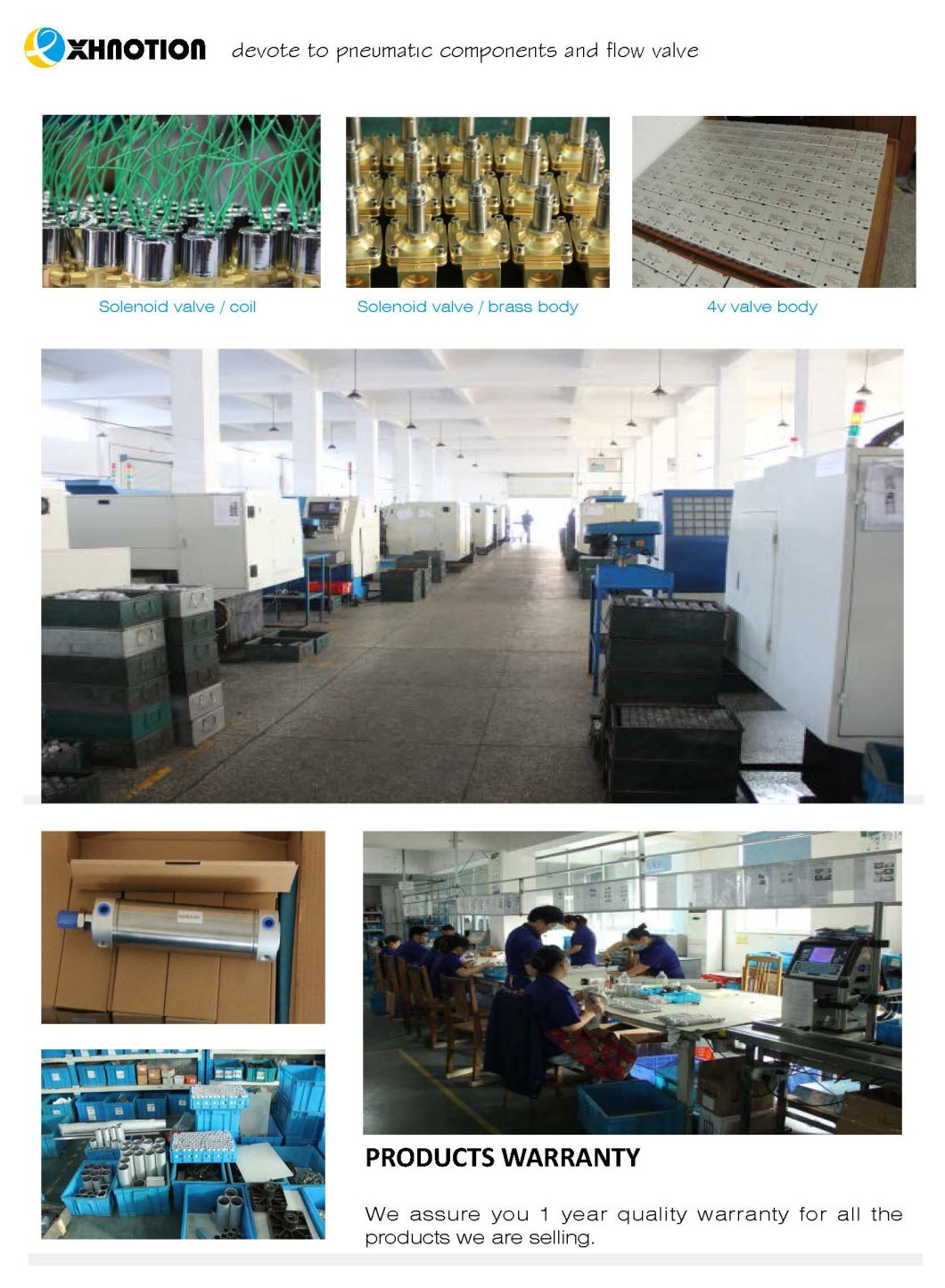

WORKSHOP SHOW
XP Series Pilot Stainless Steel Solenoid Valve
XP Series Pilot Stainless Steel Solenoid Valve

WHY CHOOSE US?

1) We offer one stop solution. Over 5000 items for you to save efforts and costs.

2)We have molds workshop, die-casting workshop, CNC workshop, plastic injection workshop to make sure each part exactly as the drawing and good function.

3) We will reply you within 24 hours.

4) Whatever quantity you are requesting, we always offer you the best quality.

5)3D drawing, cad drawing service for custom fittings, hose, valve, cylinder





FAQ

Packing
Transparent plastic bag + white small box + neutral carton + pallet
Custom packaging are available, XHnotion brand packaging are available

Shipping :
Export port: Ningbo or Shanghai, China
Shipping way: by sea, by air, by courier
Delivery time 3 days to 30 days depends on actual orders.

Payment Terms
We accept T/T, L/C, Paypal, western union,etc.

Samples Policy
For regular fittings below 20 pcs, free samples against your courier account or you pick up from us.
For custom items, we will discuss by email.

Return Policy:
We assure you 1 year policy after shipment. If there is any problem during this period, please contact us for support.


============================================================
We have thousands of solenoid valve in the stock. If you do not know how to order our valve, please tell us some necessary information, we will recommend you the most economical solenoid valve.

1. valve material
2. working pressure
3. temperature range
4 working environment
5. quantity

You can choose as below

Body Material: Plastic, brass, SS304, SS306, Steel.
Seal Material: NBR, VITON, PTFE, EPDM, SILICONE
Voltage: 12VDC, 24VDC, 24VAC, 220VAC, 280VAC
Size: M5-2", Flange connection
