| Quantity: | |
|---|---|
XP130-10
XHNOTION
L/C, T/T, Western Union, Paypal, Money Gram
Ningbo, China
10000 PCS Per Month
CARTONS
XP130-10
Ordinary Pressure
Pilot Membrane Structure
DC Solenoid Valve
Flow Control
DIN
Industrial Usage, Water Industrial Usage
12VDC, 24VDC, 110VAC, 220VAC
Air, Water, Oil, Diesel, Ozone, Steam
XHnotion
Paper Box
ROHS, REACH, CE
Ningbo
8481804090
Water
Ordinary Temperature
Electric
Thread
Pilot Operated
Brass
FEATURES
1. Compact volume, large flow, widely use
2. Pilot operated structure
3. Lower power consumption, bigger working pressure
4. Body material: brass, stainless steel
5. NBR, VITON, EPDM, SILICONE seals are available
6. Normally closed and normally open.
SPECIFICATIONS
Specification for XP Series Normally Closed Solenoid Valve
| Model | Thread Size (G) | Orifice (mm) | CV Value | Working Pressure (Bar) | Seals | Voltage | ||||||
| AC | DC | |||||||||||
| Brass body | Stainless steel | air, gas | water | ≤20cst oil | air, gas | water | ≤20cst oil | |||||
| XP130-10 | XP130-10B | 3/8" | 13 | 4.5 | 0.5-16 | 0.5-16 | 0.5-13 | 0.5-16 | 0.5-16 | 0.5-13 | NBR seals ≤80ºC; Viton seals ≤150ºC; EPDM seals ≤120ºC Silicone seals ≤100ºC | 220VAC 110VAC 24VDC 12VDC make Other voltage as requested |
| XP130-15 | XP130-15B | 1/2" | 13 | 4.5 | 0.5-16 | 0.5-16 | 0.5-13 | 0.5-16 | 0.5-16 | 0.5-13 | ||
| XP200-20 | XP200-20B | 3/4" | 20 | 7.6 | 0.5-16 | 0.5-16 | 0.5-13 | 0.5-16 | 0.5-16 | 0.5-13 | ||
| XP250-25 | XP250-25B | 1" | 25 | 12 | 0.5-16 | 0.5-16 | 0.5-13 | 0.5-16 | 0.5-16 | 0.5-13 | ||
| XP320-35 | XP320-35B | 1 1/4" | 32 | 22 | 0.5-16 | 0.5-16 | 0.5-13 | 0.5-16 | 0.5-16 | 0.5-13 | ||
| XP400-40 | XP400-40B | 1 1/2" | 40 | 30 | 0.5-16 | 0.5-16 | 0.5-13 | 0.5-16 | 0.5-16 | 0.5-13 | ||
| XP500-50 | XP500-50B | 2" | 50 | 48 | 0.5-16 | 0.5-16 | 0.5-13 | 0.5-16 | 0.5-16 | 0.5-13 | ||
| Flange connection | XP250-25FB | 4 holes flange | 25 | 12 | 0.5-16 | 0.5-16 | 0.5-13 | 0.5-16 | 0.5-16 | 0.5-13 | ||
| XP320-35FB | 32 | 22 | 0.5-16 | 0.5-16 | 0.5-13 | 0.5-16 | 0.5-16 | 0.5-13 | ||||
| XP400-40FB | 40 | 30 | 0.5-16 | 0.5-16 | 0.5-13 | 0.5-16 | 0.5-16 | 0.5-13 | ||||
| XP500-50FB | 50 | 48 | 0.5-16 | 0.5-16 | 0.5-13 | 0.5-16 | 0.5-16 | 0.5-13 | ||||
Specification for XP Series Normally Open Solenoid Valve
| Model | Thread Size (G) | Orifice (mm) | CV Value | Working Pressure (Bar) | Seals | Voltage | ||||||
| AC | DC | |||||||||||
| Brass body | Stainless steel | air, gas | water | ≤20cst oil | air, gas | water | ≤20cst oil | |||||
| XP130-10H | XP130-10BH | 3/8" | 13 | 4.5 | 0.5-8 | 0.5-8 | 0.5-7 | 0.5-8 | 0.5-8 | 0.5-7 | NBR seals ≤80ºC Viton seals ≤150ºC EPDM seals ≤120ºC Silicone seals ≤100ºC | 220VAC 110VAC 24VDC 12VDC make Other voltage as requested |
| XP130-15H | XP130-15BH | 1/2" | 13 | 4.5 | 0.5-8 | 0.5-8 | 0.5-7 | 0.5-8 | 0.5-8 | 0.5-7 | ||
| XP200-20H | XP200-20BH | 3/4" | 20 | 7.6 | 0.5-8 | 0.5-8 | 0.5-7 | 0.5-8 | 0.5-8 | 0.5-7 | ||
| XP250-25H | XP250-25BH | 1" | 25 | 12 | 0.5-8 | 0.5-8 | 0.5-7 | 0.5-8 | 0.5-8 | 0.5-7 | ||
| XP320-35H | XP320-35BH | 1 1/4" | 32 | 22 | 0.5-8 | 0.5-8 | 0.5-7 | 0.5-8 | 0.5-8 | 0.5-7 | ||
| XP400-40H | XP400-40BH | 1 1/2" | 40 | 30 | 0.5-8 | 0.5-8 | 0.5-7 | 0.5-8 | 0.5-8 | 0.5-7 | ||
| XP500-50H | XP500-50BH | 2" | 50 | 48 | 0.5-8 | 0.5-8 | 0.5-7 | 0.5-8 | 0.5-8 | 0.5-7 | ||
| Flange connection | XP250-25FBH | 4 holes flange | 25 | 12 | 0.5-8 | 0.5-8 | 0.5-7 | 0.5-8 | 0.5-8 | 0.5-7 | ||
| XP320-35FBH | 32 | 22 | 0.5-8 | 0.5-8 | 0.5-7 | 0.5-8 | 0.5-8 | 0.5-7 | ||||
| XP400-40FBH | 40 | 30 | 0.5-8 | 0.5-8 | 0.5-7 | 0.5-8 | 0.5-8 | 0.5-7 | ||||
| XP500-50FBH | 50 | 48 | 0.5-8 | 0.5-8 | 0.5-7 | 0.5-8 | 0.5-8 | 0.5-7 | ||||
ADVANTAGE
1) Raw Material conforms to China industry standard, bought from famous factory.
2) Insulation grade: H class, good resistance to high temperature;
3) Machined by CNC to make sure the tolerance as the drawing
4) 100% leakage testing under low pressure and high pressure.
5) All kinds of valve and seals material to meet custom requirement.
6) 1 year quality assurance after shipment.
7) After sales technique support
XHnotion, is a leading manufacturer of pneumatic components and fluid valve in China. Our solenoid valve include below items
Fluid assortment
Water solenoid valve
Air solenoid valve
Diesel solenoid valve
Chemical solenoid valve
We have different solenoid valve for different fluid

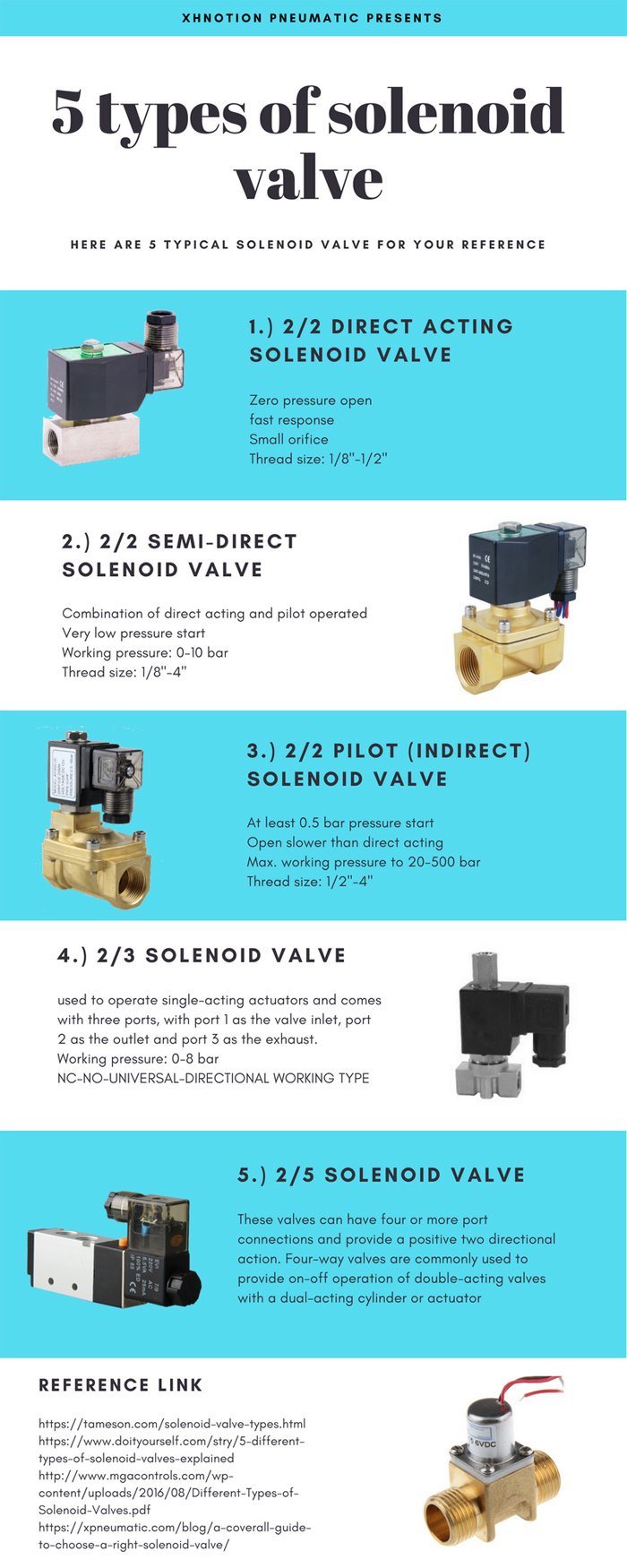

Structure assortment
2 way solenoid valve
3 way solenoid valve
4 way solenoid valve
5 way solenoid valve
Acting assortment
Direct acting solenoid valve
Pilot acting solenoid valve
Function assortment
common solenoid valve for air, water
High pressure solenoid valve
Steam solenoid valve
Irrigation solenoid valve
Underwater solenoid valve
Drinking water solenoid valve
Auto drain solenoid valve
Pneumatic angle valve
Pulse jet solenoid valve
Bi-stable solenoid valve
Throttle solenoid valve
Miniature steam solenoid valve
Material assortment
Brass solenoid valve
Plastic solenoid valve
Stainless steel solenoid valve
PTFE solenoid valve
PVC solenoid valve
POM solenoid valve
Meanwhile, we also manufacture below items.
pneumatic fittings, plastic, brass, stainless steel push in fittings
pneumatic quick coupling, air tool kits, air blow gun
pneumatic muffler, silencer, filter
air hose- PU tubes, nylon tube, PE tube, PTFE tubes, etc
air cylinder, air preparation, pneumatic directional valve
modular hose, water push in fitting
Ball valve, brass connector
