N15 series 15MM PILOT SOLENOID VALVE

Port: Ningbo, ChinaProduction Capacity: 10000 PCS Per MonthPayment Terms: L/C, T/T, Western Union, Paypal, Money GramModel NO.: XV10 TypePower Supply: DC Solenoid ValveUsage: DirectionalStandard: DINApplication: Industrial Usage, Water Industrial Usage, Household UsageThread: 1/4,1/8Regular Voltage: 12VDC, 24VDC, 110VAC, 220VACTrademark: XHnotionTransport Package: Bluk Packing or Blister PackingSpecification: CEOrigin: ChinaHS Code: 8481804090Actuator: ElectricConnection Form: ThreadType: Pilot OperatedMaterial: AluminumPressure: Low PressureValve Structure: Pilot Piston Structure

Availability:

Quantity:


Inquire Add to Basket

Model: N15
Brand: XHNOTION
Payment Terms: L/C, T/T, Western Union, Paypal, Money Gram
Port: Ningbo, China
Production Capacity: 10000 PCS Per Month
Transport Package: BOX AND CARTONS
Model NO.: N15 Type
Power Supply: DC Solenoid Valve
Usage: Directional
Standard: DIN
Application: Industrial Usage, Water Industrial Usage, Household Usage
Thread: 1/4,1/8
Regular Voltage: 12VDC, 24VDC, 110VAC, 220VAC
Trademark: XHnotion
Transport Package: Bluk Packing or Blister Packing
Specification: CE
Origin: China
HS Code: 8481804090
Actuator: Electric
Connection Form: Thread
Type: Pilot Operated
Material: Aluminum
Pressure: Low Pressure
Valve Structure: Pilot Piston Structure

Product Description

Offered in both Normally-Open or Normally-Closed models, these 2-way and 3-way valves are perfect for small areas where compact electronically-controlled pneumatics are needed.

This series has a high strength, engineered light-weight glass filled nylon body, along with stainless steel, copper and Nitrile, making it suitable for a broad range of applications.

With exceptional life and reliability this is the perfect subminiature valve for tomorrow’s needs in a wide variety of industries.

Benefits and Features

• Small size & Convenient installaton

It is ideal for installation in confined spaces, either on a single base or the manifolds. It can replace the majority

of similar products at home and abroad for its excellent compatibility in installation size and also can be used as the pilot control valve for SY

series and 4V series solenoid valve.

• Energy -saving & Environment friendly

The power consumption of the standard type is only 1w, And the energy-saving type is only 0.3w.

• Large flow & Wide application

It has a significant flow rate which can be used not only for compact cylinders, swing cylinders, and other slider series but also for the pilot

control of the processing valve. The large flow type can meet different needs because it increases the flow rate by 50% based on the standard type.

• Quick Response & Multi-functional

It can respond within 10ms, realizing vacuum function quickly.

• Multi-specifications & All models

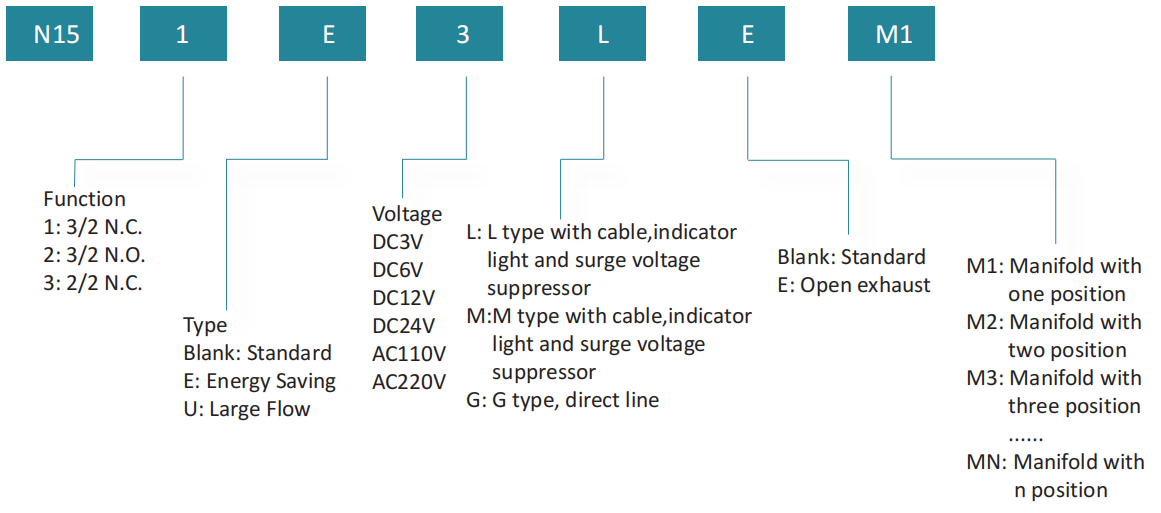

Distinguished by voltage, there are AC220V, AV110V, DC24V, DC12V, DC6V, and DC3V. Distinguished by

interface mode, there are vertical type(L type), horizontal type (M type), direct line type(G type), etc.

• Long life & More sustainable

Super safe even with 24-hour continuous work and 100% on-load factor.

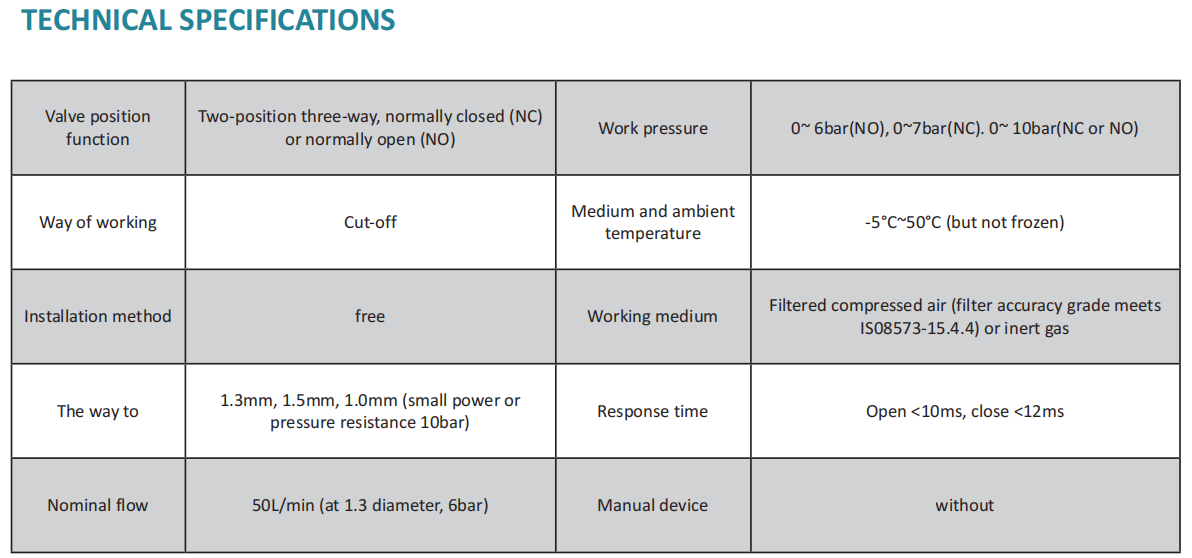

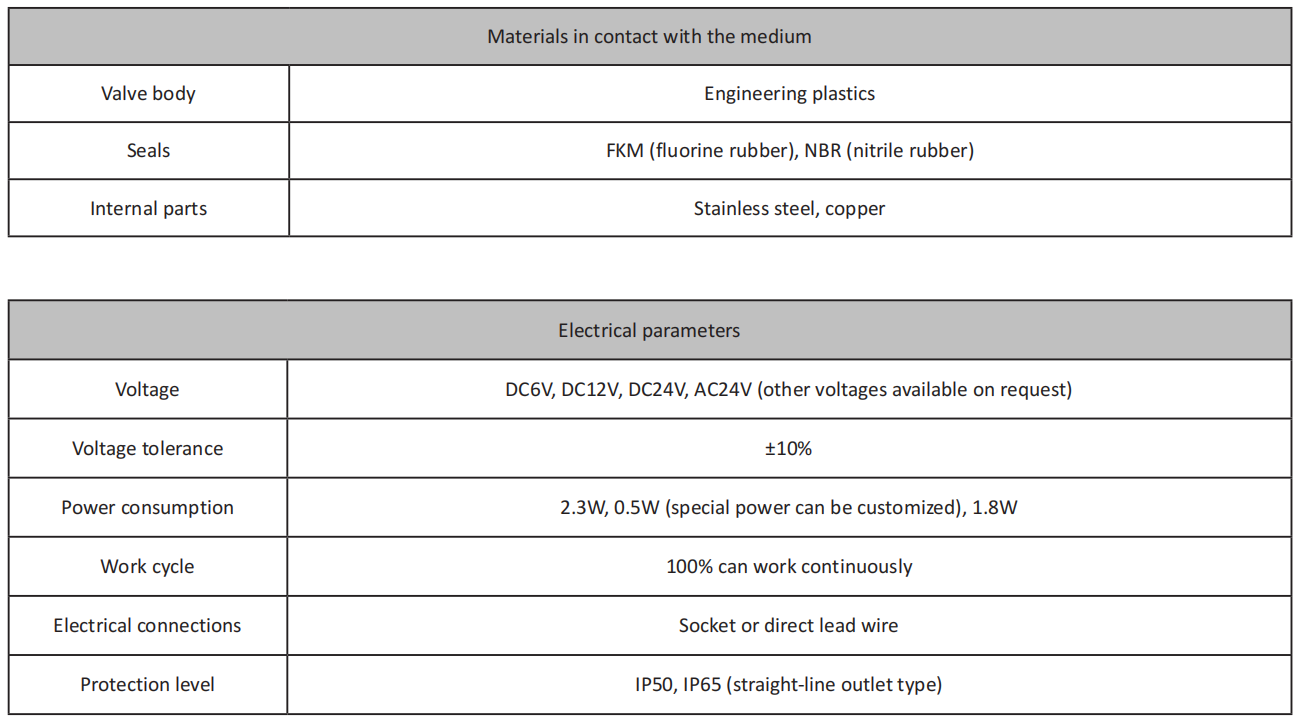

SPECIFICATIONS

0VT(VJDM0RCU_3YPJQL0UTV
