N10 series 10MM PILOT SOLENOID VALVE

Port: Ningbo, ChinaProduction Capacity: 10000 PCS Per MonthPayment Terms: L/C, T/T, Western Union, Paypal, Money GramModel NO.: XV10 TypePower Supply: DC Solenoid ValveUsage: DirectionalStandard: DINApplication: Industrial Usage, Water Industrial Usage, Household UsageThread: 1/4,1/8Regular Voltage: 12VDC, 24VDC, 110VAC, 220VACTrademark: XHnotionTransport Package: Bluk Packing or Blister PackingSpecification: CEOrigin: ChinaHS Code: 8481804090Actuator: ElectricConnection Form: ThreadType: Pilot OperatedMaterial: AluminumPressure: Low PressureValve Structure: Pilot Piston Structure
Availability:
Quantity:
  • N10
  • XHNOTION
  • L/C, T/T, Western Union, Paypal, Money Gram
  • Ningbo, China
  • 10000 PCS Per Month
  • BOX AND CARTONS
  • N10 Type
  • DC Solenoid Valve
  • Directional
  • DIN
  • Industrial Usage, Water Industrial Usage, Household Usage
  • 1/4,1/8
  • 12VDC, 24VDC, 110VAC, 220VAC
  • XHnotion
  • Bluk Packing or Blister Packing
  • CE
  • China
  • 8481804090
  • Electric
  • Thread
  • Pilot Operated
  • Aluminum
  • Low Pressure
  • Pilot Piston Structure
Product Description

Offered in both Normally-Open or Normally-Closed models,  these 2-way and 3-way valves are perfect for small areas  where compact electronically-controlled pneumatics are  needed.


This series has a high strength, engineered light-weight glass  filled nylon body, along with stainless steel, copper and  Nitrile, making it suitable for a broad range of applications.

With exceptional life and reliability this is the perfect subminiature valve for tomorrow’s needs in a wide variety of  industries.



Benefits and Features



• Small size & Convenient installaton

It is ideal for installation in confined spaces, either on a single base or the manifolds. It can replace the majority
of similar products at home and abroad for its excellent compatibility in installation size and also can be used as the pilot control valve for SY

series and 4V series solenoid valve.


• Energy -saving & Environment friendly

The power consumption of the standard type is only 1w, And the energy-saving type is only 0.3w.


• Large flow & Wide application
It has a significant flow rate which can be used not only for compact cylinders, swing cylinders, and other slider series but also for the pilot

control of the processing valve. The large flow type can meet different needs because it increases the flow rate by 50% based on the standard type.


• Quick Response & Multi-functional

It can respond within 10ms, realizing vacuum function quickly.


• Multi-specifications & All models

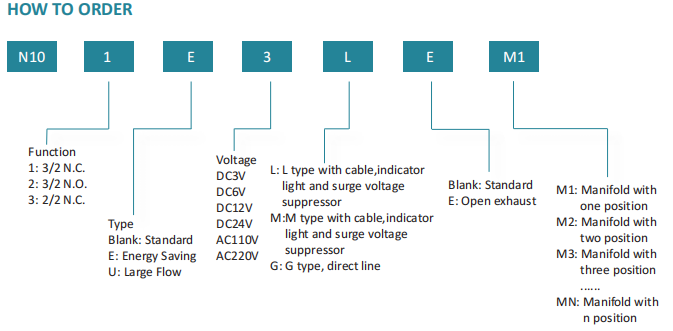

Distinguished by voltage, there are AC220V, AV110V, DC24V, DC12V, DC6V, and DC3V. Distinguished by

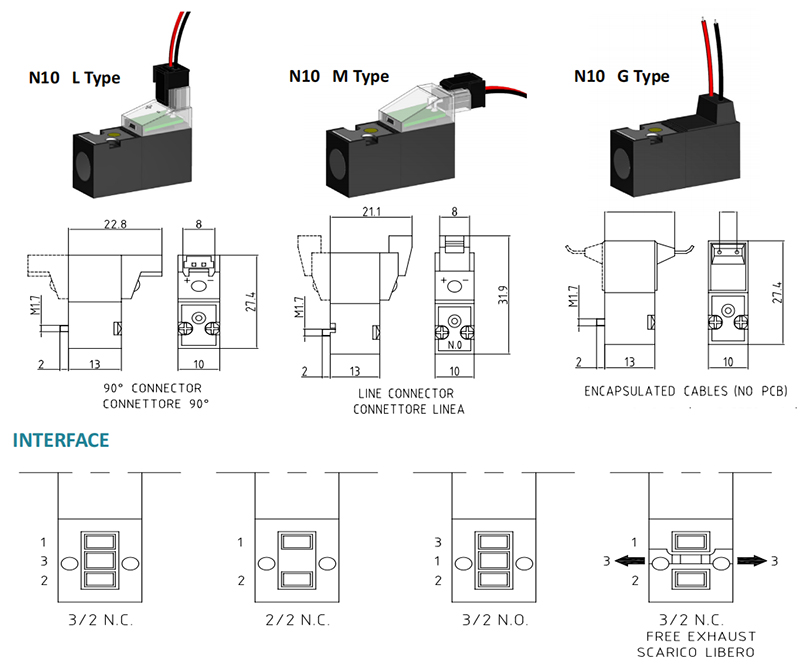

interface mode, there are vertical type(L type), horizontal type (M type), direct line type(G type), etc.


• Long life & More sustainable

Super safe even with 24-hour continuous work and 100% on-load factor.




`%P`DBK(CF7GTX1IL%JG



RQAVVVHP2Y8OJAS401`7

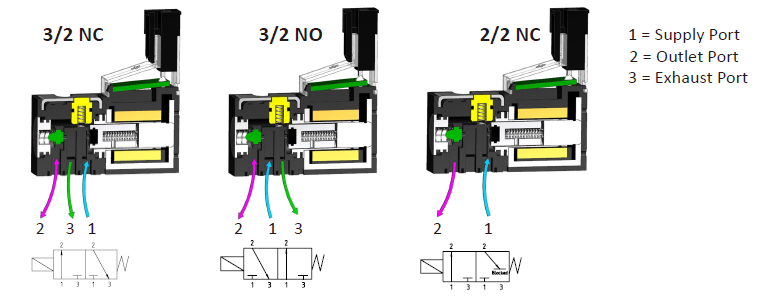

Function


QQ图片20221217155310

3/2 NC:
Power off:   air from 2 outlet to 3 exhaust port

Power on:  air from 1 supply port to 2 outlet port


3/2 NO:
Power off:   air from 1 supply port to 2 outlet port

Power on:  air from 2 supply port to 3 exhaust port


2/2 NC:
Power off:   air stops from 1 supply port to 2 outlet port

Power on:  air pass from 1 supply port to 2 outlet port


2/2 NO:
Power on:   air stops from 1 supply port to 2 outlet port

Power off:  air pass from 1 supply port to 2 outlet port


111
