High Pressure Pneumatic Fittings - Xhnotion UPC8-02

Production Capacity: 10000 PCS Per DayTransport Package: Plastic BagPayment Terms: L/C, T/T, Paypal, Money Gram, Western UnionModel NO.: UPC8-02Thread: M5,M6, 1/8, 1/4, 3/8, 1/2Trademark: XHnotionSpecification: ROHS, REACH, CEOrigin: ChinaHS Code: 7412209000Standard: DIN, GBMaterial: BrassConnection: MaleSurface Treatment: Nickel-PlatedHead Type: HexagonSize: 3mm-16mm
Availability:
Quantity:
  • UPC8-02

  • XHNOTION

  • L/C, T/T, Paypal, Money Gram, Western Union

  • Ningbo, China

  • 10000 PCS Per Day

  • PLASTIC BAG AND CARTON

  • UPC8-02

  • M5,M6, 1/8, 1/4, 3/8, 1/2

  • XHnotion

  • ROHS, REACH, CE

  • China

  • 7412209000

  • DIN, GB

  • Brass

  • Male

  • Nickel-Plated

  • Hexagon

  • 3mm-16mm

Product Description

FEATURES

1. Used for high pressure environment.

2. Working pressure and temperature depend on tube pressure.

3. Application Tube: metal tubes and Nylon tubes.

4. Fluid Type: water, air, oil, diesel, and other fluids.

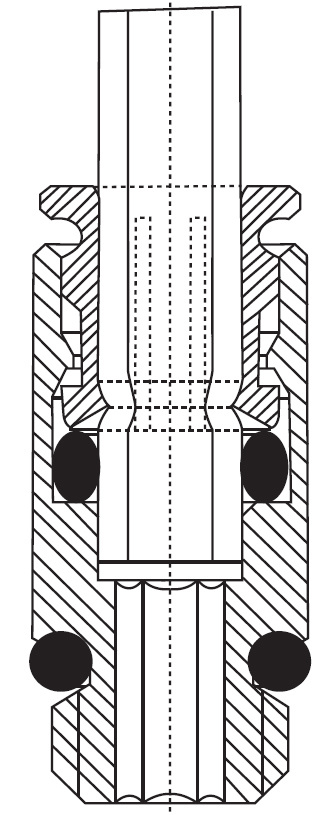

MATERIAL CONSTRUCTION
High Pressure Pneumatic Fittings - Xhnotion


Brass nut: Nickel Plated Brass or Brass
Brass bush: Nickel Plated Brass or Brass
Brass ferrule: Nickel Plated Brass or Brass
Brass nut: Nickel Plated Brass or Brass



SPECIFICATIONS

Operating Pressure -0.8~15 bar.
Operating Temperature -10~60ºC.
Application Air, water
Recommended Tubing Material Polyurethane, Nylon, Polyethylene, and Polypropylene
Types Straight, Elbow, Tee, X, Y, etc.
Capacity Over 1000000pcs/month
Marketing Area All over the world


FITTINGS ADVANTAGE

1)  Raw Material is HPB 59-1, conforms to country standard.

2) High precision automatic lathe to make the claws not hurt tube surface.

3)  5% tested by water at 10 bar, 100% tested by air and appearance test.

4) Easy to push in and put out on the basis of working pressure assured

5) 1 year quality assurance after shipment.

6) Custom fitting as your drawing or we make drawing as your sample.

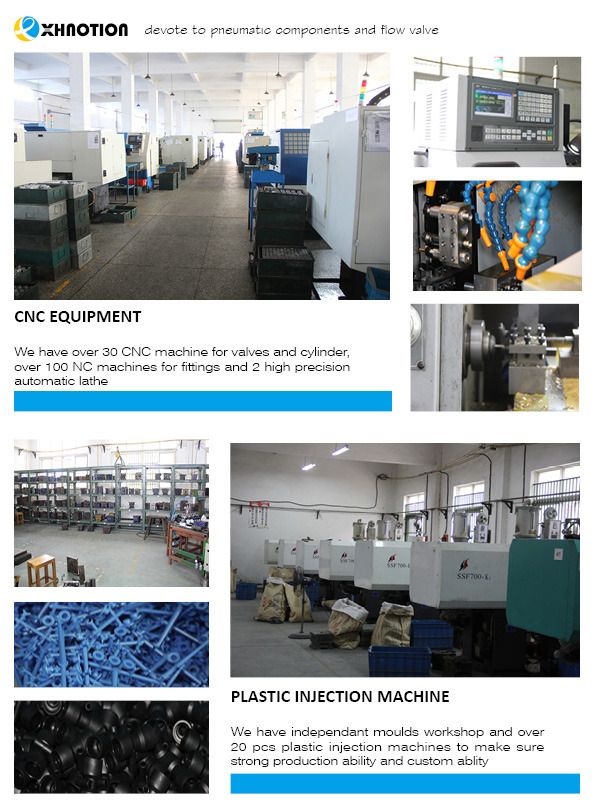

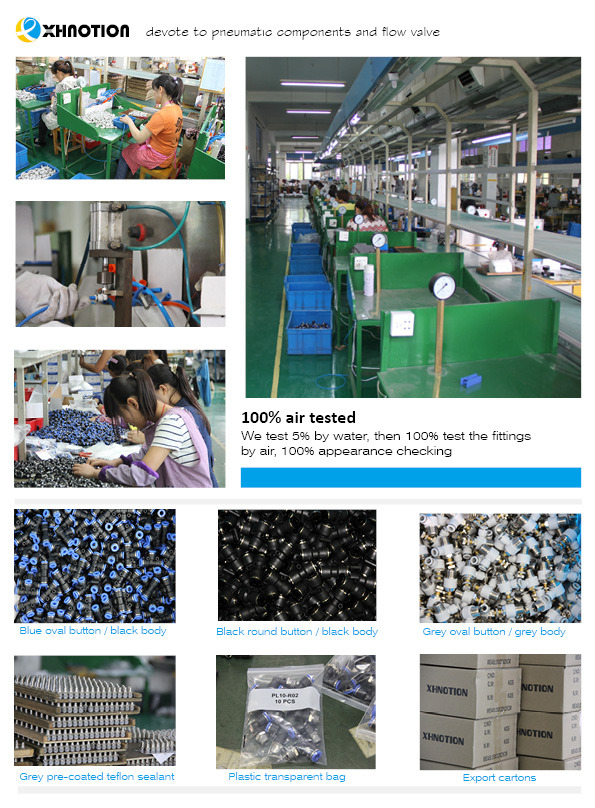

WORKSHOP SHOW
High Pressure Pneumatic Fittings - Xhnotion
High Pressure Pneumatic Fittings - Xhnotion

WHY CHOOSE US?

1) We offer one stop solution. Over 5000 items for you to save efforts and costs.

2)We have molds workshop, die-casting workshop, CNC workshop, plastic injection workshop to  make sure each part exactly as the drawing and good function.

3) We will reply you within 24 hours.

4) Whatever quantity you are requesting, we always offer you the best quality.

5)3D drawing, cad drawing service for custom fittings, hose, valve, cylinder


FAQ

Packing
Transparent plastic bag + white small box + neutral carton + pallet
Custom packaging are available, XHnotion brand packaging are available

Shipping :
Export port: Ningbo or Shanghai, China
Shipping way: by sea, by air, by courier
Delivery time 3 days to 30 days depends on actual orders.

Payment Terms
We accept T/T, L/C, Paypal, western union,etc.

Samples Policy
For regular fittings below 20 pcs, free samples against your courier account or you pick up from us.
For custom items, we will discuss by email.

Return Policy
We assure you 1 year policy after shipment. If there is any problem during this period, please contact us for support.



For other sizes, please refer to the table below.

Model [ΦD-T]
Tube(Metric)-Thread(R) Tube(IMetric)-Thread(G)
UPC 4-01 UPC 10-02 UPC 4-G01 UPC 10-G02
UPC 4-02 UPC 10-03 UPC 4-G02 UPC 10-G03
UPC 6-01 UPC 10-04 UPC 6-G01 UPC 10-G04
UPC 6-02 UPC 12-02 UPC 6-G02 UPC 12-G02
UPC 8-01 UPC 12-03 UPC 8-G01 UPC 12-G03
UPC 8-02 UPC 12-04 UPC 8-G02 UPC 12-G04
UPC 8-03 UPC 8-G03
