H216169 PSE-15 1/2 HDPE Plastic Filter Muffler Breather Silencer

Port: Ningbo, ChinaProduction Capacity: 10000 PCS Per DayPayment Terms: L/C, T/T, Western Union, Paypal, Money GramModel NO.: PSEHead Type: HexagonThread: M5, M6, 1/8, 1/4, 3/8, 1/2Certification: Ce, RoHS, TUVTransport Package: Plastic BagOrigin: ChinaHS Code: 842199900Usage: Air LineBrand: XhnotionWork Temperature: Normal TemperatureMaterial: PlasticStandard: DIN, GBSize: 3mm-16mm
Availability:
Quantity:
  • PSE-15

  • XHNOTION

  • L/C, T/T, Western Union, Paypal, Money Gram

  • Ningbo, China

  • 10000 PCS Per Day

  • PLASTIC BAG AND CARTON

  • PSE-15

  • Hexagon

  • M5, M6, 1/8, 1/4, 3/8, 1/2

  • Ce, RoHS, TUV

  • Plastic Bag

  • China

  • 842199900

  • Air Line

  • Xhnotion

  • Normal Temperature

  • Plastic

  • DIN, GB

  • 3mm-16mm

Product Description


Xhnotion Pnuematic H216169 PSE-15 1/2 HDPE Plastic Filter Muffler Breather Silencer




PSE-15 1/2 SILENCER



PSE-15 series HDPE muffler silencer breather (10)


1. Raw Material is HPB 59-1, conforms to country standard.


2. High precision automatic lathe to make the claws not hurt tube surface.


3. 5% tested by water at 10 bar, 100% tested by air and appearance test.


4. Easy to push in and put out on the basis of working pressure assured


5. 1 year quality assurance after shipment.


6. Custom fitting as your drawing or we make drawing as your sample.




FEATURES



1. Application Field: Pneumatic, Oil pressure and Hydraulic systems.


2. Function: to reduce noise and to remove dust and water.


3. Pressure Range: 0-10 bar; Max. Pressure: 12 bar.


4. Temperature Range: -10~70 °C.


5. Noise Elimination Effect: 20-25 db.


6. Filtration Rating: 5-100μm; regular rating is 40μm.


7. NPT, G & BSPT thread are available; regular thread is G thread.


8. Material: Brass, SS304, SS316, PE.




PSE series HDPE muffler silencer breather (12)
PSE series HDPE muffler silencer breather (11)


MATERIAL CONSTRUCTION




Metal Body Nickel Plated Brass, Stainless Steel, Nylon, Zinc Alloy
Filter Materia Brass Powder, Stainless Steel, HDPE





SPECIFICATIONS





Product Name Muffler/Silencer
Model B
Material Plastic
Operating Pressure 0~12 bar
Operating Temperature -10 ~ 70°C
Pressure Range 0-12 bar
Application Pneumatic, Oil pressure and Hydraulic systems
Capacity Over 100000pcs/month
Marketing Area All over the world





Basic Info
Model NO. PSE-15 Work Temperature Normal Temperature
Material Plastic Thread M5, 1/8, 1/4, 3/8, 1/2, 3/4, 1
Type Muffler Condition New
Transport Package Plastic Bag Specification ROHS, REACH, CE
Trademark XHnotion Origin China
HS Code 842199900 Production Capacity
10000 PCS Per Day

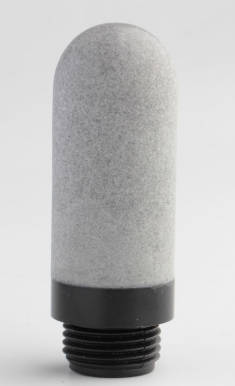

1703575953608

PSE-M5 Plastic muffler Base: Nylon M5 $0.22
PSE-6 G1/8" $0.35
PSE-8 G1/4" $0.50
PSE-10 G3/8" $1.04
PSE-15 G1/2" $1.10
PSE-20 G3/4" $3.15
PSE-25 G1" $5.36


Other products




Model(T)
Thread(G, PT, NPT)
PSE-6 1/8''
PSE-8 1/4''
PSE-10 3/8''
PSE-15 1/2''
PSE-20 3/4''
PSE-25 1''





ADVANTAGES

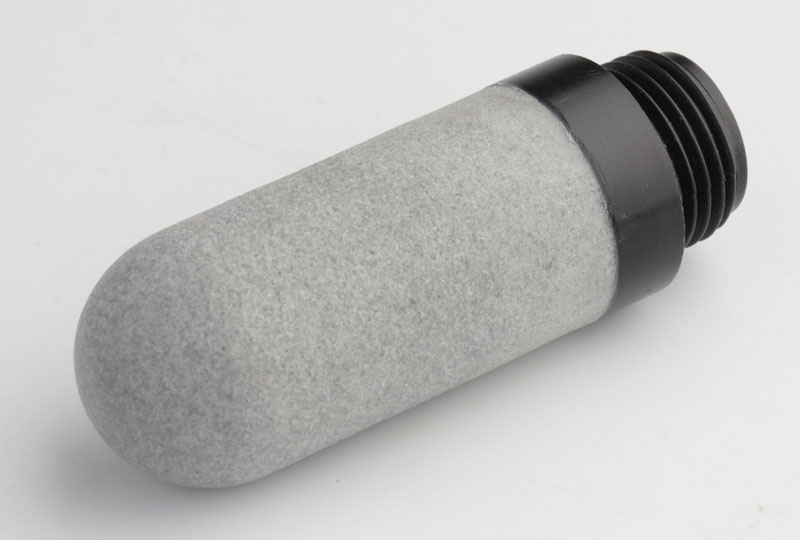

PSE-15 series HDPE muffler silencer breather (11)


1. Raw Material is HPB 59-1, conforms to country standard.


2. High precision automatic lathe to make the claws not hurt tube surface.


3. 5% tested by water at 10 bar, 100% tested by air and appearance test.


4. Easy to push in and put out on the basis of working pressure assured.


5. 1 year quality assurance after shipment.


6. Custom fitting as your drawing or we make drawing as your sample.







FAQ




Packing:
Transparent plastic bag + white small box + neutral carton + pallet
Custom packaging are available, XHnotion brand packaging are available

Shipping :
Export port: Ningbo or Shanghai, China
Shipping way: by sea, by air, by courier
Delivery time: 3 days to 30 days depends on actual orders.

Payment Terms :
We accept T/T, L/C, Paypal, Western Union,etc.

Samples Policy :
For regular fittings below 20 pcs, free samples against your courier account or you pick up from us.
For custom items, we will discuss by email.

Return Policy:
We assure you 1 year policy after shipment. If there is any problem during this period, please contact us for support.
