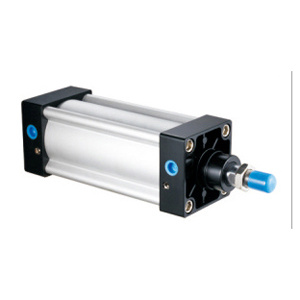

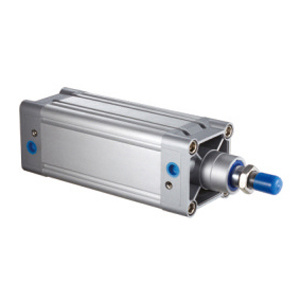

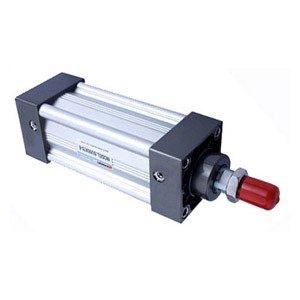

Compact Cylinder - Sda Air Cylinder Manufacturer

Model NO.: SDACombination Cylinder Type: Pressurized CylinderWorking Medium: AirType: Pneumatic CylinderBrand: ChelicWork Temperature: Normal TemperatureCondition: NewTrademark: XHnotionTransport Package: Export BoxSpecification: ROHS, REACH, CEOrigin: ChinaHS Code: 84123900Material: AluminumStructure: Piston CylinderPower: PneumaticPressure Direction: Single-acting CylinderDouble-Acting Cylinder Type: Common CylinderSpecial Cylinder Type: Number of Cylinders
  • SDA


  • L/C, T/T, Western Union, Paypal, Money Gram

  • Ningbo, China

  • 1000 PCS Per Month


  • SDA

  • Pressurized Cylinder

  • Air

  • Pneumatic Cylinder

  • Chelic

  • Normal Temperature

  • New

  • XHnotion

  • Export Box


  • China

  • 84123900

  • Aluminum

  • Piston Cylinder

  • Pneumatic

  • Single-acting Cylinder

  • Common Cylinder

  • Number of Cylinders

Product Description

1) Working medium: Filtered air
2) Motion pattern: Double actions
3) Max. Operating pressure: 1.0MPa
4) Min. Operating pressure: 0. MPa
5) Ambient temperature: -5~70C
6) Operating speed: 50-500mm/s
7) Oil: Lubricated and not lubricated
8) Joint pipe thread: 1/8"-1/2"
9) Cushion: Adjustable cushion at both ends

XHNotion can offer all kinds of air cylinder, pneumatic cylinder. SC cylinder, SU cylinder, DNC cylinder, SI cylinder, DSN cylinder, SDA cylinder, MA cylinder, MAL cylinder, CQ2 cylinder, aluminum cylinder, stainless steel cylinder, thin cylinder, compact cylinder, miniature cylinder, two shaft cylinder, three shaft cylinder, free installation cylinder, double rod cylinder, twin rod cylinder, Tri-rod cylinder, standard cylinder, ISO15552 cylinder, for all the world.

Bore (mm) 12 16 20 25 32 40 50 63 80 100
Motion pattern Double acting or Single acting Double acting
Working medium Air
Working pressure 1~9.0 Kgf/cm 2   for double acting, 2-9.0 Kgf/cm 2 for single acting
Proof pressure 10.5 Kgf/cm 2
Operating temperature range 0-70º C
Operating speed range 30~500 mm/s 30~350 mm/s 30~250 mm/s
100-500 mm/s -
Port size M5*0.8 G1/8 G1/4 G3/8


1) We offer one stop solution. Over 5000 items for you to save efforts and costs.

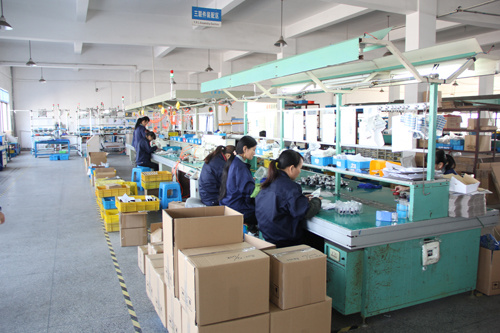

2)We have molds workshop, die-casting workshop, CNC workshop, plastic injection workshop to make sure each part exactly as the drawing and good function.

3) We will reply you within 24 hours.

4) Whatever quantity you are requesting, we always offer you the best quality.

5)3D drawing, cad drawing service for custom fittings, hose, valve, cylinder.


Transparent plastic bag + white small box + neutral carton + pallet
Custom packaging are available, XHnotion brand packaging are available

Shipping :
Export port: Ningbo or Shanghai, China
Shipping way: by sea, by air, by courier
Delivery time 3 days to 30 days depends on actual orders.

Payment Terms
We accept T/T, L/C, Paypal, western union,etc.

Samples Policy
For regular valve 1 pcs, free samples against your courier account or you pick up from us.
For custom items, we will discuss by email.

Return Policy:
We assure you 1 year policy after shipment. If there is any problem during this period, please contact us for support.
