Home » Products » Plastic Pneumatic Fittings » Standard push in fittings » Bulkhead Female Push in Fitting Manufacturer in China

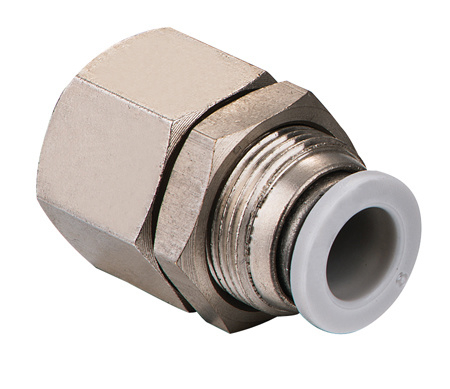

Bulkhead Female Push in Fitting Manufacturer in China

Quantity:
  • Ningbo, China
  • 10000 PCS Per Day
  • L/C, T/T, Western Union, Paypal, Money Gram
  • WPMF8-02
  • M5,M6, 1/8, 1/4, 3/8, 1/2
  • XHnotion
  • Plastic Bag
  • ROHS, REACH, CE
  • China
  • 39174000
  • DIN, GB
  • Plastic
  • Female
  • Nickel-Plated
  • Hexagon
  • 3mm-16mm
Product Description
FEATURES

1. Designed for Polyurethane or Nylon tubing.
2. Quick and reliable connections.
3. Reusable: multiple connections / disconnections.
4. Convenient elliptical / round sleeve configuration.
5. Metallic body made of non-corrosive Nickel-plated Brass.
6. Pre-coated threads are ready to use without additional sealing.
7. Outside (and Inside where applicable) hexagonal wrench tightening.
8. Available over 60 different models in imperial, metric sizes and hybrid.
9. Conform ISO7.1, BS21, DIN2999 standard .
MATERIAL CONSTRUCTION
Bulkhead Female Push in Fitting Manufacturer in China
Plastic Body PBT
Metal Body Nickel Plated Brass or Brass
Release Button POM
Grip Ring Stainless Steel
Thread Sealant Teflon
O-Ring NBR


SPECIFICATIONS
Operating Pressure 0 - 150 PSI 0 - 990 kpa
Operating Temperature 0 - 60 °C 32 to 140°F
Application Air, water
Recommended Tubing Material Polyurethane, Nylon, Polyethylene, and Polypropylene
Types Straight, Elbow, Tee, X, Y, etc.
Capacity Over 1000000pcs/month
Marketing Area All over the world



FITTINGS ADVANTAGE

1) Raw Material conforms to ROHS standards.
2) Imported Teflon adhesive for pre-coated sealant.

3) Multiple color and shape for button and body
Blue and oval button with black body as regular,
Black or gray round button is available, too.

4) 5% tested by water at 10 bar , 100% tested by air and appearance test.

5) 1 year quality assurance after shipment.

6) Custom fitting as your drawing or we make drawing as your sample.


WORKSHOP SHOW
Bulkhead Female Push in Fitting Manufacturer in China

Bulkhead Female Push in Fitting Manufacturer in China
WHY CHOOSE US?

1) We offer one stop solution. Over 5000 items for you to save efforts and costs.

2)W e have molds workshop, die-casting workshop, CNC workshop, plastic injection workshop to make sure each part exactly as the drawing and good function.

3) We will reply you within 24 hours.

4) Whatever quantity you are requesting, we always offer you the best quality.

5) 3D drawing, cad drawing service for custom fittings, hose, valve, cylinder .


FAQ

Packing
Transparent plastic bag + white small box + neutral carton + pallet
Custom packaging are available, XHnotion brand packaging are available

Shipping
Export port: Ningbo or Shanghai, China
Shipping way: by sea, by air, by courier
Delivery time 3 days to 30 days depends on actual orders.

Payment Terms
We accept T/T, L/C, Paypal, western union,etc.


Samples Policy
For regular fittings below 20 pcs, free samples against your courier account or you pick up from us.
For custom items, we will discuss by email.

Return Policy
We assure you 1 year policy after shipment. If there is any problem during this period, please contact us for support.

For other size, please refer to below table.
Model [ΦD-T]
Tube(Metric)-Thread(R) Tube(Inch)-Thread(R) Tube(Inch)-Thread(NPT)
PMF 4-M5 PMF 6-03 PMF 12-01 PMF 5/32-01 PMF 3/8-02 PMF 1/8-U10 PMF 3/16-N03 PMF 3/8-N02
PMF 4-M6 PMF 8-01 PMF 12-02 PMF 5/32-02 PMF 3/8-03 PMF 1/8-N01 PMF 1/4-U10 PMF 3/8-N03
PMF 4-01 PMF 8-02 PMF 12-03 PMF 1/4-01 PMF 3/8-04 PMF 1/8-N02 PMF 1/4-N01 PMF 3/8-N04
PMF 4-02 PMF 8-03 PMF 12-04 PMF 1/4-02 PMF 1/2-02 PMF 5/32-U10 PMF 1/4-N02 PMF 1/2-N02
PMF 4-03 PMF 8-04 PMF 14-03 PMF 1/4-03 PMF 1/2-03 PMF 5/32-N01 PMF 1/4-N03 PMF 1/2-N03
PMF 6-M5 PMF 10-01 PMF 14-04 PMF 5/16-01 PMF 1/2-04 PMF 5/32-N02 PMF 5/16-N01 PMF 1/2-N04
PMF 6-M6 PMF 10-02 PMF 16-03 PMF 5/16-02 PMF 3/16-U10 PMF 5/16-N02
PMF 6-01 PMF 10-03 PMF 16-04 PMF 5/16-03 PMF 3/16-N01 PMF 5/16-N03
PMF 6-02 PMF 10-04 PMF 3/8-01 PMF 3/16-N02 PMF 3/8-N01
