| Quantity: | |
|---|---|

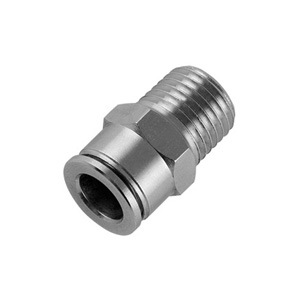

MPC8-02
XHNOTION
L/C, T/T, D/P, Western Union, Paypal, Money Gram
Ningbo, China
10000 PCS Per Day
PLASTIC BAG AND CARTON
MPC8-02
M5,M6, 1/8, 1/4, 3/8, 1/2
XHnotion
Plastic Bag
ROHS, REACH, CE
China
7412209000
DIN, GB
Brass
Male
Nickel-Plated
Hexagon
3mm-16mm
FEATURES
1. Fluid Type: compressed air (For other fluid, please contact us).
2. Working Pressure: -0.8~15 bar.
3. Application Tube: PU, PE, PA tubes.
4. Working Temperature: -10~60ºC.
PRODUCT ITEMS
| Model [ΦD-T] | |||||||
| Tube(Metric)-Thread(R) | Tube(Inch)-Thread(R) | Tube(Inch)-Thread(NPT) | |||||
| MPC 4-M5 | MPC 6-03 | MPC 12-01 | MPC 5/32-01 | MPC 3/8-02 | MPC 1/8-U10 | MPC 3/16-N03 | MPC 3/8-N02 |
| MPC 4-M6 | MPC 8-01 | MPC 12-02 | MPC 5/32-02 | MPC 3/8-03 | MPC 1/8-N01 | MPC 1/4-U10 | MPC 3/8-N03 |
| MPC 4-01 | MPC 8-02 | MPC 12-03 | MPC 1/4-01 | MPC 3/8-04 | MPC 1/8-N02 | MPC 1/4-N01 | MPC 3/8-N04 |
| MPC 4-02 | MPC 8-03 | MPC 12-04 | MPC 1/4-02 | MPC 1/2-02 | MPC 5/32-U10 | MPC 1/4-N02 | MPC 1/2-N02 |
| MPC 4-03 | MPC 8-04 | MPC 14-03 | MPC 1/4-03 | MPC 1/2-03 | MPC 5/32-N01 | MPC 1/4-N03 | MPC 1/2-N03 |
| MPC 6-M5 | MPC 10-01 | MPC 14-04 | MPC 5/16-01 | MPC 1/2-04 | MPC 5/32-N02 | MPC 5/16-N01 | MPC 1/2-N04 |
| MPC 6-M6 | MPC 10-02 | MPC 16-03 | MPC 5/16-02 | MPC 3/16-U10 | MPC 5/16-N02 | ||
| MPC 6-01 | MPC 10-03 | MPC 16-04 | MPC 5/16-03 | MPC 3/16-N01 | MPC 5/16-N03 | ||
| MPC 6-02 | MPC 10-04 | MPC 3/8-01 | MPC 3/16-N02 | MPC 3/8-N01 | |||
MATERIAL CONSTRUCTION
Metal Body Nickel Plated Brass or Brass
Release Button Nickel Plated Brass or Brass
Thread Sealant Teflon
O-Ring NBR or Viton
SPECIFICATIONS
Operating Pressure -0.8~15 bar.
Operating Temperature -10~60ºC.
Application Air, water
Recommended Tubing Material Polyurethane, Nylon, Polyethylene, and Polypropylene
Types Straight, Elbow, Tee, X, Y, etc.
Capacity Over 1000000pcs/month
Marketing Area All over the world
FITTINGS ADVANTAGE
1) Raw Material is HPB 59-1, conforms to country standard.
2) High precision automatic lathe to make the claws not hurt tube surface.
3) 5% tested by water at 10 bar, 100% tested by air and appearance test.
4) Easy to push in and put out on the basis of working pressure assured
5) 1 year quality assurance after shipment.
6) Custom fitting as your drawing or we make drawing as your sample.
WHY CHOOSE US?
1) We offer one stop solution. Over 5000 items for you to save efforts and costs.
2)We have molds workshop, die-casting workshop, CNC workshop, plastic injection workshop to make sure each part exactly as the drawing and good function.
3) We will reply you within 24 hours.
4) Whatever quantity you are requesting, we always offer you the best quality.
5)3D drawing, cad drawing service for custom fittings, hose, valve, cylinder
FAQ
Packing
Transparent plastic bag + white small box + neutral carton + pallet
Custom packaging are available, XHnotion brand packaging are available
Shipping :
Export port: Ningbo or Shanghai, China
Shipping way: by sea, by air, by courier
Delivery time 3 days to 30 days depends on actual orders.
Payment Terms
We accept T/T, L/C, Paypal, western union,etc.
Samples Policy
For regular fittings below 20 pcs, free samples against your courier account or you pick up from us.
For custom items, we will discuss by email.
Return Policy
We assure you 1 year policy after shipment. If there is any problem during this period, please contact us for support.
