L/C, T/T, Western Union, Paypal, Money Gram
10000 PCS Per Month
Pilot Piston Structure
AC Solenoid Valve
Industrial Usage, Water Industrial Usage
12VDC, 24VDC, 110VAC, 220VAC
Air, Water, Oil, Diesel, Ozone, Steam
ROHS, REACH, CE
1. Reverse pulse jet valves including right angle style and embedded pulse valve style, including single diaphragm and double diaphragm,
2. Port Size: 1", 1-1/2", 2", 2-1/2" 3", 4"
3. Working pressure: 0.4-0.6 Mpa
4. Media temperature: -20~80 Celsius degree
5. Voltage: 12VAC, 24VAC ,36VAC,48VAC,110VAC, 220VAC ,380V, DC24V and AC220V as regular
6. Body material: aluminum
7. Diaphragm life: 1 Million cycles or 3 years.
|Model||Medium||Inlet thread size||Outlet connection||Orifice (mm)||Diaphram number||Surrouding temp.||Working Pressure||Body Material|
|BMCF-Y-76S||Compressed clean air||G3"||88||76||2||-25~55ºC||0.2-0.6 Mpa||Aluminum|
1) Raw Material conforms to China industry standard, bought from famous factory.
2) Insulation grade: H class, good resistance to high temperature;
3) Machined by CNC to make sure the tolerance as the drawing
4) 100% leakage testing under low pressure and high pressure.
5) All kinds of valve and seals material to meet custom requirement.
6) 1 year quality assurance after shipment.
7) After sales technique support
WHY CHOOSE US?
1) We offer one stop solution. Over 5000 items for you to save efforts and costs.

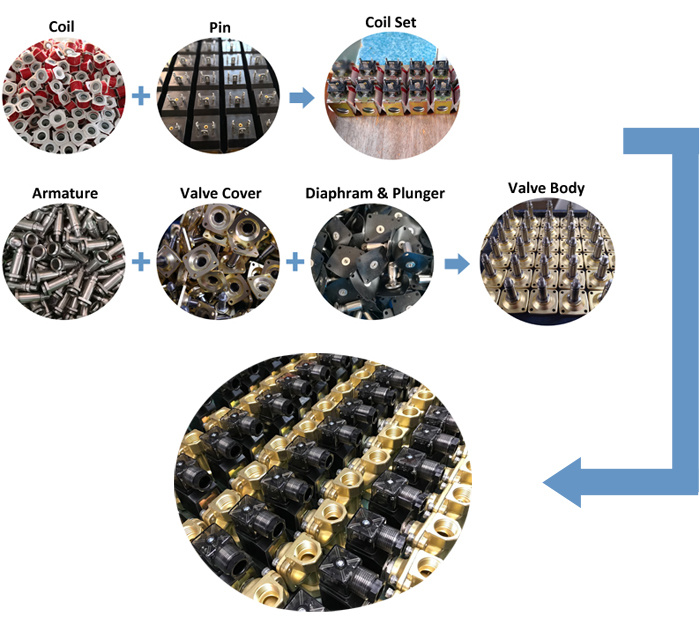

2)We have molds workshop, die-casting workshop, CNC workshop, plastic injection workshop to make sure each part exactly as the drawing and good function.
3) We will reply you within 24 hours.
4) Whatever quantity you are requesting, we always offer you the best quality.
5)3D drawing, cad drawing service for custom fittings, hose, valve, cylinder
Transparent plastic bag + white small box + neutral carton + pallet
Custom packaging are available, XHnotion brand packaging are available
Export port: Ningbo or Shanghai, China
Shipping way: by sea, by air, by courier
Delivery time 3 days to 30 days depends on actual orders.
We accept T/T, L/C, Paypal, western union,etc.
For regular fittings below 20 pcs, free samples against your courier account or you pick up from us.
For custom items, we will discuss by email.
We assure you 1 year policy after shipment. If there is any problem during this period, please contact us for support.
We have thousands of solenoid valve in the stock. If you do not know how to order our valve, please tell us some necessary information, we will recommend you the most economical solenoid valve.
1. valve material
2. working pressure
3. temperature range
4 working environment
You can choose as below
Body Material: Plastic, brass, SS304, SS306, Steel.
Seal Material: NBR, VITON, PTFE, EPDM, SILICONE
Voltage: 12VDC, 24VDC, 24VAC, 220VAC, 280VAC
Size: M5-2", Flange connection
