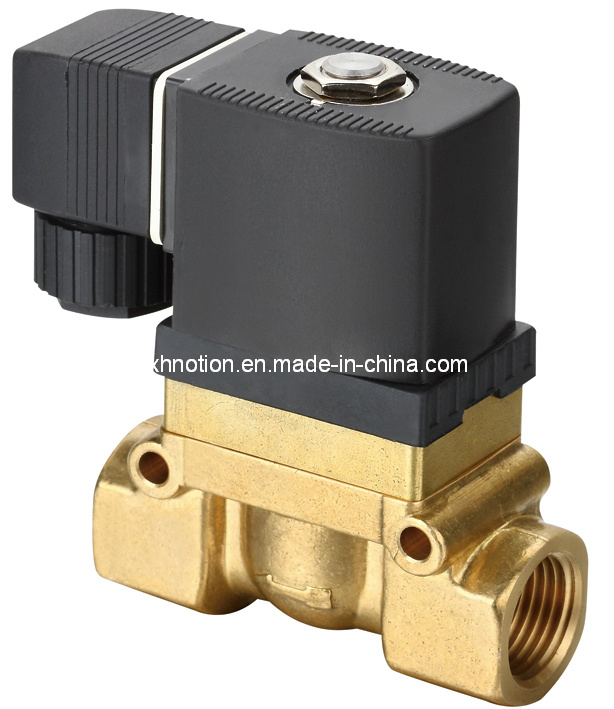

BH Series High Pressure Solenoid Valve

Model NO.: BH2525Pressure: High TemperatureValve Structure: Direct Action Diaphragm StructurePower Supply: DC Solenoid ValveUsage: Flow ControlStandard: DINApplication: Industrial Usage, Water Industrial Usage, Household UsageRegular Voltage: 12VDC, 24VDC, 110VAC, 220VACTrademark: XHnotionTransport Package: Paper BoxSpecification: ROHS, REACH, CEOrigin: ChinaHS Code: 8481804090Media: GasTemperature: Ordinary TemperatureActuator: ElectricConnection Form: ThreadType: Direct ActingMaterial: Brass
Availability:
Quantity:
  • BH2525

  • XHNOTION

  • L/C, T/T, Western Union, Paypal, Money Gram

  • Ningbo, China

  • 1000 PCS Per Month

  • CARTONS

  • BH2525

  • High Temperature

  • Direct Action Diaphragm Structure

  • DC Solenoid Valve

  • Flow Control

  • DIN

  • Industrial Usage, Water Industrial Usage, Household Usage

  • 12VDC, 24VDC, 110VAC, 220VAC

  • XHnotion

  • Paper Box

  • ROHS, REACH, CE

  • China

  • 8481804090

  • Gas

  • Ordinary Temperature

  • Electric

  • Thread

  • Direct Acting

  • Brass

Product Description

FEATURES

1. Compact volume, large flow, widely use

2. Protection class: IP65

3. Seal material: NBR, VITON,  EPDM, SILICONE

4. Body material: brass, stainless steel

5. BD - direct acting, BP - pilot operated, BT - steam valve,  BH - high pressure valve, BD23 - 3 way valve

6. Some models Normally open is available

SPECIFICATIONS

MODEL Orifice
(mm)
Pipe Thread Working pressure Medium Temp. Seals material Body material CV value Voltage
BH1308 13 G1/4" 3~50 Bar -10~80ºC PTFE,
NBR
Brass 4.2 220VAC     110VAC       24VDC                   make Other voltage  as requested
BH1310 13 G3/8" 3~50  Bar 4.2
BH1315 13 G1/2" 3~50  Bar 4.2
BH2020 20 G3/4" 3-40  Bar 5.8
BH2525 25 G1" 3-40  Bar 11.7



ADVANTAGE

1) Raw Material conforms to China industry standard, bought from famous factory.

2) Insulation grade: H class, good resistance to high temperature;

3) Machined by CNC to make sure the tolerance as the drawing

4) 100% leakage testing under low pressure and high pressure.

5) All kinds of valve and seals material to meet custom requirement.

6) 1 year quality assurance after shipment.

7) After sales technique support



WHY CHOOSE US?

1) We offer one stop solution. Over 5000 items for you to save efforts and costs.

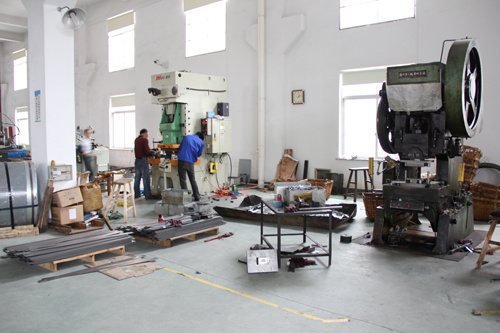

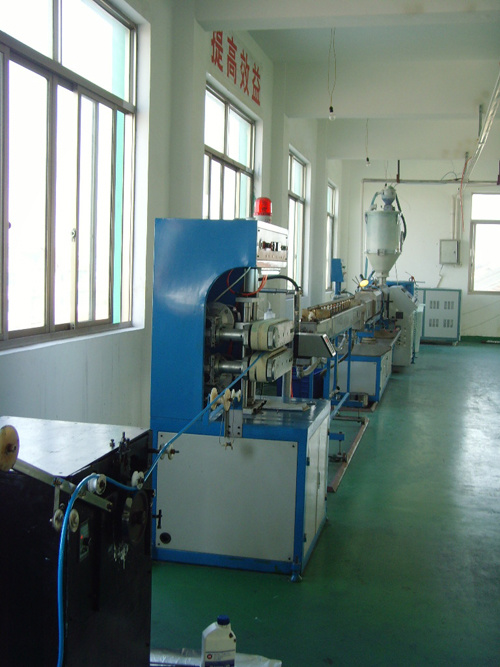

2)We have molds workshop, die-casting workshop, CNC workshop, plastic injection workshop to make sure each part exactly as the drawing and good function.

3) We will reply you within 24 hours.

4) Whatever quantity you are requesting, we always offer you the best quality.

5)3D drawing, cad drawing service for custom fittings, hose, valve, cylinder





FAQ

Packing
Transparent plastic bag + white small box + neutral carton + pallet
Custom packaging are available, XHnotion brand packaging are available

Shipping :
Export port: Ningbo or Shanghai, China
Shipping way: by sea, by air, by courier
Delivery time 3 days to 30 days depends on actual orders.

Payment Terms
We accept T/T, L/C, Paypal, western union,etc.

Samples Policy
For regular fittings below 20 pcs, free samples against your courier account or you pick up from us.
For custom items, we will discuss by email.

Return Policy:
We assure you 1 year policy after shipment. If there is any problem during this period, please contact us for support.


============================================================
We have thousands of solenoid valve in the stock. If you do not know how to order our valve, please tell us some necessary information, we will recommend you the most economical solenoid valve.

1. valve material
2. working pressure
3. temperature range
4 working environment
5. quantity

You can choose as below

Body Material: Plastic, brass, SS304, SS306, Steel.
Seal Material: NBR, VITON, PTFE, EPDM, SILICONE
Voltage: 12VDC, 24VDC, 24VAC, 220VAC, 280VAC
Size: M5-2", Flange connection


==========================================================
XHnotion, is a leading manufacturer of pneumatic components and fluid valve in China. Our solenoid valve include below items

Fluid assortment

Water solenoid valve
Air solenoid valve
Diesel solenoid valve
Chemical solenoid valve
We have different solenoid valve for different fluid


Structure assortment

2 way solenoid valve
3 way solenoid valve
4 way solenoid valve
5 way solenoid valve


Acting assortment

Direct acting solenoid valve
Pilot acting solenoid valve


Function assortment

common solenoid valve for air, water
High pressure solenoid valve
Steam solenoid valve
Irrigation solenoid valve
Underwater solenoid valve
Drinking water solenoid valve
Auto drain solenoid valve
Pneumatic angle valve
Pulse jet solenoid valve
Bi-stable solenoid valve
Throttle solenoid valve
Miniature steam solenoid valve




Material assortment

Brass solenoid valve
Plastic solenoid valve
Stainless steel solenoid valve
PTFE solenoid valve
PVC solenoid valve
POM solenoid valve

Meanwhile, we also manufacture below items.


pneumatic fittings, plastic, brass, stainless steel push in fittings

pneumatic quick coupling, air tool kits, air blow gun

pneumatic muffler, silencer, filter

air hose- PU tubes, nylon tube, PE tube, PTFE tubes, etc

air cylinder, air preparation, pneumatic directional valve

modular hose, water push in fitting

Ball valve, brass connector
