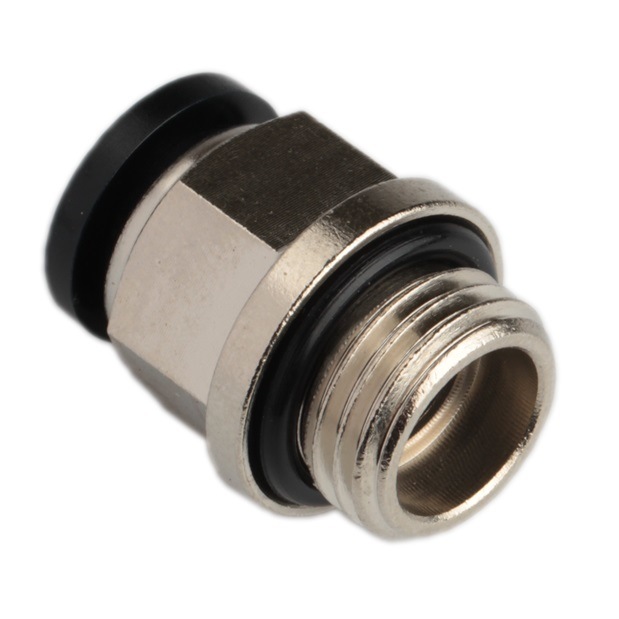

20 Bar Brass Push in Fitting Male Straight BSPP Thread

Quantity:
  • Ningbo, China
  • 100000 PCS Per Day
  • L/C, T/T, Western Union, Paypal
  • MPC4-G01
  • China
  • 7412209000
  • Brass
  • Male
  • Nickel-Plated
  • Round
  • Carton
  • XHnotion
Product Description
20 Bar Brass Push in Fitting Male Straight BSPP Thread
20 Bar Brass Push in Fitting Male Straight BSPP Thread

For other size, please refer to below table.
Model [ΦD-T]
Tube(Metric)-Thread(G) Tube(Inch)-Thread(G)
MPC4-M5 MPC6-G03 MPC12-G01 MPC5/32-G01 MPC3/8-G02
MPC4-M6 MPC8-G01 MPC12-G02 MPC5/32-G02 MPC3/8-G03
MPC4-G01 MPC8-G02 MPC12-G03 MPC1/4-G01 MPC3/8-G04
MPC4-G02 MPC8-G03 MPC12-G04 MPC1/4-G02 MPC1/2-G02
MPC4-G03 MPC8-G04 MPC14-G03 MPC1/4-G03 MPC1/2-G03
MPC6-M5 MPC10-G01 MPC14-G04 MPC5/16-G01 MPC1/2-G04
MPC6-M6 MPC10-G02 MPC16-G03 MPC5/16-G02
MPC6-G01 MPC10-G03 MPC16-G04 MPC5/16-G03
MPC6-G02 MPC10-G04 MPC3/8-G01
FEATURES

1. Fluid Type: compressed air (For other fluid, please contact us).
2. Working Pressure: -0.8~15 bar.
3. Application Tube: PU, PE, PA tubes.
4. Working Temperature: -10~60ºC.

MATERIAL CONSTRUCTION
Metal Body Nickel Plated Brass or Brass
Release Button Nickel Plated Brass or Brass
Thread Sealant Teflon
O-Ring NBR or Viton
SPECIFICATIONS
Operating Pressure -0.8~15 bar
Operating Temperature -10 ~ 60°C
Application Air
Recommended Tubing Material Polyurethane, Nylon, Polyenthylee, and Polypropylene
Types Straight
Capacity Over 1000000pcs/month
Marketing Area All over the world
FITTINGS ADVANTAGE

1. Raw Material is HPB 59-1, conforms to country standard.
2. High precision automatic lathe to make the claws not hurt tube surface.
3. 5% tested by water at 10 bar, 100% tested by air and appearance test.
4. Easy to push in and put out on the basis of working pressure assured
5. 1 year quality assurance after shipment.
6. Custom fitting as your drawing or we make drawing as your sample.



WORKSHOP SHOW
20 Bar Brass Push in Fitting Male Straight BSPP Thread
20 Bar Brass Push in Fitting Male Straight BSPP Thread




WHY CHOOSE US?

1) We offer one stop solution. Over 5000 items for you to save efforts and costs.

2)We have molds workshop, die-casting workshop, CNC workshop, plastic injection workshop to make sure each part exactly as the drawing and good function.

3) We will reply you within 24 hours.

4) Whatever quantity you are requesting, we always offer you the best quality.

5)3D drawing, cad drawing service for custom fittings, hose, valve, cylinder


FAQ

Packing
Transparent plastic bag + white small box + neutral carton + pallet
Custom packaging are available, XHnotion brand packaging are available

Shipping :
Export port: Ningbo or Shanghai, China
Shipping way: by sea, by air, by courier
Delivery time 3 days to 30 days depends on actual orders.

Payment Terms
We accept T/T, L/C, Paypal, western union,etc.

Samples Policy
For regular fittings below 20 pcs, free samples against your courier account or you pick up from us.
For custom items, we will discuss by email.

Return Policy:
We assure you 1 year policy after shipment. If there is any problem during this period, please contact us for support.
