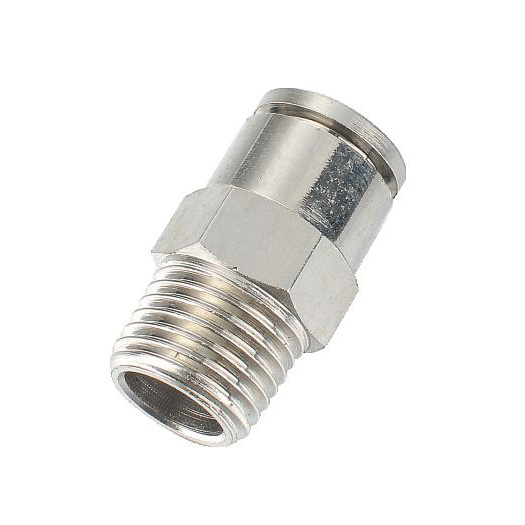

16bar High Pressure Full Brass Push Straight Fitting

Port: Ningbo, ChinaProduction Capacity: 100000 PCS Per DayPayment Terms: L/C, T/T, Western Union, Paypal, Money GramModel NO.: MPCSize: 3mm-16mmHead Type: HexagonConnection: MaleThread: M5, M6, 1/8, 1/4, 3/8, 1/2Surface Treatment: Nickel-PlatedCertification: Ce, RoHS, TUVTransport Package: Plastic BagOrigin: ChinaHS Code: 7412209000Type: Quick ConnectorUsage: Air LineBrand: XhnotionWork Temperature: Normal TemperatureMaterial: Brass
Availability:
Quantity:
  • MPC

  • XHNOTION

  • L/C, T/T, Western Union, Paypal, Money Gram

  • Ningbo, China

  • 100000 PCS Per Day

  • PLASTIC BAG AND CARTON

  • MPC

  • 3mm-16mm

  • Hexagon

  • Male

  • M5, M6, 1/8, 1/4, 3/8, 1/2

  • Nickel-Plated

  • Ce, RoHS, TUV

  • Plastic Bag

  • China

  • 7412209000

  • Quick Connector

  • Air Line

  • Xhnotion

  • Normal Temperature

  • Brass

  • DIN, GB

Product Description
16Bar High Pressure Full Brass Push Straight Fitting



                                            16bar High Pressure Full Brass Push Straight Fitting







Features


1. Fluid Type: compressed air (For other fluid, please contact us).
2. Working Pressure: 0~16 bar.
3. Application Tube: PU, PE, PA tubes.
4. Working Temperature: -20~100ºC.

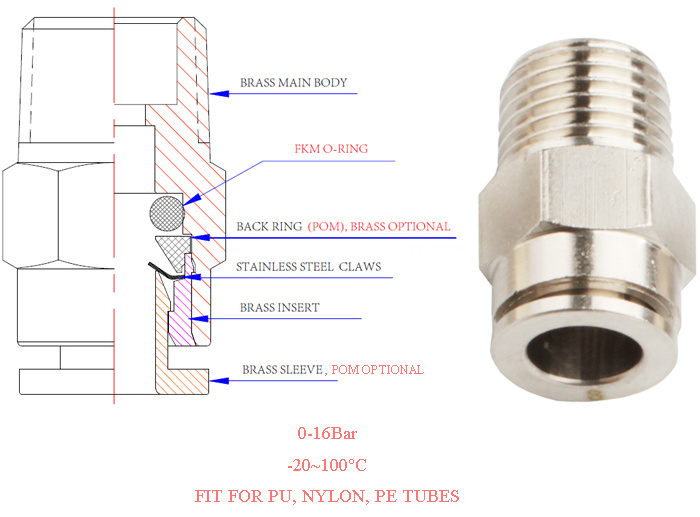

Material Construction
Metal Body Brass
O-Ring FKM
Back Ring POM or Brass
Claws Stainless Steel
Insert Brass
Sleeve Brass or POM



16bar High Pressure Full Brass Push Straight Fitting







Specifications
Operating Pressure -0.8~15 bar
Operating Temperature -10 ~ 60°C
Application Air
Recommended Tubing Material Polyurethane, Nylon, Polyenthylee, and Polypropylene
Types Straight
Capacity Over 1000000pcs/month
Marketing Area All over the world








Advantage


1. Raw Material is HPB 59-1, conforms to country standard.
2. High precision automatic lathe to make the claws not hurt tube surface.
3. 5% tested by water at 10 bar, 100% tested by air and appearance test.
4. Easy to push in and put out on the basis of working pressure assured
5. 1 year quality assurance after shipment.
6.
Custom fitting as your drawing or we make drawing as your sample.

16bar High Pressure Full Brass Push Straight Fitting



16bar High Pressure Full Brass Push Straight Fitting












Packing & Shipping

Packing:
Transparent plastic bag + white small box + neutral carton + pallet
Custom packaging are available, XHnotion brand packaging are available

Shipping :
Export port: Ningbo or Shanghai, China.
Shipping way: by sea, by air, by courier.
Express: TNT, DHL, UPS, FedEx, SF Express.
Delivery time: 3 days to 30 days depends on actual orders.



16bar High Pressure Full Brass Push Straight Fitting

















Our Company

XHnotion originate from notion between pneumatic power and human.
(X stands for winds, H stands for human)

In Chinese, XHnotion stands for 'we do, we promise'  we read it 'X-notion'.
The company XHnotion Pneumatic was founded in 2007 and has developed with a steadily growing success to a reliable partner for international established clients.

This success of the company XHnotion Pneumatic is based on:

High class quality standard

Customer satisfaction

Fair price policy

Flexibility

The high-class quality standard of the products of company XHnotion is reflected in our quality management system, certificated ISO 9001:2008. And we got CE, RoHS, REACH certificate for international market.

XHnotion Pneumatic manufactures below products:

Pneumatic Components: air cylinder, solenoid valve, FRL

Solenoid Calve: standard solenoid valve, multipurpose solenoid valve, pneumatic angle valve

Pneumatic Fittings: plastic pneumatic fittings, mental pneumatic fittings, pneumatic muffler, water push in fittings

Air Gun & Couplers: pneumatic couplers, air guns, air tool kits

Air Hoses: air tubing, PTFE tubes, tube cutter, pipes

16bar High Pressure Full Brass Push Straight Fitting








Why Choose US ?

1. We offer one stop solution. Over 5000 items for you to save efforts and costs.
2. We have molds workshop, die-casting workshop, CNC workshop, plastic injection workshop to
   make sure each part exactly as the drawing and good function.
3. We will reply you within 24 hours.
4. Whatever quantity you are requesting, we always offer you the best quality.
5. 3D drawing, CAD drawing service for custom fittings, hose, valve, cylinder.













FAQ

Payment Terms :
We accept T/T, L/C, Paypal, Western Union, Money Gram, etc.

Samples Policy :
For regular valves, samples against your courier account or you pick up from us.
For custom items, we will discuss by email.

Return Policy:
We assure you 1 year policy after shipment.
If there is any problem during this period, please contact us for support.
