medical O2 oxygen concentrator 4 way solenoid valve for molecular sieve

Fluid: Compressed Air (Oil Free)
Working Pressure: 0-2 barg
Working Temp: 0-60°C
Noise Level: Max. 50 dbA

Connection Size: G1/4”
Operating Voltage: 24VDC

Power Consumption: Max. 1W

Life Cycle: Min. 10 Million

Mount Type: Direct Mounted

Working Principle: 3 Way-2 Position - Solenoid Valve Operated
Availability:
Quantity:
  • MP-08

  • XHNOTION

  • L/C, T/T, Western Union, Paypal, Money Gram

  • Ningbo, China

  • CARTONS

Product Description

FEATURES


1. Adopt new processing, improved inner hole roughness.

2. Adopt specially formulated silicone to increase of service life.

3. To import German high standard special grease which provides film in  order to reduce the friction.

4. Valve spool material use soft magnetic stainless steel from German,  increase the magnetic properties and reduce the coil power to 30%.


SPECIFICATIONS


Model specification MP-08/MP-08 ZDKR
Valve Type 4/2 Way
Working Medium 40 Micron Filtered Air
Operation Internal Piloted
Working-pressure 0.08~0.35Mpa
Ambient Temperature -5~80
Protection Class F Class, IP 65

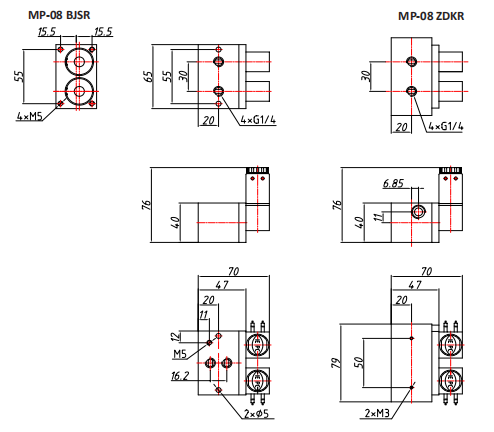

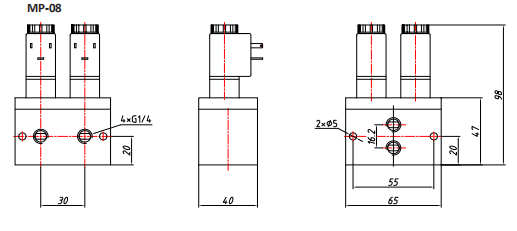

DRAWING


QQ图片20210811142402

111

ADVANTAGE


1) Raw Material conforms to China industry standard, bought from famous factory.

2) Insulation grade: H class, good resistance to high temperature;

3) Machined by CNC to make sure the tolerance as the drawing

4) 100% leakage testing under low pressure and high pressure.

5) All kinds of valve and seals material to meet custom requirement.

6) One year quality assurance after shipment.

7) After-sales technique support .


WHY CHOOSE US?

1)XHnotion offer one stop solution. Over 5000 items for you to save efforts and costs.

2)We have molds workshop, die-casting workshop, CNC workshop, plastic injection workshop to make sure each part exactly as the drawing and good function.

3) We will answer within 24 hours.

4) Whatever quantity you are requesting, we always offer you the best quality.

5)3D drawing, cad drawing service for custom fittings, hose, valve, cylinder

Our Factory                                                    Our Workshop

Drinking Pure Water Solenoid Valve Manufacturer N/C Non-Toxic         Drinking Pure Water Solenoid Valve Manufacturer N/C Non-Toxic

Our Package                                                  Our Warehouse


Drinking Pure Water Solenoid Valve Manufacturer N/C Non-Toxic         Drinking Pure Water Solenoid Valve Manufacturer N/C Non-Toxic

 XHnotion, is a leading manufacturer of pneumatic components and flow valve in China. Our products include below item
pneumatic fittings, plastic, brass, stainless steel push in fittings pneumatic quick coupling, air tool kits, air blow gun pneumatic muffler,
silencer, filter air hose- PU tubes, nylon tube, PE tube, PTFE tubes, etc
 Solenoid control valve for water, air, diesel, oil, air cylinder, air preparation, pneumatic directional valve modular hose, water push in fitting.

FAQ
Packing
Transparent plastic bag + neutral carton + neutral box + pallet
Custom packaging are available, XHnotion brand packaging are available

Shipping :
Export port: Ningbo or Shanghai, China
Shipping way: by sea, by air, by courier
Delivery time 3 days to 30 days depends on actual orders.

Payment Terms
We accept T/T, L/C, Paypal, western union,etc.

Samples Policy
For regular item1 piece, free samples against your courier account or you pick up from us.
For custom items, we will discuss by email.

Return Policy:
We assure you 1 year policy after shipment. If there is any problem during this period, please contact us for support.
