Home » Products » Fluid Solenoid Valves » Special Purpose Valve » medical O2 oxygen concentrator 4 way solenoid valve for molecular sieve HBOGF-1BGUE-650

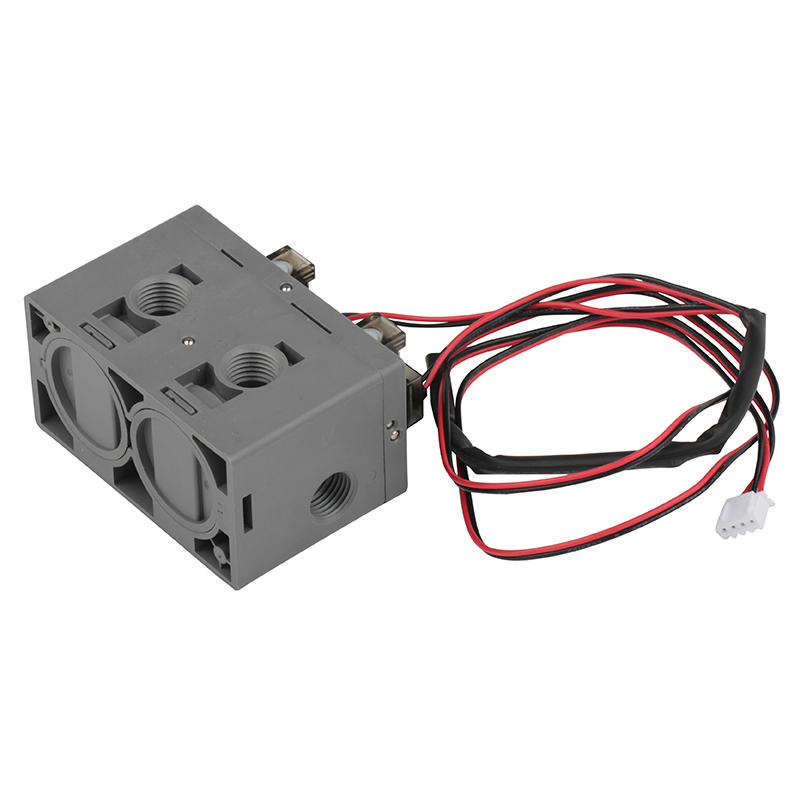

medical O2 oxygen concentrator 4 way solenoid valve for molecular sieve HBOGF-1BGUE-650

Fluid: Compressed Air (Oil Free)
Working Pressure: 0-2 barg
Working Temp: 0-60°C
Noise Level: Max. 50 dbA

Connection Size: G1/4”
Operating Voltage: 24VDC
Power Consumption: Max. 1W
Life Cycle: Min. 10 Million
Mount Type: Direct Mounted
Working Principle: 3 Way-2 Position - Solenoid Valve Operated
Quantity:
  • HBOGF-1BGUE-650
  • XHNOTION
  • L/C, T/T, Western Union, Paypal, Money Gram
  • Ningbo, China
  • CARTONS
Product Description

FEATURES


1. Adopt an all-plastic board design. Lightweight product.

2. Using food grade materials, low noise.

3. With a special design, the product has a low distortion  rate and reduces the defective rate of starting after a  long-term shutdown.

4. 8L, 10L, 15L for your choice. Integrated molecular sieve  structure oxygen generator.

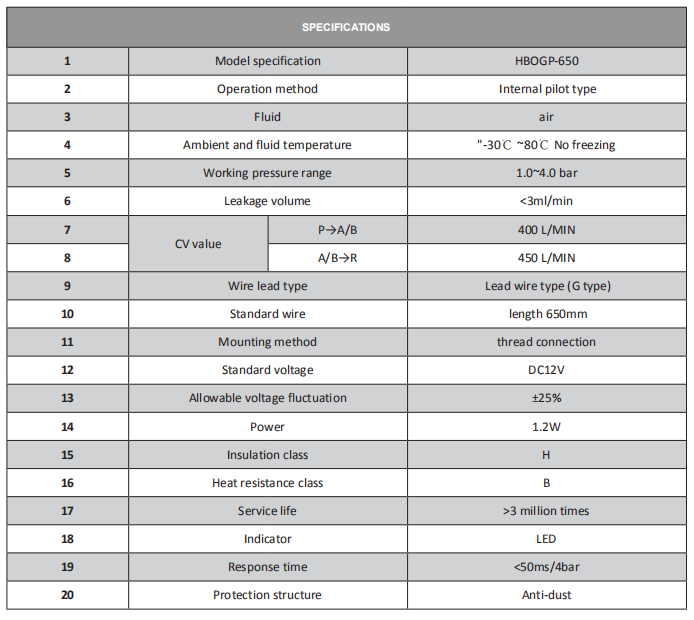

SPECIFICATIONS

QQ图片20210812145135


DRAWING

QQ图片20210811161446QQ图片20210811161450

ADVANTAGE


1) Raw Material conforms to China industry standard, bought from famous factory.

2) Insulation grade: H class, good resistance to high temperature;

3) Machined by CNC to make sure the tolerance as the drawing

4) 100% leakage testing under low pressure and high pressure.

5) All kinds of valve and seals material to meet custom requirement.

6) One year quality assurance after shipment.

7) After-sales technique support .


WHY CHOOSE US?

1)XHnotion offer one stop solution. Over 5000 items for you to save efforts and costs.

2)We have molds workshop, die-casting workshop, CNC workshop, plastic injection workshop to make sure each part exactly as the drawing and good function.

3) We will answer within 24 hours.

4) Whatever quantity you are requesting, we always offer you the best quality.

5)3D drawing, cad drawing service for custom fittings, hose, valve, cylinder

Our Factory                                                    Our Workshop

Drinking Pure Water Solenoid Valve Manufacturer N/C Non-Toxic         Drinking Pure Water Solenoid Valve Manufacturer N/C Non-Toxic

Our Package                                                  Our Warehouse


Drinking Pure Water Solenoid Valve Manufacturer N/C Non-Toxic         Drinking Pure Water Solenoid Valve Manufacturer N/C Non-Toxic

 XHnotion, is a leading manufacturer of pneumatic components and flow valve in China. Our products include below item
pneumatic fittings, plastic, brass, stainless steel push in fittings pneumatic quick coupling, air tool kits, air blow gun pneumatic muffler,
silencer, filter air hose- PU tubes, nylon tube, PE tube, PTFE tubes, etc
 Solenoid control valve for water, air, diesel, oil, air cylinder, air preparation, pneumatic directional valve modular hose, water push in fitting.

FAQ
Packing
Transparent plastic bag + neutral carton + neutral box + pallet
Custom packaging are available, XHnotion brand packaging are available

Shipping :
Export port: Ningbo or Shanghai, China
Shipping way: by sea, by air, by courier
Delivery time 3 days to 30 days depends on actual orders.

Payment Terms
We accept T/T, L/C, Paypal, western union,etc.

Samples Policy
For regular item1 piece, free samples against your courier account or you pick up from us.
For custom items, we will discuss by email.

Return Policy:
We assure you 1 year policy after shipment. If there is any problem during this period, please contact us for support.
