Zcz Series Steam Solenoid Valve Manufacturer

Model NO.: ZCZ-50FPressure: Ordinary PressureValve Structure: Pilot Membrane StructurePower Supply: AC Solenoid ValveUsage: Flow ControlStandard: DINApplication: Industrial Usage, Water Industrial Usage, Household UsageRegular Voltage: 12VDC, 24VDC, 110VAC, 220VACTrademark: XHnotionTransport Package: Paper BoxSpecification: ROHS, REACH, CEOrigin: ChinaHS Code: 8481804090Media: GasTemperature: High TemperatureActuator: ElectricConnection Form: ThreadType: Pilot OperatedMaterial: Stainless Steel
  • ZCZ-50


  • L/C, T/T, Western Union, Paypal, Money Gram

  • Ningbo, China

  • 10000 PCS Per Month


  • ZCZ-50F

  • Ordinary Pressure

  • Pilot Membrane Structure

  • AC Solenoid Valve

  • Flow Control

  • DIN

  • Industrial Usage, Water Industrial Usage, Household Usage

  • 12VDC, 24VDC, 110VAC, 220VAC

  • XHnotion

  • Paper Box


  • China

  • 8481804090

  • Gas

  • High Temperature

  • Electric

  • Thread

  • Pilot Operated

  • Stainless Steel

Product Description

ZCZ series, Max. 150mm Flange connection.

ZCZ series can be applied in the steam line of a set of equipments, whose working medium is steam, such as heater, radiator, drier, textile mould machine, steam dyeing machine and vegetable dryer etc. It helps to achieve the automatic control of temperature by conducting 2 way automatic remote on-off switching.

ZCZ series: Pilot operated solenoid twice-opened structure, sensitive in action;
Excellent anti-heat and buffering components between the guide valve and the main valve;
Excellent magnet materials with high resistance to temperature and corrosion; Piston type PTFE seals, high performance, long lifetime
Normally closed type

XHNOTION manufactures solenoid valves, coils, armatures, seal, timer etc.

XHNOTION can offer you brass solenoid valve, plastic solenoid valve, stainless steel solenoid valve, 2 way solenoid valve, 3 way solenoid valves, 4 way solenoid valves, 5 way solenoid valve, water solenoid valve, gas solenoid valve, air solenoid valve, ozone solenoid valve, diesel solenoid valve, oil solenoid valve, direct acting solenoid valve, directional solenoid valve, pilot operated solenoid valve, normally closed solenoid valve, normally open solenoid valve, high pressure solenoid valve, steam solenoid valve, high temperature solenoid valve, miniature solenoid valve, pulse solenoid valve, directional valve, blow dust valve,


MODEL Orifice Pipe Thread Working pressure Environment Temp. Medium Temp. CV value Voltage

(mm) (G) (Bar) (Celsius) (Celsius)

ZCZ-15 15 G1/2 0.5-12 Bar;                             65-150mm 1-12 Bar; -10~55 -5-180 3.7 220VAC/50HZ 110VAC/50HZ 24VDC
ZCZ-20 20 G3/4 7
ZCZ-25 25 G1 11
ZCZ-32 32 G1-1/4 14
ZCZ-40 40 G1-1/2 24.5
ZCZ-50 50 G2 35
ZCZ-25F 15 Flange 4 holes, holes diameter: 13.5mm holes distance: 85mm 11
ZCZ-32F 32 Flange 4 holes, holes diameter: 17.5mm holes distance: 100mm 14
ZCZ-40F 40 Flange 4 holes, holes diameter: 17.5mm holes distance: 110mm 24.5
ZCZ-50F 50 Flange 4 holes, holes diameter: 17.5mm holes distance: 125mm 35
ZCZ-65F 65 Flange 4 holes, holes diameter: 17.5mm holes distance: 145mm 52.5
ZCZ-80F 80 Flange 4 holes, holes diameter: 17.5mm holes distance: 160mm 81.7
ZCZ-100F 100 Flange 8 holes, holes diameter: 17.5mm holes distance: 180mm 128.4
ZCZ-150F 150 Flange 8 holes, holes diameter: 22mm holes distance: 240mm 268.4


1) Raw Material conforms to China industry standard, bought from famous factory.

2) Insulation grade: H class, good resistance to high temperature;

3) Machined by CNC to make sure the tolerance as the drawing

4) 100% leakage testing under low pressure and high pressure.

5) All kinds of valve and seals material to meet custom requirement.

6) 1 year quality assurance after shipment.

7) After sales technique support


1) We offer one stop solution. Over 5000 items for you to save efforts and costs.

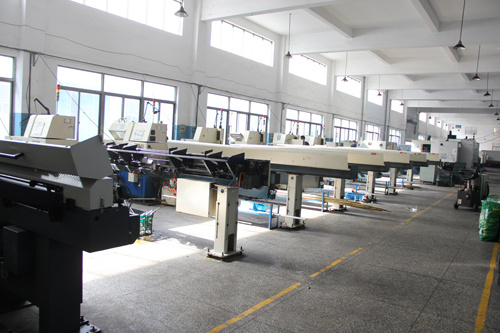

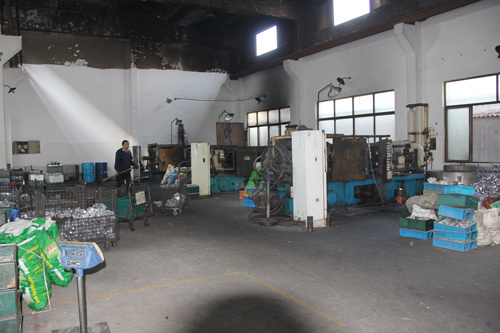

2)We have molds workshop, die-casting workshop, CNC workshop, plastic injection workshop to make sure each part exactly as the drawing and good function.

3) We will reply you within 24 hours.

4) Whatever quantity you are requesting, we always offer you the best quality.

5)3D drawing, cad drawing service for custom fittings, hose, valve, cylinder


Transparent plastic bag + white small box + neutral carton + pallet
Custom packaging are available, XHnotion brand packaging are available

Shipping :
Export port: Ningbo or Shanghai, China
Shipping way: by sea, by air, by courier
Delivery time 3 days to 30 days depends on actual orders.

Payment Terms
We accept T/T, L/C, Paypal, western union,etc.

Samples Policy
For regular fittings below 20 pcs, free samples against your courier account or you pick up from us.
For custom items, we will discuss by email.

Return Policy:
We assure you 1 year policy after shipment. If there is any problem during this period, please contact us for support.

We have thousands of solenoid valve in the stock. If you do not know how to order our valve, please tell us some necessary information, we will recommend you the most economical solenoid valve.

1. valve material
2. working pressure
3. temperature range
4 working environment
5. quantity

You can choose as below

Body Material: Plastic, brass, SS304, SS306, Steel.
Voltage: 12VDC, 24VDC, 24VAC, 220VAC, 280VAC
Size: M5-2", Flange connection
