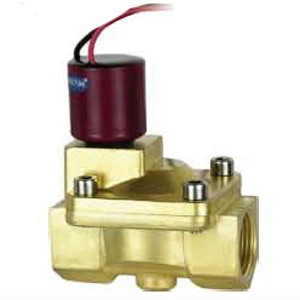

Xpm Series Pulse Self-Holding Solenoid Valve

Port: Ningbo, ChinaProduction Capacity: 10000 PCS Per MonthPayment Terms: L/C, T/T, Western Union, Paypal, Money GramModel NO.: XPMPressure: Ordinary TemperatureValve Structure: Pilot Piston StructurePower Supply: DC Solenoid ValveUsage: Flow ControlStandard: DINApplication: Industrial Usage, Water Industrial Usage, Household UsageRegular Voltage: 12VDC, 24VDC, 110VAC, 220VACTrademark: XHnotionTransport Package: Paper BoxSpecification: ROHS, REACH, CEOrigin: ChinaHS Code: 8481804090Media: WaterTemperature: Ordinary TemperatureActuator: ElectricConnection Form: ThreadType: Pilot OperatedMaterial: Brass
Availability:
Quantity:
  • XPM

  • XHNOTION

  • L/C, T/T, Western Union, Paypal, Money Gram

  • Ningbo, China

  • 10000 PCS Per Month

  • CARTONS

  • XPM

  • Ordinary Temperature

  • Pilot Piston Structure

  • DC Solenoid Valve

  • Flow Control

  • DIN

  • Industrial Usage, Water Industrial Usage, Household Usage

  • 12VDC, 24VDC, 110VAC, 220VAC

  • XHnotion

  • Paper Box

  • ROHS, REACH, CE

  • China

  • 8481804090

  • Water

  • Ordinary Temperature

  • Electric

  • Thread

  • Pilot Operated

  • Brass

Product Description

FEATURE:
1.Acting quickly, high pressure resistant;
2.Save power.
3.Self-holding;
4.Used for gas meter, irrigation, water meter and all kind of sanitary ware.

SPECIFICATION:

Model XPM025-06 XPM025-08 XPM130-10 XPM130-15 XPM200-20 XPM250-25 XPM350-35 XPM400-40 XPM500-50
Working Type Pulse valve, self-holding
Medium Air, Water
Acting Motion Pilot operated valve
Orifice(mm) 2.5mm 13mm 13mm 20mm 25mm 35mm 40mm 50mm
Pipe Size 1/8" 1/4" 3/8" 1/2" 3/4" 1" 1-1/4" 1-1/2" 2"
Working Pressure 0.5~10 bar
Working Temperature 0-60
Seal Material NBR (VITON option)
Body Material Brass (SS304 option)
Voltage 6-24VDC



ADVANTAGE

1) Raw Material conforms to China industry standard, bought from famous factory.

2) Insulation grade: H class, good resistance to high temperature;

3) Machined by CNC to make sure the tolerance as the drawing

4) 100% leakage testing under low pressure and high pressure.

5) All kinds of valve and seals material to meet custom requirement.

6) 1 year quality assurance after shipment.

7) After sales technique support



WHY CHOOSE US?

1) We offer one stop solution. Over 5000 items for you to save efforts and costs.

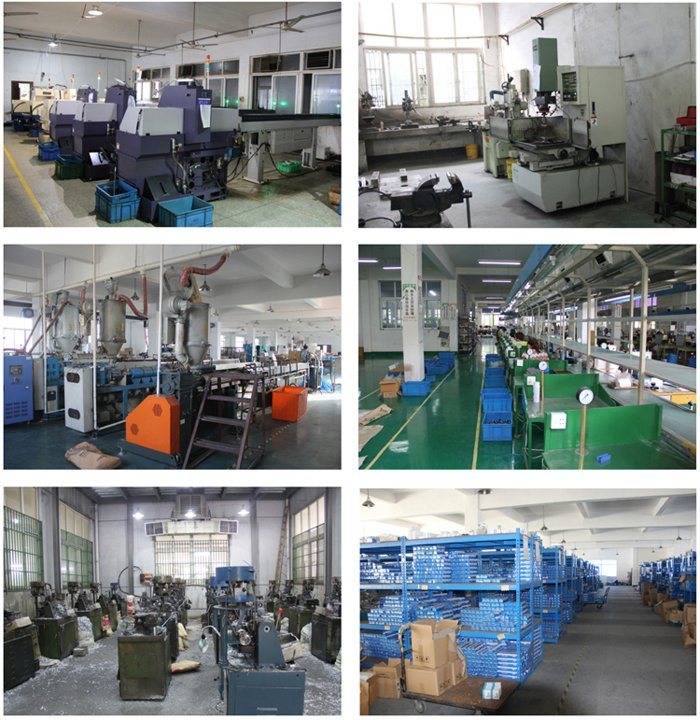

2)We have molds workshop, die-casting workshop, CNC workshop, plastic injection workshop to make sure each part exactly as the drawing and good function.

3) We will reply you within 24 hours.

4) Whatever quantity you are requesting, we always offer you the best quality.

5)3D drawing, cad drawing service for custom fittings, hose, valve, cylinder





FAQ

Packing
Transparent plastic bag + white small box + neutral carton + pallet
Custom packaging are available, XHnotion brand packaging are available

Shipping :
Export port: Ningbo or Shanghai, China
Shipping way: by sea, by air, by courier
Delivery time 3 days to 30 days depends on actual orders.

Payment Terms
We accept T/T, L/C, Paypal, western union,etc.

Samples Policy
For regular fittings below 20 pcs, free samples against your courier account or you pick up from us.
For custom items, we will discuss by email.

Return Policy:
We assure you 1 year policy after shipment. If there is any problem during this period, please contact us for support.


============================================================
We have thousands of solenoid valve in the stock. If you do not know how to order our valve, please tell us some necessary information, we will recommend you the most economical solenoid valve.

1. valve material
2. working pressure
3. temperature range
4 working environment
5. quantity

You can choose as below

Body Material: Plastic, brass, SS304, SS306, Steel.
Seal Material: NBR, VITON, PTFE, EPDM, SILICONE
Voltage: 12VDC, 24VDC, 24VAC, 220VAC, 280VAC
Size: M5-2", Flange connection

Xpm Series Pulse Self-Holding Solenoid Valve
Xpm Series Pulse Self-Holding Solenoid Valve
Xpm Series Pulse Self-Holding Solenoid Valve
Xpm Series Pulse Self-Holding Solenoid Valve
Xpm Series Pulse Self-Holding Solenoid Valve
Xpm Series Pulse Self-Holding Solenoid Valve
