Home » Products » Mufflers / Silencers » Brass Mufflers » Xhnotion Yellow Brass Flat Muffler with 3/4′′ Bsp Thread


Share to:
sharethis sharing button

Xhnotion Yellow Brass Flat Muffler with 3/4′′ Bsp Thread

Port: Ningbo, ChinaProduction Capacity: 10000 PCS Per DayPayment Terms: L/C, T/T, Western Union, Paypal, Money GramModel NO.: VSize: 3mm-16mmHead Type: HexagonThread: M5, M6, 1/8, 1/4, 3/8, 1/2Certification: Ce, RoHS, TUVTransport Package: Plastic BagOrigin: ChinaHS Code: 842199900Customized: Non-CustomizedUsage: Air LineBrand: XhnotionWork Temperature: Normal TemperatureMaterial: BrassStandard: DIN, GB
  • V


  • L/C, T/T, Western Union, Paypal, Money Gram

  • Ningbo, China

  • 10000 PCS Per Day


  • V

  • 3mm-16mm

  • Hexagon

  • M5, M6, 1/8, 1/4, 3/8, 1/2

  • Ce, RoHS, TUV

  • Plastic Bag

  • China

  • 842199900

  • Non-Customized

  • Air Line

  • Xhnotion

  • Normal Temperature

  • Brass

  • DIN, GB

Product Description

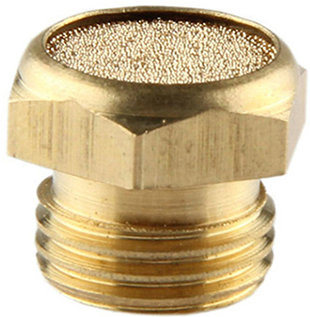

XHnotion Yellow Brass Flat Muffler with 3/4'' BSPP Thread

                                         Xhnotion Yellow Brass Flat Muffler with 3/4'' Bsp Thread


1. Application Field: Pneumatic, Oil pressure and Hydraulic systems.
2. Function: to reduce noise and to remove dust and water.
3. Pressure Range: 0-10 bar; Max. Pressure: 12 bar.
4. Temperature Range: -10~70 °C.
5. Noise Elimination Effect: 20-25 db.
6. Filtration Rating: 5-100μm; regular rating is 40μm.
7. NPT, G & BSPT thread are available; regular thread is G thread.

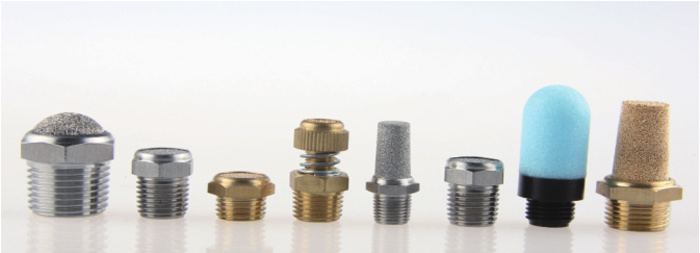

8. Material: Brass, SS304, SS316, PE.


Product Name Muffler / Silencer
Model V
Material Brass
Operating Pressure 0~12 bar
Operating Temperature -10 ~ 70°C
Pressure Range 0-12 bar
Application Pneumatic, Oil pressure and Hydraulic systems
Capacity Over 100000pcs/month
Marketing Area All over the world

Material Construction

Metal Body Nickel Plated Brass, Stainless Steel, Nylon, Zinc Alloy
Filter Material Brass Powder, Stainless Steel, HDPE



1. Raw Material is HPB 59-1, conforms to country standard.
2. High precision automatic lathe to make the claws not hurt tube surface.
3. 5% tested by water at 10 bar, 100% tested by air and appearance test.
4. Easy to push in and put out on the basis of working pressure assured
5. 1 year quality assurance after shipment.
6. Custom fitting as your drawing or we make drawing as your sample.

Xhnotion Yellow Brass Flat Muffler with 3/4'' Bsp Thread

Packing & Shipping

Plastic Box / Color Box + Carton Box
Custom packaging are available, XHnotion brand packaging are available

Method: Air, Sea, Courier
Export port: Ningbo or Shanghai, China
Delivery time: 3 days to 30 days depends on actual orders.
Express: TNT, UPS, DHL, FedEx, SF Express.

Xhnotion Yellow Brass Flat Muffler with 3/4'' Bsp Thread

Our Company

XHnotion originate from notion between pneumatic power and human.
(X stands for winds, H stands for human)

In Chinese, XHnotion stands for 'we do, we promise' we read it 'X-notion'.
The company XHnotion Pneumatic was founded in 2007 and has developed with a steadily growing success to a reliable partner for international established clients.

This success of the company XHnotion Pneumatic is based on:

High class quality standard

Customer satisfaction

Fair price policy


The high-class quality standard of the products of company XHnotion is reflected in our quality management system, certificated ISO 9001: 2008. And we got CE, RoHS, REACH certificate for international market.

XHnotion Pneumatic manufactures below products:

Pneumatic Components: Air cylinder, solenoid valve, FRL

Solenoid Valves: Standard solenoid valve, multipurpose solenoid valve, pneumatic angle valve

Pneumatic Fittings: Plastic pneumatic fittings, metal pneumatic fittings, pneumatic muffler, water push in fittings

Air Gun & Couplers: Pneumatic couplers, air guns, air tool kits

Air Hoses: Air tubing, PTFE tubes, tube cutter, pipes

Xhnotion Yellow Brass Flat Muffler with 3/4'' Bsp Thread

Trademark Registration Certificate

Xhnotion Yellow Brass Flat Muffler with 3/4'' Bsp Thread

Why Choose US?

1. We offer one stop solution. Over 5000 items for you to save efforts and costs.
2. We have molds workshop, die-casting workshop, CNC workshop, plastic injection workshop to
Make sure each part exactly as the drawing and good function.
3. We will reply you within 24 hours.
4. Whatever quantity you are requesting, we always offer you the best quality.
5.3D drawing, CAD drawing service for custom fittings, hose, valve, cylinder.


Payment Terms:
We accept T/T, L/C, PayPal, Western Union, Money Gram, etc.

Samples Policy:
For regular valves, samples against your courier account or you pick up from us.
For custom items, we will discuss by email.

Return Policy:
We assure you 1 year policy after shipment.
If there is any problem during this period, please contact us for support.
