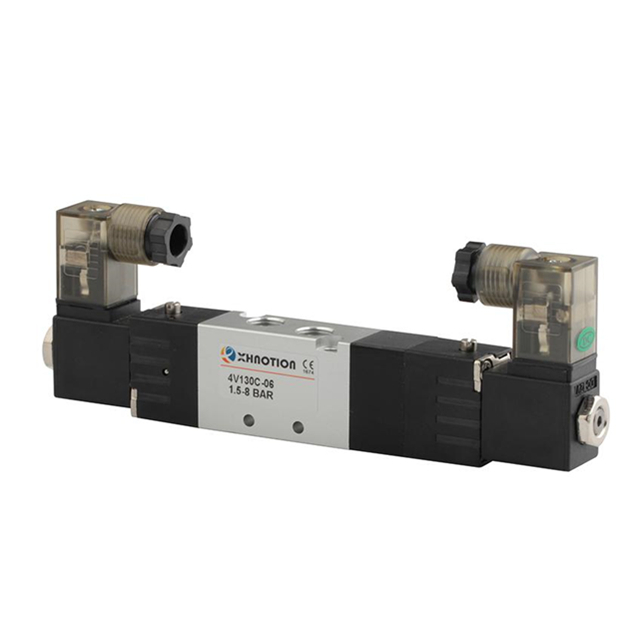

Xhnotion Pressure Type Pilot Solenoid Pneumatic Valve Supplier

Port: Ningbo, ChinaProduction Capacity: 10000 PCS Per MonthPayment Terms: L/C, T/T, Western Union, Paypal, Money GramModel NO.: 4V130P-06Power Supply: DC Solenoid ValveUsage: DirectionalStandard: DINApplication: Industrial Usage, Water Industrial Usage, Household UsageRegular Voltage: 12VDC, 24VDC, 110VAC, 220VACTrademark: XHnotionTransport Package: Bulk Packing or Blister PackingOrigin: ChinaHS Code: 8481804090Actuator: ElectricConnection Form: ThreadType: Pilot OperatedMaterial: Aluminium AlloyPressure: Low PressureValve Structure: Pilot Piston Structure
Availability:
Quantity:
  • 4V130P

  • XHNOTION

  • L/C, T/T, Western Union, Paypal, Money Gram

  • Ningbo, China

  • 10000 PCS Per Month

  • BOX AND CARTONS

  • 4V130P-06

  • DC Solenoid Valve

  • Directional

  • DIN

  • Industrial Usage, Water Industrial Usage, Household Usage

  • 12VDC, 24VDC, 110VAC, 220VAC

  • XHnotion

  • Bulk Packing or Blister Packing

  • China

  • 8481804090

  • Electric

  • Thread

  • Pilot Operated

  • Aluminium Alloy

  • Low Pressure

  • Pilot Piston Structure

Product Description


SPECIFICATION

Drive Type Pilot & Solenoid
Mount Inline or Manifold
Wiring DIN Connector with LED
Insulation F Class
Water/Dust Protection IP65
Override Manual, Locking (3V, 4V Series)
Pressure 1.2Mpa
Power Consumption IP65
Wiring/Connector 22 - 116 PSI (1.5 - 8 Bar)
Temperature -5~50 Celsius degree (41 - 122 Fahrenheit degree)
Voltage Tolerance ±10% of Rated Voltage
Highest Action Frequency 6 Cycles/Sec

Type Model Specifications Thread Flow(CV) Voltage
4V Series Solenoid Valve
Exhaust Type
4V130P-M5 5 Way 3 Position
internally piloted
Center Exhaust
M5 0.56 DC12V
DC24V
AC110V
AC220V
4V130P-06 G1/8" 0.5
4V230P-06 G1/8" 0.78
4V230P-08 G1/4" 0.89
4V330P-08 G1/4" 1.40
4V330P-10 G3/8" 1.68
4V430P-15 G1/2" 1.68

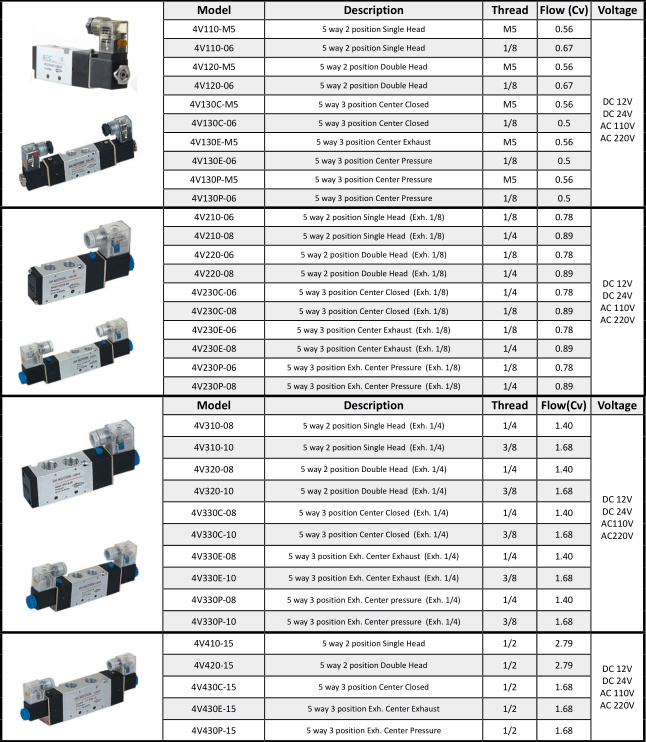

MODELS

Xhnotion Pressure Type Pilot Solenoid Pneumatic Valve Supplier

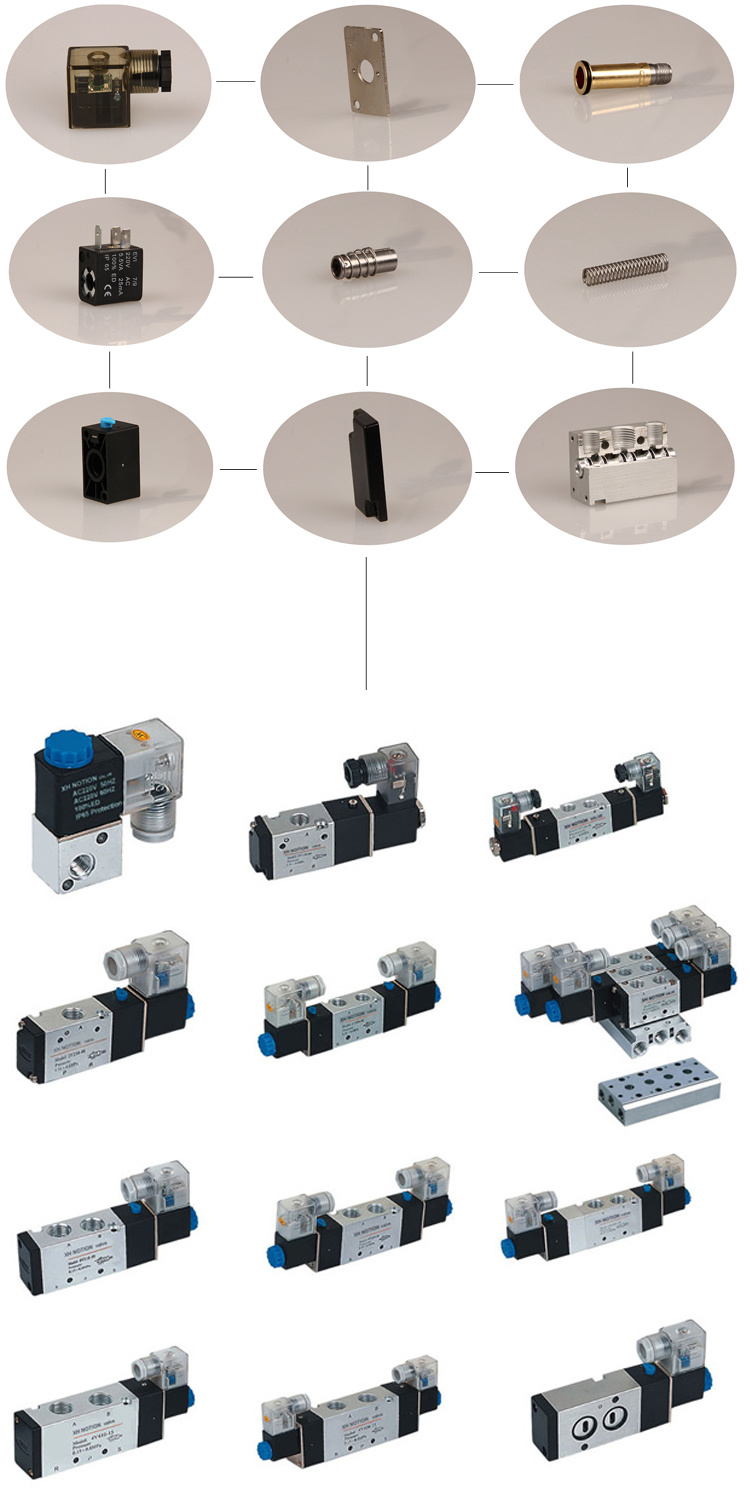

ACCESSORY

Xhnotion Pressure Type Pilot Solenoid Pneumatic Valve Supplier



OUR COMPANY


Xhnotion Pressure Type Pilot Solenoid Pneumatic Valve Supplier

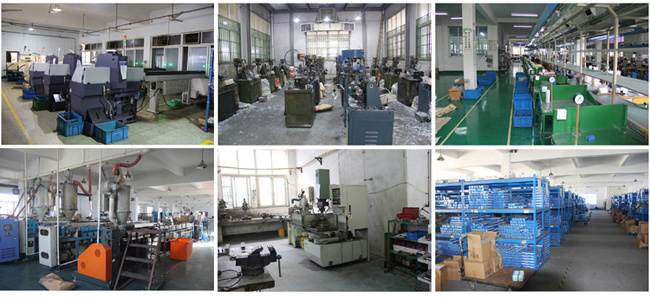

WORKSHOP
Xhnotion Pressure Type Pilot Solenoid Pneumatic Valve Supplier


PACKAGE

Xhnotion Pressure Type Pilot Solenoid Pneumatic Valve Supplier

CERTIFICATES

Xhnotion Pressure Type Pilot Solenoid Pneumatic Valve Supplier


ADVANTAGE


1. Valve body is machined by Japan automatic CNC to make sure all the dimensions accurate.
2. Aluminum Surface is polished and hard anodized.
3. To import Germany grease to provide firm less-friction support
4. O-ring is imported from Taiwan.
5. 100% leakage testing under low pressure and high pressure.
6. 1 year quality assurance after shipment.

7.  After sales technique support.




WHY CHHOSE US ?


1. We offer one stop solution. Over 5000 items for you to save efforts and costs.
2. We have molds workshop, die-casting workshop, CNC workshop, plastic injection workshop to
   make sure each part exactly as the drawing and good function.

3
. We will reply you within 24 hours.
4. Whatever quantity you are requesting, we always offer you the best quality.
5. 3D drawing, CAD drawing service for custom fittings, hose, valve, cylinder.





FAQ

Packing:
Transparent plastic bag + white small box + neutral carton + pallet
Custom packaging are available, XHnotion brand packaging are available

Shipping :
Export port: Ningbo or Shanghai, China
Shipping way: by sea, by air, by courier
Delivery time: 3 days to 30 days depends on actual orders.

Payment Terms :
We accept T/T, L/C, Paypal, Western Union,etc.

Samples Policy :
For regular fittings below 20 pcs, free samples against your courier account or you pick up from us.
For custom items, we will discuss by email.

Return Policy:
We assure you 1 year policy after shipment. If there is any problem during this period, please contact us for support.
