Xhnotion - Pneumatic Push to Connect Air Hose Fittings with 100% Tested

Model NO.: PB8-02Thread: M5,M6, 1/8, 1/4, 3/8, 1/2Trademark: XHnotionTransport Package: Plastic BagSpecification: ROHS, REACH, CEOrigin: ChinaHS Code: 39174100Standard: DIN, GBMaterial: PlasticConnection: MaleSurface Treatment: Nickel-PlatedHead Type: HexagonSize: 3mm-16mm

Availability:

Quantity:



Inquire Add to Basket

Model:
PB8-02
Brand:
XHNOTION
Payment Terms:
L/C, T/T, Western Union, Paypal, Money Gram
Port:
Ningbo, China
Production Capacity:
10000 PCS Per Day
Transport Package:
PLASTIC BAG AND CARTON
Model NO.:
PB8-02
Thread:
M5,M6, 1/8, 1/4, 3/8, 1/2
Trademark:
XHnotion
Transport Package:
Plastic Bag
Specification:
ROHS, REACH, CE
Origin:
China
HS Code:
39174100
Standard:
DIN, GB
Material:
Plastic
Connection:
Male
Surface Treatment:
Nickel-Plated
Head Type:
Hexagon
Size:
3mm-16mm

Product Description

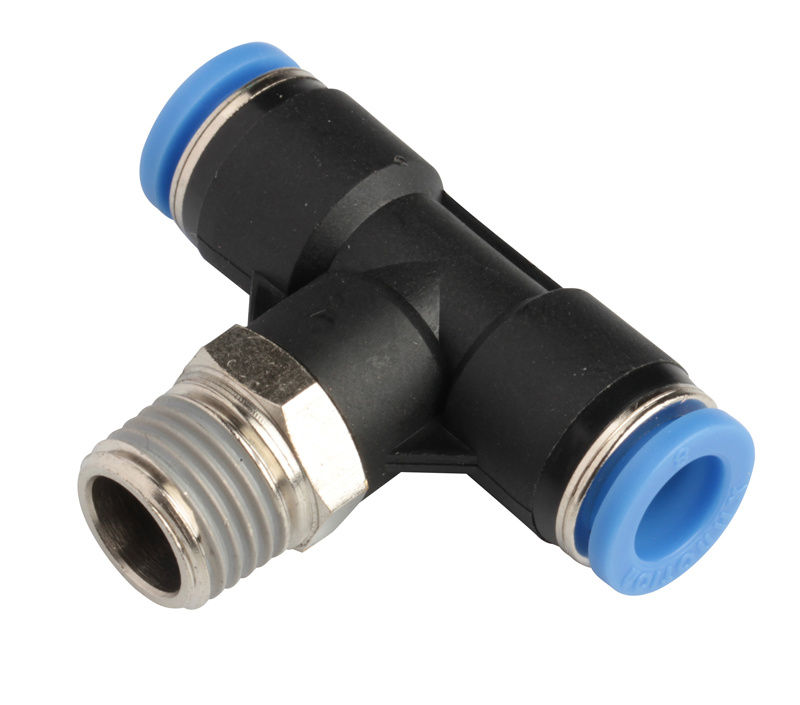

Pneumatic Push to Connect Air hose Fittings

Xhnotion - Pneumatic Push to Connect Air Hose Fittings with 100% Tested

For other size, please refer to below table.

Model [ΦD-T]
Tube(Metric)-Thread(R)			Tube(Inch)-Thread(R)		Tube(Inch)-Thread(NPT)
PB 4-M5	PB 6-03	PB 12-01	PB 5/32-01	PB 3/8-02	PB 1/8-U10	PB 3/16-N03	PB 3/8-N02
PB 4-M6	PB 8-01	PB 12-02	PB 5/32-02	PB 3/8-03	PB 1/8-N01	PB 1/4-U10	PB 3/8-N03
PB 4-01	PB 8-02	PB 12-03	PB 1/4-01	PB 3/8-04	PB 1/8-N02	PB 1/4-N01	PB 3/8-N04
PB 4-02	PB 8-03	PB 12-04	PB 1/4-02	PB 1/2-02	PB 5/32-U10	PB 1/4-N02	PB 1/2-N02
PB 4-03	PB 8-04	PB 14-03	PB 1/4-03	PB 1/2-03	PB 5/32-N01	PB 1/4-N03	PB 1/2-N03
PB 6-M5	PB 10-01	PB 14-04	PB 5/16-01	PB 1/2-04	PB 5/32-N02	PB 5/16-N01	PB 1/2-N04
PB 6-M6	PB 10-02	PB 16-03	PB 5/16-02		PB 3/16-U10	PB 5/16-N02
PB 6-01	PB 10-03	PB 16-04	PB 5/16-03		PB 3/16-N01	PB 5/16-N03
PB 6-02	PB 10-04		PB 3/8-01		PB 3/16-N02	PB 3/8-N01

FEATURES

1. Designed for Polyurethane or Nylon tubing.
2. Quick and reliable connections.
3. Reusable: multiple connections / disconnections.
4. Convenient elliptical / round sleeve configuration.
5. Metallic body made of non-corrosive Nickel-plated Brass.
6. Pre-coated threads are ready to use without additional sealing.
7. Outside (and Inside where applicable) hexagonal wrench tightening.
8. Available over 60 different models in imperial, metric sizes and hybrid.
9. Conform ISO7.1, BS21, DIN2999 standard .

MATERIAL CONSTRUCTION

Plastic Body	PBT
Metal Body	Nickel Plated Brass or Brass
Release Button	POM
Grip Ring	Stainless Steel
Thread Sealant	Teflon
O-Ring	NBR

SPECIFICATIONS

Operating Pressure	0 - 150 PSI 0 - 990 kpa
Operating Temperature	0 - 60 °C 32 to 140°F
Application	Air, water
Recommended Tubing Material	Polyurethane, Nylon, Polyethylene, and Polypropylene
Types	Straight, Elbow, Tee, X, Y, etc.
Capacity	Over 1000000pcs/month
Marketing Area	All over the world

FITTINGS ADVANTAGE

1) Raw Material conforms to ROHS standards.
2) Imported Teflon adhesive for pre-coated sealant.

3) Multiple color and shape for button and body
Blue and oval button with black body as regular,
Black or gray round button is available, too.

4) 5% tested by water at 10 bar , 100% tested by air and appearance test.

5) 1 year quality assurance after shipment.

6) Custom fitting as your drawing or we make drawing as your sample.

WORKSHOP SHOW
Xhnotion - Pneumatic Push to Connect Air Hose Fittings with 100% Tested

WHY CHOOSE US?

1) We offer one stop solution. Over 5000 items for you to save efforts and costs.

2)W e have molds workshop, die-casting workshop, CNC workshop, plastic injection workshop to make sure each part exactly as the drawing and good function.

3) We will reply you within 24 hours.

4) Whatever quantity you are requesting, we always offer you the best quality.

5) 3D drawing, cad drawing service for custom fittings, hose, valve, cylinder .

FAQ

Packing
Transparent plastic bag + white small box + neutral carton + pallet
Custom packaging are available, XHnotion brand packaging are available

Shipping
Export port: Ningbo or Shanghai, China
Shipping way: by sea, by air, by courier
Delivery time 3 days to 30 days depends on actual orders.

Payment Terms
We accept T/T, L/C, Paypal, western union,etc.

Samples Policy
For regular fittings below 20 pcs, free samples against your courier account or you pick up from us.
For custom items, we will discuss by email.

Return Policy
We assure you 1 year policy after shipment. If there is any problem during this period, please contact us for support.

For other size, please refer to below table.

Model [ΦD-T]
Tube(Metric)-Thread(R)			Tube(Inch)-Thread(R)		Tube(Inch)-Thread(NPT)
PB 4-M5	PB 6-03	PB 12-01	PB 5/32-01	PB 3/8-02	PB 1/8-U10	PB 3/16-N03	PB 3/8-N02
PB 4-M6	PB 8-01	PB 12-02	PB 5/32-02	PB 3/8-03	PB 1/8-N01	PB 1/4-U10	PB 3/8-N03
PB 4-01	PB 8-02	PB 12-03	PB 1/4-01	PB 3/8-04	PB 1/8-N02	PB 1/4-N01	PB 3/8-N04
PB 4-02	PB 8-03	PB 12-04	PB 1/4-02	PB 1/2-02	PB 5/32-U10	PB 1/4-N02	PB 1/2-N02
PB 4-03	PB 8-04	PB 14-03	PB 1/4-03	PB 1/2-03	PB 5/32-N01	PB 1/4-N03	PB 1/2-N03
PB 6-M5	PB 10-01	PB 14-04	PB 5/16-01	PB 1/2-04	PB 5/32-N02	PB 5/16-N01	PB 1/2-N04
PB 6-M6	PB 10-02	PB 16-03	PB 5/16-02		PB 3/16-U10	PB 5/16-N02
PB 6-01	PB 10-03	PB 16-04	PB 5/16-03		PB 3/16-N01	PB 5/16-N03
PB 6-02	PB 10-04		PB 3/8-01		PB 3/16-N02	PB 3/8-N01
