| Quantity: | |
|---|---|

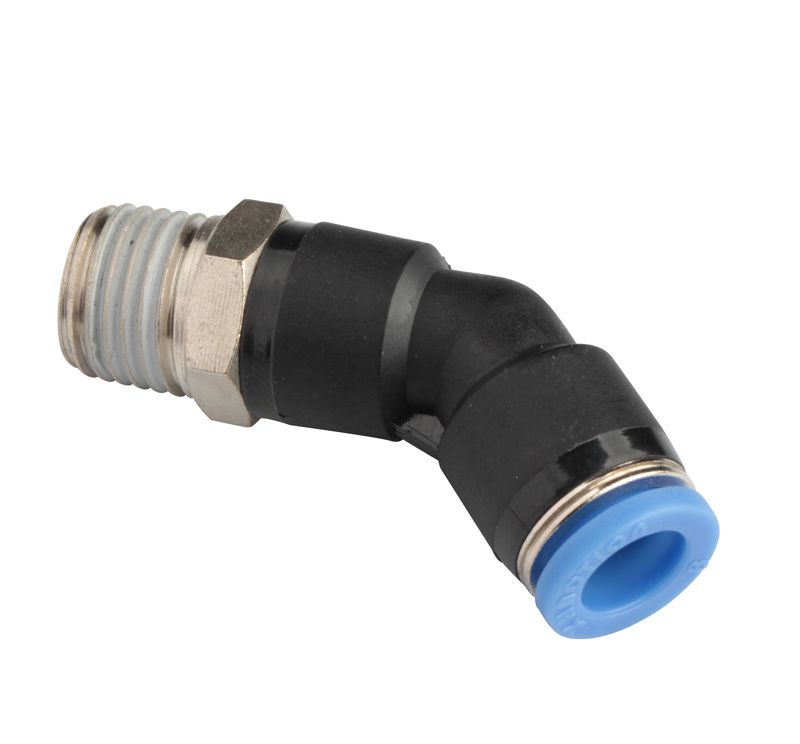

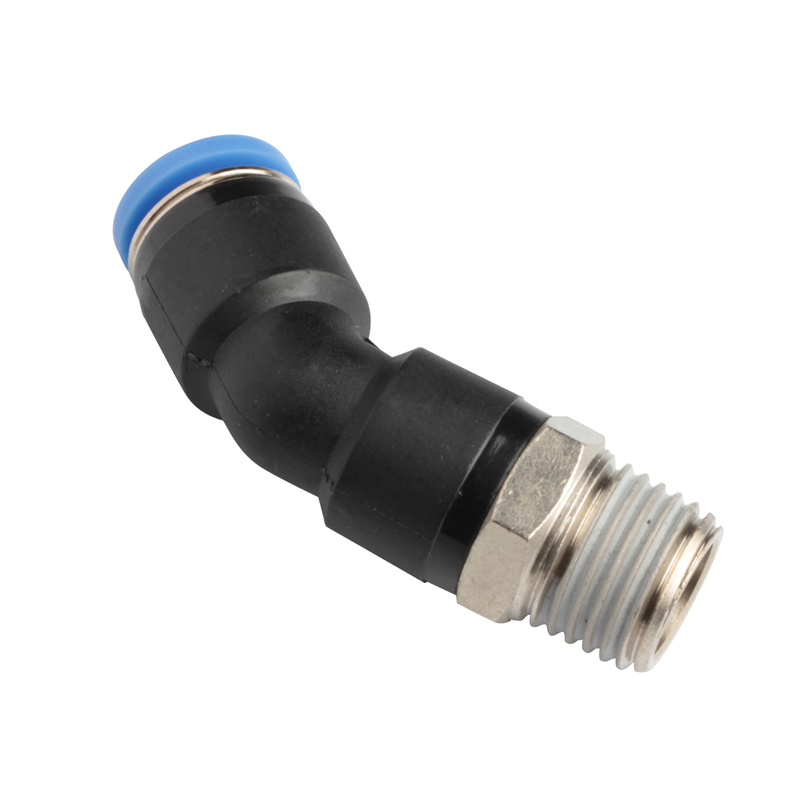

PLH8-02
XHNOTION
L/C, T/T, Paypal, Money Gram
Ningbo, China
10000 PCS Per Day
PLASTIC BAG AND CARTON
PLH8-02
M5,M6, 1/8, 1/4, 3/8, 1/2
XHnotion
plastic bag
ROHS, REACH, CE
China
39174000
DIN, GB
Plastic
Male
Nickel-Plated
Hexagon
3mm-16mm
For other size, please refer to below table.
| Model [ΦD-T] | |||||||
| Tube(Metric)-Thread(R) | Tube(Inch)-Thread(R) | Tube(Inch)-Thread(NPT) | |||||
| PLH 4-M5 | PLH 6-03 | PLH 12-01 | PLH 5/32-01 | PLH 3/8-02 | PLH 1/8-U10 | PLH 3/16-N03 | PLH 3/8-N02 |
| PLH 4-M6 | PLH 8-01 | PLH 12-02 | PLH 5/32-02 | PLH 3/8-03 | PLH 1/8-N01 | PLH 1/4-U10 | PLH 3/8-N03 |
| PLH 4-01 | PLH 8-02 | PLH 12-03 | PLH 1/4-01 | PLH 3/8-04 | PLH 1/8-N02 | PLH 1/4-N01 | PLH 3/8-N04 |
| PLH 4-02 | PLH 8-03 | PLH 12-04 | PLH 1/4-02 | PLH 1/2-02 | PLH 5/32-U10 | PLH 1/4-N02 | PLH 1/2-N02 |
| PLH 4-03 | PLH 8-04 | PLH 14-03 | PLH 1/4-03 | PLH 1/2-03 | PLH 5/32-N01 | PLH 1/4-N03 | PLH 1/2-N03 |
| PLH 6-M5 | PLH 10-01 | PLH 14-04 | PLH 5/16-01 | PLH 1/2-04 | PLH 5/32-N02 | PLH 5/16-N01 | PLH 1/2-N04 |
| PLH 6-M6 | PLH 10-02 | PLH 16-03 | PLH 5/16-02 | PLH 3/16-U10 | PLH 5/16-N02 | ||
| PLH 6-01 | PLH 10-03 | PLH 16-04 | PLH 5/16-03 | PLH 3/16-N01 | PLH 5/16-N03 | ||
| PLH 6-02 | PLH 10-04 | PLH 3/8-01 | PLH 3/16-N02 | PLH 3/8-N01 | |||
FEATURES
1. Designed for Polyurethane or Nylon tubing.
2. Quick and reliable connections.
3. Reusable: multiple connections / disconnections.
4. Convenient elliptical / round sleeve configuration.
5. Metallic body made of non-corrosive Nickel-plated Brass.
6. Pre-coated threads are ready to use without additional sealing.
7. Outside (and Inside where applicable) hexagonal wrench tightening.
8. Available over 60 different models in imperial, metric sizes and hybrid.
9. Conform ISO7.1, BS21, DIN2999 standard
| Plastic Body | PBT |
| Metal Body | Nickel Plated Brass or Brass |
| Release Button | POM |
| Grip Ring | Stainless Steel |
| Thread Sealant | Teflon |
| O-Ring | NBR |
SPECIFICATIONS
| Operating Pressure | 0 - 150 PSI 0 - 990 kpa |
| Operating Temperature | 0 - 60 °C 32 to 140°F |
| Application | Air, water |
| Recommended Tubing Material | Polyurethane, Nylon, Polyethylene, and Polypropylene |
| Types | Straight, Elbow, Tee, X, Y, etc. |
| Capacity | Over 1000000pcs/month |
| Marketing Area | All over the world |
FITTINGS ADVANTAGE
1) Raw Material conforms to ROHS standards.
2) Imported Teflon adhesive for pre-coated sealant.
3) Multiple color and shape for button and body
Blue and oval button with black body as regular,
Black or gray round button is available, too.
4) 5% tested by water at 10 bar, 100% tested by air and appearance test.
5) 1 year quality assurance after shipment.
6) Custom fitting as your drawing or we make drawing as your sample.
WORKSHOP SHOW
WHY CHOOSE US?
1) We offer one stop solution. Over 5000 items for you to save efforts and costs.
2)We have molds workshop, die-casting workshop, CNC workshop, plastic injection workshop to make sure each part exactly as the drawing and good function.
3) We will reply you within 24 hours.
4) Whatever quantity you are requesting, we always offer you the best quality.
5)3D drawing, cad drawing service for custom fittings, hose, valve, cylinder
FAQ
Packing
Transparent plastic bag + white small box + neutral carton + pallet
Custom packaging are available, XHnotion brand packaging are available
Shipping :
Export port: Ningbo or Shanghai, China
Shipping way: by sea, by air, by courier
Delivery time 3 days to 30 days depends on actual orders.
Payment Terms
We accept T/T, L/C, Paypal, western union,etc.
Samples Policy
For regular fittings below 20 pcs, free samples against your courier account or you pick up from us.
For custom items, we will discuss by email.
Return Policy:
We assure you 1 year policy after shipment. If there is any problem during this period, please contact us for support.
