Xhnotion - Pneumatic Push in Female Branch Tee BSPP Thread Air Hose Fitting with 100% Tested

Thread: M5,M6, 1/8, 1/4, 3/8, 1/2 Trademark: XHnotion Transport Package: Plastic Bag Specification: ROHS, REACH, CE Origin: China HS Code: 39174000 Standard: DIN, GB Material: Plastic Connection: Female Surface Treatment: Nickel-Plated Head Type: Hexagon Size: 3mm-16mm
Availability:
Quantity:
  • PBF6-G02

  • XHNOTION

  • L/C, T/T, Paypal

  • Ningbo, China

  • 10000 PCS Per Day

  • CARTONS

  • PBF6-G02

  • M5,M6, 1/8, 1/4, 3/8, 1/2

  • XHnotion

  • Plastic Bag

  • ROHS, REACH, CE

  • China

  • 39174000

  • DIN, GB

  • Plastic

  • Female

  • Nickel-Plated

  • Hexagon

  • 3mm-16mm

Product Description

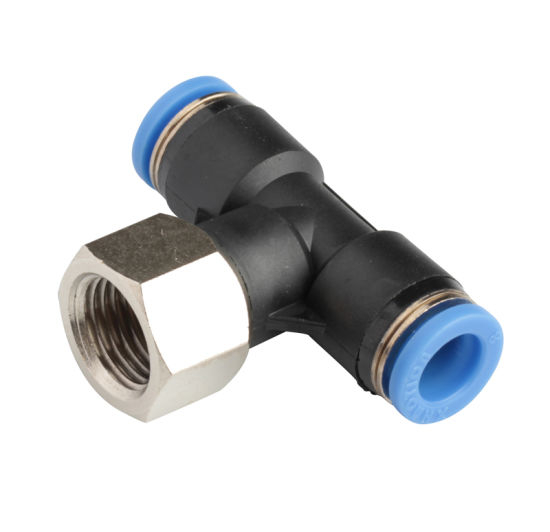

Pneumatic Push in Female Branch Tee BSPP Thread Air Hose Fittings

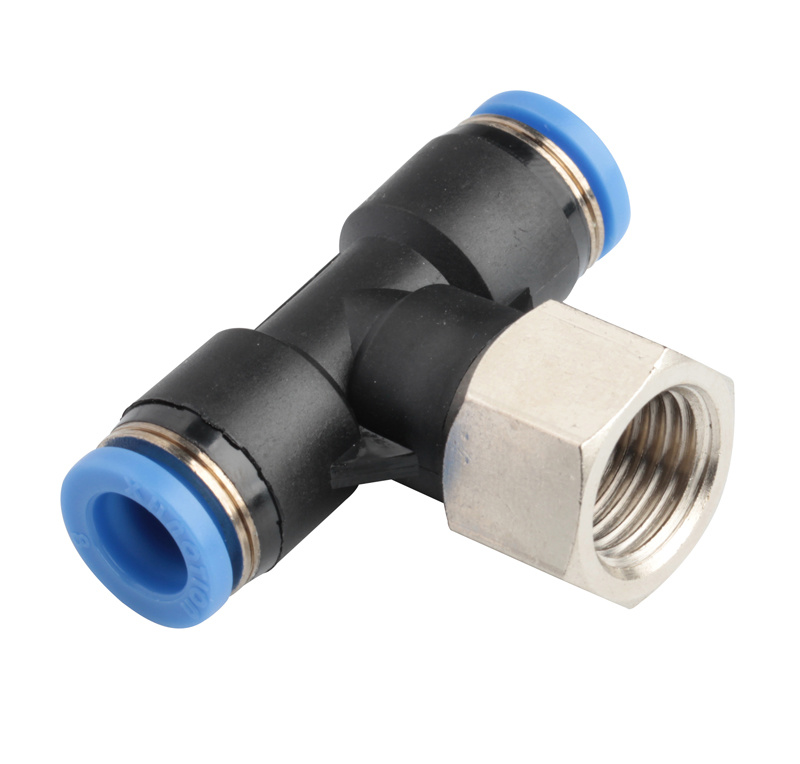

Xhnotion - Pneumatic Push in Female Branch Tee BSPP Thread Air Hose Fitting with 100% Tested
Xhnotion - Pneumatic Push in Female Branch Tee BSPP Thread Air Hose Fitting with 100% Tested
For other size, please refer to below table.
Model [ΦD-T]
Tube(Metric)-Thread(G)
PBF4-G01 PBF10-G01
PBF4-G02 PBF10-G02
PBF4-G03 PBF10-G03
PBF6-G01 PBF10-G04
PBF6-G02 PBF12-G01
PBF6-G03 PBF12-G02
PBF8-G01 PBF12-G03
PBF8-G02 PBF12-G04
PBF8-G03 PBF16-G03
PBF8-G04 PBF16-G04

  FEATURES
1. Designed for Polyurethane or Nylon tubing.
2. Quick and reliable connections.
3. Reusable: multiple connections / disconnections.
4. Convenient elliptical / round sleeve configuration.
5. Metallic body made of non-corrosive Nickel-plated Brass.
6. Pre-coated threads are ready to use without additional sealing.
7. Outside (and Inside where applicable) hexagonal wrench tightening.
8. Available over 60 different models in imperial, metric sizes and hybrid.
9. Conform ISO7.1, BS21, DIN2999 standard
MATERIAL CONSTRUCTION
Xhnotion - Pneumatic Push in Female Branch Tee BSPP Thread Air Hose Fitting with 100% Tested
Plastic Body PBT
Metal Body Nickel Plated Brass or Brass
Release Button POM
Grip Ring Stainless Steel
Thread Sealant Teflon
O-Ring NBR


  SPECIFICATIONS
Operating Pressure 0 - 150 PSI       0 - 990 kpa
Operating Temperature 0 - 60 °C         32 to 140°F
Application Air, water
Recommended Tubing Material Polyurethane, Nylon, Polyethylene, and Polypropylene
Types Straight, Elbow, Tee, X, Y, etc.
Capacity Over 1000000pcs/month
Marketing Area All over the world



  FITTINGS ADVANTAGE

1)  Raw Material conforms to ROHS standards.
2) Imported Teflon adhesive for pre-coated sealant.

3) Multiple color and shape for button and body
Blue and oval button with black body as regular,
Black or gray round button is available, too.

4)  5% tested by water at   10 bar,   100% tested by air and appearance test.

5) 1 year quality assurance after shipment.

6) Custom fitting as your drawing or we make drawing as your sample.

WORKSHOP SHOW

  Xhnotion - Pneumatic Push in Female Branch Tee BSPP Thread Air Hose Fitting with 100% Tested
Xhnotion - Pneumatic Push in Female Branch Tee BSPP Thread Air Hose Fitting with 100% Tested




  WHY CHOOSE US?

1) We offer one stop solution. Over 5000 items for you to save efforts and costs.

2)We have molds workshop, die-casting workshop, CNC workshop, plastic injection workshop to make sure each part exactly as the drawing and good function.

3) We will reply you within 24 hours.

4) Whatever quantity you are requesting, we always offer you the best quality.

5)3D drawing, cad drawing service for custom fittings, hose, valve, cylinder


  FAQ

  Packing
Transparent plastic bag + white small box + neutral carton + pallet
Custom packaging are available, XHnotion brand packaging are available

  Shipping :
Export port: Ningbo or Shanghai, China
Shipping way: by sea, by air, by courier
  Delivery time 3 days to 30 days depends on actual orders.

  Payment Terms
We accept T/T, L/C, Paypal, western union,etc.

  Samples   P   olicy
For regular fittings below 20 pcs, free samples against your courier account or you pick up from us.
For custom items, we will discuss by email.

  Return Policy:
We assure you 1 year policy after shipment. If there is any problem during this period, please contact us for support.
