Xhnotion Pneumatic Fitting Tube to Thread 3/8" Od Tube X 1/4" Bsp Thread

Model NO.: HVFS-G Transport Package: Plastic Bag Origin: China HS Code: 39174000 Standard: DIN, GB Size: 3mm-16mm Head Type: Round Connection: Tube Surface Treatment: Without Treatment Certification: Ce, RoHS, TUV
Availability:
Quantity:
  • HVFS-G

  • XHNOTION

  • L/C, T/T, Western Union, Paypal, Money Gram

  • Ningbo, China

  • 10000 PCS Per Day

  • Plastic and Cartons

  • HVFS-G

  • Plastic Bag

  • China

  • 39174000

  • DIN, GB

  • 3mm-16mm

  • Round

  • Tube

  • Without Treatment

  • Ce, RoHS, TUV

Product Description

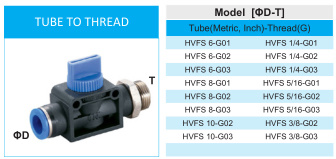

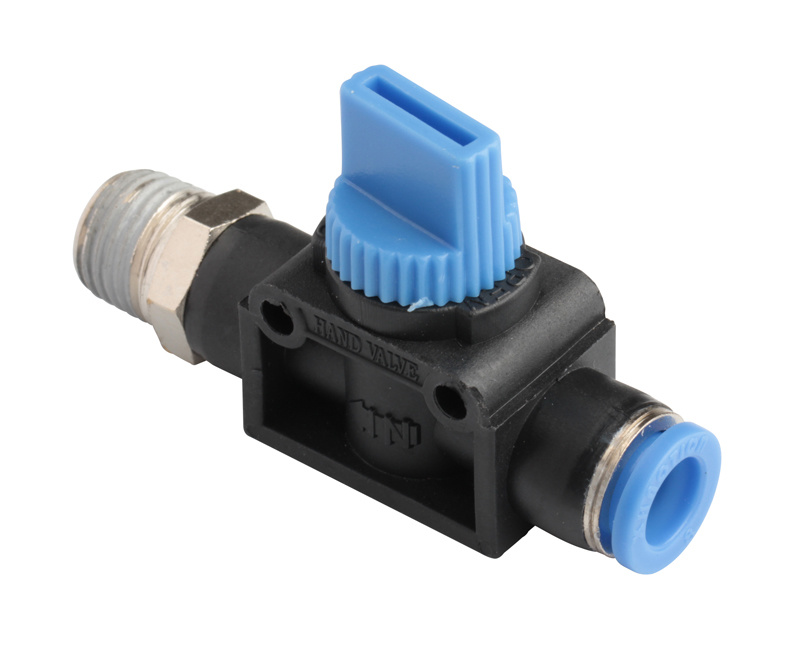

Pneumatic Fitting Tube to Thread 3/8" Od Tube X 1/4" Bsp Thread
Xhnotion Pneumatic Fitting Tube to Thread 3/8



Xhnotion Pneumatic Fitting Tube to Thread 3/8


Xhnotion Pneumatic Fitting Tube to Thread 3/8



Xhnotion Pneumatic Fitting Tube to Thread 3/8



Xhnotion Pneumatic Fitting Tube to Thread 3/8



Xhnotion Pneumatic Fitting Tube to Thread 3/8





FEATURES


1. Hand valve are designed to turn on and off the airflow.
2. Two way and three way valve are available for all models.
3. The three way valve releases the residual internal pressure on the output side when manually closed.
4. Two way valve can be used for Vaccum. If you order two way valve, please add B after model name.
5. G-thread type is also available.
6. Working Pressure: 0-150 Psi.
7. Working temperature: 32-140ºF/ 0-60ºC.

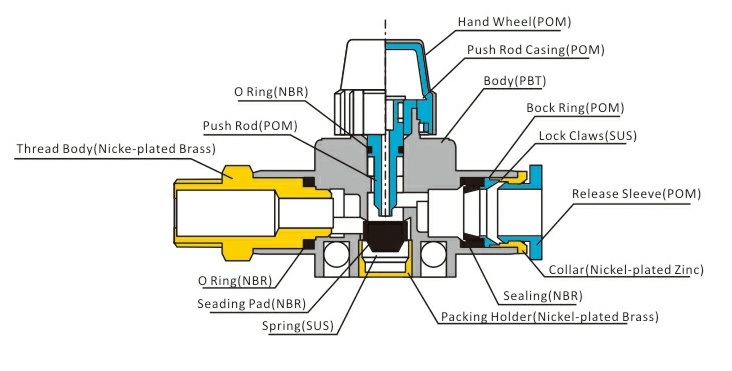

MATERIAL CONSTRUCTION
Plastic Body PBT
Metal Body Nickel Plated Brass or Brass
Release Button POM
Grip Ring Stainless Steel
Thread Sealant Teflon
O-Ring NBR




SPECIFICATIONS
Operating Pressure 0 - 150 PSI       0 - 990 KPA
Operating Temperature 0 - 60°C            32 - 140°F
Application Air
Recommended Tubing Material Polyurethane, Nylon, Polyethylene, and Polypropylene
Types Valve
Capacity Over 1000000pcs/month
Marketing Area All over the world




FITTINGS ADVANTAGE


1. Raw Material conforms to ROHS standards.
2. Imported Teflon adhesive for pre-coated sealant.
3. Multiple color and shape for button and body Blue and oval button with black body as regular,
   black or gray round button is available, too.

4. 5% tested by water at 10 bar, 100% tested by air and appearance test.
5. 1 year quality assurance after shipment.
6. Custom fitting as your drawing or we make drawing as your sample.




WHY CHHOSE US ?


1. We offer one stop solution. Over 5000 items for you to save efforts and costs.
2. We have molds workshop, die-casting workshop, CNC workshop, plastic injection workshop to
   make sure each part exactly as the drawing and good function.

3
. We will reply you within 24 hours.
4. Whatever quantity you are requesting, we always offer you the best quality.
5. 3D drawing, CAD drawing service for custom fittings, hose, valve, cylinder.




FAQ

Packing:
Transparent plastic bag + white small box + neutral carton + pallet
Custom packaging are available, XHnotion brand packaging are available

Shipping :
Export port: Ningbo or Shanghai, China
Shipping way: by sea, by air, by courier
Delivery time: 3 days to 30 days depends on actual orders.

Payment Terms :
We accept T/T, L/C, Paypal, Western Union,etc.

Samples Policy :
For regular fittings below 20 pcs, free samples against your courier account or you pick up from us.
For custom items, we will discuss by email.

Return Policy:
We assure you 1 year policy after shipment. If there is any problem during this period, please contact us for support.
