Xhnotion PA66 G3/4" Water Magnetic Latching Valve with Reach

Model NO.: 2MP200-20Power Supply: DC Solenoid ValveUsage: Flow ControlStandard: DINApplication: Water Industrial UsageVoltage: 4.5-6VDCCertification: Ce1674, Reach, RoHSTrademark: XHnotionTransport Package: Paper BoxOrigin: ChinaHS Code: 8481804090Actuator: ElectricConnection Form: ThreadType: Pilot OperatedMaterial: PA66Pressure: Low PressureValve Structure: Pilot Piston Structure
Availability:
Quantity:
  • 2MP200-20

  • XHNOTION

  • L/C, T/T, Western Union, Paypal, Money Gram

  • Ningbo, China

  • 5000 PCS Per Month

  • CARTONS

  • 2MP200-20

  • DC Solenoid Valve

  • Flow Control

  • DIN

  • Water Industrial Usage

  • 4.5-6VDC

  • Ce1674, Reach, RoHS

  • XHnotion

  • Paper Box

  • China

  • 8481804090

  • Electric

  • Thread

  • Pilot Operated

  • PA66

  • Low Pressure

  • Pilot Piston Structure

Product Description
XHnotion PA66 G3/4" Water Magnetic
Latching Valve with REACH

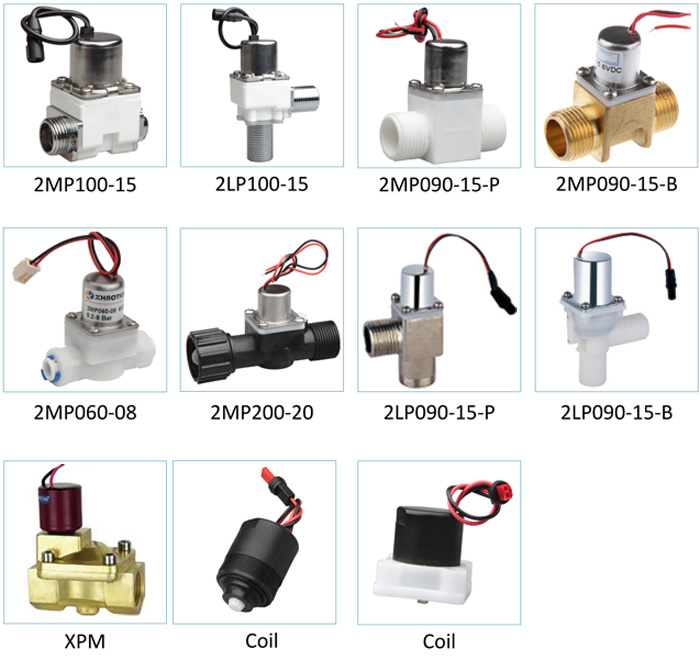

Water Bi-Stable Valves

Xhnotion PA66 G3/4







What is Bi-Stable Solenoid Valve?
Bi-Stable Solenoid Valve is also named Latching Solenoid Valve and Pulse Valve.
It includes a set of permanent magnets that allow the solenoid to offer hold force even after the power is off.
The term Bi-Stable is given to this type of solenoid because it has two stable positions.
The first when the solenoid de-energized and plunger is fully extended and second when the solenoid is de-energized and the plunger is held in position by the permanent magnets.
The electromechanical force moves the solenoids from one stable position to the other depending of the polarity of power applied.
A spring can be used to move the plunger out to the extended position as the charge applied only neutralises the permanent magnet force.
Solenoids can only induced electromechanical force in one direction (pulling the plunger towards the endstop).
When the polarity is reversed, it has no effect on the plunger except to neutralise the magnets.







Feature

1. No self heating.
2. Continues to hold even after the power is disconnected.
3. Can operate by a pulse signal.
4. A charge / discharge of capacitor will be enough to set and reset.






Specifications
Rated Voltage 4.5V, 6V DC
Coil Resistance 12Ω±5Ω
Function Pilot Operated
Impulse Width   30ms
Pipe Size G3/4"
Working Pressure 0.02Mpa-0.8Mpa
Medium Temperature 1-70ºC
Reacting Time Open≤0.15s Close≤0.5s
Electric Strength Between conductor and nonconductor,shall be no puncture and spark in one minute under the condition of AC 1000V voltage
Insulation Capability Over 100M between conductor and nonconductor
Flow Capability 0.02Mpa≥3L/min, 0.8Mpa≥30L/min
Working Life More than 500,000cycles

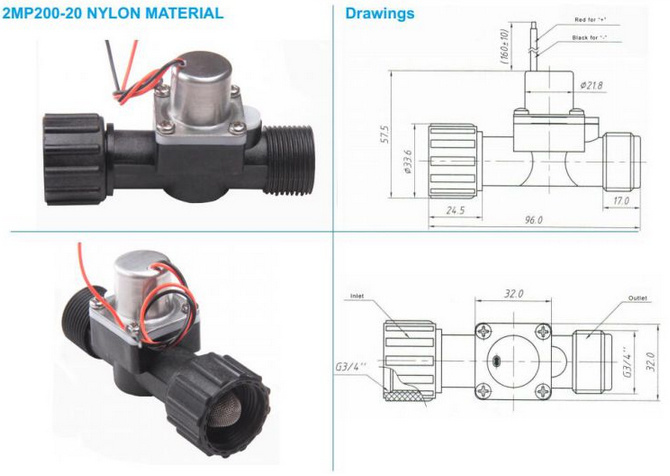

Structure


Xhnotion PA66 G3/4

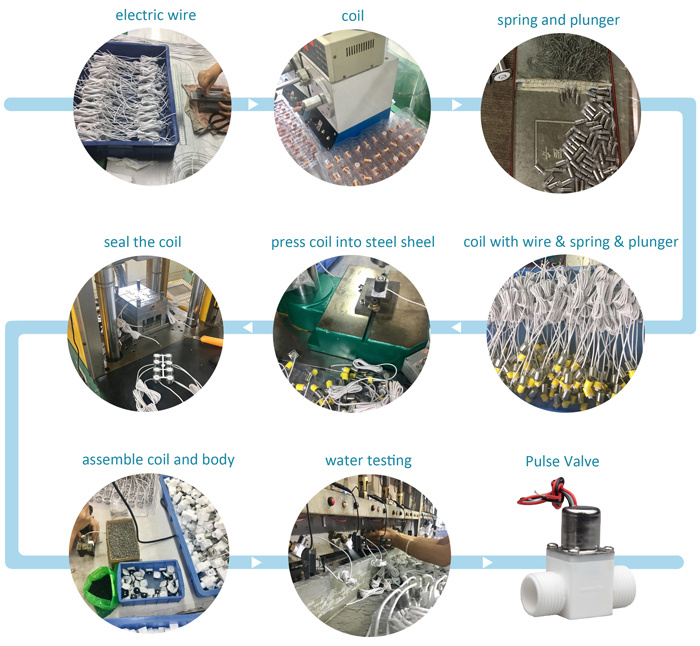

Process

Xhnotion PA66 G3/4








Packing & Shipping


Packing:
Transparent plastic bag + white small box + neutral carton + pallet
Custom packaging are available, XHnotion brand packaging are available

Shipping:
Export port: Ningbo or Shanghai, China.
Shipping way: by sea, by air, by courier.
Express: TNT, DHL, UPS, FedEx, SF Express.
Delivery time: 3 days to 30 days depends on actual orders.



Xhnotion PA66 G3/4












Our Company

XHnotion originate from notion between pneumatic power and human.
(X stands for winds, H stands for human)

In Chinese, XHnotion stands for 'we do, we promise'  we read it 'X-notion'.
The company XHnotion Pneumatic was founded in 2007 and has developed with a steadily growing success to a reliable partner for international established clients.

This success of the company XHnotion Pneumatic is based on:

High class quality standard

Customer satisfaction

Fair price policy

Flexibility

The high-class quality standard of the products of company XHnotion is reflected in our quality management system, certificated ISO 9001:2008. And we got CE, RoHS, REACH certificate for international market. XHnotion Pneumatic manufactures below products:

Pneumatic Components: air cylinder, solenoid valve, FRL

Solenoid Calve: standard solenoid valve, multipurpose solenoid valve, pneumatic angle valve

Pneumatic Fittings: plastic pneumatic fittings, mental pneumatic fittings, pneumatic muffler, water push in fittings

Air Gun & Couplers: pneumatic couplers, air guns, air tool kits

Air Hoses: air tubing, PTFE tubes, tube cutter, pipes

Xhnotion PA66 G3/4











Advantage

1.Raw Material conforms to China industry standard, bought from famous factory.
2. Insulation grade: H class, good resistance to high temperature.
3. Machined by CNC to make sure the tolerance as the drawing
4. 100% leakage testing under low pressure and high pressure.
5. All kinds of valve and seals material to meet custom requirement.
6. 1 year quality assurance after shipment.
7. After-sales technique support.










Why Choose US ?
1. We offer one stop solution. Over 5000 items for you to save efforts and costs.
2. We have molds workshop, die-casting workshop, CNC workshop, plastic injection workshop to
   make sure each part exactly as the drawing and good function.
3. We will reply you within 24 hours.
4. Whatever quantity you are requesting, we always offer you the best quality.
5. 3D drawing, CAD drawing service for custom fittings, hose, valve, cylinder.











FAQ

Payment Terms:
We accept T/T, L/C, Paypal, Western Union, Money Gram, etc.

Samples Policy:
For regular valves, samples against your courier account or you pick up from us.
For custom items, we will discuss by email.

Return Policy:
We assure you 1 year policy after shipment. If there is any problem during this period, please contact us for support.
