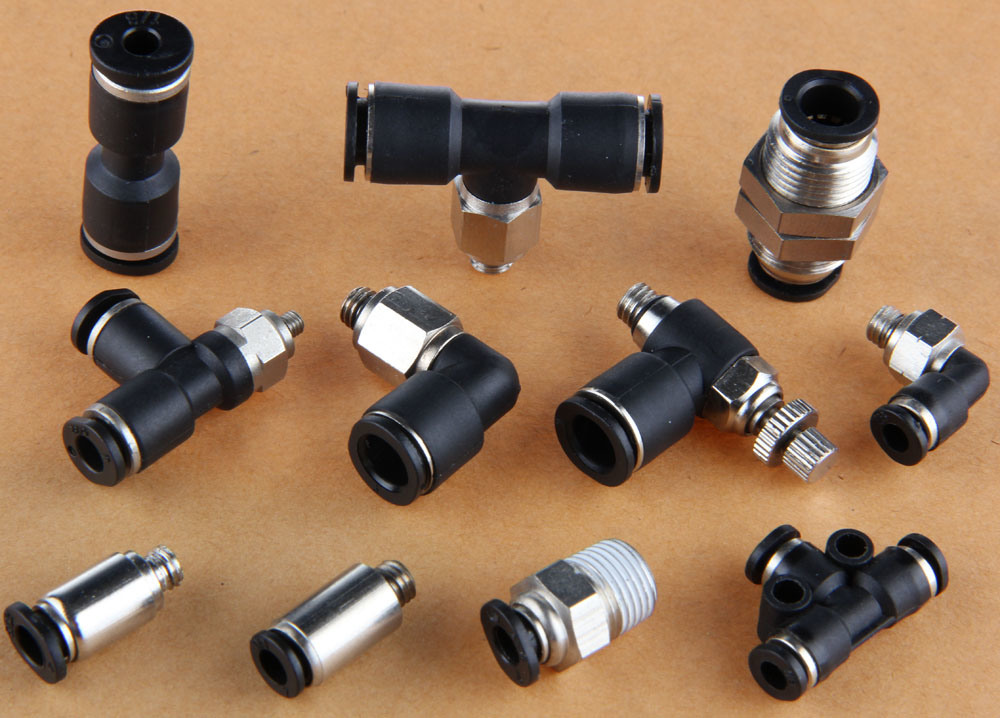

Xhnotion - Miniature Pneumatic Fittings with 100% Tested

Quantity:
  • Ningbo, China
  • 10000 PCS Per Day
  • L/C, T/T, Western Union, Paypal, Money Gram
  • PL6-01C
  • M3,M4,M5,M6, 1/8
  • XHnotion
  • Plastic Bag
  • ROHS, REACH, CE
  • China
  • 39174000
  • DIN, GB
  • Plastic
  • Male
  • Nickel-Plated
  • Hexagon
  • 3mm-6mm
Product Description
FEATURE

1. This mini quick fitting series is 40% smaller than the standard type tube fitting.
2. The ultra-small quick-fitting joint is used in pneumatic piping.
3. The ultra-small release ring facilitates connecting and disconnecting the tube.
4. Working Pressure: 0-150 Psi.
5. Working Temperature: 32 -140°F / 0-60°C.

PRODUCT ITEMS
Tube(Metric)-Thread(R) Tube(Inch)-Thread(NPT)
PL3-M3C PL1/8-U10C
PL3-M5C PL1/8-N00C
PL3-M6C PL1/8-N01C
PL4-M3C PL5/32-U10C
PL4-M5C PL5/32-N00C
PL4-M6C PL5/32-N01C
PL4-01C PL1/4-U10C
PL4-G01C PL1/4-N00C
PL6-M5C PL1/4-N01C
PL6-M6C
PL6-01C
PL6-G01C
MATERIAL CONSTRUCTION

Plastic Body PBT
Metal Body Nickel Plated Brass or Brass
Release Button POM
Grip Ring Stainless Steel
Thread Sealant Teflon
O-Ring NBR


SPECIFICATIONS

Operating Pressure 0 - 150 PSI 0 - 990 kpa
Operating Temperature 0 - 60 °C 32 to 140°F
Application Air, water
Recommended Tubing Material Polyurethane, Nylon, Polyethylene, and Polypropylene
Types Straight, Elbow, Tee, X, Y, etc.
Capacity Over 1000000pcs/month
Marketing Area All over the world



FITTINGS ADVANTAGE

1) Raw Material conforms to ROHS standards.
2) Imported Teflon adhesive for pre-coated sealant.

3) Multiple color and shape for button and body
Blue and oval button with black body as regular,
Black or gray round button is available, too.

4) 5% tested by water at 10 bar, 100% tested by air and appearance test.

5) 1 year quality assurance after shipment.

6) Custom fitting as your drawing or we make drawing as your sample.

Xhnotion - Miniature Pneumatic Fittings with 100% Tested

Xhnotion - Miniature Pneumatic Fittings with 100% Tested
Xhnotion - Miniature Pneumatic Fittings with 100% Tested
