| Quantity: | |
|---|---|
3V410
XHNOTION
L/C, T/T, Western Union, Paypal, Money Gram
Ningbo, China
500 PCS Per Month
BOX AND CARTONS
3V410-15
Low Pressure
Pilot Piston Structure
DC and AC
Directional
DIN
Industrial Usage, Water Industrial Usage, Household Usage
G1/2′′
12VDC, 24VDC, 110VAC, 220VAC
XHnotion
Bluk Packing or Blister Packing
CE
China
8481804090
Gas
Ordinary Temperature
Pneumatic
Thread
Pilot Operated
Aluminum Alloy
XHnotion DC24V 3 Way 2 Position G1/2" Internally Piloted Acting Type Single Electrical Control Pneumatic Solenoid Air Valve, Spool Valve 3V410-15
FEATURES
Directional control valves are one of the most fundamental parts in hydraulic machinery as well and pneumatic machinery. They allow fluid flow into different paths from one or more sources.
Valve bodies are mirror finished and Hard oxidation.
Low power consumption, fast response, import oil seal with longer service life.

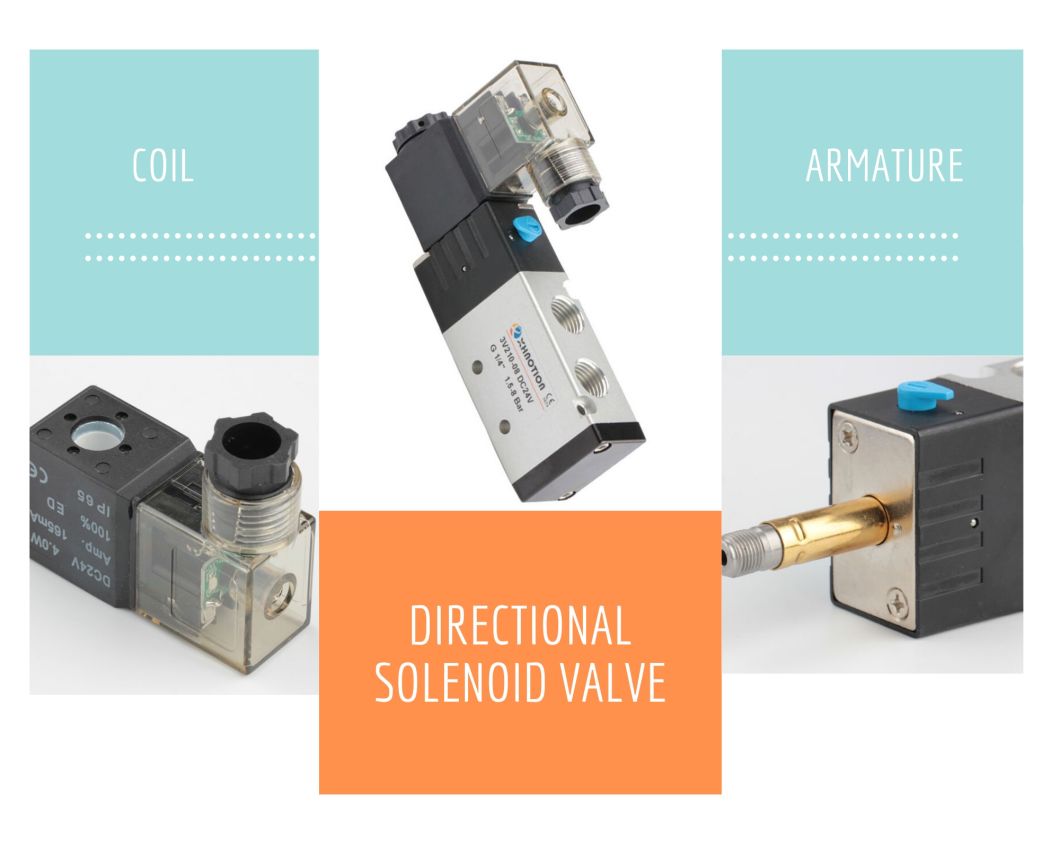

Coils with DIN connection or flying leads
SPECIFICATION
| Drive Type | Pilot & Solenoid |
| Mount | Inline or Manifold |
| Wiring | DIN Connector with LED |
| Insulation | F Class |
| Water/Dust Protection | IP65 |
| Override | Manual, Locking (3V, 4V Series) |
| Pressure | 22 - 116 PSI (1.5 - 8 Bar) |
| Temperature | -5~50 Celsius degree (41 - 122 Fahrenheit degree) |
| Voltage Tolerance | ±10% of Rated Voltage |
| Highest Action Frequency | 6 cycles/sec |
Other models:
| Model | Description | Thread | Flow (Cv) | Voltage |
| 3V110-06 | 3 way 2 position Single Head | 1/8 | 0.67 | DC 12V DC 24V AC 110V AC 220V |
| 3V210-08 | 3 way 2 position Single Head | 1/4 | 0.89 | |
| 3V310-10 | 3 way 2 position Single Head | 3/8 | 1.68 | |
| 3V410-15 | 3 way 2 position Single Head | 1/2 | 2.79 |
ADVANTAGE
1) Valve body is machined by Japan automatic CNC to make sure all the dimensions accurate.
2) Aluminum Surface is polished and hard anodized.
3) To import Germany grease to provide firm less-friction support
4) O-ring is imported from Taiwan.
5) 100% leakage testing under low pressure and high pressure.
6) 1 year quality assurance after shipment.
7) After sales technique support
ACCESSORY
PACKING & SHIPPING
Packing:
Transparent plastic bag + white small box + neutral carton + pallet
Custom packaging are available, XHnotion brand packagwe are available
Shipping:
Export port: Ningbo or Shanghai, China
Shipping way: by sea, by air, by courier
Express: TNT, DHL, UPS, FedEX, SF Express
Delivery time: 3 days to 30 days depends on actual orders.
WHY CHOOSE US?
1) We offer one stop solution. Over 5000 items for you to save efforts and costs.

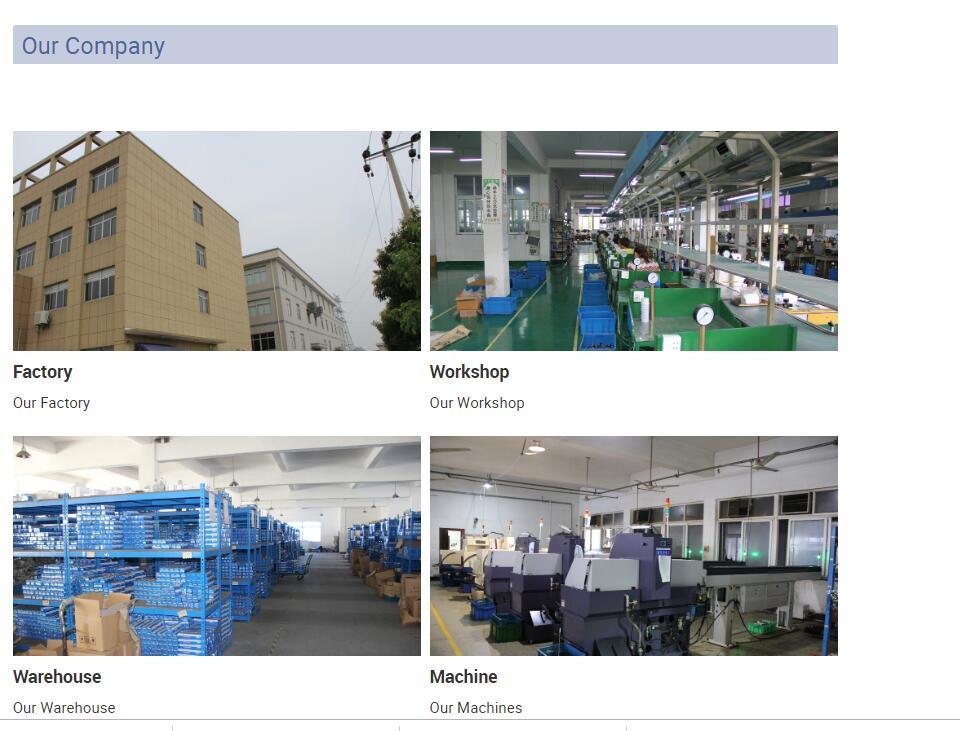

2)We have molds workshop, die-casting workshop, CNC workshop, plastic injection workshop to make sure each part exactly as the drawing and good function.
3) We will reply you within 24 hours.
4) Whatever quantity you are requesting, we always offer you the best quality.
5)3D drawing, cad drawing service for custom fittings, hose, valve, cylinder.
