0086-574-82823826
PRODUCT CENTER
Home » Products » Nylon Tubing » Xhnotion Black High Temperature Air Tubing Nylon PA12 Tube for Air Water Oil
Share to:

Xhnotion Black High Temperature Air Tubing Nylon PA12 Tube for Air Water Oil

Temperature Classification: Medium Temperature Piping MPa Classfication: Medium Pressure Piping Diameter: 3-12mm Medium: Gas Cross-Section Shape: Round Connection Type: Socket Total Length Per Roll (Meter): 1~30 Transport Package: Box Origin: China HS Code: 3917290000 Certification: CE, RoHS, Reach Application: Industry, Agriculture, Chemical Brand: Xhnotion Work Temperature: Normal Temperature Material: Nylon Standard: ASTM, GB
Availability:
Quantity:
  • PA
  • XHNOTION
  • L/C, T/T, Western Union, Paypal, Money Gram
  • Ningbo, China
  • 100000 Pieces Per Month
  • CARTONS
  • PA
  • Medium Temperature Piping
  • Medium Pressure Piping
  • 3-12mm
  • Gas
  • Round
  • Socket
  • 1~30
  • Box
  • China
  • 3917290000
  • CE, RoHS, Reach
  • Industry, Agriculture, Chemical
  • Xhnotion
  • Normal Temperature
  • Nylon
  • SAE
Product Description
Xhnotion Black High Temperature Air Tubing Nylon PA Tube for Air Water Oil




Features

1. Tube Material: PA6, PA12, PA11
2. Outer Diameter: millimeter or inch size.
3. Inner Diameter: millimeter or inch size.
4. Roll Length: meters.
5. Tube Color: regular tube color is black.
  BK-Black O-Orange W-White B-Blue G-Green R-Red Y-Yellow C-Clear

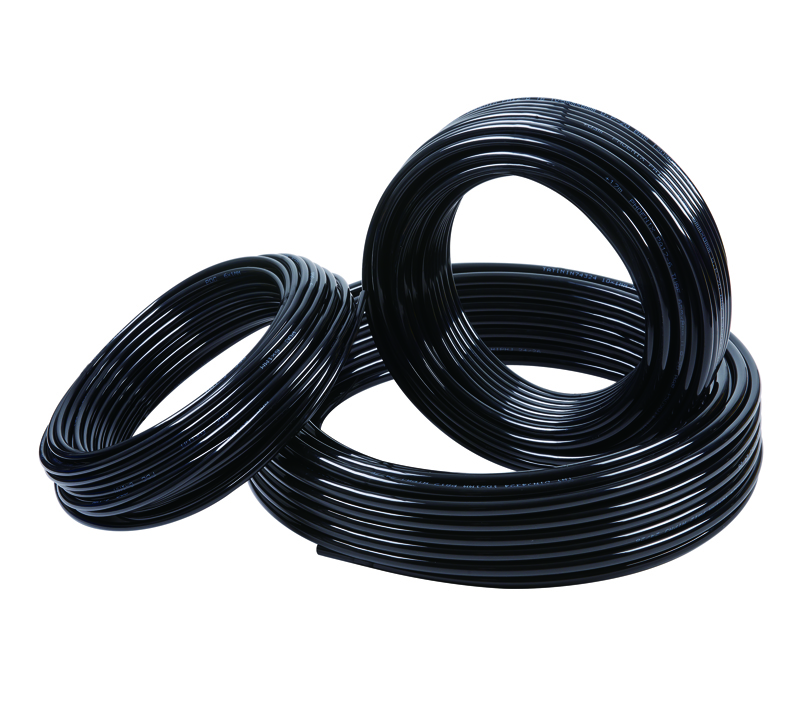

100 METER BLACK POLYMIDE PA12 TUBES (2)100 METER BLACK POLYMIDE PA12 TUBES (3)100 METER BLACK POLYMIDE PA12 TUBES (4)






Specification

Technical Infomation

Product Name Nylon Tubing (Polyamide Tube)
Material PA12, PA11, PA6
Fluid Air, Water, Oil
Burst Pressure(20ºC) 870Psi
Working Pressure(20ºC) 0-360Psi
Operating Temperature -40~120 ºC
Dentity 1.04 g/cc
Size Tolerance 3-8mm, +/-0.10 mm
10-20mm, +/-0.15 mm





Size

Metric Size O.D(mm) I.D(mm) Bending Radius(mm) Standard Length
NY0320 3 2 18 200mm
NY0425 4 2.5 20 200mm
NY0640 6 4 40 200mm
NY0860 8 6 50 100mm
NY1075 10 7.5 65 100mm
NY1080 10 8 65 100mm
NY1290 12 9 70 100mm
NY1411 14 11 80 100mm
NY1612 16 12 130 100mm
NY1815 18 15 155 100mm
Imperial Size O.D(Inch) I.D(Inch) Bending Radius(mm) Standard Length
NY1/8 1/8" 0.079" 18 100mm
NY5/32 5/32" 0.093" 20 100mm
NY1/4 1/4" 0.17" 40 100mm
NY5/16 5/16" 0.236" 50 100mm
NY3/8 3/8" 0.295" 65 100mm
NY1/2 1/2" 0.355" 70 100mm
NY1/2 1/2" 0.33" 35 100mm









Procedure

Xhnotion Black High Temperature Air Tubing Nylon PA Tube for Air Water Oil








Packing & Shipping

Xhnotion Black High Temperature Air Tubing Nylon PA Tube for Air Water Oil








Certificate

Xhnotion Black High Temperature Air Tubing Nylon PA Tube for Air Water Oil








Tubing Advantage

1. Raw Material conforms to ROHS standards.
2. 5% tested by water at 10 bar, 100% tested by air and appearance test.
3. 1 year quality assurance after shipment.
4. Custom fitting as your drawing or we make drawing as your sample.

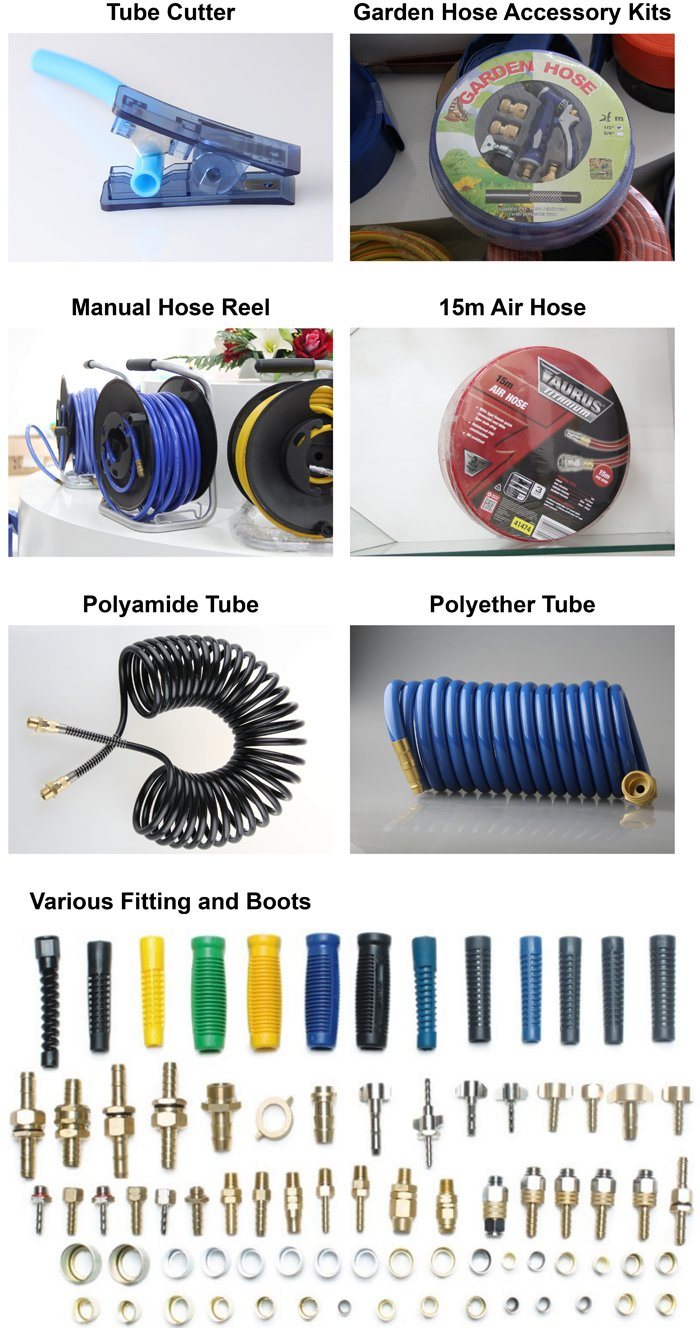

Related Products

Xhnotion Black High Temperature Air Tubing Nylon PA Tube for Air Water Oil









Our Company


XHnotion originate from notion between pneumatic power and human.
(X stands for winds, H stands for human)

In Chinese, XHnotion stands for 'we do, we promise'  we read it 'X-notion'.
The company XHnotion Pneumatic was founded in 2007 and has developed with a steadily growing success to a reliable partner for international established clients.

This success of the company XHnotion Pneumatic is based on:

High class quality standard

Customer satisfaction

Fair price policy

Flexibility


The high-class quality standard of the products of company XHnotion is reflected in our quality management system, certificated ISO 9001:2008. And we got CE, RoHS, REACH certificate for international market.
XHnotion Pneumatic manufactures below products:

Pneumatic Components: air cylinder, solenoid valve, FRL

Solenoid Calve: standard solenoid valve, multipurpose solenoid valve, pneumatic angle valve

Pneumatic Fittings: plastic pneumatic fittings, mental pneumatic fittings, pneumatic muffler, water push in fittings

Air Gun & Couplers: pneumatic couplers, air guns, air tool kits

Air Hoses: air tubing, PTFE tubes, tube cutter, pipes











Why Choose US ?

1. We offer one stop solution. Over 5000 items for you to save efforts and costs.
2. We have molds workshop, die-casting workshop, CNC workshop, plastic injection workshop to
   make sure each part exactly as the drawing and good function.
3. We will reply you within 24 hours.
4. Whatever quantity you are requesting, we always offer you the best quality.
5. 3D drawing, CAD drawing service for custom fittings, hose, valve, cylinder.









FAQ

Payment Terms:
We accept T/T, L/C, Paypal, Western Union,etc.

Samples Policy:
For regular tube, free samples against your courier account or you pick up from us.
For custom items, we will discuss by email.

Return Policy:
We assure you 1 year policy after shipment. If there is any problem during this period, please contact us for support.
