| Quantity: | |
|---|---|
PU
L/C, T/T, Western Union, Paypal, Money Gram
Ningbo, China
100000 Pieces Per Month
PU
Medium Temperature Piping
Medium Pressure Piping
3-12mm
Gas
Round
Socket
1~30
Box
China
3917290000
CE, RoHS, Reach
Industry, Agriculture, Chemical
Xhnotion
Normal Temperature
PU
ASTM, GB

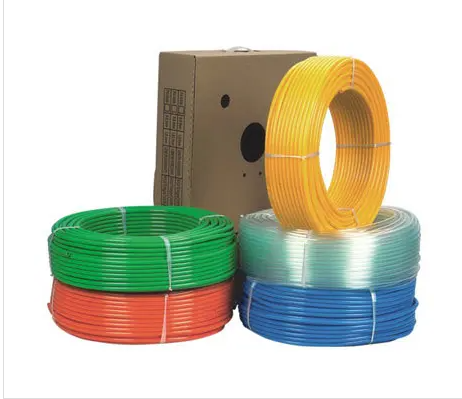

Xhnotion Air Tubing Plastic PU Tubes
FEATURES
1. Tube Material: PU, NYLON, PE, PTFE, PVC.
2. Outer Diameter: millimeter or inch size.
3. Inner Diameter: millimeter or inch size.
4. Roll Length: meters.

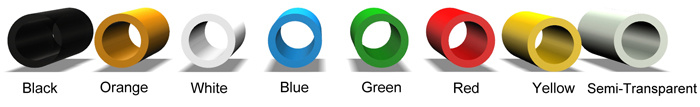

5. Tube Color: Transparent with blue or other colors are available; regular tube color: blue, transparent, black.
SPECIFICATION
| Technical Information | Polyurethane Tubing | |||||||||||||||||||||||||||||||||||||||||||||||
| Material | Polyester (Polyether option) | |||||||||||||||||||||||||||||||||||||||||||||||
| Fluid | Air, Water | |||||||||||||||||||||||||||||||||||||||||||||||
| Burst Pressure ( 20oC) | 400 Psi | |||||||||||||||||||||||||||||||||||||||||||||||
| Working Pressure ( 20oC) | 0-150 Psi | |||||||||||||||||||||||||||||||||||||||||||||||
| Operating Temperature | -20~60 ℃ | |||||||||||||||||||||||||||||||||||||||||||||||
| Shore | 95A, 98A | |||||||||||||||||||||||||||||||||||||||||||||||
| Size Tolerance | 3-8mm, +/-0.10 mm | |||||||||||||||||||||||||||||||||||||||||||||||
| 10-16mm, +/-0.15 mm | ||||||||||||||||||||||||||||||||||||||||||||||||
METRIC SIZE&INCH SIZE
| Metric Size | O.D(mm) | I.D(mm) | Bending Radius(mm) | Standard Length |
| PU0320 | 3 | 2 | 8 | 200mm |
| PU0425 | 4 | 2.5 | 10 | 200mm |
| PU0530 | 5 | 3 | 10 | 200mm |
| PU0640 | 6 | 4 | 15 | 200mm |
| PU0850 | 8 | 5 | 20 | 100mm |
| PU0860 | 8 | 6 | 20 | 100mm |
| PU1065 | 10 | 6.5 | 25 | 100mm |
| PU1280 | 12 | 8 | 35 | 100mm |
| PU1410 | 14 | 10 | 45 | 100mm |
| PU1612 | 16 | 12 | 70 | 100mm |
| Imperial Size | O.D(Inch) | I.D(Inch) | Bending Radius(mm) | Standard Length |
| PU1/8 | 1/8" | 0.079" | 8 | 200mm |
| PU5/32 | 5/32" | 0.093" | 10 | 200mm |
| PU3/16 | 3/16" | 1/8" | 10 | 200mm |
| PU1/4 | 1/4" | 0.17" | 15 | 100mm |
| PU5/16 | 5/16" | 0.196" | 20 | 100mm |
| PU3/8 | 3/8" | 1/4" | 25 | 100mm |
| PU1/2 | 1/2" | 0.33" | 35 | 100mm |

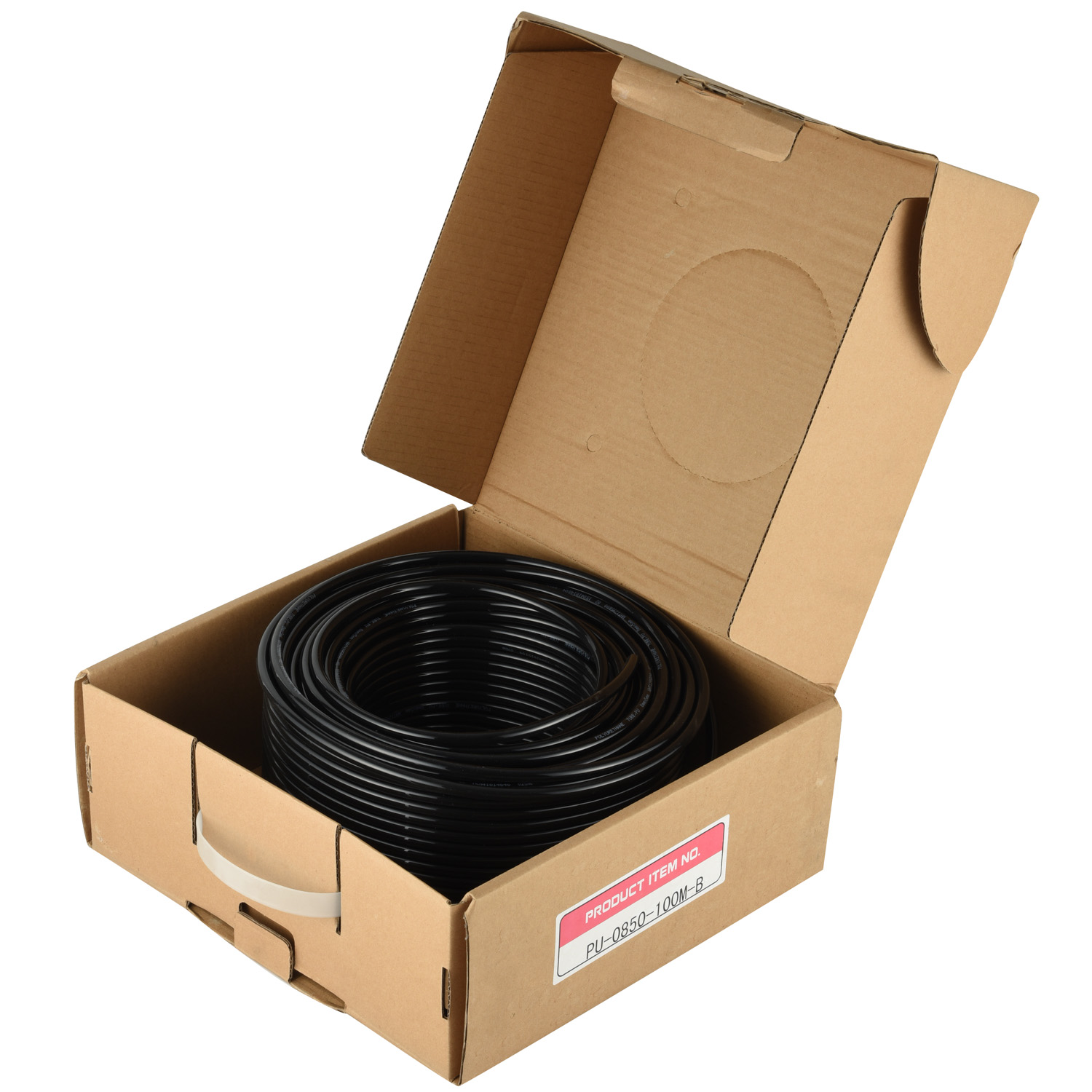

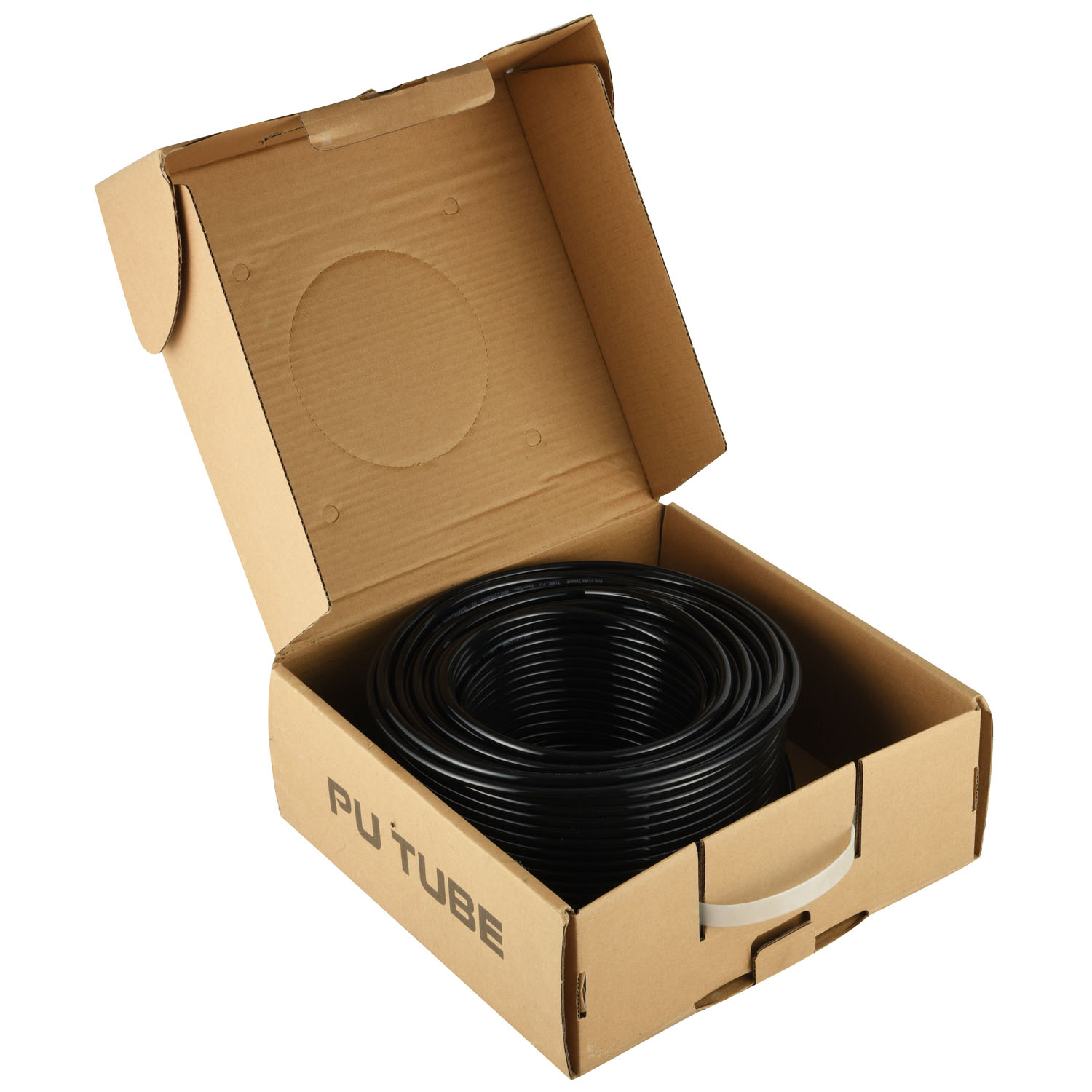

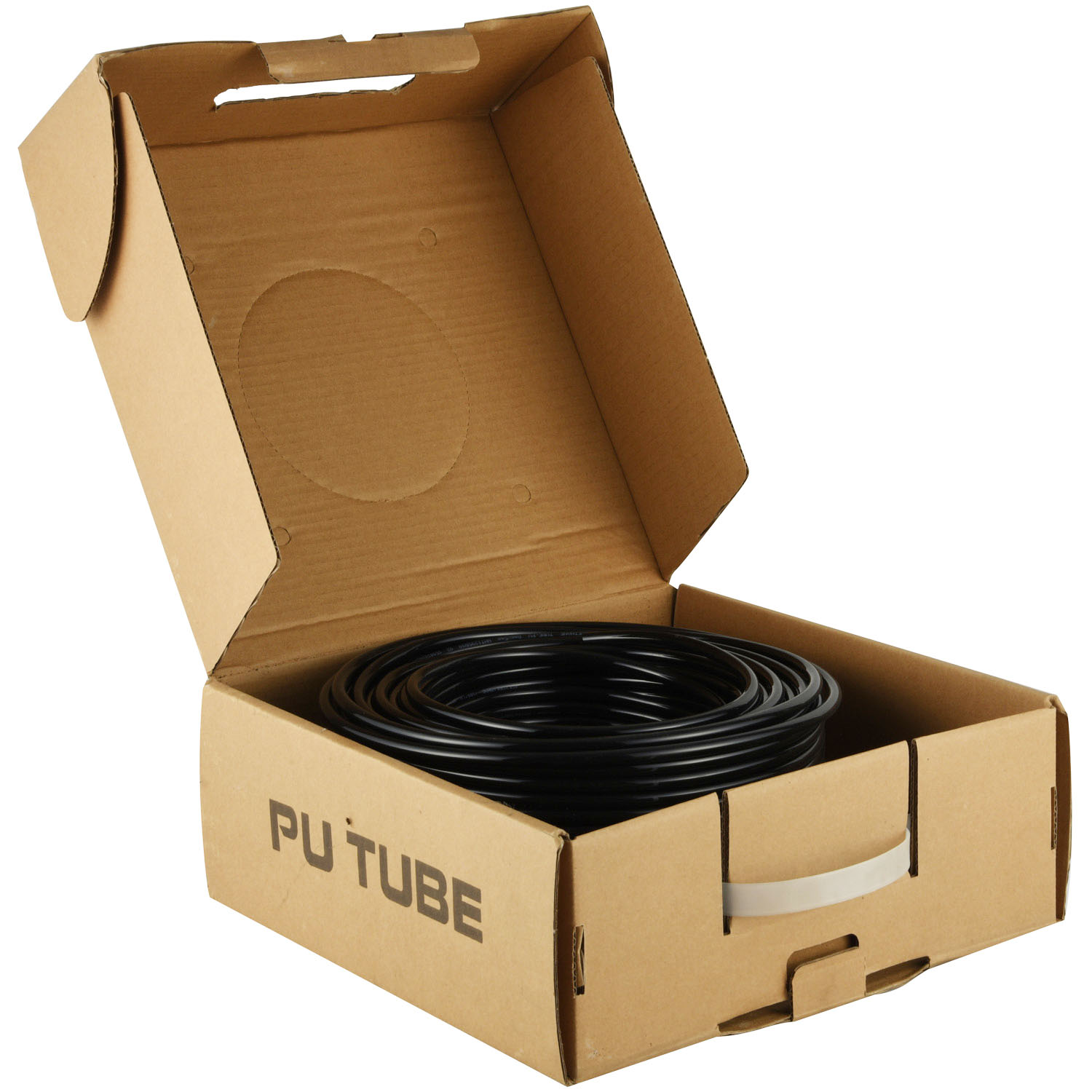

PACKING & SHIPPING
FAQ
We assure you 1 year policy after shipment. If there is any problem during this period, please contact us for support.
