Xhnotion A/C Hose Manual Hydraulic Crimper Tool Set

Port: Ningbo, ChinaProduction Capacity: 10000 Pieces Per MonthPayment Terms: L/C, T/T, Western Union, Paypal, Money GramModel NO.: XHCK-01Piston Forces: 80 KnMaximum Travel of Piston: 14 mmTrademark: XHnotionTransport Package: Plastic BoxSpecification: #6 5/16′′, #8 13/32′′, #10 1/2, #12 5/8′′Origin: ChinaHS Code: 8204200000Condition: NewAutomatic Grade: ManualUsage: HydraulicType: Hydraulic Crimping ToolsProduct Name: Hydraulic CrimperType of A/C Hose: Standard / Reduced Barrier Refrigerant Hose
  • XHCK-01


  • L/C, T/T, Western Union, Paypal, Money Gram

  • Ningbo, China

  • 10000 Pieces Per Month


  • XHCK-01

  • 80 Kn

  • 14 mm

  • XHnotion

  • Plastic Box

  • #6 5/16′′, #8 13/32′′, #10 1/2, #12 5/8′′

  • China

  • 8204200000

  • New

  • Manual

  • Hydraulic

  • Hydraulic Crimping Tools

  • Hydraulic Crimper

  • Standard / Reduced Barrier Refrigerant Hose

Product Description
XHnotion A/C Hose Manual Hydraulic Crimper
Tool Set

Xhnotion A/C Hose Manual Hydraulic Crimper Tool Set

Product Name Hydraulic Crimper
Piston Forces 80 KN
Maximum Travel of Piston 14mm
Hose  Dimension Nominal diameter, DN, 5/16"~5/8"
(Reference outer diameter: Φ17~Φ30 at 2MPa)
Standard Module Group 7
Operation Mode Manual
Ambient Temperature -10~60ºC
Arm Strength ≤75Kg
Crimping Time About  10 S
Noise Level ≤10 db (Not detected)
Appearance Dimension (L x W x H) 780mm x 412mm x 43mm
Weight 4.73Kg

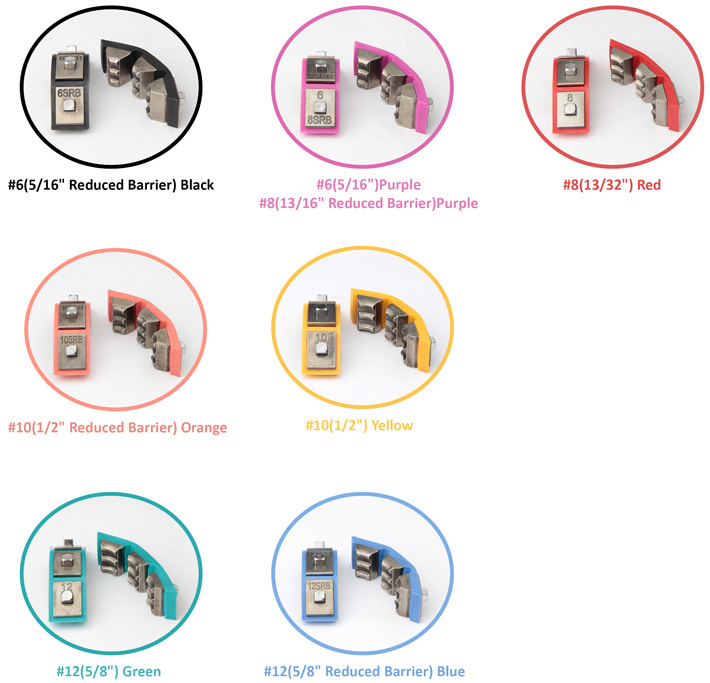

Die Sets
N0. Hose Size
Inner Diameter (in)
Hose Size
Inner Diameter (in)
O.D.with 2 Mpa
Standard Hose
The Jaw Size When Grinding
Tool Limit Vallue (mm)
6SRB 5/16" Φ7.9     Dn8 D: Φ14~16
6, 8SRB 5/16" (Thick walled tube) Φ7.9     Dn8 D: Φ16~20
d: Φ7.5~12
13/32" (Thick walled tube) Φ10.3    Dn10
10SRB 1/2" Φ12.7    Dn15 D: Φ20~22
d: Φ12~14
12SRB 5/8" Φ15.9    Dn16 D: Φ22~24
d: Φ14~16
8 13/32" Φ10.3    Dn10 D: Φ22~24
d: Φ10~12
10 1/2" Φ12.7    Dn15 D: Φ22~26
d: Φ12~14
12 5/8" Φ15.9     Dn16 D: Φ27~30
d: Φ15~17

  Note: Be sure to use correct size die set !
          Failure to do could cause leakage or failure of the crimping.

Xhnotion A/C Hose Manual Hydraulic Crimper Tool Set

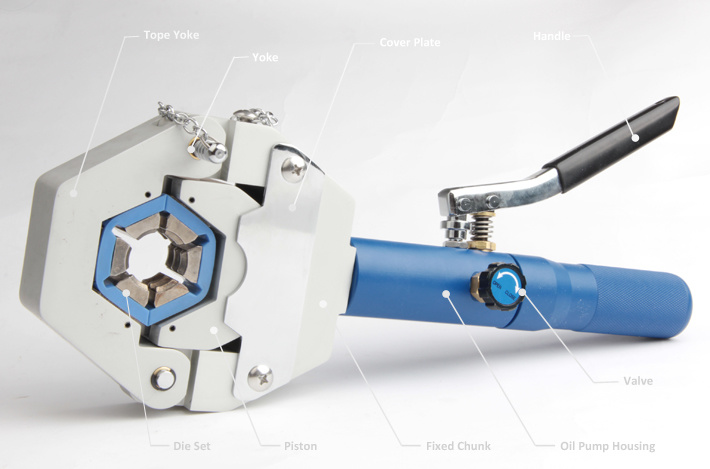

Manual Instruction

Pre-Operation Set-Up

1. Open the relief valve to fully recess the piston, and close tightly.
2. Rotate the yoke fully counter clockwise to bottom out the adapter seat.

Operating Instructions

1. Remove pin and open top yoke.
2. Select correct die set.
3. Insert the die into yoke.
4. Position fitting and hose in the crimper and close the yoke.
5. Insert pin securely.
6. Turn body of tool clockwise until dies are snug against hose fitting.
7. Turn hydraulic valve to CLOSE position.
8. Pump handle to crimp fitting onto hose, continue pumping until handle comes to a stop.
9. Once crimp is complete,turn hydraulic valve to OPEN position.
10. Turn body of tool counter clockwise until top yoke can be rotated away from piston portion of yoke.
11. Romove holding pin and open yoke.
12. Remove hose assembly.
  XHnotion hydraulic crimper can crimp 20000pcs hose joints.
According to the manual instruction, the hydraulic crimper can ensures no oil spilling and fully meet the design requirement.
  Xhnotion A/C Hose Manual Hydraulic Crimper Tool Set

Xhnotion A/C Hose Manual Hydraulic Crimper Tool Set

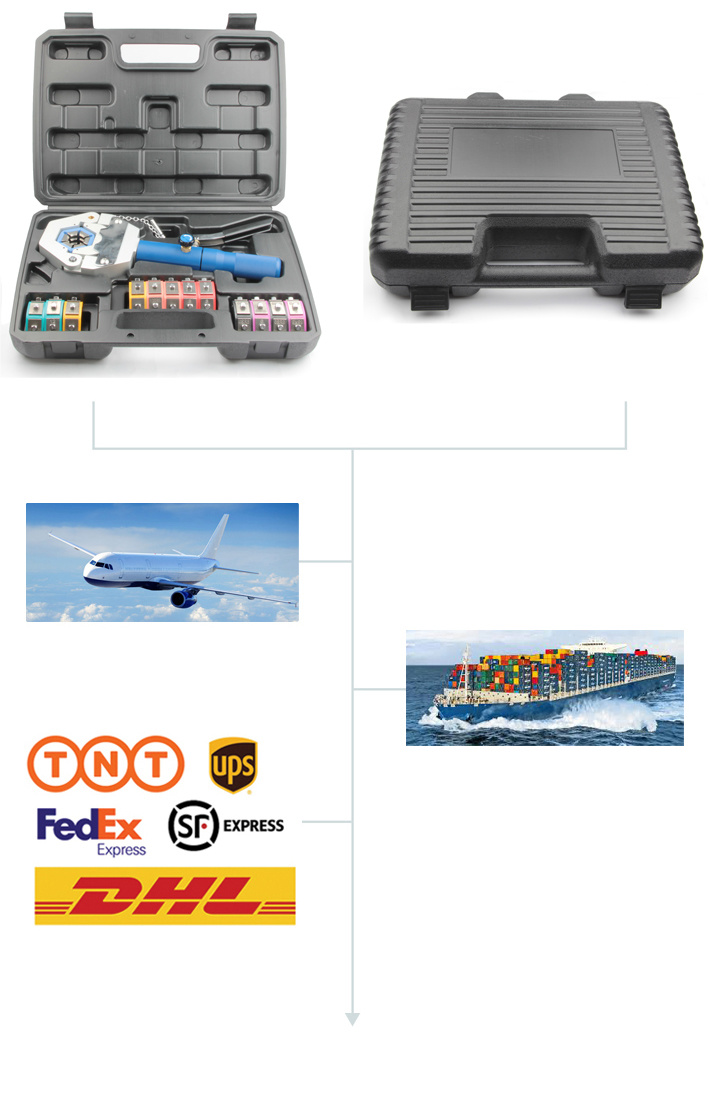

Packing & Shipping

Plastic Box + Carton Box
Custom packaging are available, XHnotion brand packaging are available

Method: Air, Sea, Courier
Export port: Ningbo or Shanghai, China
Delivery time: 3 days to 30 days depends on actual orders.
Express: TNT, UPS, DHL, FedEx, SF Express.

Xhnotion A/C Hose Manual Hydraulic Crimper Tool Set

Maintenance and Service
  1. Check if hydraulic crimper function normally. Any damaged tool is never used and shall be sent to          the authorized repair shop or our company.
2. Check that the parts at the mouth of hydraulic crimper can freely move. Periodically check that all
    the pipes, axes, and screws are not damaged. Any damaged part must be replaced with original
    part by the authorized technician.
3. After that, the hydraulic crimper shall be thoroughly cleaned. All the moving parts are greased only
   with premium hydraulic oil or ball bearing oil.
4. Other maiintenance: Adjustment and maintenance must be performend by the our company
   authorized technicians.
5. If the seal is damaged, the quality assurance will not be cancelled.
6.The hydraulic crimper, which have undergone 20000 crimping operations or have been used for two
   years, whichever is earlier, must be maintained by the authorized repair shop or our company.
7.The hydraulic crimper are sent only after hydraulic oil must be thoroughly drained from them.
8. Associated hydraulic oil: HB30(acid number: 0.81 mg KOH/g) 57ml.

Our Company

XHnotion originate from notion between pneumatic power and human.
(X stands for winds, H stands for human)

In Chinese, XHnotion stands for 'we do, we promise'  we read it 'X-notion'.
The company XHnotion Pneumatic was founded in 2007 and has developed with a steadily growing success to a reliable partner for international established clients.

This success of the company XHnotion Pneumatic is based on:

High class quality standard

Customer satisfaction

Fair price policy


The high-class quality standard of the products of company XHnotion is reflected in our quality management system, certificated ISO 9001:2008. And we got CE, RoHS, REACH certificate for international market.

XHnotion Pneumatic manufactures below products:

Pneumatic Components: air cylinder, solenoid valve, FRL

Solenoid Calve: standard solenoid valve, multipurpose solenoid valve, pneumatic angle valve

Pneumatic Fittings: plastic pneumatic fittings, mental pneumatic fittings, pneumatic muffler, water push in fittings

Air Gun & Couplers: pneumatic couplers, air guns, air tool kits

Air Hoses: air tubing, PTFE tubes, tube cutter, pipes
