Xhnotion 220VAC 1/2"Bsp Xct Series Timer Drain Solenoid Valve

Model NO.: XCT-AUsage: Flow ControlStandard: DINApplication: Industrial UsageProduct Name: Xhnotion 220VAC 1/2"Bsp Xct Series Timer Drain SolVoltage: 24-230V AC/DCVoltage Range: +/-10%Port Size: 1/2", 3/8", 1/4" BspWorking Pressure: 0-10bar or 0-16barCertification: Ce1674Protection Grade: IP65Trademark: XHnotionTransport Package: White Box or Color BoxOrigin: ChinaHS Code: 8481804090Actuator: ElectricConnection Form: ThreadType: Direct ActingMaterial: Brass or Stainless SteelPressure: Ordinary PressurePower Supply: DC Solenoid Valve
  • XCT-A


  • L/C, T/T, Western Union, Paypal, Money Gram

  • Ningbo, China

  • 50000 PCS Per Month


  • XCT-A

  • Flow Control

  • DIN

  • Industrial Usage

  • Xhnotion 220VAC 1/2"Bsp Xct Series Timer Drain Sol

  • 24-230V AC/DC

  • +/-10%

  • 1/2", 3/8", 1/4" Bsp

  • 0-10bar or 0-16bar

  • Ce1674

  • IP65

  • XHnotion

  • White Box or Color Box

  • China

  • 8481804090

  • Electric

  • Thread

  • Direct Acting

  • Brass or Stainless Steel

  • Ordinary Pressure

  • DC Solenoid Valve

Product Description

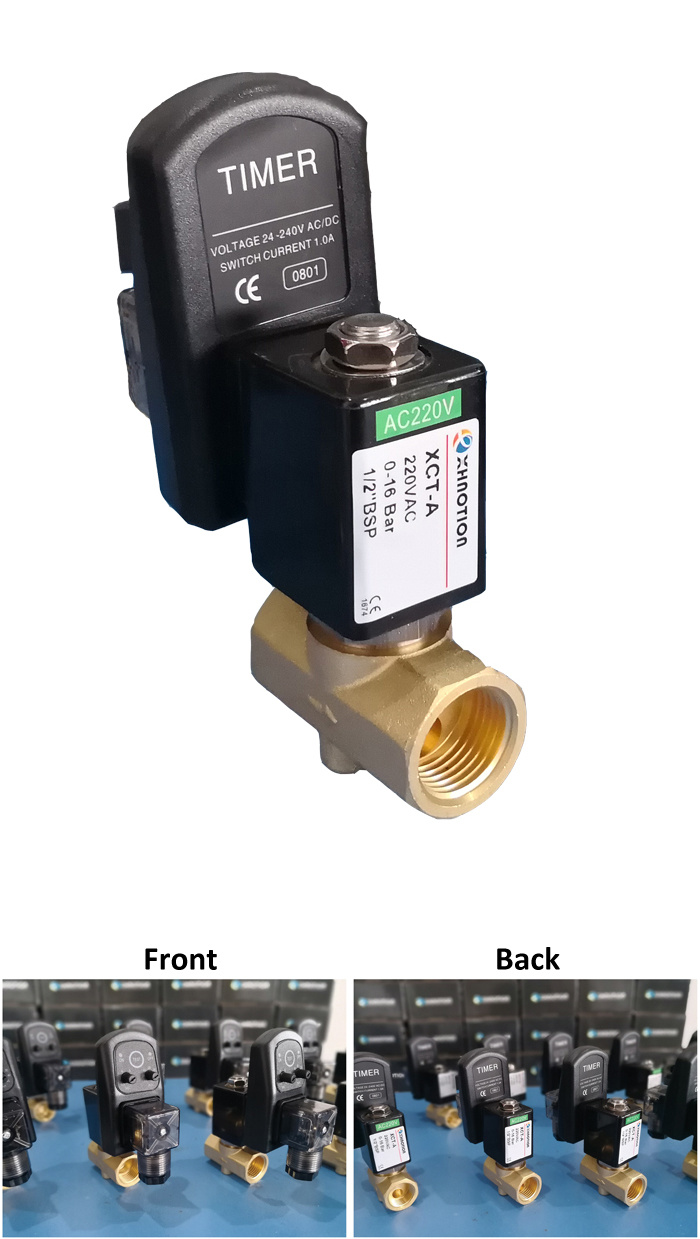

Xhnotion 220VAC 1/2"BSP XCT Series
Timer Drain Solenoid Valve

Xhnotion 220VAC 1/2


1. Automatically run and free maintenance.
2. Suitable for automatically drain of condense water in many occasions and irrigation system.
3. Drain time and interval time is adjusted with test button.
4. Filter ball valve can be installed before drain valve to avoid the block.
5. Orifice: 3mm, Max pressure: 16 Bar.
6. Conforming to CE certificate and the coil reach IP65 protection grade


Product Name Timer Drain Solenoid Valve
Model XCT-A
Type 2/2 Direct Acting
Port Size 1/2" 3/8" or 1/4" BSP
Max Working Pressure 0-10 Bar or 0-16 Bar
Ambient Temperature 0ºC ~55ºC
Max Medium Temperature 80ºC
Valve Body Material Brass (stainless steel could be available upon request)
Protection Grade IP65
Voltage 24-230V AC/DC
Voltage range +/-10%
Mounting in any position Yes


Xhnotion 220VAC 1/2


1. Raw Material conforms to China industry standard, bought from famous factory.
2. Insulation grade: H class, good resistance to high temperature.
3. Machined by CNC to make sure the tolerance as the drawing
4.100% leakage testing under low pressure and high pressure.
5. All kinds of valve and seals material to meet custom requirement.
6.1 year quality assurance after shipment.
7. After-sales technique support.

CE Certificate

XHnotion Solenoid Valves have conformed to CE Certificate.

Xhnotion 220VAC 1/2

What is Solenoid Valve?

Solenoid Valve is s device electromechanically operated with the use of a solenoid to change the state of a valve from open to close to control the flow liquid or gas.

It is used in fluid power pneumatic and hydraulic systems, to control cylinders, fluid power motors, and larger industrial valves.

Solenoid valves are used in factories/plants where compressed air is not available.
In domestic washing machines and dishwashers, the solenoid valves are used to control water entry into the machine.

A solenoid is also very important in the medical field especially when equipment have to be very precise and accurate; Solenoid manufacturing for medical purposes has been of too strict standards since life is at stake.

Solenoid valves can be used for a wide array of industrial applications, including general on-off control, calibration, pilot plant control loops, process control systems, and various original equipment manufacturer applications.

Other solenoid operated valves used at a more advanced method varies in pressure, flow depending on the input signal.

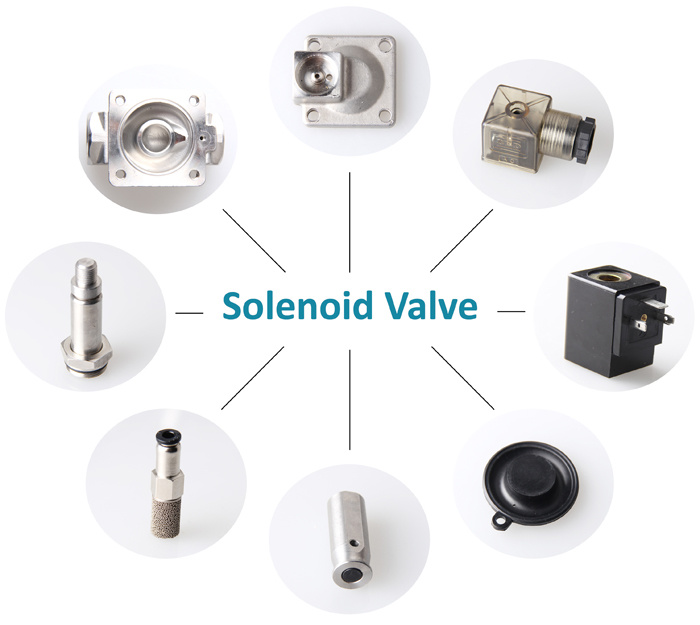

Basic Components Xhnotion 220VAC 1/2

A solenoid valve consists of two main parts: The Solenoid and the Valve.

Solenoid is a cylindrical coil of wire, which acts as an electromagnet when an electric current passes through while the Valve acts as a control device, which controls or directs the flow of fluid by closing, opening or partially obstructing various pathways.

Valve Body: This main part of the solenoid valve, includes ports, seats, and orifice that permit movement of fluids when the solenoid is energized or de-energized.

Solenoid Tube Assembly: Cylinder, in stainless steel, sealed and closed at one end. This is a guide channel of the movable plunger which is moved magnetically. The valve has the solenoid coil fitted on the external side of the enclosing tube.

Moveable Plunger: An electromagnetically inductive coil, made of a movable stainless steel, it is attracted by the solenoid magnetic field and slides inside the tube.

Plunger Spring: This is a return spring that holds the movable plunger in position when energized and to return it to its position when de-energized.

Seat Seal: It is used to close a valve main orifice and it is located on the movable plunger.

Electromagnet (Solenoid coil): The electromagnet consisting of copper windings (solenoid) along with, a magnetic yoke (armature), when energized, generates a magnetic flux which attracts the movable plunger.

Packing & Shipping

Plastic Box / Color Box + Carton Box
Custom packaging are available, XHnotion brand packaging are available

Method: Air, Sea, Courier
Export port: Ningbo or Shanghai, China
Delivery time: 3 days to 30 days depends on actual orders.
Express: TNT, UPS, DHL, FedEx, SF Express.
