| Quantity: | |
|---|---|
MPU8
XHNOTION
L/C, T/T, Western Union, Paypal
Ningbo, China
1000 PCS Per Day
PLASTIC BAG AND CARTON
MPU8
M5, M6, 1/8, 1/4, 3/8, 1/2
XHnotion
Plastic Bag
ROHS, REACH, CE
China
7412209000
DIN, GB
Brass
Male
Nickel-Plated
Round
3mm-16mm
Specifications

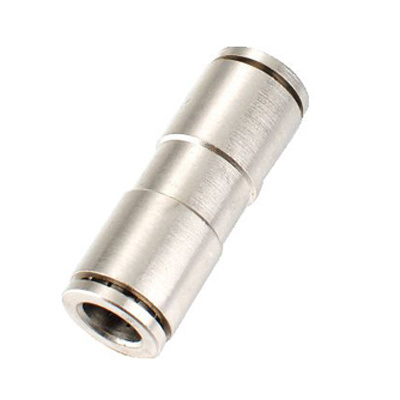

| Product Name | Trailer Truck Brass Push in Fitting |
| Model | MPU8 |
| Material | Nickel-Plated Brass |
| Type | Straight, Elbow, Bulkhead, Tee, Y, Reducer |
| Medium | Air |
| Tubing Material | PU, PE, PA tubes |
| Tube O.D. | 4mm-16mm |
| Thread | M5, M6, 1/8, 1/4, 3/8, 1/2(R, G, NPT) |
| Operating Pressure | -0.8 - 20Bar |
| Operating Temperature | -10 - 90ºC |
Features
1. Fluid Type: compressed air (For other fluid, please contact us).
2. Working Pressure: -0.8~20 bar.
3. Application Tube: PU, PE, PA tubes.
4. Working Temperature: -10~90ºC .

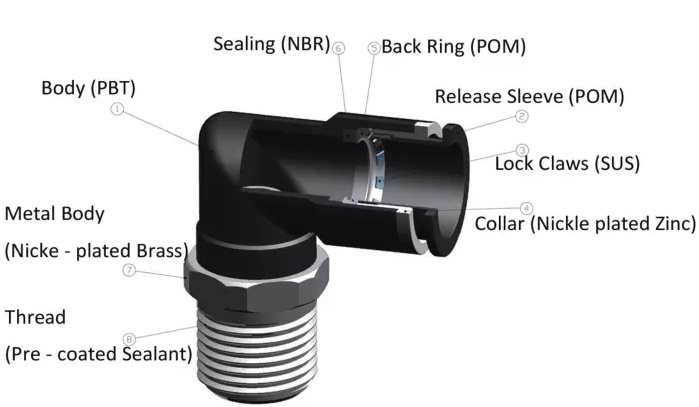

Diagram
Advantage
1. Raw Material conforms to ROHS standards.
2. Imported Teflon adhesive for pre-coated sealant.
3. Multiple color and shape for button and body. Blue and oval button with black body as regular, Black or gray round button is available, too.
4. 5% tested by water at 10 bar, 100% tested by air and appearance test.
5. 1 year quality assurance after shipment.
6. Custom fitting as your drawing or we make drawing as your sample.
Packing & Shipping
Packing:
Transparent Pastic Bag + White Small Box + Neutral Carton + Pallet
Custom packaging are available, XHnotion brand packaging are available
Shipping:
Ways: Sea, Air, Courier
Export port: Ningbo or Shanghai, China
Delivery time: 3 days to 30 days depends on actual orders.
Express: TNT, UPS, DHL, FedEx, SF Express.
Our Company
XHnotion originate from notion between pneumatic power and human.
(X stands for winds, H stands for human)
In Chinese, XHnotion stands for 'we do, we promise' we read it 'X-notion'.
The company XHnotion Pneumatic was founded in 2007 and has developed with a steadily growing success to a reliable partner for international established clients.
This success of the company XHnotion Pneumatic is based on:
High class quality standard
Customer satisfaction
Fair price policy
Flexibility
The high-class quality standard of the products of company XHnotion is reflected in our quality management system, certificated ISO 9001:2008. And we got CE, RoHS, REACH certificate for international market.
XHnotion Pneumatic manufactures below products:
Pneumatic Components: Air Cylinder, Solenoid Valve, FRL.
Solenoid Valves: Standard Solenoid Valve, Multipurpose Solenoid Valve, Pneumatic Angle Valve.
Pneumatic Fittings: Plastic Pneumatic Fittings, Metal Pneumatic Fittings, Pneumatic Muffler, Water Push in Fittings.
Air Gun & Couplers: Pneumatic Couplings, Air Guns, Air Tool Kits.
Air Hoses: Air Tubing, PTFE Tubes, Tube Cutter, Pipes.
Our Service
1. We offer one stop solution. Over 5000 items for you to save efforts and costs.
2. We have molds workshop, die-casting workshop, CNC workshop, plastic injection workshop to
make sure each part exactly as the drawing and good function.
3. We will reply you within 24 hours.
4. Whatever quantity you are requesting, we always offer you the best quality.
5. 3D drawing, CAD drawing service for custom fittings, hose, valve, cylinder.
FAQ
Payment Terms :
We accept T/T, L/C, Paypal, Western Union,etc.
Samples Policy :
For regular item, samples against your courier account or you pick up from us.
For custom items, we will discuss by email.
Return Policy:
We assure you 1 year policy after shipment.
If there is any problem during this period, please contact us for support.
