Xhnition DC24V 5 Way 2 Position G1/4" Internally Piloted Acting Type Single Electrical Control Pneumatic Solenoid Air Valve, Spool Valve 4V210-08

Port: Ningbo, ChinaProduction Capacity: 500 PCS Per MonthPayment Terms: L/C, T/T, Western Union, Paypal, Money GramModel NO.: 4V210-08Pressure: Low PressureValve Structure: Pilot Piston StructurePower Supply: DC and ACUsage: DirectionalStandard: DINApplication: Industrial Usage, Water Industrial Usage, Household UsageThread: 1/4,Regular Voltage: 12VDC, 24VDC, 110VAC, 220VACTrademark: XHnotionTransport Package: Bluk Packing or Blister PackingSpecification: CEOrigin: ChinaHS Code: 8481804090Media: GasTemperature: Ordinary TemperatureActuator: PneumaticConnection Form: ThreadType: Pilot OperatedMaterial: Aluminum Alloy
Availability:
Quantity:
  • 4V210

  • XHNOTION

  • L/C, T/T, Western Union, Paypal, Money Gram

  • Ningbo, China

  • 500 PCS Per Month

  • BOX AND CARTONS

  • 4V210-08

  • Low Pressure

  • Pilot Piston Structure

  • DC and AC

  • Directional

  • DIN

  • Industrial Usage, Water Industrial Usage, Household Usage

  • 1/4,

  • 12VDC, 24VDC, 110VAC, 220VAC

  • XHnotion

  • Bluk Packing or Blister Packing

  • CE

  • China

  • 8481804090

  • Gas

  • Ordinary Temperature

  • Pneumatic

  • Thread

  • Pilot Operated

  • Aluminum Alloy

Product Description

XHnition DC24V 5 Way 2 Position G1/4" Internally Piloted Acting Type Single Electrical Control Pneumatic Solenoid Air Valve, Spool Valve 4V210-08

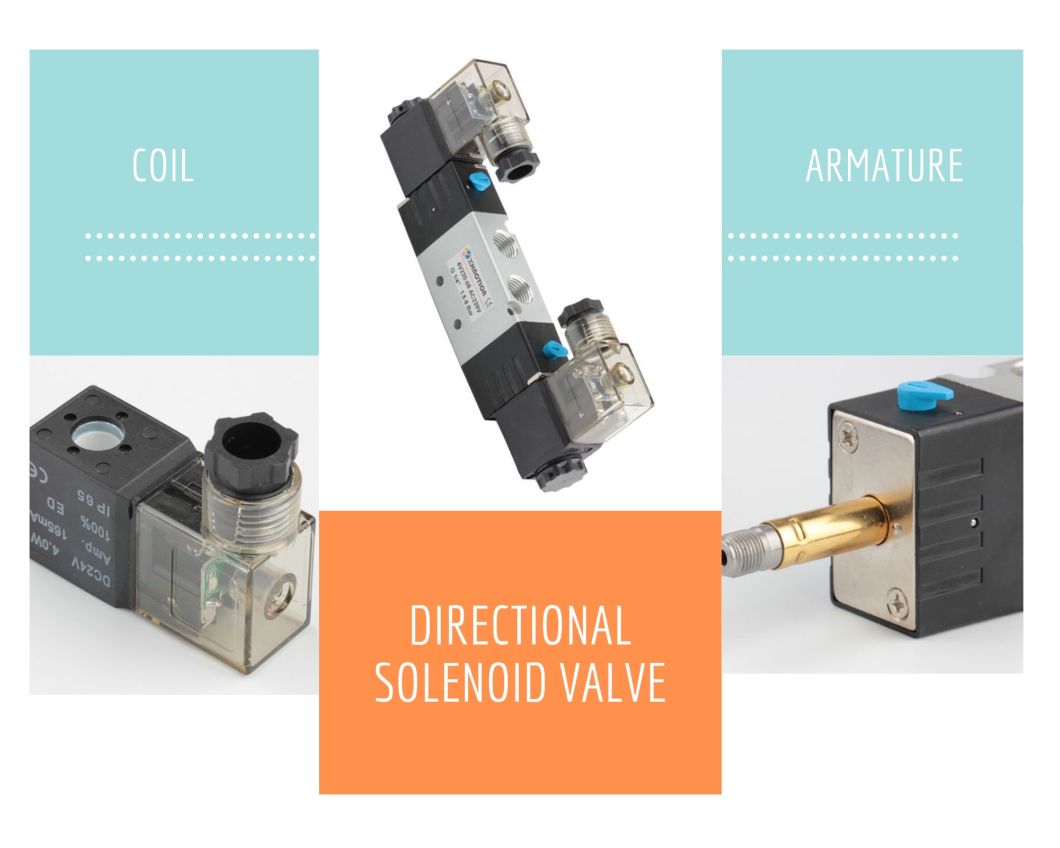

Xhnition DC24V 5 Way 2 Position G1/4

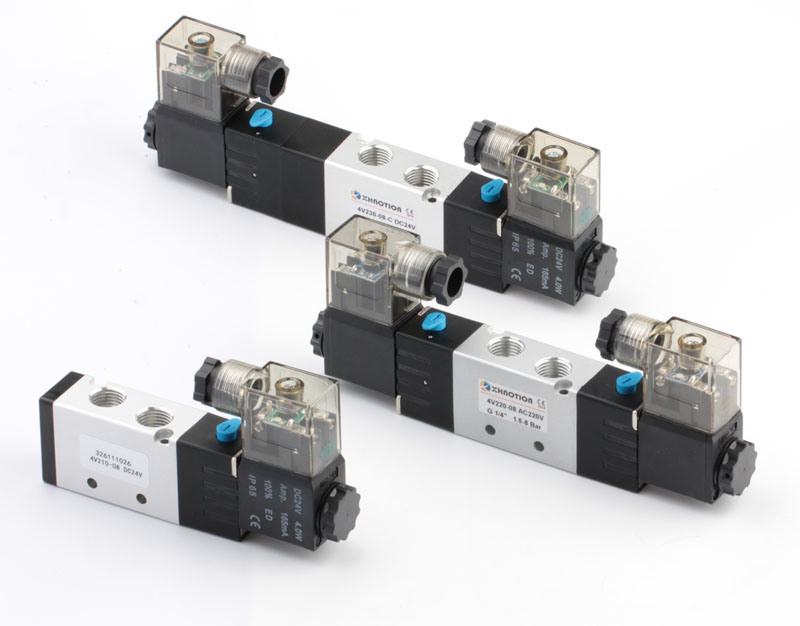

Xhnition DC24V 5 Way 2 Position G1/4

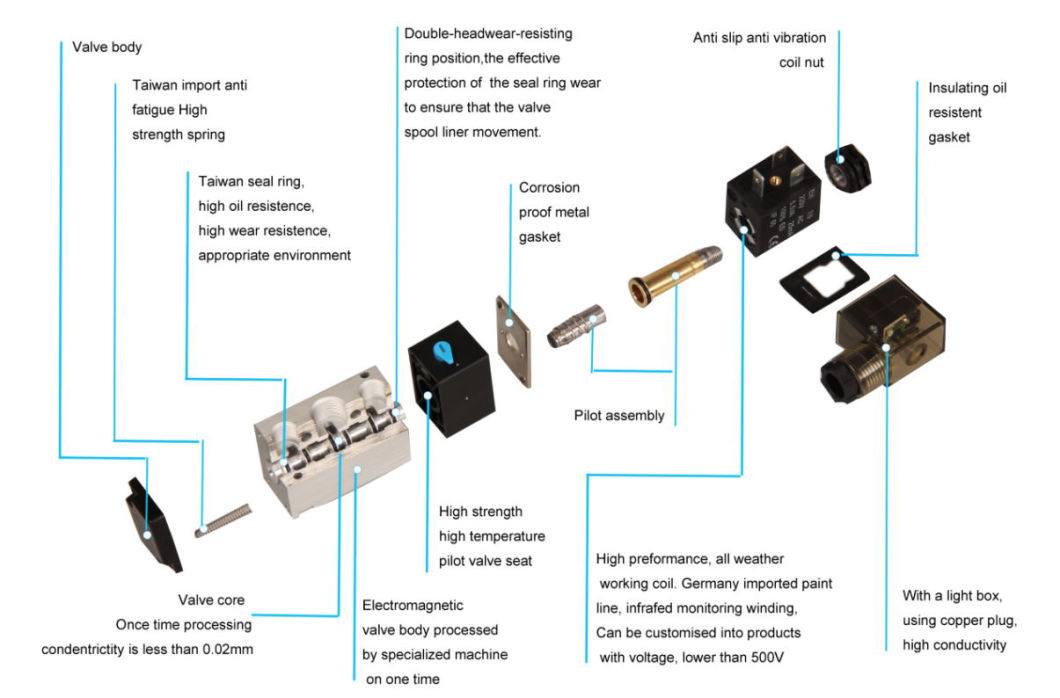

Xhnition DC24V 5 Way 2 Position G1/4



FEATURES


Directional control valves are one of the most fundamental parts in hydraulic machinery as well and pneumatic machinery. They allow fluid flow into different paths from one or more sources.

Valve bodies are mirror finished and Hard oxidation.

Low power consumption, fast response, import oil seal with longer service life.

Coils with DIN connection or flying leads

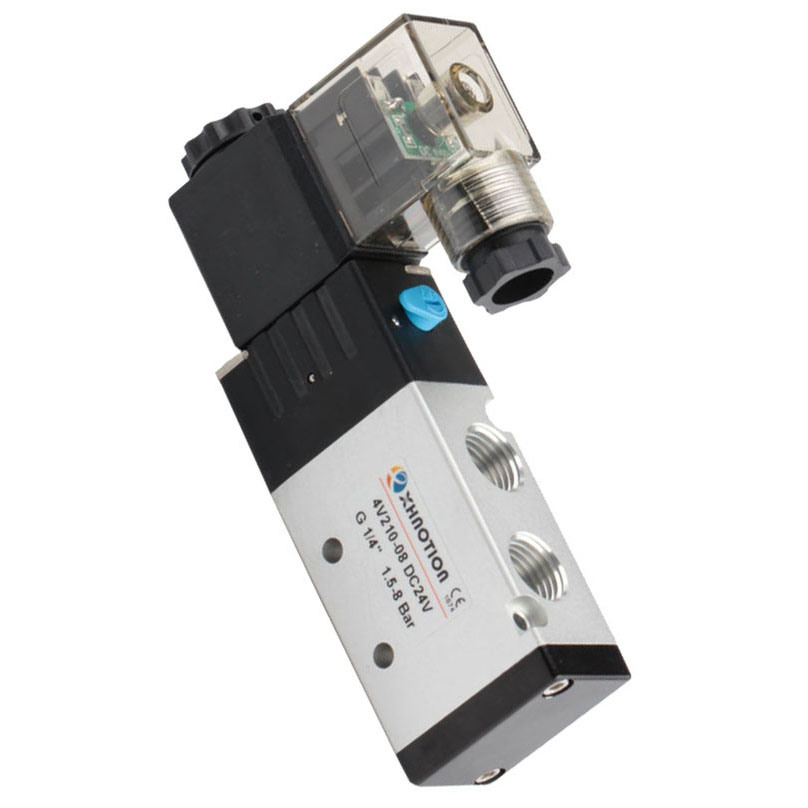

Xhnition DC24V 5 Way 2 Position G1/4




SPECIFICATION

Drive Type Pilot & Solenoid
Mount Inline or Manifold
Wiring DIN Connector with LED
Insulation F Class
Water/Dust Protection IP65
Override Manual, Locking (3V, 4V Series)
Pressure 22 - 116 PSI (1.5 - 8 Bar)
Temperature -5~50 Celsius degree (41 - 122 Fahrenheit degree)
Voltage Tolerance ±10% of Rated Voltage
Highest Action Frequency 6 cycles/sec



Other models:

Model Description Thread Flow (Cv) Voltage
4V210-06 5 way 2 position Single Head 1/8 0.78
DC 12V
DC 24V
AC 110V
AC 220V
4V210-08 5 way 2 position Single Head 1/4 0.89
4V220-06 5 way 2 position Double Head 1/8 0.78
4V220-08 5 way 2 position Double Head 1/4 0.89
4V230C-06 5 way 3 position Center Closed 1/8 0.78
4V230C-08 5 way 3 position Center Closed 1/4 0.89
4V230E-06 5 way 3 position Center Pressure 1/8 0.78
4V230E-08 5 way 3 position Center Pressure 1/4 0.89
4V230P-06 5 way 3 position Center Pressure 1/8 0.78
4V230P-08 5 way 3 position Center Pressure 1/4 0.89



ADVANTAGE

1) Valve body is machined by Japan automatic CNC to make sure all the dimensions accurate.

2) Aluminum Surface is polished and hard anodized.

3) To import Germany grease to provide firm less-friction support

4) O-ring is imported from Taiwan.

5) 100% leakage testing under low pressure and high pressure.

6) 1 year quality assurance after shipment.

7) After sales technique support



ACCESSORY

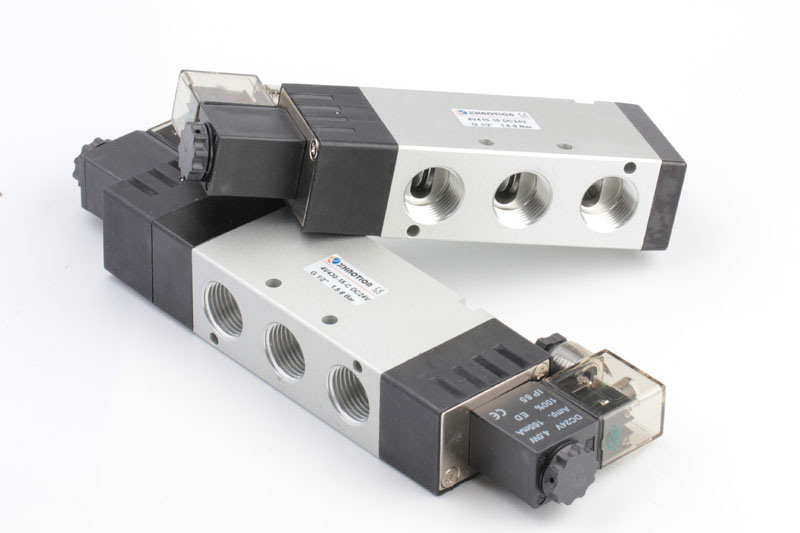

Xhnition DC24V 5 Way 2 Position G1/4





PACKING & SHIPPING

Packing:
Transparent plastic bag + white small box + neutral carton + pallet
Custom packaging are available, XHnotion brand packagwe are available
Xhnition DC24V 5 Way 2 Position G1/4


Shipping:
Export port: Ningbo or Shanghai, China
Shipping way: by sea, by air, by courier
Express: TNT, DHL, UPS, FedEX, SF Express
Delivery time: 3 days to 30 days depends on actual orders.




WHY CHOOSE US?

1) We offer one stop solution. Over 5000 items for you to save efforts and costs.

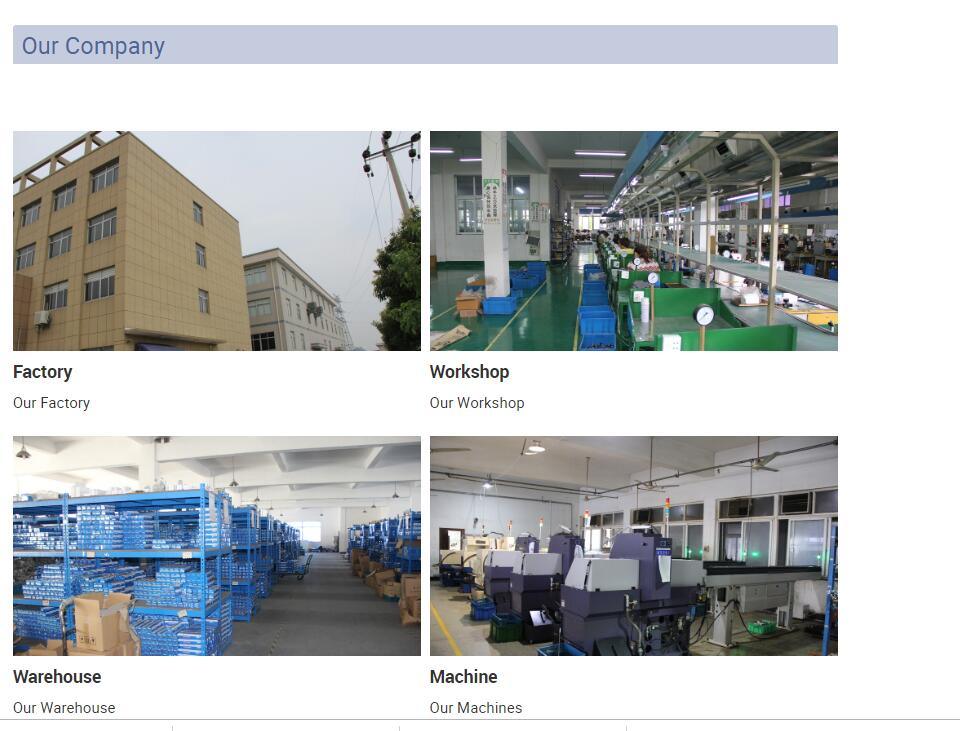

2)We have molds workshop, die-casting workshop, CNC workshop, plastic injection workshop to make sure each part exactly as the drawing and good function.
3) We will reply you within 24 hours.
4) Whatever quantity you are requesting, we always offer you the best quality.
5)3D drawing, cad drawing service for custom fittings, hose, valve, cylinder.

Xhnition DC24V 5 Way 2 Position G1/4


Xhnition DC24V 5 Way 2 Position G1/4
