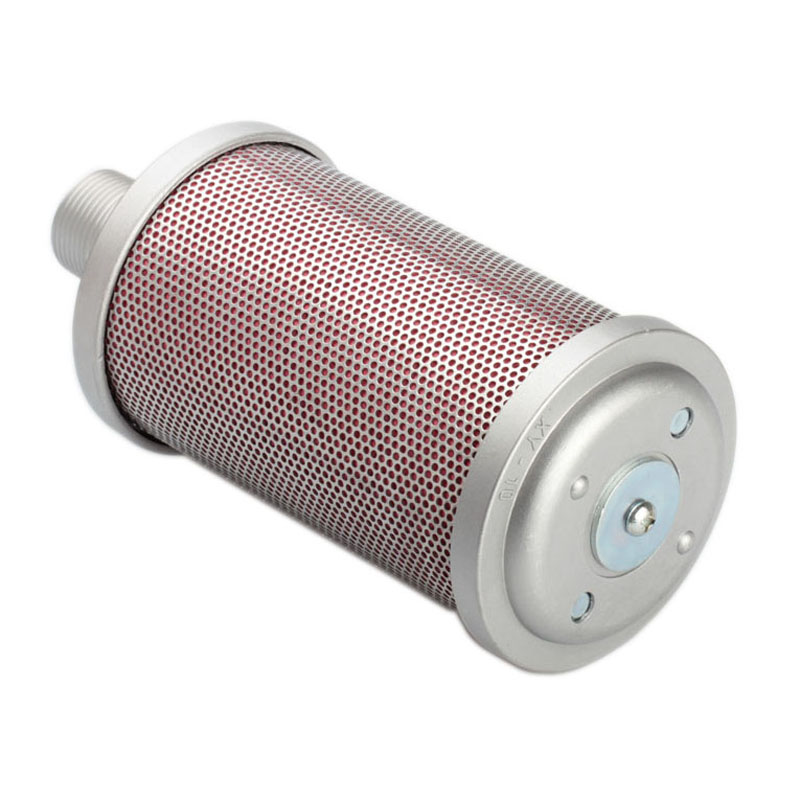

XY-10 Air Compressor Silencer Exhaust Muffler for Removing Noise Dust Water
FEATURES
1. Application Field: Pneumatic, Oil pressure and Hydraulic systems.
2. Function: to reduce noise and to remove dust and water.
3. Pressure Range: 0-10 bar; Max. Pressure: 12 bar.
4. Temperature Range: -10~70 °C.
5. Noise Elimination Effect: 20-25 db.
6. Filtration Rating: 5-100μm; regular rating is 40μm.
7. NPT, G & BSPT thread are available; regular thread is G thread.
8. Material: Brass, SS304, SS316, PE.
STRUCTURE
DRAWING
| MODEL | T | H | h | D |
| (G)XY-01 | 1/8 | 83 | 68 | 46.5 |
| (G)XY-02 | 1/4 | 112 | 92 | 46.5 |
| (G)XY-03 | 3/8 | 132 | 110 | 66 |
| (G)XY-05 | 1/2 | 150 | 125 | 80 |
| (G)XY-07 | 3/4 | 181 | 156 | 87 |
| (G)XY-10 | 1 | 219 | 183 | 99 |
| (G)XY-12 | 1-1/4 | 219 | 183 | 99 |
| (G)XY-15 | 1-1/2 | 340 | 299 | 133 |
| (G)XY-20 | 2 | 476 | 432 | 133 |
| (G)XY-30 | 3 | 593 | 472 | 173*173 |
| (G)XY-40 | 4 | 599 | 472 | 199*199 |
| (G)XY-60 | 6 | 790 | 611 | 277*277 |
SPECIFICATIONS
| XY Series | GXY Series | |||||||||||||||||||||||
| Filter mateiral | Fiber Paper | High Polymer | ||||||||||||||||||||||
| Max Tempearture | 65 C | 120 C | ||||||||||||||||||||||
| Water contact | Not good | Good | ||||||||||||||||||||||
| Product Name | Muffler / Silencer |
| Model | XY-10 |
| Material | Brass |
| Operating Pressure | 0~12 bar |
| Operating Temperature | -10 ~ 70°C |
| Pressure Range | 0-12 bar |
| Application | Pneumatic, Oil pressure and Hydraulic systems |
| Capacity | Over 100000pcs/month |
| Marketing Area | All over the world |
MATERIAL CONSTRUCTION
| Metal Body | Nickel Plated Brass, Stainless Steel, Nylon, Zinc Alloy |
| Filter Material | Brass Powder, Stainless Steel, HDPE |
MUFFLER NOISE TEST REPORT
| Test pressure (Mpa) | Model | Noise reduction value (db) |
| - | XY GXY-01 | - |
| - | XY GXY-02 | - |
| - | XY GXY-03 | - |
| 0.5 | XY-05 | 75 |
| 0.5 | GXY-05 | 84 |
| 0.5 | XY-07 | 75 |
| 0.5 | GXY-07 | 83 |
| 0.7 | XY-10 | 83.4 |
| 0.7 | GXY-10 | 87 |
| 0.7 | XY-15 | 86.5 |
| 0.7 | GXY-15 | 87 |
| 0.7 | XY-20 | 88.5 |
| 0.7 | GXY-20 | 99 |
| - | XY GXY-30 | - |
| - | XY GXY-40 | - |
| - | XY GXY-60 | - |
Packing & Shipping
Packing:
Plastic Box / Color Box + Carton Box
Custom packaging are available, XHnotion brand packaging are available
Shipping:
Method: Air, Sea, Courier
Export port: Ningbo or Shanghai, China
Delivery time: 3 days to 30 days depends on actual orders.
Express: TNT, UPS, DHL, FedEx, SF Express.
