XY-05 1/2 Inch Outdoor Air Compressor Exhaust Muffler Filter
FEATURES
1. Application Field: Pneumatic, Oil pressure and Hydraulic systems.
2. Function: to reduce noise and to remove dust and water.
3. Pressure Range: 0-10 bar; Max. Pressure: 12 bar.
4. Temperature Range: -10~70 °C.
5. Noise Elimination Effect: 20-25 db.
6. Filtration Rating: 5-100μm; regular rating is 40μm.
7. NPT, G & BSPT thread are available; regular thread is G thread.
8. Material: Brass, SS304, SS316, PE.
DESIGNED FOR
1. Filtering exhaust and intake air from potential dirt and foreign particles, thus prolonging valve's life.
2. Noise muffling during pressure equalization.
Expertly reduces Exponentially Perceived Noisewithout impeding equipment performance
Designed to take explosive air exhaust noise discharged from valve exhaust ports and muffle it with optimized Constant Velocity (CV) flow factor
Exhaust air flows softly to atmosphere free of noise, oil fog, and other contaminants – helping to maintain a clean, comfortable and productive work environment

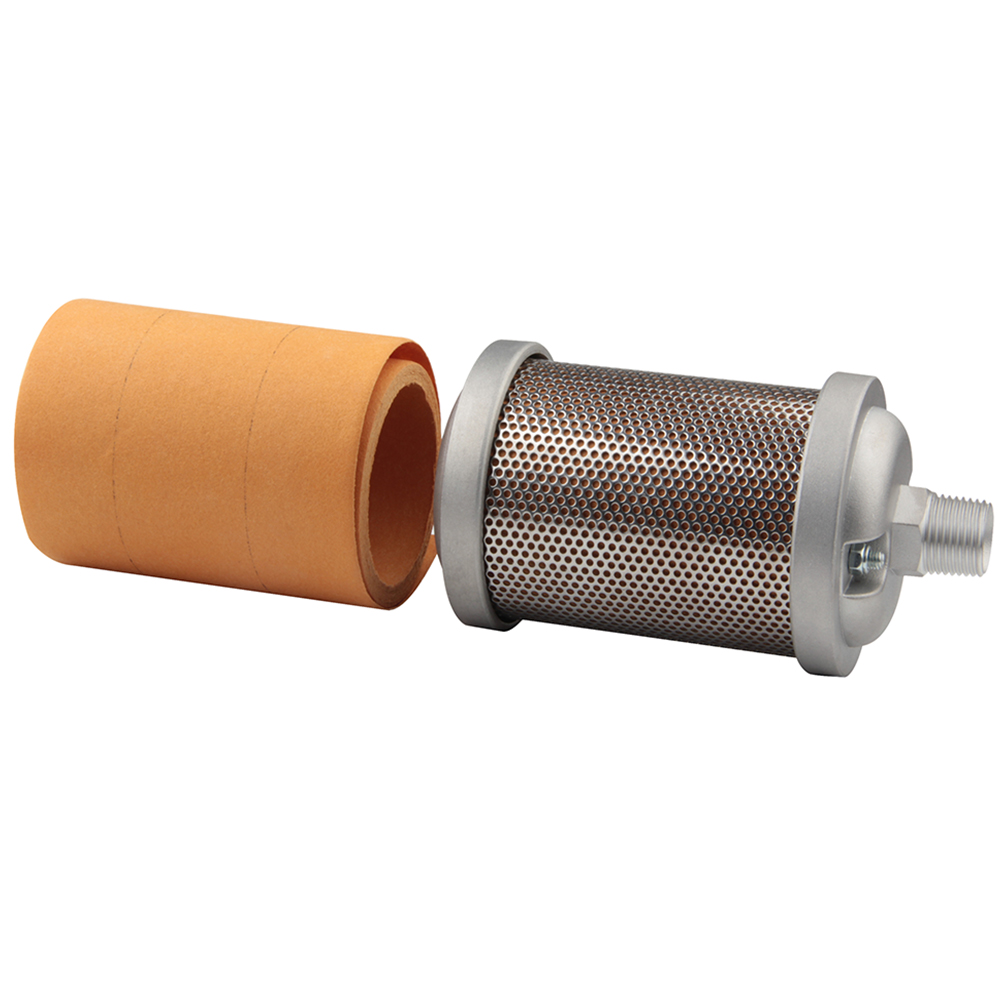

Features a unique obstruction-free expansion chamber, with corrosion-resistant aluminum end covers, zinc-plated steel components and a cellulose fiber element
Recommended for general purpose air exhaust applications for pressures up to 125 psi (8.6 Bar)
STRUCTURE
DRAWING
| MODEL | T | H | h | D |
| (G)XY-01 | 1/8 | 83 | 68 | 46.5 |
| (G)XY-02 | 1/4 | 112 | 92 | 46.5 |
| (G)XY-03 | 3/8 | 132 | 110 | 66 |
| (G)XY-05 | 1/2 | 150 | 125 | 80 |
| (G)XY-07 | 3/4 | 181 | 156 | 87 |
| (G)XY-10 | 1 | 219 | 183 | 99 |
| (G)XY-12 | 1-1/4 | 219 | 183 | 99 |
| (G)XY-15 | 1-1/2 | 340 | 299 | 133 |
| (G)XY-20 | 2 | 476 | 432 | 133 |
| (G)XY-30 | 3 | 593 | 472 | 173*173 |
| (G)XY-40 | 4 | 599 | 472 | 199*199 |
| (G)XY-60 | 6 | 790 | 611 | 277*277 |
SPECIFICATIONS
| XY Series | GXY Series | |||||||||||||||||||||||
| Filter mateiral | Fiber Paper | High Polymer | ||||||||||||||||||||||
| Max Tempearture | 65 C | 120 C | ||||||||||||||||||||||
| Water contact | Not good | Good | ||||||||||||||||||||||
| Product Name | Muffler / Silencer |
| Model | XY-10 |
| Material | Brass |
| Operating Pressure | 0~12 bar |
| Operating Temperature | -10 ~ 70°C |
| Pressure Range | 0-12 bar |
| Application | Pneumatic, Oil pressure and Hydraulic systems |
| Capacity | Over 100000pcs/month |
| Marketing Area | All over the world |
MATERIAL CONSTRUCTION
| Metal Body | Nickel Plated Brass, Stainless Steel, Nylon, Zinc Alloy |
| Filter Material | Brass Powder, Stainless Steel, HDPE |
MUFFLER NOISE TEST REPORT
| Test pressure (Mpa) | Model | Noise reduction value (db) |
| - | XY GXY-01 | - |
| - | XY GXY-02 | - |
| - | XY GXY-03 | - |
| 0.5 | XY-05 | 75 |
| 0.5 | GXY-05 | 84 |
| 0.5 | XY-07 | 75 |
| 0.5 | GXY-07 | 83 |
| 0.7 | XY-10 | 83.4 |
| 0.7 | GXY-10 | 87 |
| 0.7 | XY-15 | 86.5 |
| 0.7 | GXY-15 | 87 |
| 0.7 | XY-20 | 88.5 |
| 0.7 | GXY-20 | 99 |
| - | XY GXY-30 | - |
| - | XY GXY-40 | - |
| - | XY GXY-60 | - |
PACKING & SHIPPING
Packing:
Plastic Box / Color Box + Carton Box
Custom packaging are available, XHnotion brand packaging are available
Shipping:
Method: Air, Sea, Courier
Export port: Ningbo or Shanghai, China
Delivery time: 3 days to 30 days depends on actual orders.
Express: TNT, UPS, DHL, FedEx, SF Express.
FAQ
Payment Terms:
We accept T/T, L/C, PayPal, Western Union, Money Gram, etc.
Samples Policy:
For regular valves, samples against your courier account or you pick up from us.
For custom items, we will discuss by email.
Return Policy:
We assure you 1 year policy after shipment.
If there is any problem during this period, please contact us for support.
