XVBAT Series Pneumatic Compressed Air Pressure Amplifier with Air Tank

Pneumatic Air Boosters: An air booster is a device used to increase the pressure of air in a system.
Working Principle: These boosters use existing compressed air to amplify the pressure. They have a drive piston and a boosting piston. The drive piston is powered by the supply air, and it drives the boosting piston to compress the air further.
Applications: Used in industries where higher pressure air is required than what the existing compressor can provide, such as in pneumatic tools, clamp
Availability:
Quantity:
  • XVBAT

  • Xhnotion or no brand

  • 8414809090

Product Description

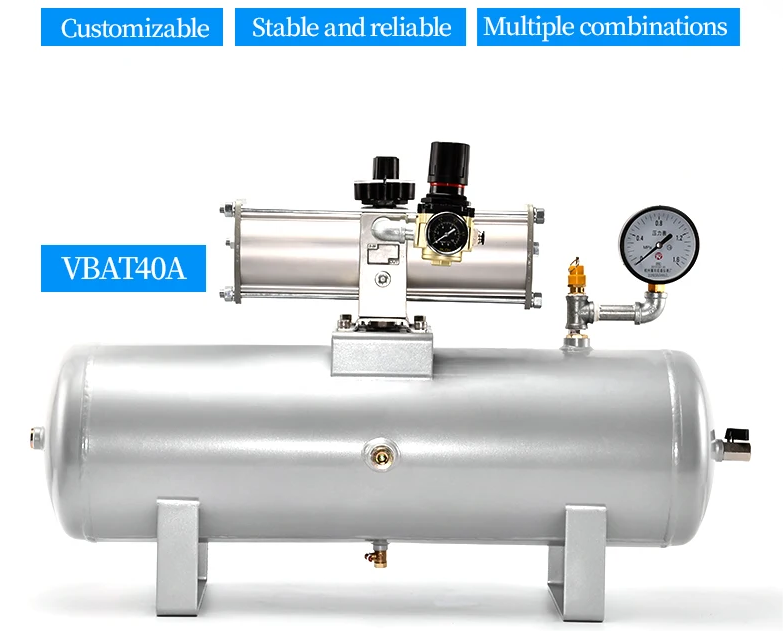

XVBAT Series Pneumatic Compressed Air Pressure Amplifier with Air Tank




XVBA XVBAT air booster and tank (5)(1)

Pneumatic Air Boosters:

An air booster is a device used to increase the pressure of air in a system.

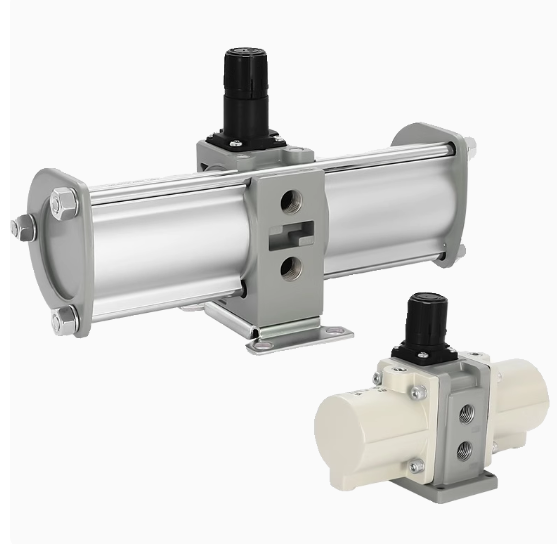

XVBA XVBAT air booster and tank (6)

Working Principle:

These boosters use existing compressed air to amplify the pressure. They have a drive piston and a boosting piston. The drive piston is powered by the supply air, and it drives the boosting piston to compress the air further.

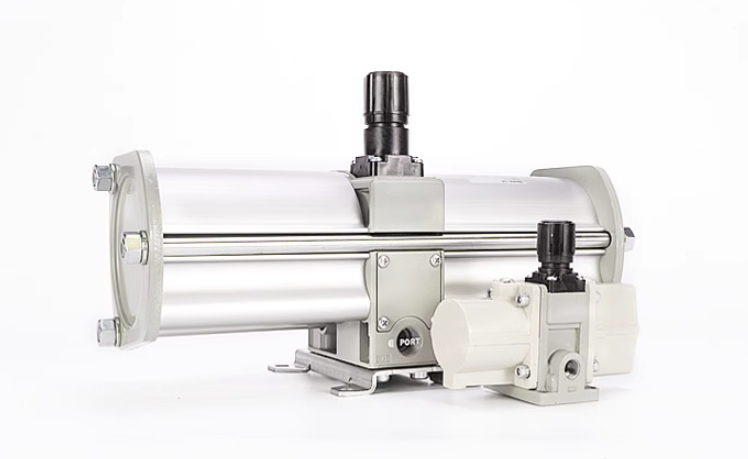

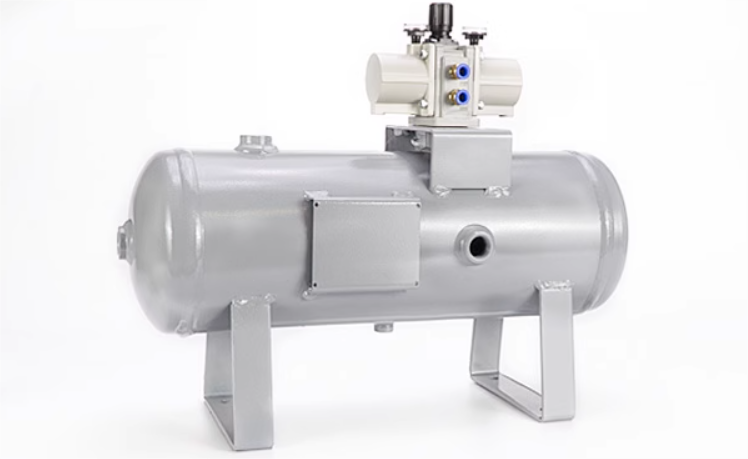

XVBA XVBAT air booster and tank (7)(1)

Applications:

Used in industries where higher pressure air is required than what the existing compressor can provide, such as in pneumatic tools, clamping devices, and other industrial machinery.





How to Order

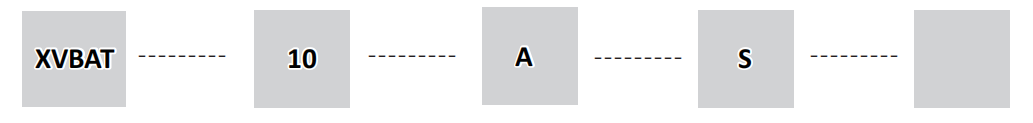

FRM4WA`MXERXTB7NNAE



Tank internal capacity


Symbol Internal capacity
05 5 L
10 10 L
20 20 L
38 38 L




Material




Symbol Material
A Carbon steel (SS400)
S Stainless steel 304




Option



Symbol Option Applicable model
Nil None All models
R Safety valve
(Set pressure: 1 MPa)
VBAT05A1, VBAT10A1
VBAT20A1, VBAT38A1
S Safety valve
(Set pressure: 2 MPa)
VBAT05A1
VBAT10A1




Option


Symbol Option
Nil None
V Drain valve




AZOS)PG)`V24O`564_B7U(1)




Standard Specifications




Model XBAT05□1 XBAT10□1 XBAT20□1 XBAT38□1
Fluid Compressed air
Tank capacity (L) 5 10 20 38
Max. operating
pressure (MPa)
XVBAT□A1 2.0 1.0
XVBAT□S1 2.0
IN port size 3/8 1/2
OUT port size 3/8 1/2 1/2 3/4
P ro of  pressure
(MPa)
XVBAT□A1 3.3 1.6
XVBAT□S1 3.3 3.3
Ambient and fluid temperature (°C) 0 to 75
Installation Horizontal (Floor mounting)
Weight (kg) XVBAT□A1 6.6 10 14 21
XVBAT□S1 3.2 4.9 12 19
Material XVBAT□A1 Carbon steel (SS400)
XVBAT□S1 Stianless steel 304
Paint XVBAT□A1 Outside: Silver paint, Inside: Rustproof paint
XVBAT□S1 None




XVBA XVBAT air booster and tank (8)



Note 1) The accessories and options are included in the same container.





Note 2) Since neither copper not fluorine parts are used for the tank, the standard model can be used as a copper-free product when drain  valve is not necessary.





Note 3) Scrateches, scrapes, blotches, and uneven color may be present on the surface, but they do not affect the function or performance  of the product.

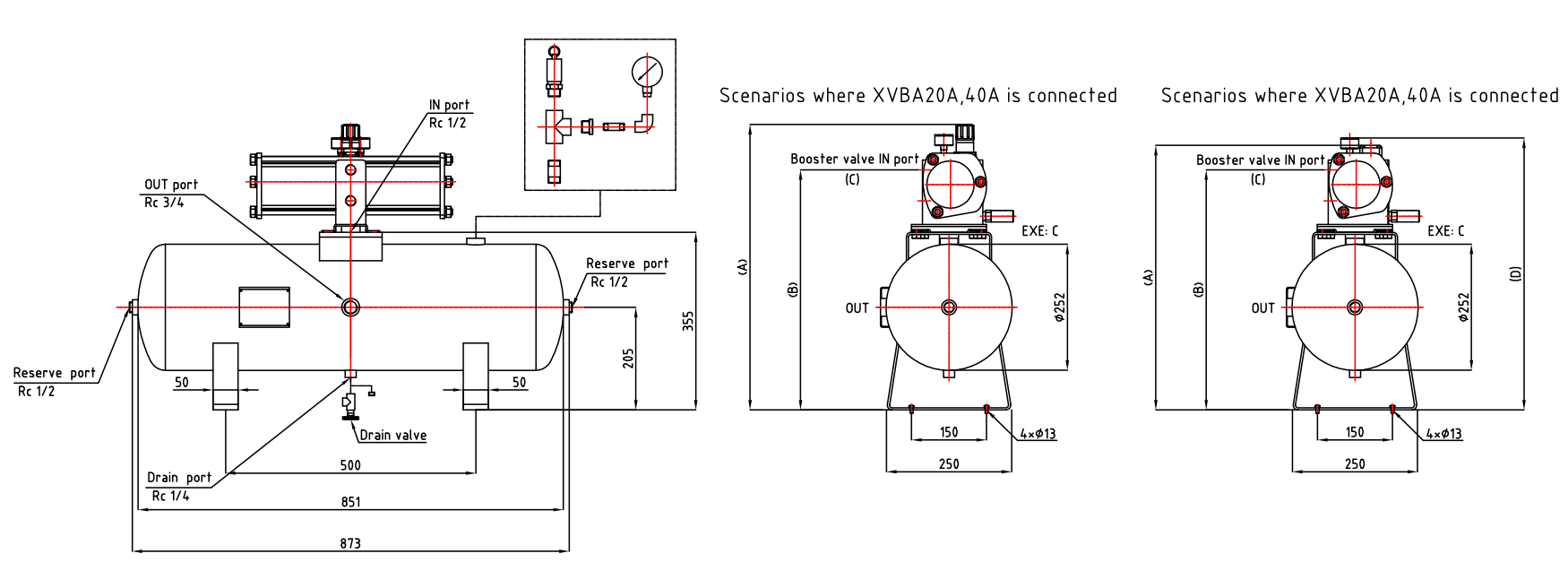

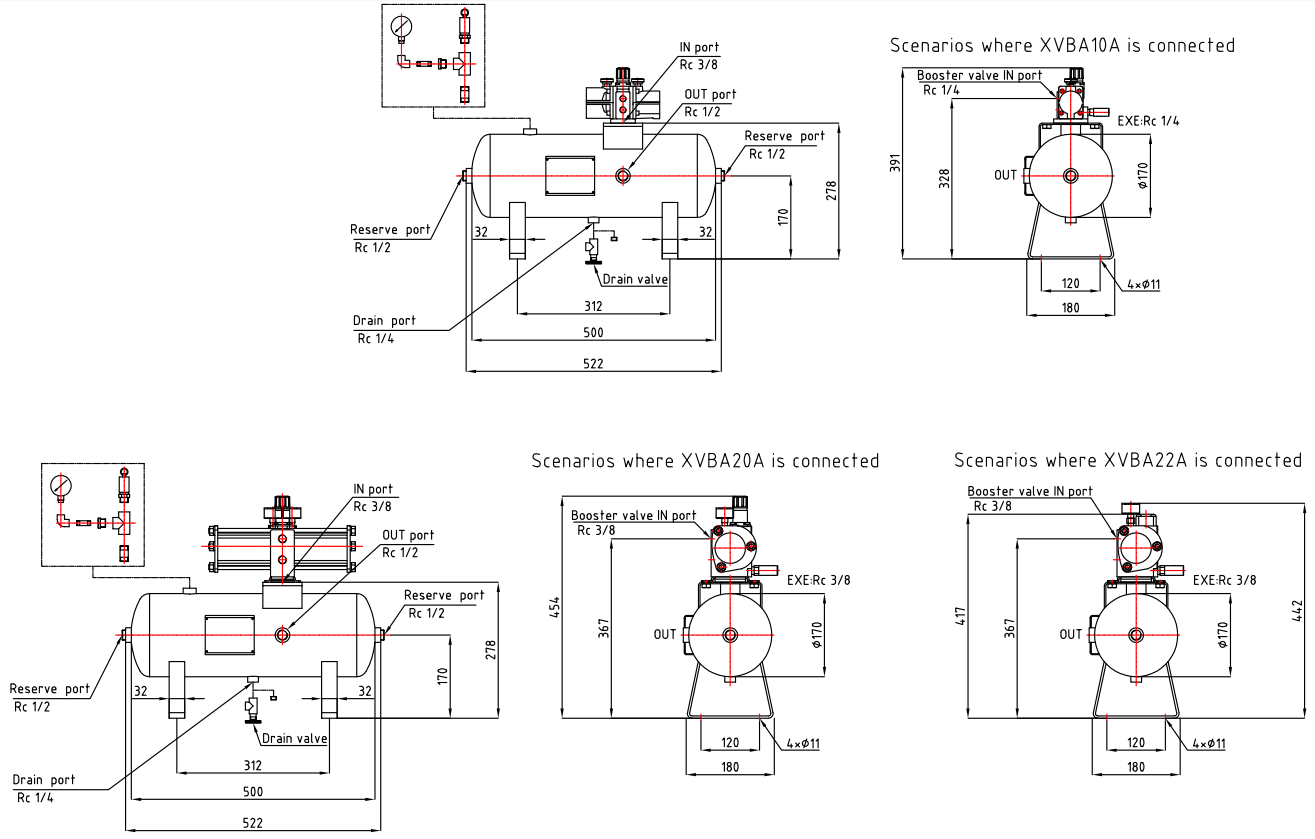

Drawing




XVBAT10A1-U-X104-1



V_H8MYB%_J8KU)TS4RNV




XVBAT10A1-U-X104-2



XY%L(SABAN5Q27GEB8




XVBAT10A1-U-X104-3



EMY9A5IP_%0(DF(BACU6U5
