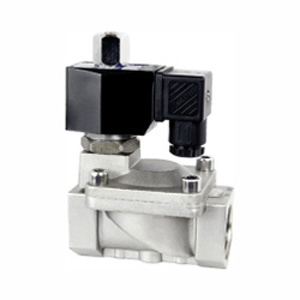

XP Series Normal Open Solenoid Valve

Quantity:
  • Ningbo, China
  • 10000 PCS Per Month
  • L/C, T/T, Western Union, Paypal, Money Gram
  • XP500-50H
  • Ordinary Pressure
  • Direct-Acting Piston Structure
  • DC Solenoid Valve
  • Flow Control
  • DIN
  • Industrial Usage, Water Industrial Usage
  • 12VDC, 24VDC, 110VAC, 220VAC
  • Air, Water, Oil, Diesel, Ozone, Steam
  • XHnotion
  • Paper Box
  • ROHS, REACH, CE
  • Ningbo
  • 8481804090
  • Gas
  • Ordinary Temperature
  • Electric
  • Thread
  • Pilot Operated
  • Stainless Steel
Product Description
FEATURES

1. Compact volume, large flow, widely use

2. Pilot operated structure

3. Lower power consumption, bigger working pressure

4. Body material: brass, stainless steel

5. NBR, VITON, EPDM, SILICONE seals are available

6. Normally closed and normally open.

SPECIFICATIONS

Specification for XP Series Normally Open Solenoid Valve
Model Thread Size (G) Orifice (mm) CV Value Working Pressure (Bar) Seals Voltage
AC DC
Brass body Stainless steel air, gas water ≤20cst oil air, gas water ≤20cst oil
XP130-10H XP130-10BH 3/8" 13 4.5 0.5-8 0.5-8 0.5-7 0.5-8 0.5-8 0.5-7 NBR seals ≤80ºC Viton seals ≤150ºC EPDM seals ≤120ºC Silicone seals ≤100ºC 220VAC 110VAC 24VDC 12VDC make
Other voltage as requested
XP130-15H XP130-15BH 1/2" 13 4.5 0.5-8 0.5-8 0.5-7 0.5-8 0.5-8 0.5-7
XP200-20H XP200-20BH 3/4" 20 7.6 0.5-8 0.5-8 0.5-7 0.5-8 0.5-8 0.5-7
XP250-25H XP250-25BH 1" 25 12 0.5-8 0.5-8 0.5-7 0.5-8 0.5-8 0.5-7
XP320-35H XP320-35BH 1 1/4" 32 22 0.5-8 0.5-8 0.5-7 0.5-8 0.5-8 0.5-7
XP400-40H XP400-40BH 1 1/2" 40 30 0.5-8 0.5-8 0.5-7 0.5-8 0.5-8 0.5-7
XP500-50H XP500-50BH 2" 50 48 0.5-8 0.5-8 0.5-7 0.5-8 0.5-8 0.5-7
Flange connection XP250-25FBH 4 holes flange 25 12 0.5-8 0.5-8 0.5-7 0.5-8 0.5-8 0.5-7
XP320-35FBH 32 22 0.5-8 0.5-8 0.5-7 0.5-8 0.5-8 0.5-7
XP400-40FBH 40 30 0.5-8 0.5-8 0.5-7 0.5-8 0.5-8 0.5-7
XP500-50FBH 50 48 0.5-8 0.5-8 0.5-7 0.5-8 0.5-8 0.5-7



ADVANTAGE

1) Raw Material conforms to China industry standard, bought from famous factory.

2) Insulation grade: H class, good resistance to high temperature;

3) Machined by CNC to make sure the tolerance as the drawing

4) 100% leakage testing under low pressure and high pressure.

5) All kinds of valve and seals material to meet custom requirement.

6) 1 year quality assurance after shipment.

7) After sales technique support



WHY CHOOSE US?

1) We offer one stop solution. Over 5000 items for you to save efforts and costs.

2)We have molds workshop, die-casting workshop, CNC workshop, plastic injection workshop to make sure each part exactly as the drawing and good function.

3) We will reply you within 24 hours.

4) Whatever quantity you are requesting, we always offer you the best quality.

5)3D drawing, cad drawing service for custom fittings, hose, valve, cylinder





FAQ

Packing
Transparent plastic bag + white small box + neutral carton + pallet
Custom packaging are available, XHnotion brand packaging are available

Shipping :
Export port: Ningbo or Shanghai, China
Shipping way: by sea, by air, by courier
Delivery time 3 days to 30 days depends on actual orders.

Payment Terms
We accept T/T, L/C, Paypal, western union,etc.

Samples Policy
For regular fittings below 20 pcs, free samples against your courier account or you pick up from us.
For custom items, we will discuss by email.

Return Policy:
We assure you 1 year policy after shipment. If there is any problem during this period, please contact us for support.


============================================================
We have thousands of solenoid valve in the stock. If you do not know how to order our valve, please tell us some necessary information, we will recommend you the most economical solenoid valve.

1. valve material
2. working pressure
3. temperature range
4 working environment
5. quantity

You can choose as below

Body Material: Plastic, brass, SS304, SS306, Steel.
Seal Material: NBR, VITON, PTFE, EPDM, SILICONE
Voltage: 12VDC, 24VDC, 24VAC, 220VAC, 280VAC
Size: M5-2", Flange connection
