Tube Fittings and Tube Adapters Swagolok Union Ebow for Airflow

Port: Ningbo, ChinaProduction Capacity: 100000 PCS Per DayPayment Terms: L/C, T/T, Western Union, Paypal, Money GramModel NO.: UPVSize: 3mm-16mmHead Type: HexagonConnection: MaleThread: M5, M6, 1/8, 1/4, 3/8, 1/2Surface Treatment: Nickel-PlatedCertification: Ce, RoHS, TUVTransport Package: Plastic BagOrigin: ChinaHS Code: 7412209000Type: Quick ConnectorUsage: Air Compressor, Air LineBrand: XhnotionWork Temperature: Normal TemperatureMaterial: BrassStandard: DIN, GB
Availability:
Quantity:
  • UPV

  • XHNOTION

  • L/C, T/T, Western Union, Paypal, Money Gram

  • Ningbo, China

  • 100000 PCS Per Day

  • PLASTIC BAG AND CARTON

  • UPV

  • 3mm-16mm

  • Hexagon

  • Male

  • M5, M6, 1/8, 1/4, 3/8, 1/2

  • Nickel-Plated

  • Ce, RoHS, TUV

  • Plastic Bag

  • China

  • 7412209000

  • Quick Connector

  • Air Compressor, Air Line

  • Xhnotion

  • Normal Temperature

  • Brass

  • DIN, GB

Product Description



Tube Fittings and Tube Adapters Swagolok Union Ebow for Airflow

Tube Fittings and Tube Adapters Swagolok Union Ebow for Airflow


Tube Fittings and Tube Adapters Swagolok Union Ebow for Airflow
Tube Fittings and Tube Adapters Swagolok Union Ebow for Airflow


Tube Fittings and Tube Adapters Swagolok Union Ebow for Airflow


Tube Fittings and Tube Adapters Swagolok Union Ebow for Airflow



FEATURES


1. Used for high pressure environment.
2. Working pressure and temperature depend on tube pressure.
3. Application Tube: metal tubes and Nylon tubes.
4. Fluid Type: water, air, oil, diesel, and other fluids.

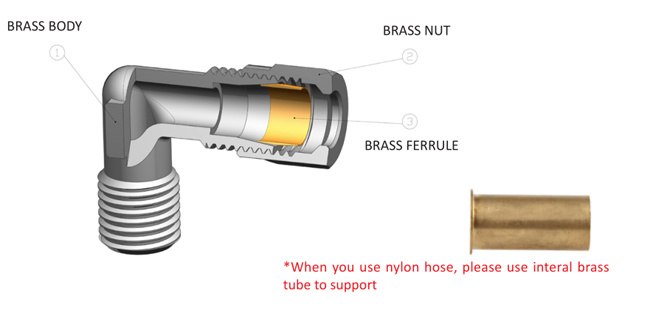

MATERIAL CONSTRUCTION
Brass Nut Nickel Plated Brass or Brass
Brass Bush Nickel Plated Brass or Brass
Brass Ferrule Nickel Plated Brass or Brass





SPECIFICATIONS
Operating Pressure 0~20 bar
Operating Temperature -10 ~ 60°C
Application Water, Air, Oil, Diesel, and other fluids.
Recommended Tubing Material Polyurethane, Nylon, Polyenthylee, and Polypropylene
Types Straight
Capacity Over 1000000pcs/month
Marketing Area All over the world




FITTINGS ADVANTAGE


1. Raw Material is HPB 59-1, conforms to country standard.
2. High precision automatic lathe to make the claws not hurt tube surface.
3. 5% tested by water at 10 bar, 100% tested by air and appearance test.
4. Easy to push in and put out on the basis of working pressure assured
5. 1 year quality assurance after shipment.
6.
Custom fitting as your drawing or we make drawing as your sample.



WHY CHHOSE US ?


1. We offer one stop solution. Over 5000 items for you to save efforts and costs.
2. We have molds workshop, die-casting workshop, CNC workshop, plastic injection workshop to
   make sure each part exactly as the drawing and good function.

3
. We will reply you within 24 hours.
4. Whatever quantity you are requesting, we always offer you the best quality.
5. 3D drawing, CAD drawing service for custom fittings, hose, valve, cylinder.




FAQ

Packing:
Transparent plastic bag + white small box + neutral carton + pallet
Custom packaging are available, XHnotion brand packaging are available

Shipping :
Export port: Ningbo or Shanghai, China
Shipping way: by sea, by air, by courier
Delivery time: 3 days to 30 days depends on actual orders.

Payment Terms :
We accept T/T, L/C, Paypal, Western Union,etc.

Samples Policy :
For regular fittings below 20 pcs, free samples against your courier account or you pick up from us.
For custom items, we will discuss by email.

Return Policy:
We assure you 1 year policy after shipment. If there is any problem during this period, please contact us for support.
