| Quantity: | |
|---|---|
10000 PCS Per Month
Plastic Bag
L/C, T/T, Paypal, Money Gram, Western Union
SSBV-08
Ball Valve
Normal Temperature
Industrial Usage, Water Industrial Usage, Household Usage
1/4, 3/8,
Liquids and Gases
XHnotion
CE
China
8481804090
Stainless Steel
Thread
Manual
Straight Through Type
Fixed Ball Valve
Fixed Ball Valve

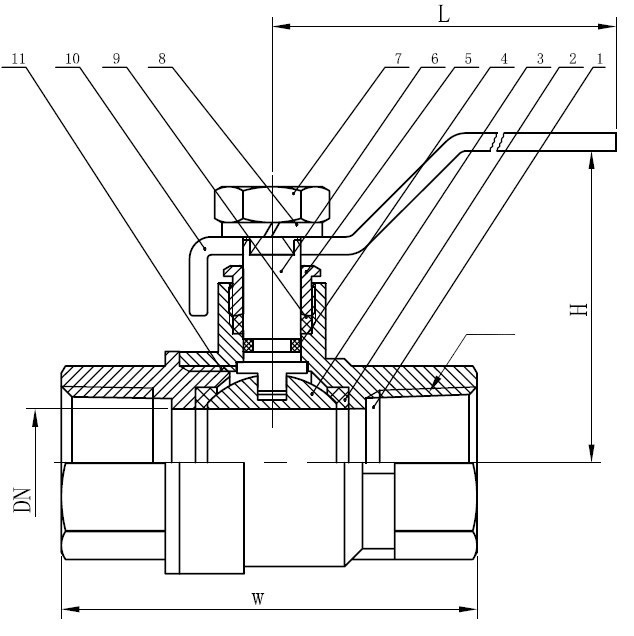

| 1 | BALL VALVE BODY | SS304 |
| 2 | SEALING WASHER | PTFE |
| 3 | BALL | SS304 |
| 4 | O-RING | NBR |
| 5 | PACKING NUT | SS304 |
| 6 | STEM | SS304 |
| 7 | HANDLE NUT | STEEL |
| 8 | LOCK WASHER | SS304 |
| 9 | BALL PACKING | PTFE |
| 10 | HANDLE | SS304 |
| 11 | BALL VALVE CAP | SS304 |
| Model | SSBV-08 | SSBV-10 | SSBV-15 | SSBV-20 | SSBV-25 | SSBV-40 | SSBV-50 |
| DN (mm) | 10 | 12 | 15 | 20 | 25 | 38 | 50 |
| G (mm) | 1/4" | 3/8" | 1/2" | 3/4" | 1" | 1-1/2" | 2" |
| W (mm) | 56 | 56 | 57 | 65 | 79 | 98 | 110 |
| L (mm) | 90 | 90 | 90 | 110 | 120 | 150 | 170 |
| H (mm) | 50 | 50 | 58 | 62 | 72 | 90 | 98 |
| Ports | Female x Female NPT Threads or G Threads |
| Pressure Loss | Full size port: minimal pressure loss |
| 1000 WOG | Max. 1000 Psi for Water, Oil, Gas |
| Fluid Medium | Liquids and Gases |
| Body & Ball Type | Regular material: 304 Stainless Steel, SS302, SS316 |
| Seal Type | PTFE (Teflon) |
| Temperature Range | -20~180°C |
| Handle | Heavy duty handle with blue vinly insulation |
