Stainless Steel Check Valve (SS316L) GThread Non Return Valve SSCVPC One Way Check Valve

Port: Ningbo, ChinaProduction Capacity: 100000 PCS Per DayPayment Terms: L/C, T/T, Western Union, Paypal, Money GramModel NO.: SSCVPC Size: 3mm-16mmHead Type: HexagonConnection: MaleThread: M5, M6, 1/8, 1/4, 3/8, 1/2Surface Treatment: Nickel-PlatedCertification: Ce, RoHS, TUVTransport Package: Plastic BagOrigin: ChinaHS Code: 7412209000Type: Quick ConnectorUsage: Air LineBrand: XhnotionWork Temperature: Normal TemperatureMaterial: Stainless SteelStandard: DIN, GB
Availability:
Quantity:
  • SSCVPC

  • XHNOTION

  • L/C, T/T, Western Union, Paypal, Money Gram

  • Ningbo, China

  • 100000 PCS Per Day

  • PLASTIC BAG AND CARTON

  • SSCVPC

  • 3mm-16mm

  • Hexagon

  • Male

  • M5, M6, 1/8, 1/4, 3/8, 1/2

  • Nickel-Plated

  • Ce, RoHS, TUV

  • Plastic Bag

  • China

  • 7412209000

  • Quick Connector

  • Air Line

  • Xhnotion

  • Normal Temperature

  • Stainless Steel

  • DIN, GB

Product Description

All Sizes Can Be Customized




Non-Corrosive Pneumatic Fitting Stainless Steel Fitting Male Straight

FEATURES


1.Fast connection.
2. High temperatureup to 180 degree.
3. Small, compact design.
4. Good resistance to chemical corrosive environment.
5. Food safety.
6. Allow full flow through the hose/tubing I.D. with no smaller orifice required as in barb fittings.

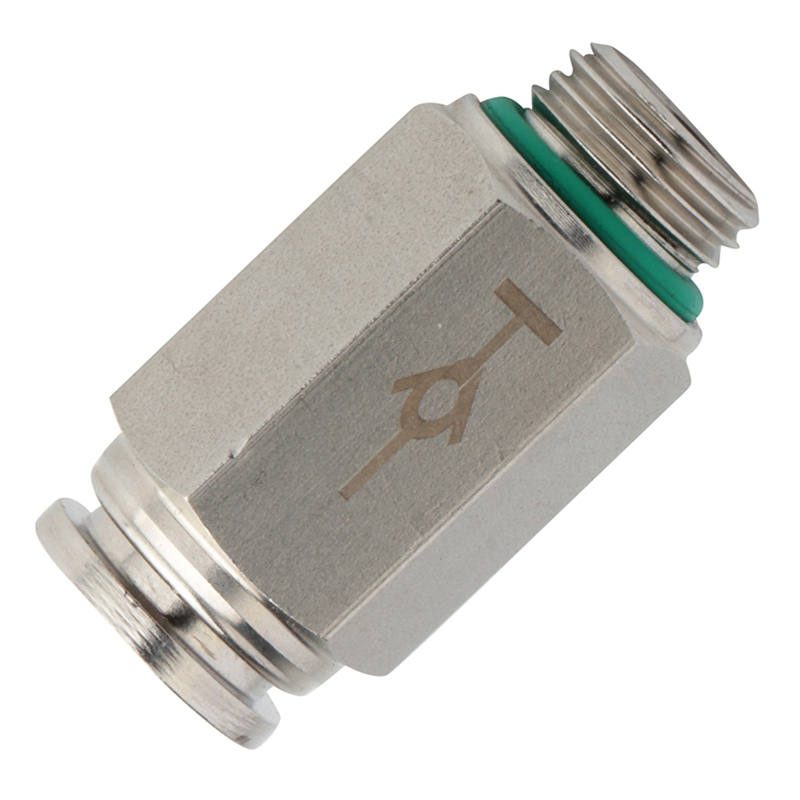

stainless steel check valve (5)

stainless steel check valve (3)

MATERIAL CONSTRUCTION
Metal Body SS316
Push Button SS316
Claws SS301
Seals FKM

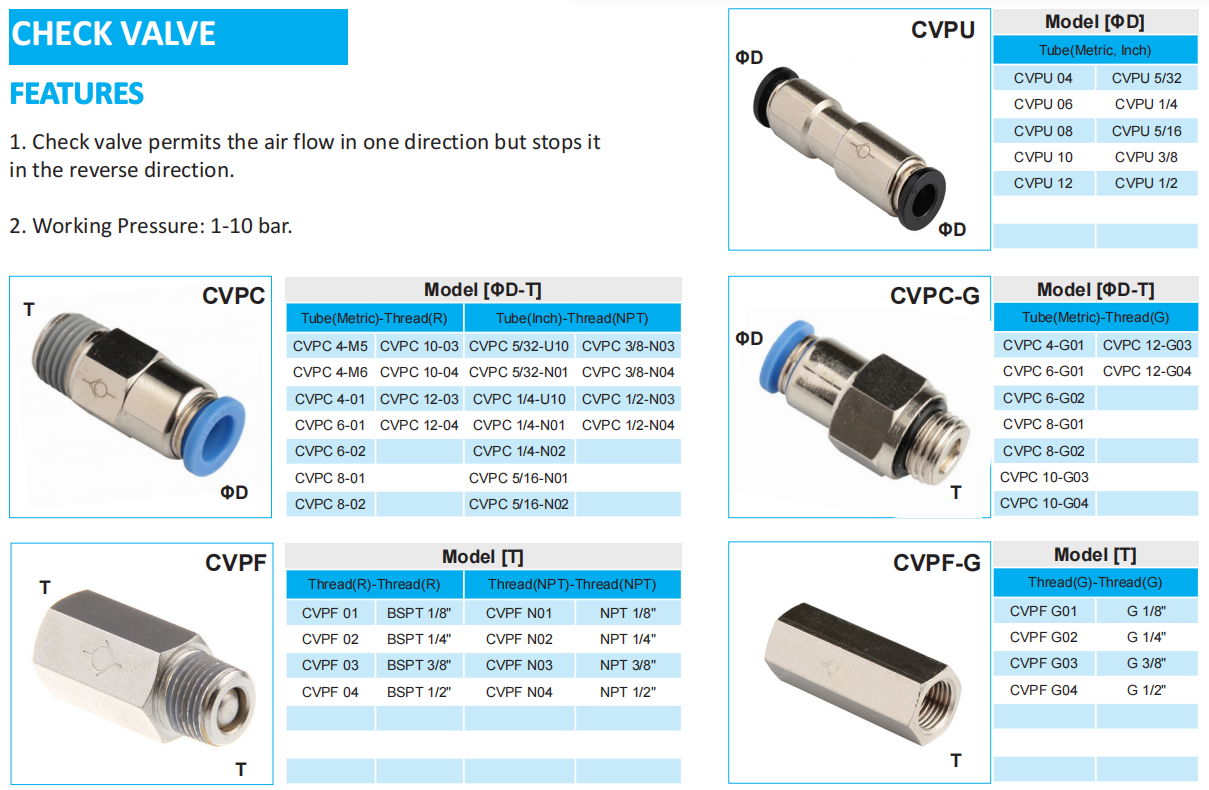

单向阀

SPECIFICATIONS
Operating Pressure 0~10 bar
Operating Temperature -40 ~ 200°C
Vacuum Rating To 28" Hg
Application Air, Vaccum, Steam, Beverage, Oil
Types Straight
Capacity Over 10000 pcs/month
Marketing Area All over the world




FITTINGS ADVANTAGE


1.Easy to push in and pull out tubes.
2. Raw material is SS316L and seal FKM, fit for high temperature and corrosive environment.
3.100% tested no leakage.

4. Regular size is in stock, we support small quantity to be sold.
5.1 year quality assurance after shipment.
6. Custom fitting as your drawing or we make drawing as your sample.
