Spiral Air Tubing Manufacturer

Quantity:


Inquire Add to Basket

Production Capacity: 10000 pieces per month
Transport Package: box
Payment Terms: L/C, T/T, Paypal, Money Gram, Western Union
Model NO.: AHC0425
Total Length Per Roll (Meter): 1~30
Trademark: XHnotion
Specification: ROHS, REACH, CE
Origin: China
HS Code: 3917290000
Material: PU
Standard: ASTM, GB
Diameter: 3-40mm
Medium: Gas
Cross-Section Shape: Round
Connection Type: Socket

Product Description

FEATURES

Technical Information	Polyurethane Tubing
Material	Polyester (Polyether option)
Fluid	Air, Water
Burst Pressure ( 20oC)	400 Psi
Working Pressure ( 20oC)	0-150 Psi
Operating Temperature	-20~60 ºC
Shore	95A, 98A
Size Tolerance	3-8mm, +/-0.10 mm
Size Tolerance	10-16mm, +/-0.15 mm

SPECIFICATIONS

Metric Size	O.D.(mm)	I.D.(mm)	Total Length per Roll (meter)
AHC0425	4	2.5	1~30
AHC0640	6	4	1~30
AHC0850	8	5	1~30
AHC1065	10	6.5	1~30
AHC1280	12	8	1~30
AHC1410	14	10	1~30
AHC1612	16	12	1~30

TUBE ADVANTAGE

1) 100% fresh material

2) Enough meters per roll and can mark meter on the tube as you request.

3) Print your logo above 3000 meter each size.

4) Conform to REACH, CE, ROHS certificate

5) Rich stock for every size and regular color.

6) 1 year quality assurance after shipment.

7) After sales technique support

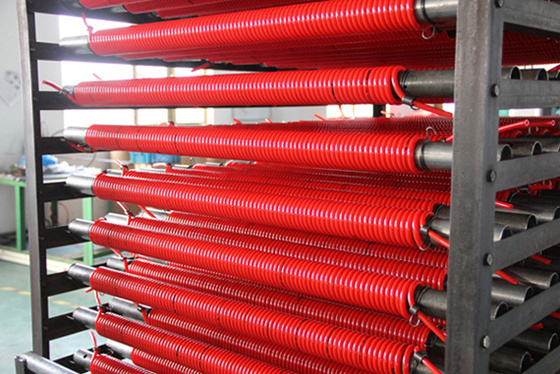

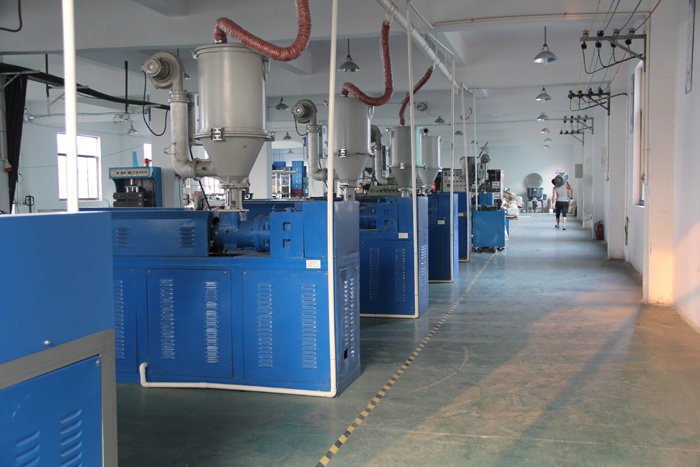

WORKSHOP SHOW
Spiral Air Tubing Manufacturer

WHY CHOOSE US?

1) We offer one stop solution. PU hose, PE hose, Nylon tubes, PVC braid hoses, PTFE pipe, silicone hose, rubber air hose are all available.

2)We have molds workshop, die-casting workshop, CNC workshop, plastic injection workshop to make sure each part exactly as the drawing and good function.

3) We will reply you within 24 hours.

4) Whatever quantity you are requesting, we always offer you the best quality.

5)3D drawing, cad drawing service for custom fittings, hose, valve, cylinder.

===========================================================

Meanwhile, we also manufacture below items.

pneumatic fittings, plastic, brass, stainless steel push in fittings

pneumatic quick coupling, air tool kits, air blow gun

pneumatic muffler, silencer, filter

air cylinder, air preparation, pneumatic directional valve

solenoid valve

Ball valve, brass connector

=========================================================
FAQ

Packing
neutral carton + big carton
Custom packaging are available, XHnotion brand packaging are available

Shipping :
Export port: Ningbo or Shanghai, China
Shipping way: by sea, by air, by courier
Delivery time 3 days to 30 days depends on actual orders.

Payment Terms
We accept T/T, L/C, Paypal, western union,etc.

Samples Policy
F ree samples against your courier account or you pick up from us.
For custom items, we will discuss by email.

Return Policy:
We assure you 1 year policy after shipment. If there is any problem during this period, please contact us for support.
