| Quantity: | |
|---|---|
ST-15
XHNOTION
L/C, T/T, Western Union, Paypal, Money Gram
Ningbo, China
10000 PCS Per Day
PLASTIC BAG AND CARTON
ST-15
Hexagon
M5, M6, 1/8, 1/4, 3/8, 1/2
Ce, RoHS, TUV
Plastic Bag
China
842199900
Air Line
Xhnotion
Normal Temperature
Brass
DIN, GB
3mm-16mm
Constructed of corrosion-resistant metals to withstand shock, with different models offering continuous heavy-duty use under all types of conditions.
Standard features include the original, precise distribution of peripheral openings in a zinc-plated steel and brass acoustical element, which softly disperses exhaust air uniformly over a 360° pattern.
All stainless steel construction available for very corrosive or sensitive situations.
Supplied with a standard pipe thread fitting for attaching directly to the exhaust ports of air-operated equipment.
Recommended for general purpose air exhaust applications for pressures up to 175 psi (12 Bar).
1. Application Field: Pneumatic, Oil pressure and Hydraulic systems.
2. Function: to reduce noise and to remove dust and water.
3. Pressure Range: 0-10 bar; Max. Pressure: 12 bar.
4. Temperature Range: -10~70 °C.
5. Noise Elimination Effect: 20-25 db.
6. Filtration Rating: 5-100μm; regular rating is 40μm.
7. NPT, G & BSPT thread are available; regular thread is G thread.
8. Material: Brass, SS304, SS316, PE.
| Metal Body | Nickel Plated Brass, Stainless Steel, Nylon, Zinc Alloy |
| Filter Materia | Brass Powder, Stainless Steel, HDPE |

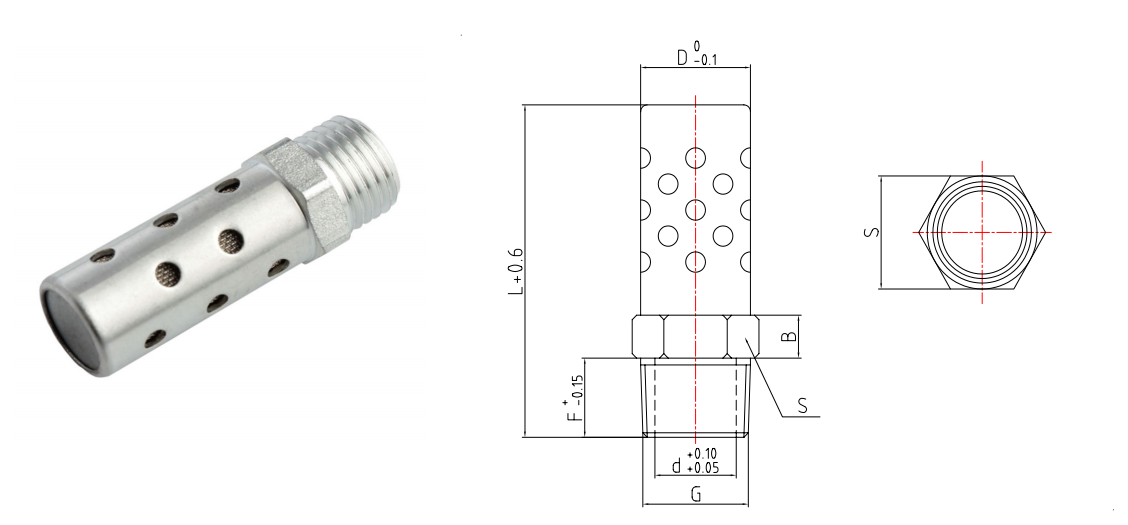

| MODEL | G | F | D | d | L | B | S |
| ST-6 | 1/8" | 6 | 10.4 | 6 | 34 | 4 | 11 |
| ST-8 | 1/4" | 8.5 | 13.4 | 8.5 | 42.5 | 4.5 | 14 |
| ST-10 | 3/8" | 9 | 16.5 | 12 | 49.5 | 5 | 17 |
| ST-15 | 1/2" | 11 | 21.5 | 15 | 65.2 | 5.5 | 22 |
| ST-20 | 3/4" | 12 | 26.2 | 20 | 74.3 | 6 | 27 |
| ST-25 | 1" | 15.5 | 32.3 | 26 | 91 | 7 | 33 |
| ST-32 | 1-1/4" | 15 | 42.3 | 32 | 106 | 7.5 | 43 |
| ST-40 | 1-1/2" | 15 | 50.3 | 40 | 116.5 | 8.5 | 51 |
| ST-50 | 2" | 16.5 | 59.3 | 50 | 130.5 | 9 | 60 |
| Operating Pressure | 0~12 bar |
| Operating Temperature | -10 ~ 70°C |
| Pressure Range | 0-12 bar |
| Application | Pneumatic, Oil pressure and Hydraulic systems |
| Capacity | Over 100000pcs/month |
| Marketing Area | All over the world |
| Product Picture | Model no | Specification | Thread | Unit Price (USD) |
  | ST-6 | Steel Mufflers,zinc coated | G1/8" | $2.44 |
| ST-8 | G1/4" | $3.33 | ||
| ST-10 | G3/8" | $4.00 | ||
| ST-15 | G1/2" | $6.88 | ||
| ST-20 | G3/4" | $8.44 | ||
| ST-25 | G1" | $14.66 | ||
| ST-32 | G11/4" | $43.20 | ||
| ST-40 | G11/2" | $54.00 | ||
| ST-50 | G2" | $73.00 |
1. Raw Material is HPB 59-1, conforms to country standard.
2. High precision automatic lathe to make the claws not hurt tube surface.
3. 5% tested by water at 10 bar, 100% tested by air and appearance test.
4. Easy to push in and put out on the basis of working pressure assured.
5. 1 year quality assurance after shipment.
6. Custom fitting as your drawing or we make drawing as your sample.
FAQ
Packing:
Transparent plastic bag + white small box + neutral carton + pallet
Custom packaging are available, XHnotion brand packaging are available
Shipping :
Export port: Ningbo or Shanghai, China
Shipping way: by sea, by air, by courier
Delivery time: 3 days to 30 days depends on actual orders.
Payment Terms :
We accept T/T, L/C, Paypal, Western Union,etc.
Samples Policy :
For regular fittings below 20 pcs, free samples against your courier account or you pick up from us.
For custom items, we will discuss by email.
Return Policy:
We assure you 1 year policy after shipment. If there is any problem during this period, please contact us for support.
