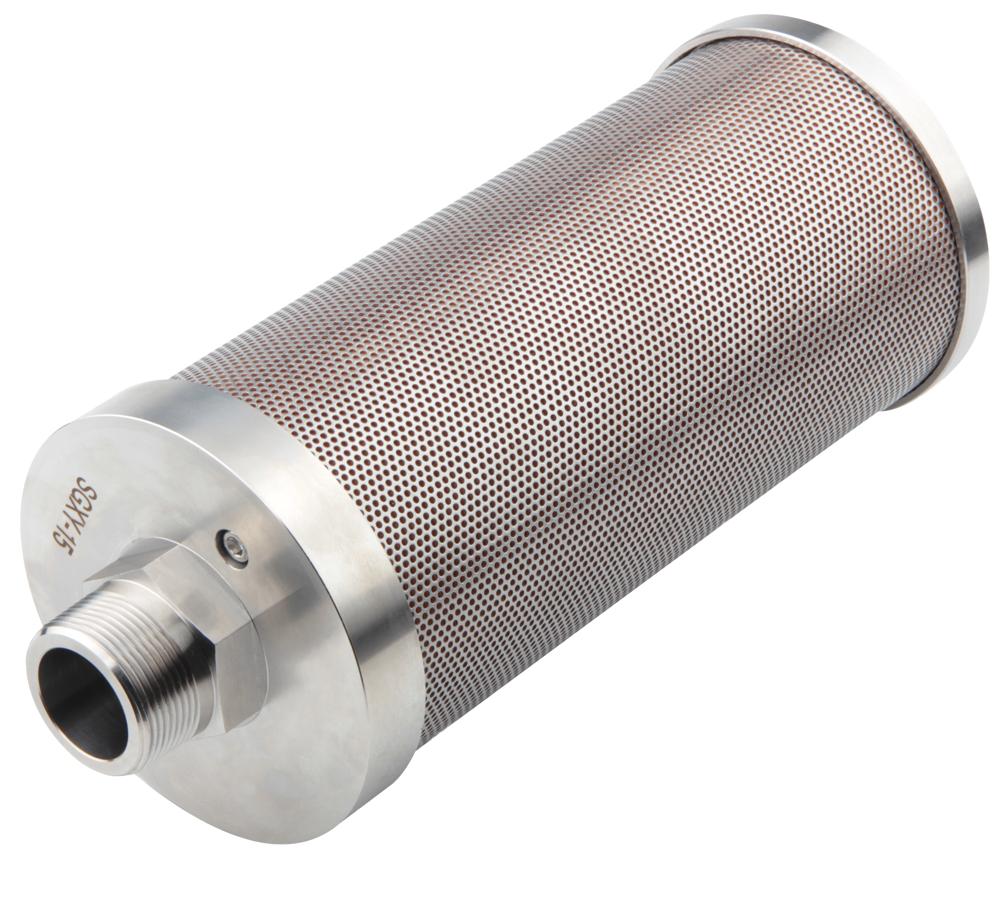

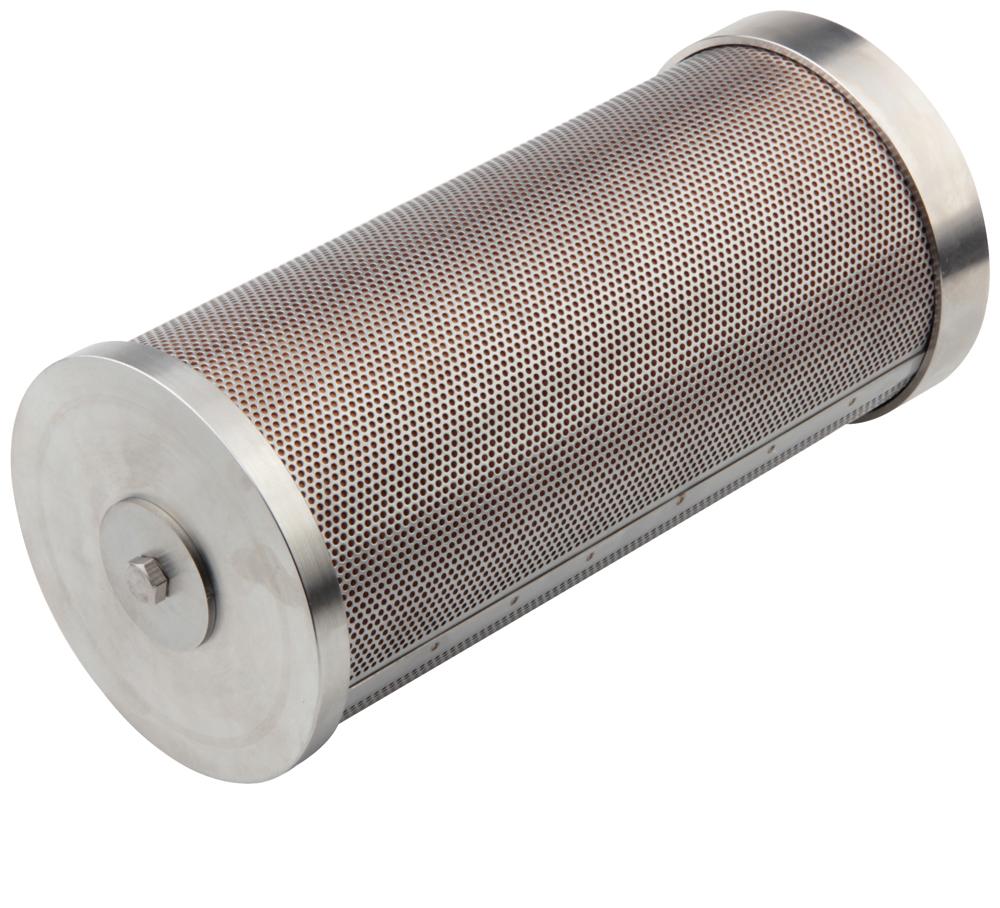

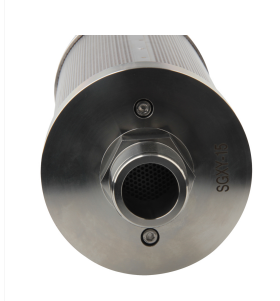

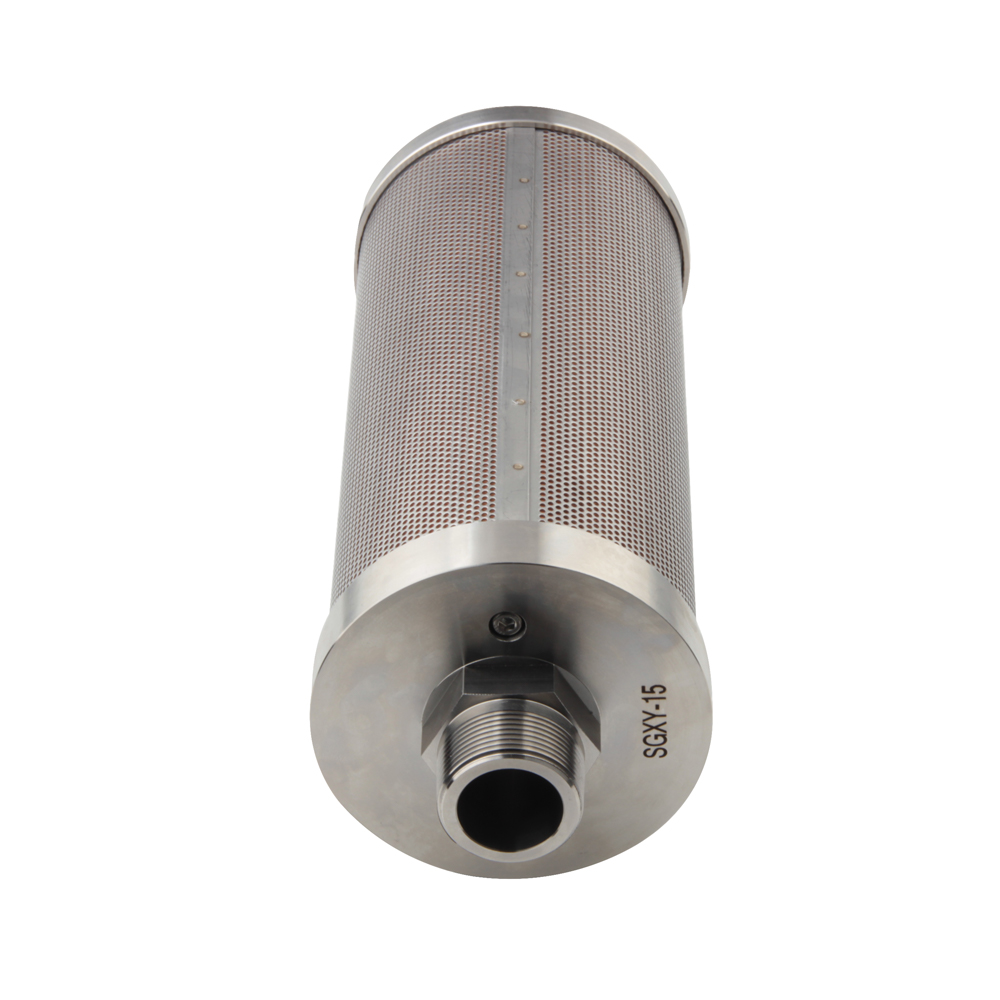

Made in China XHNOTION SGXY-15 Stainless Steel Air Compressor Air Dryer Diaphragm Pump Exhaust Muffler
SGXY SERIES MUFFLERS
Based on researching&absorbing products of American Allied Witan company, we produced a new type muffler suitable for domestic market.Main materials are ultra-fine sound-absorbing glass fiber,which have good performance on sound-absorption and high temperature resistance , as well as sound filter media by special treatment imported from American This new type products are suitable for adsorption dryer with 1.0Mpa working pressure.
Expertly reduces Exponentially Perceived Noisewithout impeding equipment performance.
Designed to take explosive air exhaust noise discharged from valve exhaust ports and muffle it with optimized Constant Velocity (CV) flow factor.
Exhaust air flows softly to atmosphere free of noise, oil fog, and other contaminants – helping to maintain a clean, comfortable and productive work environment.
Features a unique obstruction-free expansion chamber, with corrosion-resistant aluminum end covers, zinc-plated steel components and a cellulose fiber element.
Recommended for general purpose air exhaust applications for pressures up to 125 psi (8.6 Bar).
DESIGNED FOR
1. Filtering exhaust and intake air from potential dirt and foreign particles, thus prolonging valve's life.
2. Noise muffling during pressure equalization.
TECHINICAL PARAMETERS
1.Application:exhaust mufflers for adsorption dryer
2.Material:sound-absorbing ultrafine glass wool with high-temperature resistance
3.Noise reduction:30db above
4.Opening pressure of by-pass safety valve:2.0~2.2 kgf/cm
5.Operating temperature:≤65ºC
6.Max.operating pressure:10 bar
STRUCTURE
DRAWING
| MODEL | T | H | h | D | |||||||||||||
| (G)XY-01 | 1/8 | 83 | 68 | 46.5 | |||||||||||||
| (G)XY-02 | 1/4 | 112 | 92 | 46.5 | |||||||||||||
| (G)XY-03 | 3/8 | 132 | 110 | 66 | |||||||||||||
| (G)XY-05 | 1/2 | 150 | 125 | 80 | |||||||||||||
| (G)XY-07 | 3/4 | 181 | 156 | 87 | |||||||||||||
| (G)XY-10 | 1 | 219 | 183 | 99 | |||||||||||||
| (G)XY-12 | 1-1/4 | 219 | 183 | 99 | |||||||||||||
| (G)XY-15 | 1-1/2 | 340 | 299 | 133 | |||||||||||||
| (G)XY-20 | 2 | 476 | 432 | 133 | |||||||||||||
| (G)XY-30 | 3 | 593 | 472 | 173*173 | |||||||||||||
| (G)XY-40 | 4 | 599 | 472 | 199*199 | |||||||||||||
| (G)XY-60 | 6 | 790 | 611 | 277*277 | |||||||||||||
| MODEL | R | H | h | D | d |
| PGXY-01 | 1/8 | 74.4 | 60 | 46.5 | 5 |
| PGXY-02 | 1/4 | 104 | 84 | 66 | 9 |
| PGXY-03 | 3/8 | 122 | 100 | 66 | 9 |
| PGXY-05 | 1/2 | 142.5 | 117.5 | 80 | 12.4 |
| PGXY-07 | 3/4 | 172.5 | 147.5 | 87 | 14 |
| PGXY-10 | 1 | 207.5 | 171.5 | 87 | 14 |
| PGXY-12 | 1-1/4 | 210.5 | 171.5 | 99 | 30 |
| PGXY-15 | 1-1/2 | 324.5 | 283.5 | 133 | 34 |
| PGXY-20 | 2 | 455.5 | 414.5 | 133 | 44.5 |
SPECIFICATION
| XY Series | GXY Series | |||||||||||||||||||||||
| Filter mateiral | Fiber Paper | High Polymer | ||||||||||||||||||||||
| Max Tempearture | 65 C | 120 C | ||||||||||||||||||||||
| Water contact | Not good | Good | ||||||||||||||||||||||
PRODUCT CATALOGUE
| Product Picture | Model no | Specification | Thread |
  | SGXY-01F | High polymer filter with bypass valve, SS304 cover | BSPT1/8" |
| SGXY-02F | BSPT1/4" | ||
| SGXY-03F | BSPT3/8" | ||
| SGXY-05F | BSPT1/2" | ||
| SGXY-07F | BSPT3/4" | ||
| SGXY-10F | BSPT1" | ||
| SGXY-12F | BSPT11/4" | ||
| SGXY-15F | BSPT11/2" | ||
| SGXY-20F | BSPT2" | ||
| SGXY-30F | BSPT3" | ||
| SGXY-40F | BSPT4" | ||
| SGXY-60F | BSPT6" |
MUFFLER NOISE TEST REPORT
| Test pressure (Mpa) | Model | Noise reduction value (db) |
| - | XY GXY-01 | - |
| - | XY GXY-02 | - |
| - | XY GXY-03 | - |
| 0.5 | XY-05 | 75 |
| 0.5 | GXY-05 | 84 |
| 0.5 | XY-07 | 75 |
| 0.5 | GXY-07 | 83 |
| 0.7 | XY-10 | 83.4 |
| 0.7 | GXY-10 | 87 |
| 0.7 | XY-15 | 86.5 |
| 0.7 | GXY-15 | 87 |
| 0.7 | XY-20 | 88.5 |
| 0.7 | GXY-20 | 99 |
| - | XY GXY-30 | - |
| - | XY GXY-40 | - |
| - | XY GXY-60 | - |
FAQ
Packing
Transparent plastic bag + white small box + neutral carton + pallet
Custom packaging are available, XHnotion brand packaging are available
Shipping :
Export port: Ningbo or Shanghai, China
Shipping way: by sea, by air, by courier
Delivery time 3 days to 30 days depends on actual orders.
Payment Terms
We accept T/T, L/C, Paypal, western union,etc.
Samples Policy
For regular fittings below 20 pcs, free samples against your courier account or you pick up from us.
For custom items, we will discuss by email.
Return Policy
We assure you 1 year policy after shipment. If there is any problem during this period, please contact us for support.
