SGXY-07 Stainless Steel Air Compressor Exhaust Muffler

Port: Ningbo, ChinaProduction Capacity: 5000 PCS Per MonthPayment Terms: L/C, T/T, D/P, Western Union, Paypal, Money GramModel NO.: XYOrigin: ChinaCustomized: Non-CustomizedType: MufflerUsage: Air CompressorWork Temperature: Normal TemperatureMaterial: Sound-Absorbing Ultrafine Glass Wool with High-Tem
Availability:
Quantity:
  • SGXY-07

  • XHNOTION

  • L/C, T/T, D/P, Western Union, Paypal, Money Gram

  • Ningbo, China

  • 5000 PCS Per Month

  • PLASTIC BAG AND CARTON

  • SGXY-07

  • China

  • Non-Customized

  • Muffler

  • Air Compressor

  • Normal Temperature

  • Sound-Absorbing Ultrafine Glass Wool with High-Tem

  • 10 Bar

Product Description

SGXY-07 Stainless Steel Air Compressor Exhaust Muffler





SGXY SERIES MUFFLERS




Based on researching&absorbing products of American Allied Witan company, we produced a new type muffler suitable for domestic market.Main materials are ultra-fine sound-absorbing glass fiber,which have good performance on sound-absorption and high temperature resistance , as well as sound filter media by special treatment imported from American This new type products are suitable for adsorption dryer with 1.0Mpa working pressure.

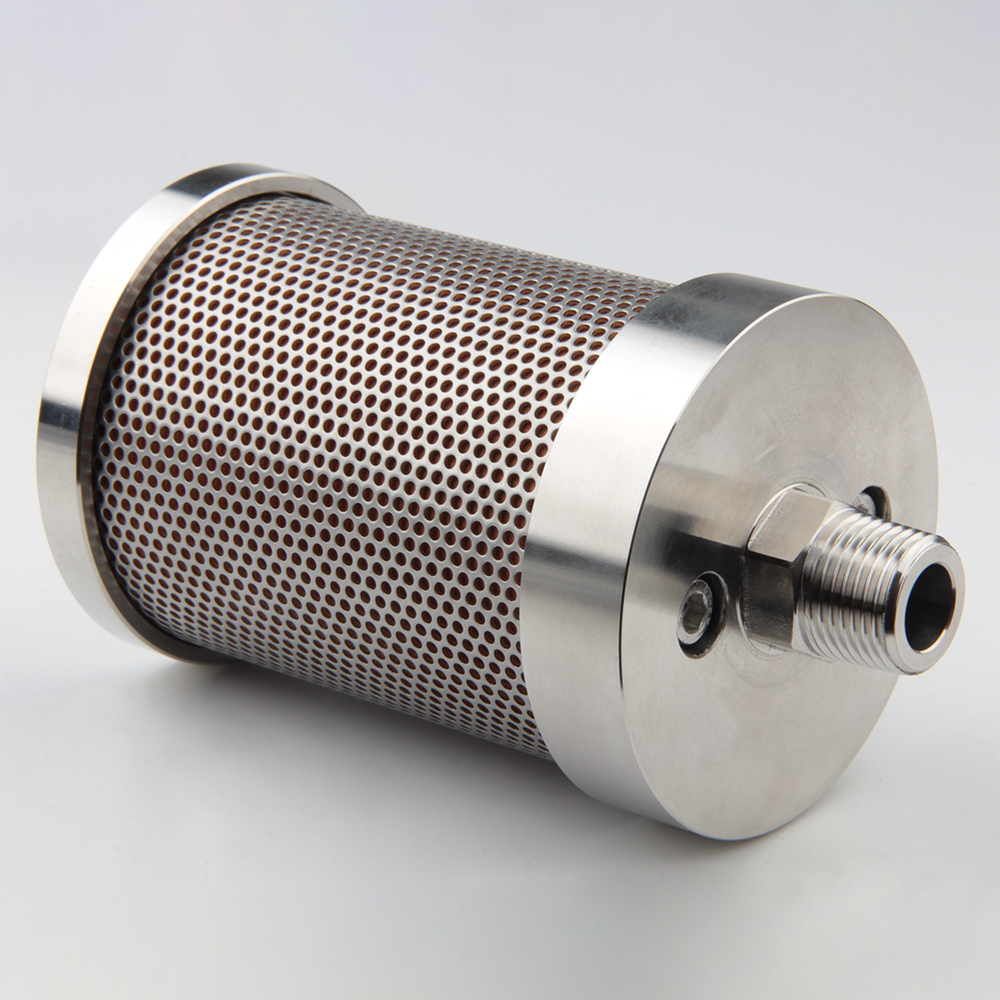

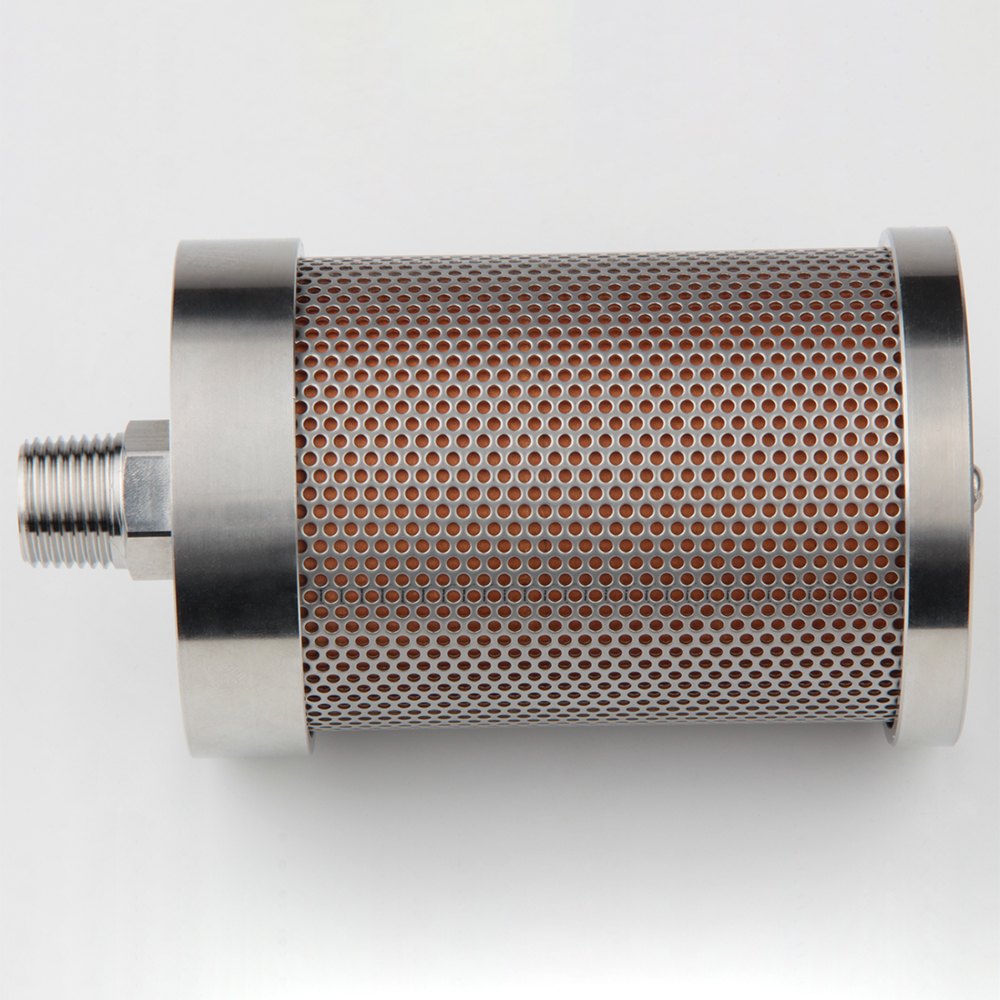

SGXY-07 stainless steel muffler (6)

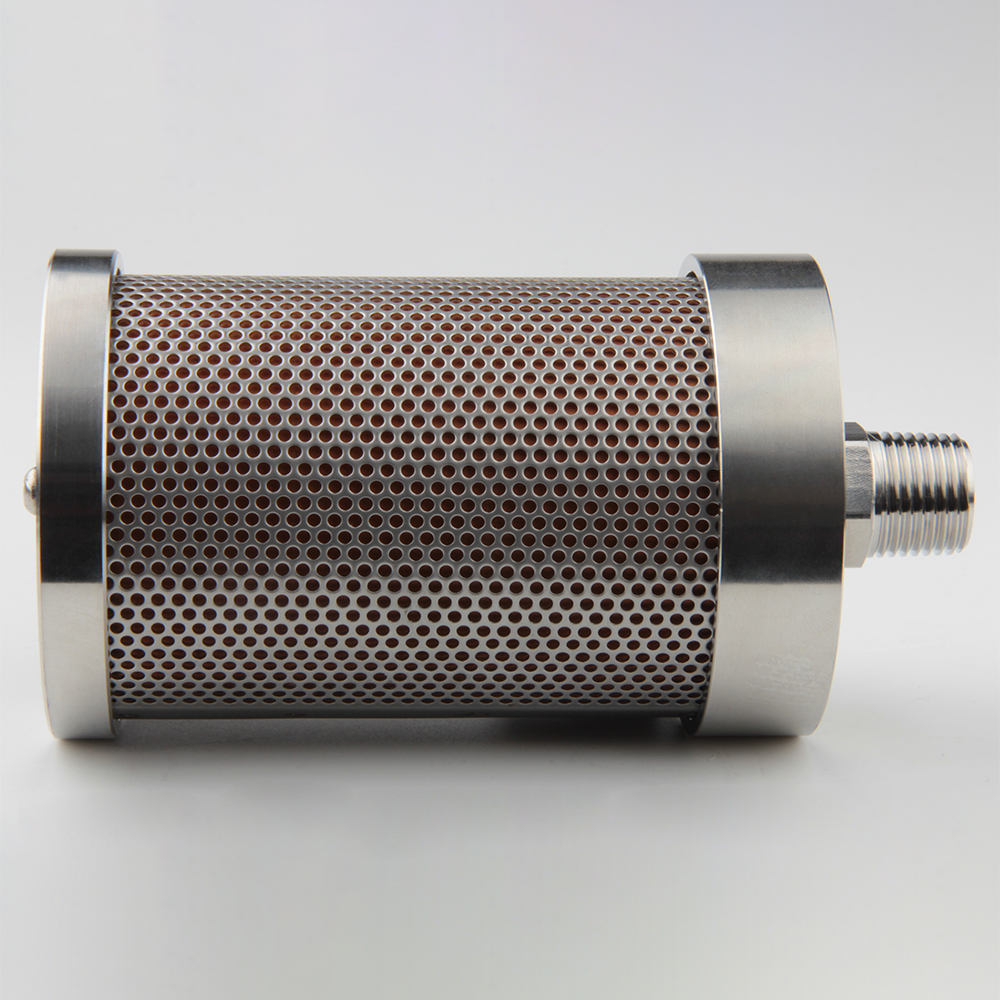

SGXY-07 stainless steel muffler (3)




Expertly reduces Exponentially Perceived Noisewithout impeding equipment performance.

Designed to take explosive air exhaust noise discharged from valve exhaust ports and muffle it with optimized Constant Velocity (CV) flow factor.

Exhaust air flows softly to atmosphere free of noise, oil fog, and other contaminants – helping to maintain a clean, comfortable and productive work environment.

Features a unique obstruction-free expansion chamber, with corrosion-resistant aluminum end covers, zinc-plated steel components and a cellulose fiber element.

Recommended for general purpose air exhaust applications for pressures up to 125 psi (8.6 Bar).

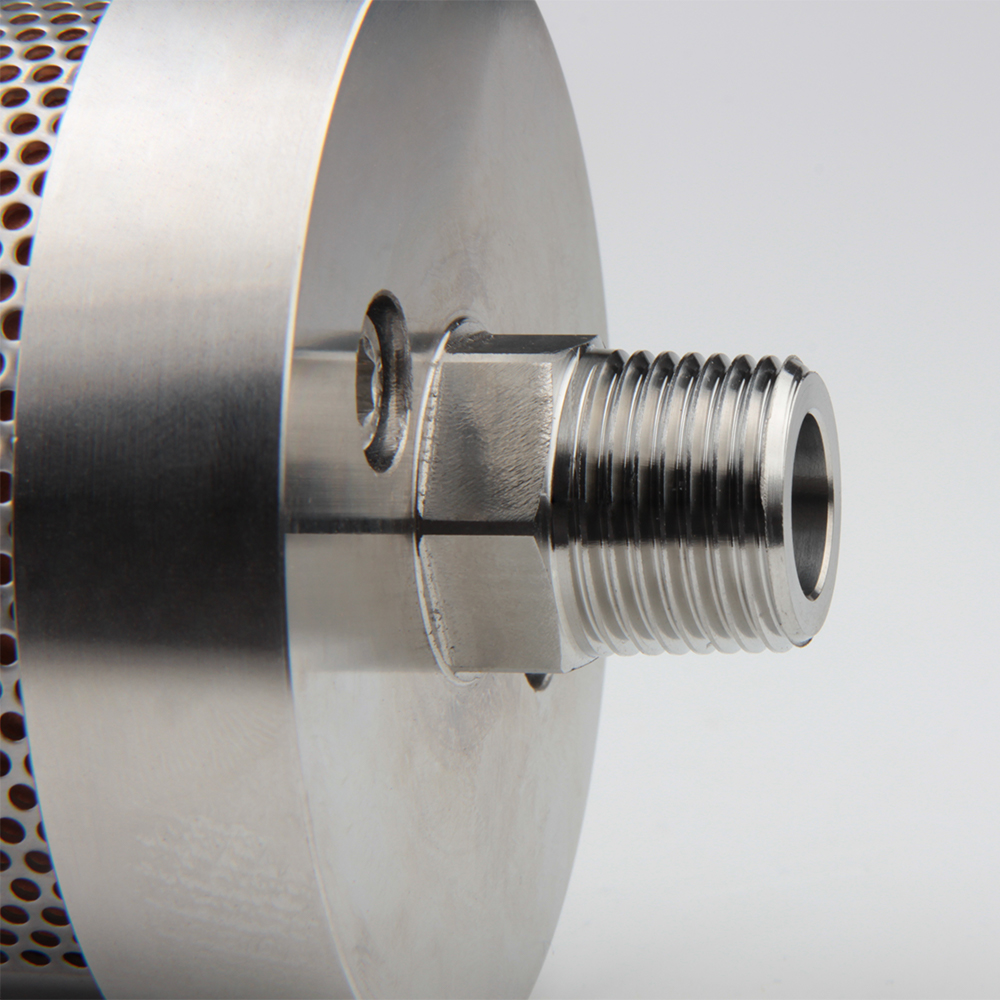

SGXY-07 stainless steel muffler (4)
SGXY-07 stainless steel muffler (5)




DESIGNED FOR




1. Filtering exhaust and intake air from potential dirt and foreign particles, thus prolonging valve's life.

2. Noise muffling during pressure equalization.





TECHINICAL PARAMETERS




1.Application:exhaust mufflers for adsorption dryer
2.Material:sound-absorbing ultrafine glass wool with high-temperature resistance
3.Noise reduction:30db above
4.Opening pressure of by-pass safety valve:2.0~2.2 kgf/cm
5.Operating temperature:≤65ºC
6.Max.operating pressure:10 bar

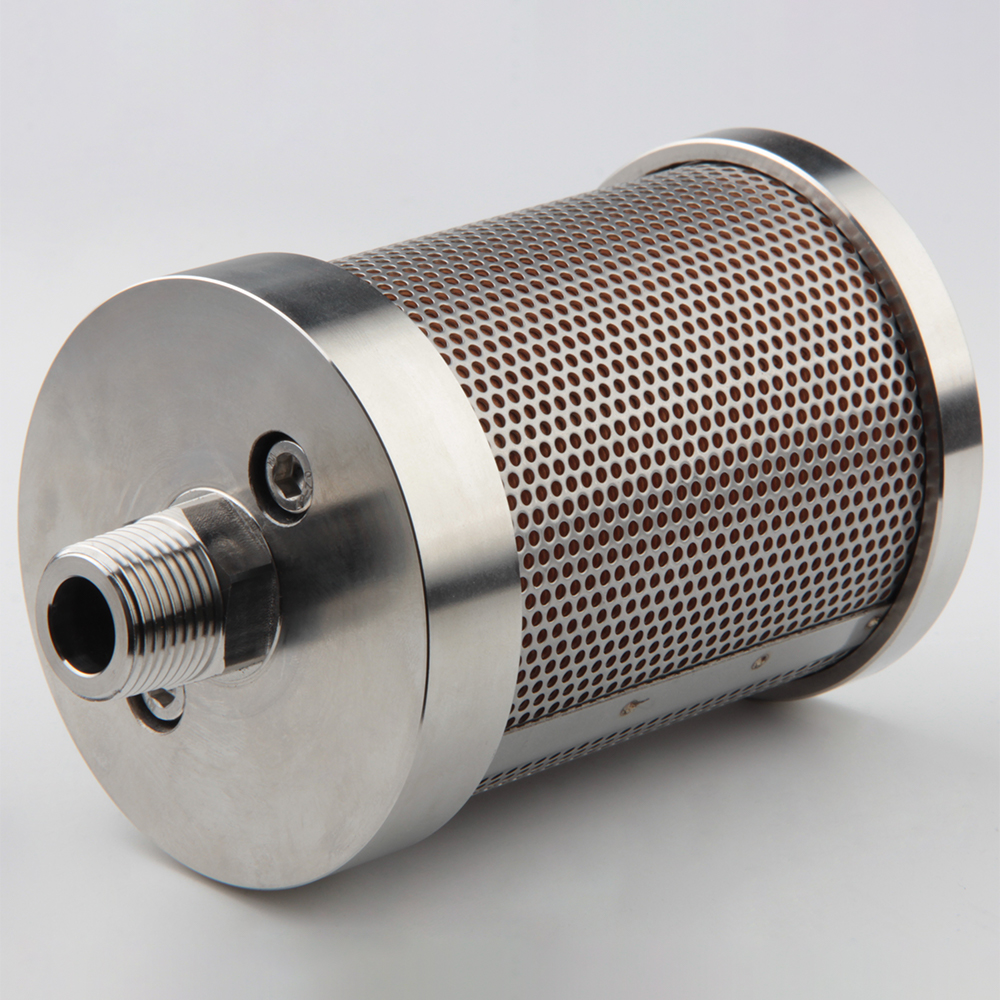

SGXY-07 stainless steel muffler (8)
SGXY-07 stainless steel muffler (2)






STRUCTURE

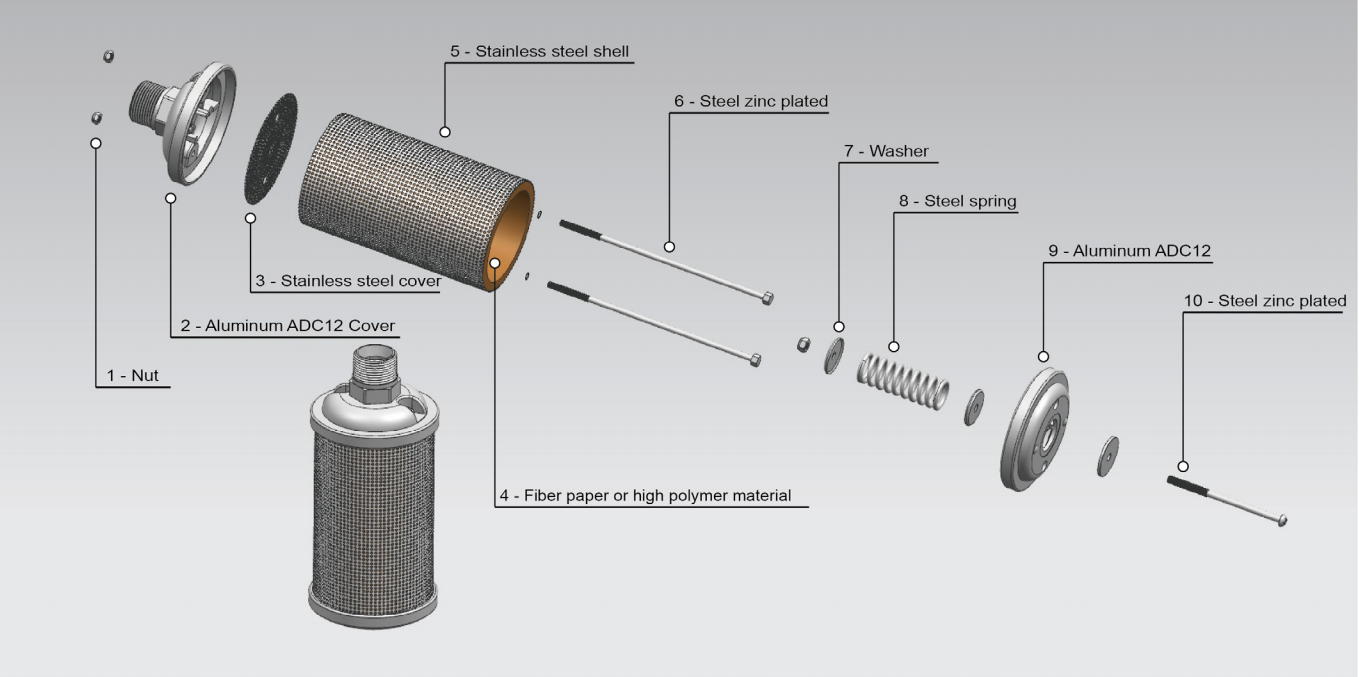

QQ图片20231213112245





DRAWING



QQ图片20231211094319QQ图片20231211101147 QQ图片20231211105303




MODEL T H h D
(G)XY-01 1/8 83 68 46.5
(G)XY-02 1/4 112 92 46.5
(G)XY-03 3/8 132 110 66
(G)XY-05 1/2 150 125 80
(G)XY-07 3/4 181 156 87
(G)XY-10 1 219 183 99
(G)XY-12 1-1/4 219 183 99
(G)XY-15 1-1/2 340 299 133
(G)XY-20 2 476 432 133
(G)XY-30 3 593 472 173*173
(G)XY-40 4 599 472 199*199
(G)XY-60 6 790 611 277*277



MODEL R H h D d
PGXY-01 1/8 74.4 60 46.5 5
PGXY-02 1/4 104 84 66 9
PGXY-03 3/8 122 100 66 9
PGXY-05 1/2 142.5 117.5 80 12.4
PGXY-07 3/4 172.5 147.5 87 14
PGXY-10 1 207.5 171.5 87 14
PGXY-12 1-1/4 210.5 171.5 99 30
PGXY-15 1-1/2 324.5 283.5 133 34
PGXY-20 2 455.5 414.5 133 44.5




SPECIFICATION





XY Series GXY Series
Filter mateiral Fiber Paper High Polymer
Max Tempearture 65 C 120 C
Water contact Not good Good





PRODUCT CATALOGUE




Product Picture Model no Specification Thread

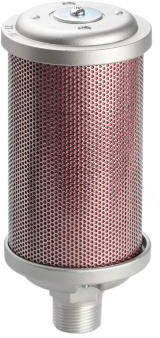

图片1 SGXY-01F High polymer filter with bypass valve, SS304 cover BSPT1/8"
SGXY-02F BSPT1/4"
SGXY-03F BSPT3/8"
SGXY-05F BSPT1/2"
SGXY-07F BSPT3/4"
SGXY-10F BSPT1"
SGXY-12F BSPT11/4"
SGXY-15F BSPT11/2"
SGXY-20F BSPT2"
SGXY-30F BSPT3"
SGXY-40F BSPT4"
SGXY-60F BSPT6"





MUFFLER NOISE TEST REPORT



Test pressure (Mpa) Model Noise reduction value (db)
- XY GXY-01 -
- XY GXY-02 -
- XY GXY-03 -
0.5 XY-05 75
0.5 GXY-05 84
0.5 XY-07 75
0.5 GXY-07 83
0.7 XY-10 83.4
0.7 GXY-10 87
0.7 XY-15 86.5
0.7 GXY-15 87
0.7 XY-20 88.5
0.7 GXY-20 99
- XY GXY-30 -
- XY GXY-40 -
- XY GXY-60 -




FAQ



Packing
Transparent plastic bag + white small box + neutral carton + pallet
Custom packaging are available, XHnotion brand packaging are available

Shipping :
Export port: Ningbo or Shanghai, China
Shipping way: by sea, by air, by courier
Delivery time 3 days to 30 days depends on actual orders.

Payment Terms
We accept T/T, L/C, Paypal, western union,etc.

Samples Policy
For regular fittings below 20 pcs, free samples against your courier account or you pick up from us.
For custom items, we will discuss by email.

Return Policy
We assure you 1 year policy after shipment. If there is any problem during this period, please contact us for support.
