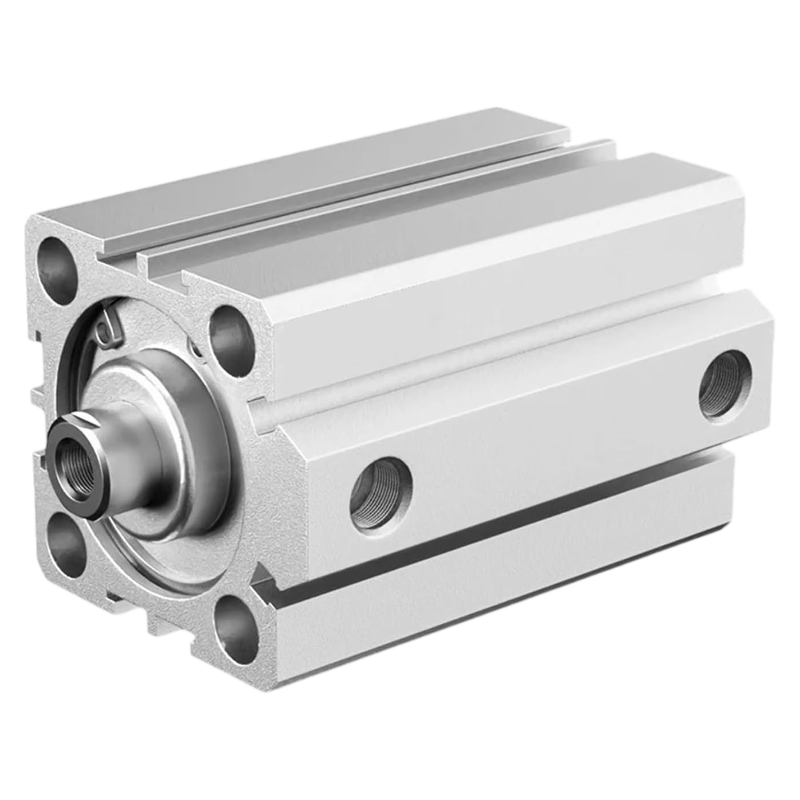

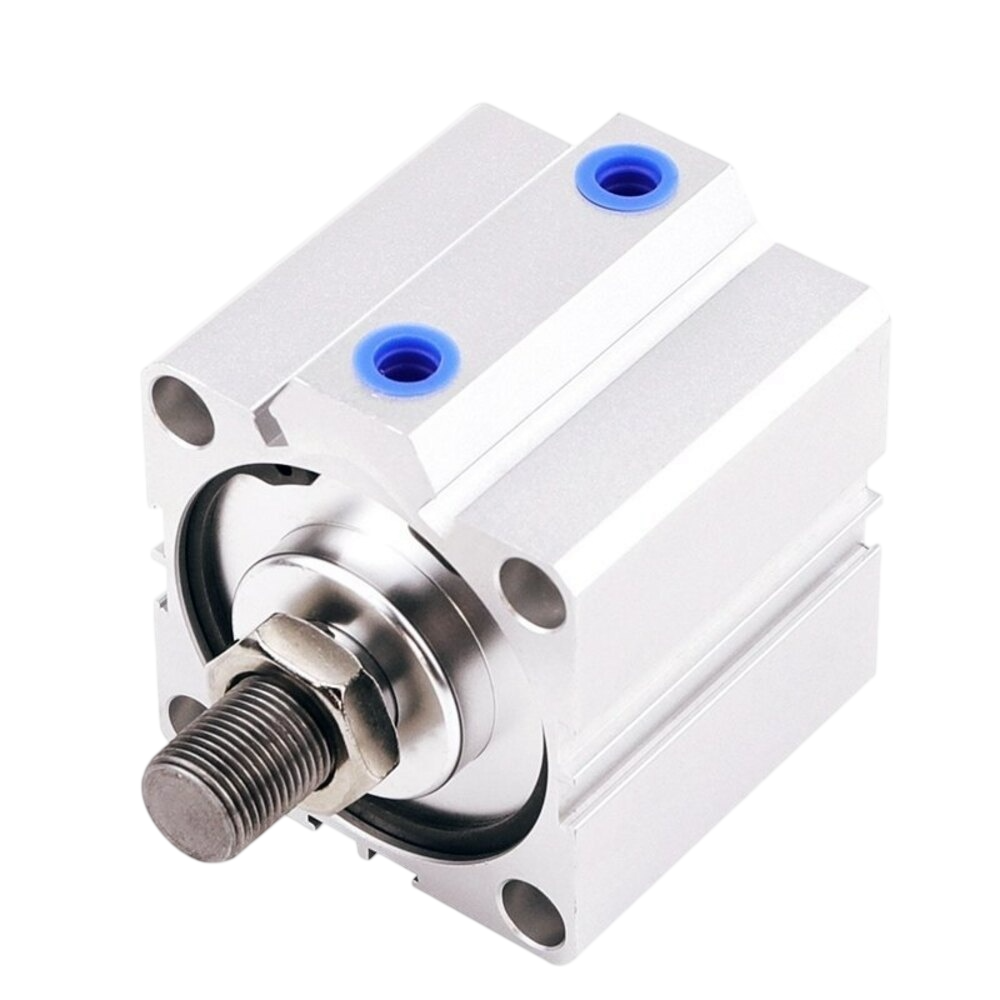

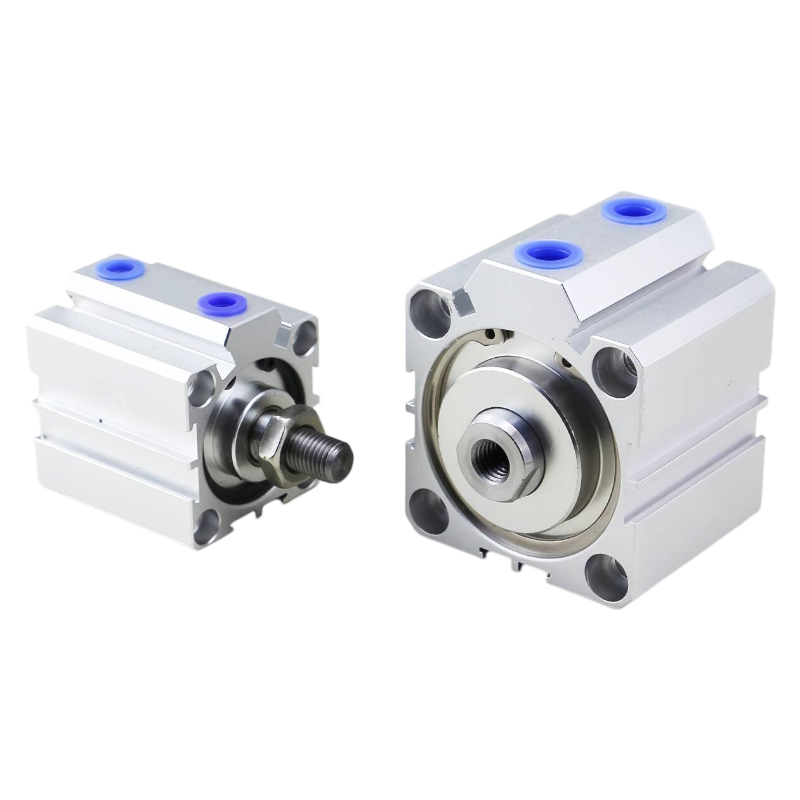

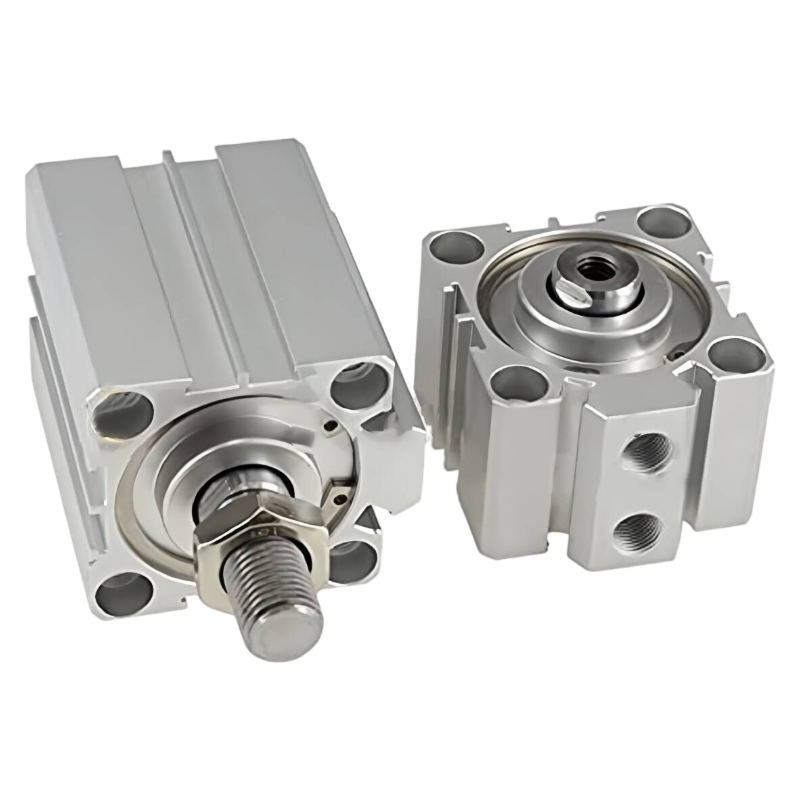

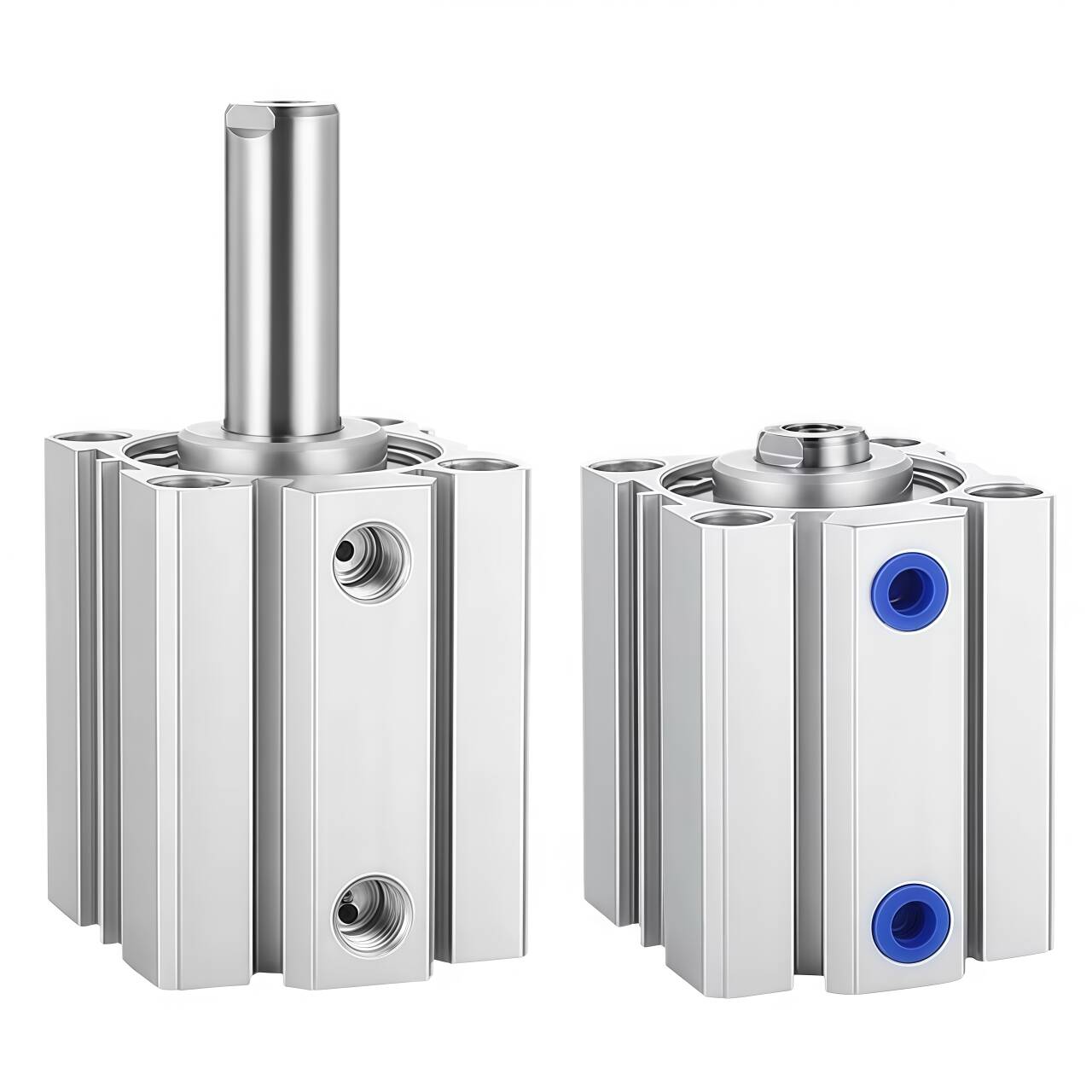

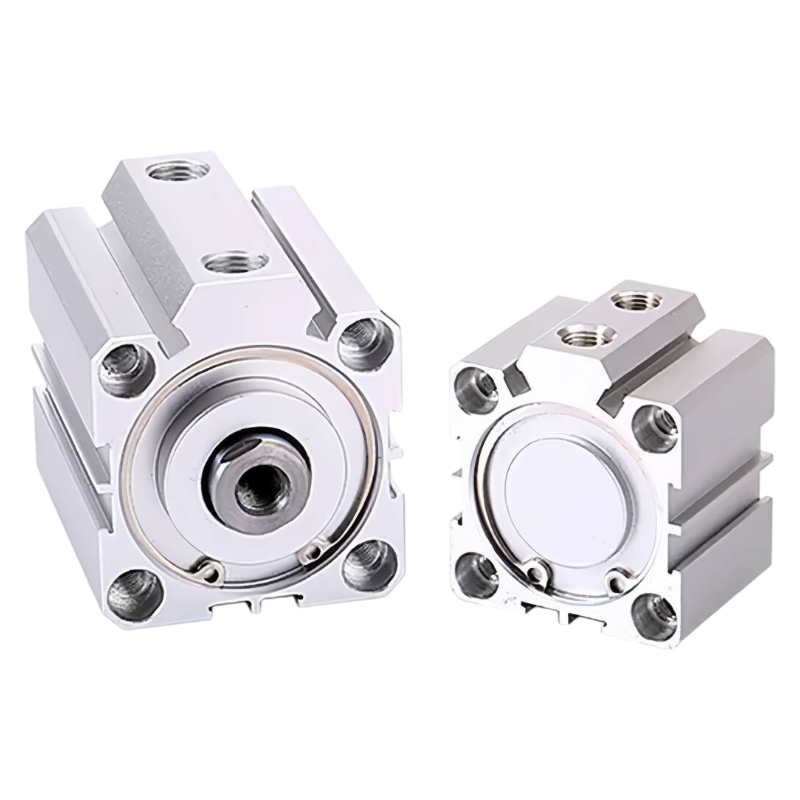

SDA
XHNOTION
8412390090
L/C, T/T, Western Union, Paypal, Money Gram
Ningbo, China
10000 PCS Per Month
CARTON
20 PCS
ISO 21287
Double Acting
Hard Anodized Aluminum Alloy
Carbon Steel Hard Chrome Plated / Optional SUS304
NBR + PU
12,16,20,25,32,40,50,63,80,100
5mm ~ 100mm
0.1 ~ 1.0 MPa
Filtered Compressed Air
-20℃~+80℃
Feature
1. Complies with ISO 21287 international compact cylinder standard, mounting dimensions interchangeable with mainstream European ADVU series thin cylinders.
2. Ultra-thin flat compact structure, 50% less installation space than ISO15552 tie rod standard cylinder.
3. Double acting bidirectional output thrust, stable force, reserved magnetic sensor groove for position detection.
4. Cylinder barrel adopts hard anodized aluminum alloy, scratch-resistant and anti-oxidation.
5. NBR+PU composite sealing parts, oil-proof, wear-resistant, effectively prevent internal and external air leakage.
6. Optional SUS304 stainless steel piston rod and fasteners, anti-rust for food, pharmacy, sewage environments.
7. Complete supporting repair seal kits, easy disassembly maintenance, reduce after-sales cost.
8. Complete bore range:12/16/20/25/32/40/50/63/80/100mm, customizable stroke 5mm~100mm.

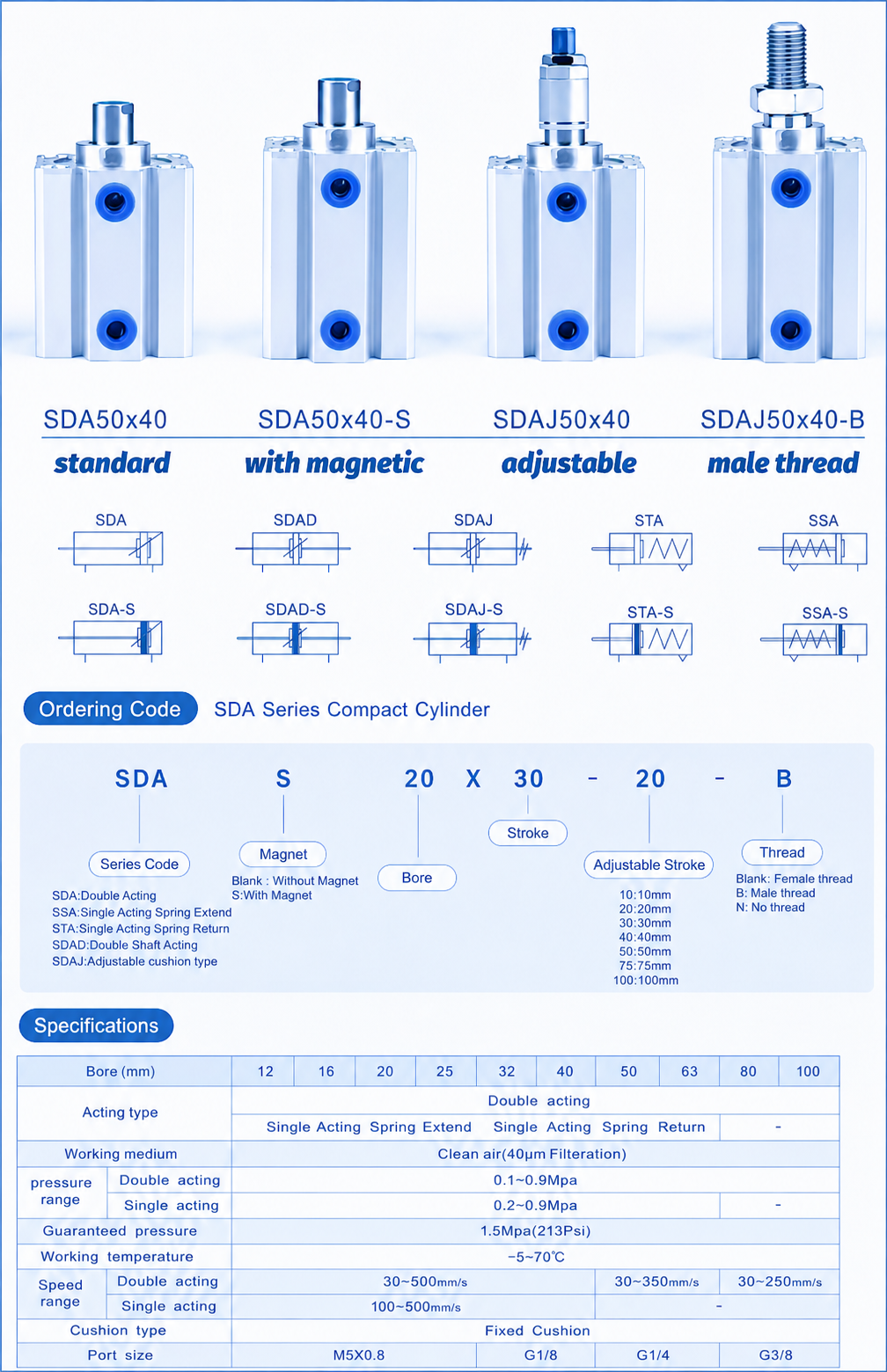

Specification

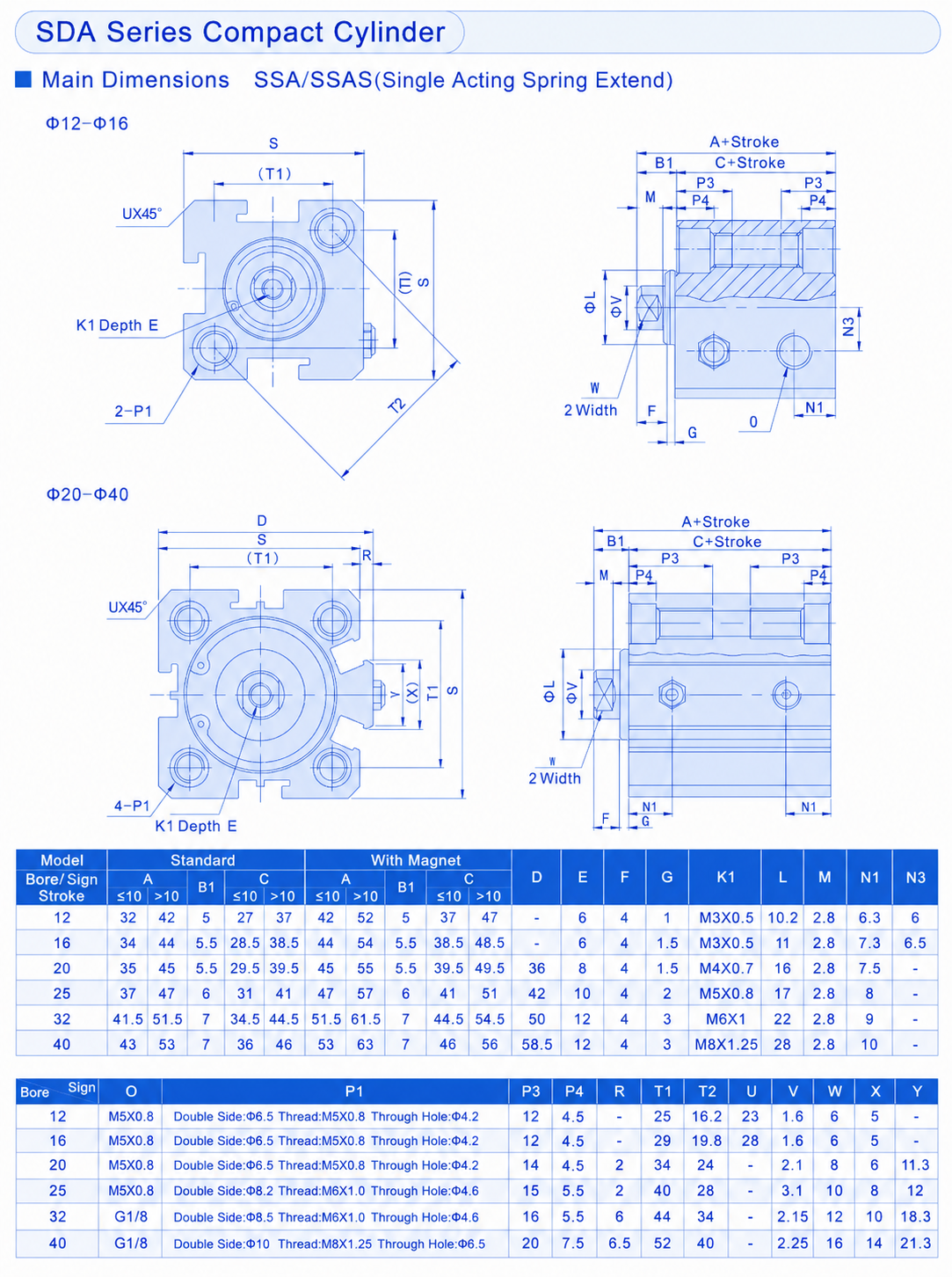

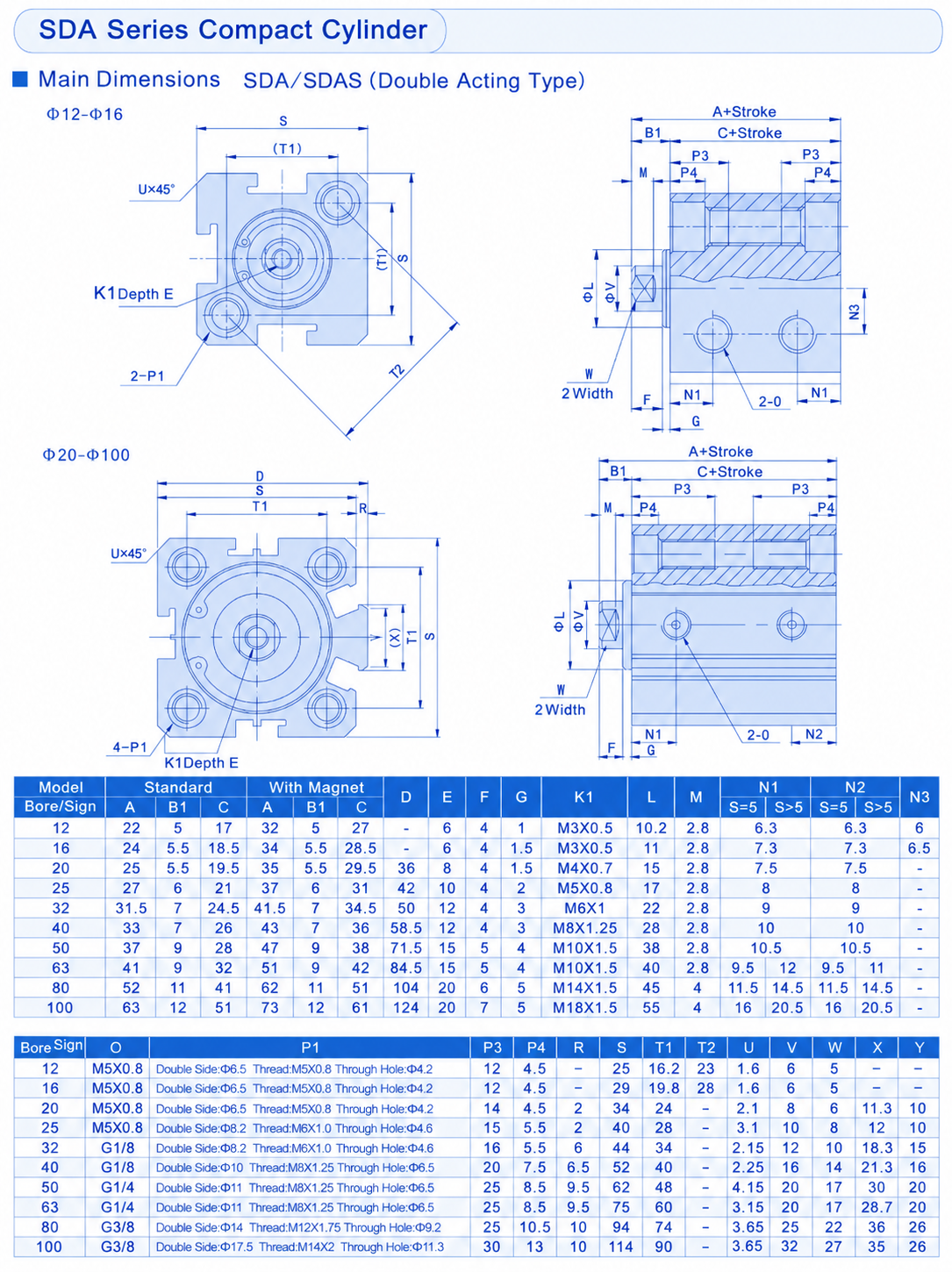

Dimensions

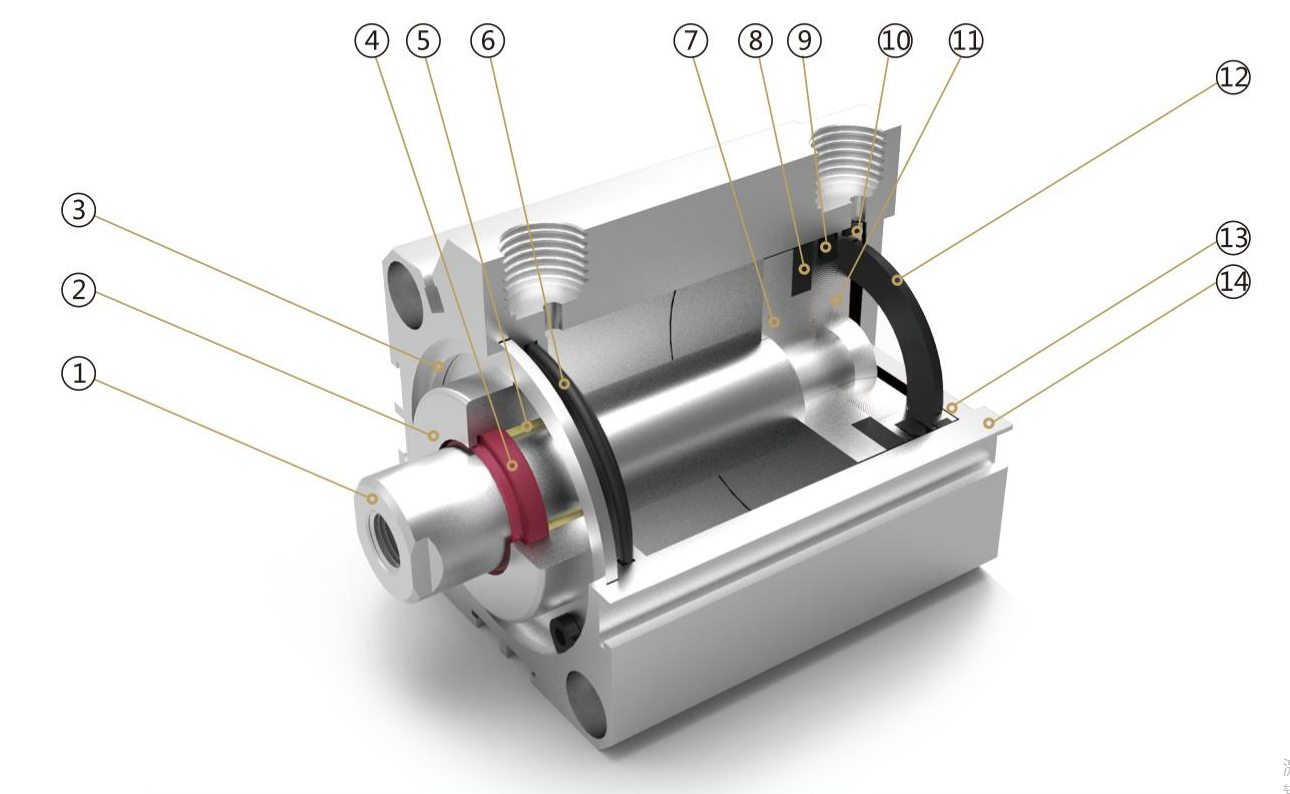

Structure
No. | Part Name | No. | Part Name |
1 | Piston Rod | 8 | Magnet Ring |
2 | Dust Seal | 9 | Rear End Cap O-Ring |
3 | Rod Seal | 10 | Rear End Cover |
4 | Front End Cover | 11 | Cylinder Tube |
5 | Front Buffer Seal | 12 | Front End Cap O-Ring |
6 | C-Type Piston Seal | 13 | Rear Buffer Seal |
7 | Piston | 14 | Retaining Snap Ring |
