SDA Cylinder Kits
XHNOTION
8412390090
L/C, T/T, Western Union, Paypal, Money Gram
Ningbo, China
10000 PCS Per Month
CARTON
20 PCS
ISO 21287

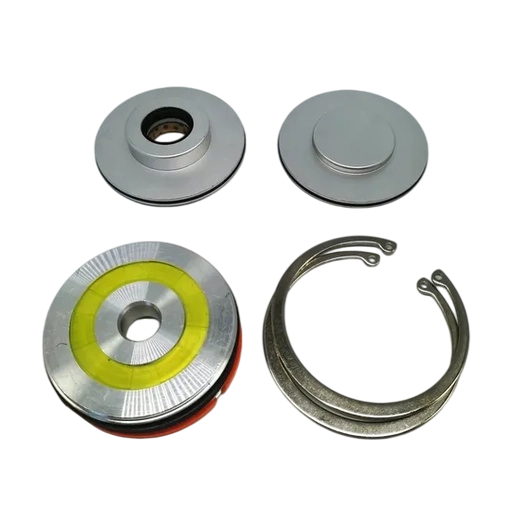

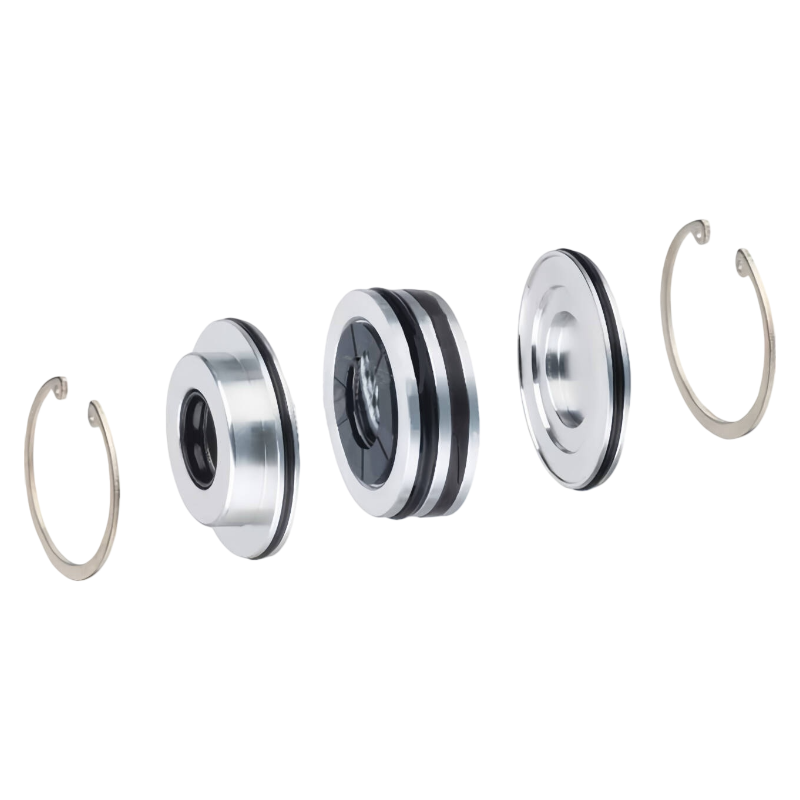

Full Assembly Components Kit
Seal Repair Maintenance Kit
0.1 ~ 1.0 MPa
Filtered Compressed Air

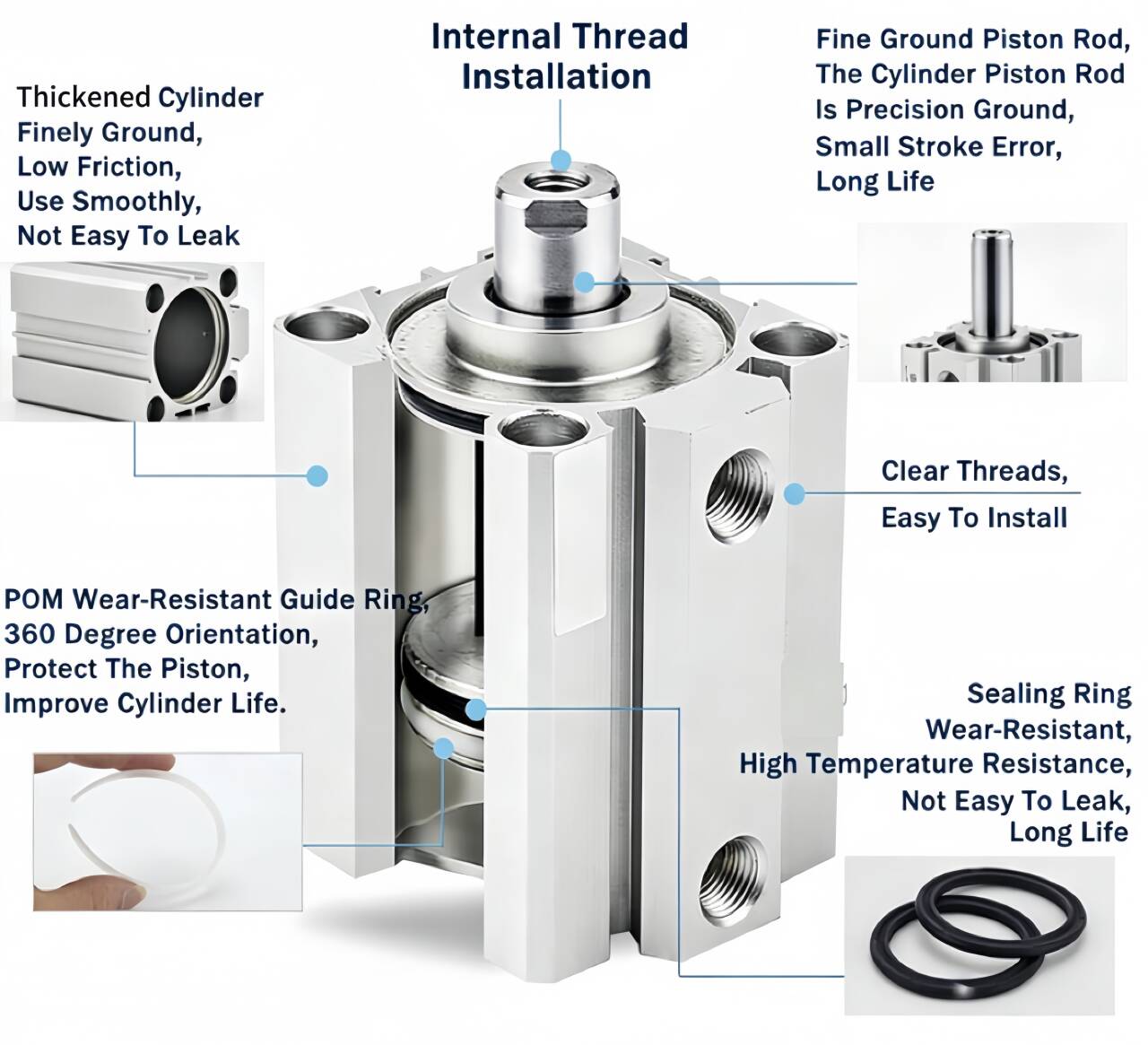

Feature
1. Conform to ISO 21287 global compact cylinder standard, fully interchangeable with European ADVU thin cylinder components.
2. Two kit options for different demands: full assembly component kit for self-assembly, seal repair kit for daily maintenance replacement.
3. Standard structural parts adopt hard anodized aluminum; SUS304/SUS316 stainless steel piston rod, barrel and fasteners optional for anti-rust & anti-corrosion.
4. Standard sealing material NBR+PU, outstanding oil resistance, wear resistance and anti-aging; FKM fluororubber seals available for high temp & chemical working conditions.

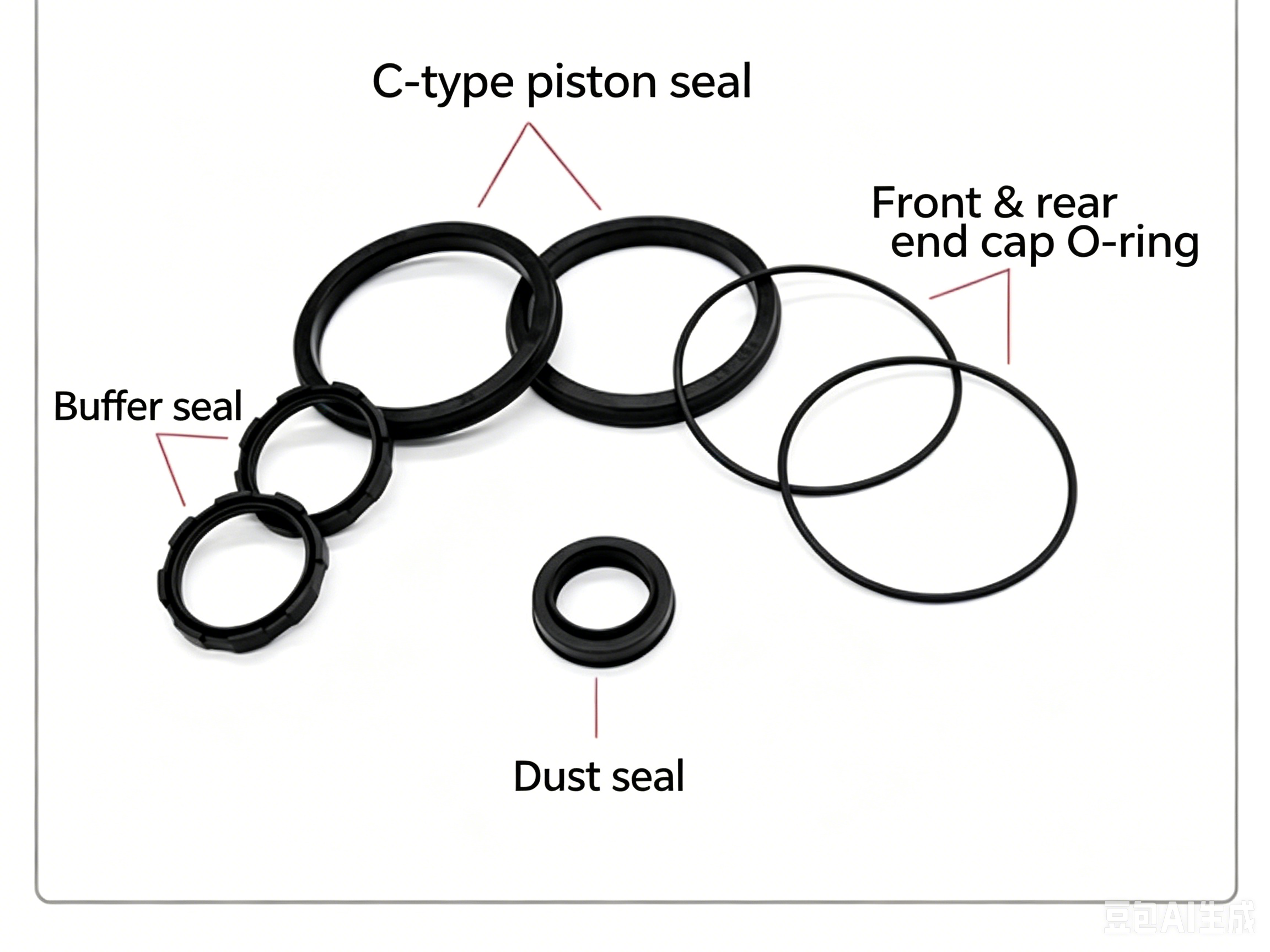

5. Complete matched spare parts: piston rod seal, piston seal, wear ring, cushion ring, O-rings, bearing and all mounting hardware.
6. Precise manufacturing tolerance, perfect fit SDA 12/16/20/25/32/40/50/63/80/100mm bore thin cylinders, no air leakage after installation.
Specification
Item | Specification |
Product Name | SDA Series Compact Cylinder Kit |
Standard | ISO 21287 |
Two Kit Types | 1. Full Assembly Components Kit; 2. Seal Repair Maintenance Kit |
Standard Barrel Material | Hard Anodized Aluminum Alloy |
Optional Anti-Corrosion Parts | SUS304 / SUS316 Stainless Steel Barrel, Piston Rod, Screws & Nuts |
Standard Seal Material | NBR + PU |
Optional Seal Material | FKM Fluororubber (High Temperature & Chemical Resistance) |

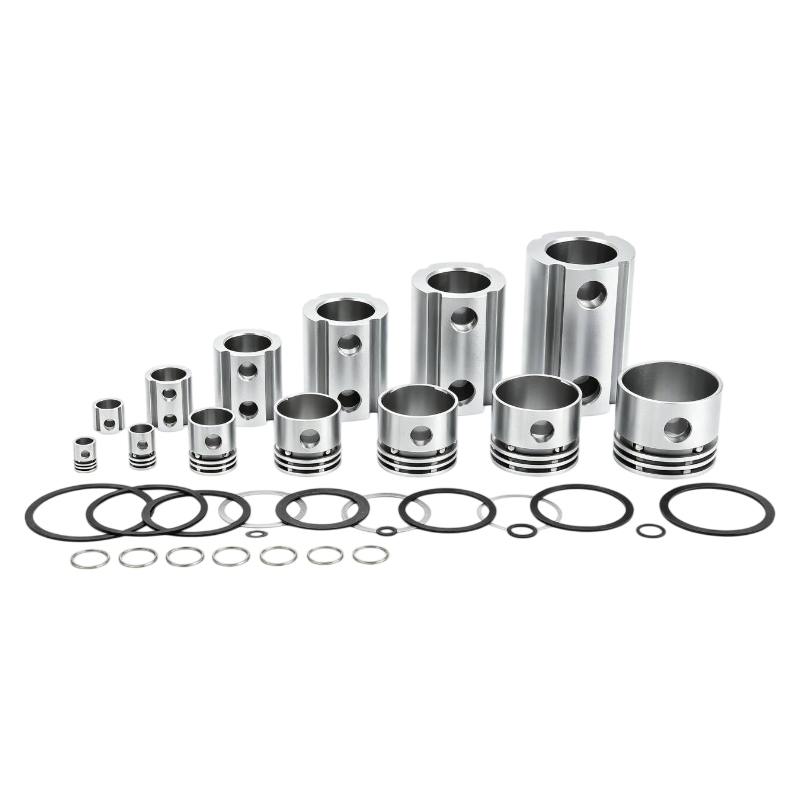

Applicable Bore Sizes | 12,16,20,25,32,40,50,63,80,100 mm |
Matching Cylinder Stroke | 5mm ~ 100mm Customizable |
Rated Working Pressure | 0.1 ~ 1.0 MPa |
Working Medium | Filtered Compressed Air |
Working Temperature | -20℃ ~ +80℃ (NBR+PU); -20℃ ~ +180℃ (FKM) |

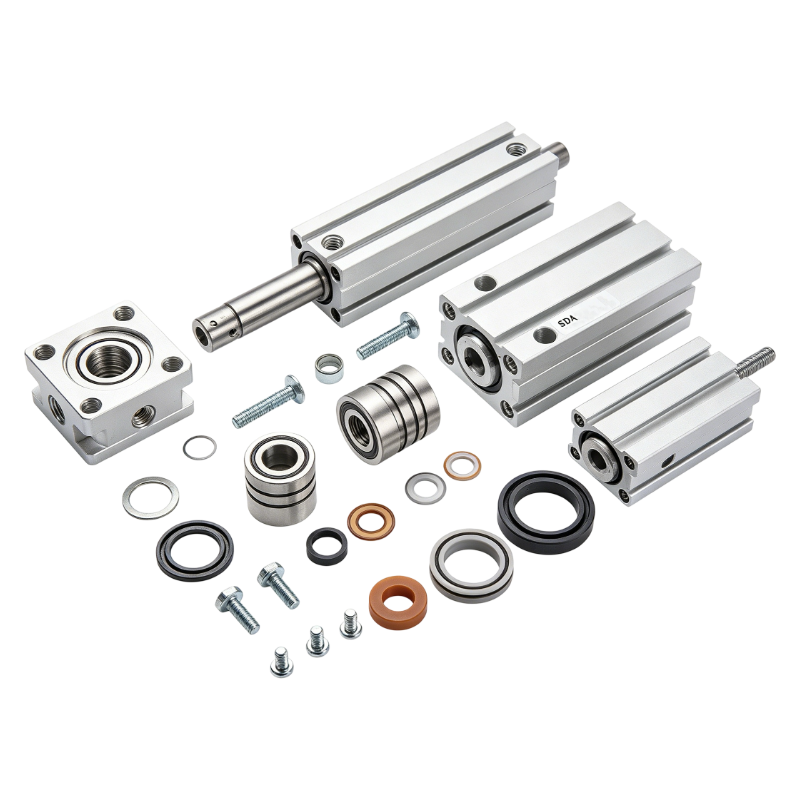

Kit Included Parts | Assembly Kit: Barrel, End Caps, Piston, Piston Rod, Fasteners, Full Seals |

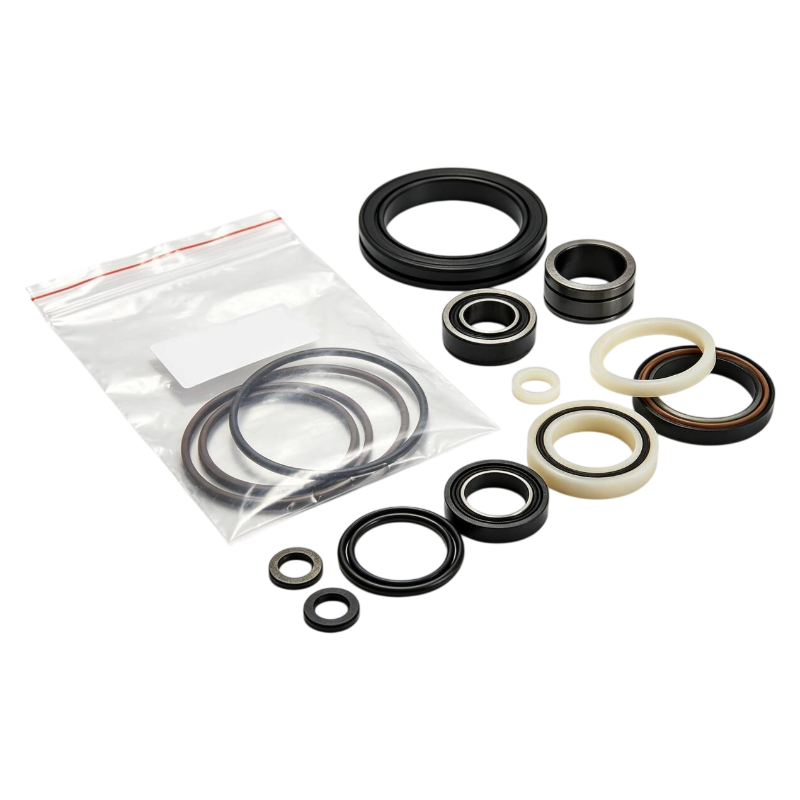

Repair Kit: Rod Seal, Piston Seal, O-rings, Wear Ring, Cushion Ring | |
Application | Automation Clamping Fixture, Food Packaging Machine, Electronic Assembly Line, Printing & Pharmacy Equipment |

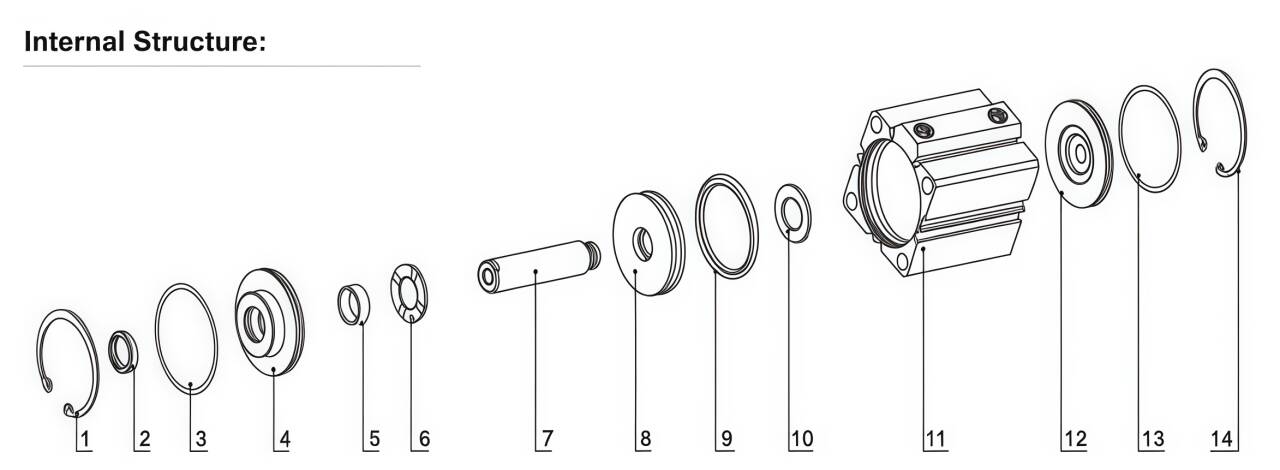

Structure
NO | Designation | NO | Designation | NO | Designation | NO | Designation | NO | Designation |
1 | C type buckle | 4 | Front cover | 7 | Piston rod(Without) | 10 | Anti-bump cushion | 13 | Cover O-ring |
2 | Front cover seal | 5 | Self Lubricating bearing | 8 | Piston | 11 | Barrel(Without) | 14 | C type buckle |
3 | Cover O-ring | 6 | Anti-bump cushion | 9 | Piston Seal | 12 | Back cover | — | — |
Material
Part name | Material | Part name | Material |
Front cover | Aluminum alloy | Piston seal | NBR |
Back cover | Aluminum alloy | Self-lubricating bearing | PTFE+Brass |
Piston | Aluminum alloy | Magnet (optional) | RbFeB |
Piston rod (Without) | S45C hard chrome carbon steel | C type buckle | Steel |
Barrel (Without) | Hard anodized aluminum | Nut | Carbon steel |
Anti-bump cushion | NBR | Muffler | Cu |
Cover O-ring | NBR | - | - |
